As an audio enthusiast, understanding how to use a patchbay can significantly simplify your work while maximizing your productivity.
The system changes the signal path in studios (music, TV, film, radio), increasing the studio’s flexibility without requiring many individual cables.
Particularly in an era where sophistication meets technology, using a patch bay has become essential for anyone pursuing their passion or profession in the audio realm.
Bridging something as complex as this in a layman’s language can certainly be tricky.
If I’ve learned one thing through all my experience with audio setups over the years, anyone can become a maestro with some guidance.
So, let our journey into unraveling the functionality of a patchbay begin.
Let’s paint this technical canvas with colors of simplicity and understanding and take your audio game several notches up!
What is a Patchbay?
A patchbay is a hardware device, usually found in recording studios or broadcasting studios, that allows for easy routing and re-routing of audio signals.
It provides a centralized point where all the inputs (microphone lines, instrument lines, etc.) and outputs (speakers, recording devices, etc.) can be connected.
With a patch bay, you can keep your cables tidy, reduce wear and tear on your equipment’s physical inputs and outputs, and make fast, convenient changes to your signal flow by simply plugging in different patch cords.
Different Types of Patchbays
When it comes to patchbays, understanding the specific characteristics of each type is essential. This knowledge helps in determining which patchbay suits your needs best.
Generally, we can divide patchbays into three critical types based on their signal routing behavior – Normal, Half-Normal, and Thru mode.
Normal Mode Patchbay
The Normal or Closed mode Patchbay is all about automatic routing. Daily, I’ve noticed that most audio setups have certain connections that are almost permanently required. With a Normal way Patchbay, these fixtures become more convenient.
In this configuration, signals automatically pass from the top to the bottom jack when no plug is inserted in the bottom jack (input-output rule).
When you insert a plug into the bottom jack, it breaks this ‘normal’ path. Consequently, you can reroute the signal elsewhere.
Also Read: How To Structure The First Flute Lesson? [Expert Advice]
Half-Normal Mode Patchbay
I find Half-Normal mode exceptionally useful when – as an engineer – I want to tap signals off without disrupting or breaking any existing connections.
Also known as ‘Split Normal,’ in Half-Normal mode, even if a plug is inserted into the bottom jack for signal extraction (a process known as ‘multing’), it doesn’t interrupt the usual path.
This attribute makes Half-Normal ideal for live sound applications or recording multiple outputs simultaneously.
Thru Mode Patchbay
We have Thru or ‘Non-Normal’ mode patches that work slightly differently from Normal and Half-Normal patchbays. In Thru mode, there’s no internal connection between the top and bottom jacks.
Therefore, if nothing’s plugged in – there’s no signal flow! This works amazingly well when incorporating items like outboard gear- compressors, reverb units, etc., where you don’t want any automatic connection without an inserted plug.
Whether setting up your first studio or upgrading existing gear, understanding these key types helps you make an educated decision that suits your unique audio needs!
What Are the Rules of Using a Patchbay
Like every technology, the patchbay operates on fundamental principles that ensure a seamless connection between your audio devices.
Understanding these rules is crucial in unmasking how a patchbay functions. Here, we will talk about these guiding principles.
Rule 1: Top Jacks for Outputs
In patchbay lingo, outputs can easily be referred to as sources. Your sound originates from this source, be it instruments, microphones, or DAW channels.
Typically, you’ll connect your output cables to the top row of jacks on the patchbay.
Picture the top jacks as a broadcasting station transmitting all those musical sounds from your synthesizer or guitar. The inputs (that we will discuss soon) act as receivers tuned in to catch this audio broadcast.
Rule 2: Bottom Jacks for Inputs
In contrast to outputs, the bottom jacks are designated for inputs, aptly thought of as destinations.
These include devices where you want your audio signals to flow into—recording interfaces, speakers or headphone amplifiers.
The principle here is simple—the terminal point of each sound path must align with some device’s input port.
Labels do come in handy at this stage! Use labeled tags on corresponding cables according to device names to make identifying them hassle-free.
Also Read: How To Upgrade Your Flute? [A Comprehensive Buying Guide]
Rule 3: Connections Happen from top to bottom
For this rule, exceptions exist in specific situations depending upon whether you’re using a normalled or non-normalled setup—more on that later.
Generally speaking, though, connections within a patchbay operate in a top-to-bottom manner, hand-in-hand with Rule 1 and Rule 2.
Think of patch cables as couriers that help carry signals from one place to another.
For instance, plugging one patch cable end into an output (on the top jack) and the other end into an input (on the bottom jack) ensures signal flow—directing sound exactly where it should go!
By engaging with these rules, we demystify some jargon and can also envision why using a patchbay takes our workflow efficiency up by several measures.
Overview of Various Types of Patchbay Connections
When it comes to patchbays, they’re not a one-size-fits-all solution. There are different types of connections that you can use, depending on your specific needs and the design of your audio setup.
Here I’ll present an overview of three popular types of patchbay connections – RS, TS, and XLR.
RS Connections (Ring Sleeve)
The RS or Stereo Jacks primarily use stereo equipment or balanced devices.
They have two conductors and work well with balanced audio signals, typically providing noise cancellation that can benefit setups with the potential for electromagnetic interference.
These commonly fit into a 1/4″ jack space on the patch panel and are divided from their tip connection through a thin band called an insulating ring.
The conductors carry the audio signals while the sleeve typically takes grounding.
TS Connections (Tip Sleeve)
TS or Mono Jacks, unlike their RS counterparts, have only one conductor plus a ground.
These are typically used in signal paths dealing with unbalanced gear – think guitar cables, line-level instruments, etc.
Mono jacks are more straightforward due to their single-channel transmission quality, which might be advantageous in less complex audio setups.
Here, you will mostly find them fitting into 1/4″ jack spaces on your patchbay panel.
XLR Connections
For those familiar with professional sound reinforcement or studio applications, XLR won’t be a new term.
This type boasts three pins carrying positive and negative signals (for balanced connections) and ground and provides both superior noise rejection & signal transmission across longer cable distances.
XLR connectors guarantee easy locking and unlocking action to prevent sudden disconnections from accidental tugs—hence popular within the professional audio circuit extending from microphones to speakers.
With these three fundamental types of patchbay connections explained above—RS, TS, and XLR—you should now have a clearer picture of how each connector functions within the framework of your setup.
It’s all down to what fits your particular audio setup configuration best! Use trial and error with different connections until you fine-tune your path toward seamless sound production.
Also Read: How To Use Music To Help Your Mental Health? [Expert Tips]

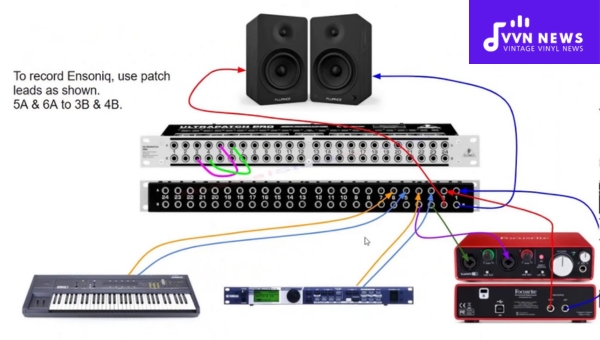

How to Use a Patchbay
You’ve understood what a patchbay is; now it’s time to learn how to use it. Here are some essential steps to aid you in setting up your patchbay effectively.
Choosing the Right Type of Patchbay
Regarding patchbays, three types generally exist – Normal-, Half-Normal-, and Thru-mode patchbays.
- Normal mode patchbays automatically route their topmost to bottom plugs. When you plug a cable into the bottom, it breaks or interrupts the connection, receiving a new signal.
- A Half-Normal mode does function similarly to Normal mode, but plugging in somewhere else doesn’t break this connection – it splits, sending your input signal to two destinations.
- Last is the Thru mode, appropriate for devices that require manual wiring for each connection setup since no automatic routing happens.
Selecting the correct type will depend on your exact needs and the kind of equipment in use.
Planning Your Cable Routing Process
Proper planning is critical for successful execution when using a patchbay. Scheming every cable route avoids confusion during actual installation and operation.
Start by documenting your studio gear, followed by mapping out your design with regards to signal flow – source (where audio originates), processing (mixer board), and output (recording interface).
Connecting Your Equipment Correctly
The general rule of thumb is that outputs are on top, while inputs at the bottom. Some exceptions could be accommodated depending on how you visualize your routing system.
Most connections will typically use balanced cables such as TRS or XLR.
Each device sends a signal (output) and then receives one from another device (input). Speakers are purely output devices, while microphones are exclusively input ones.
Testing Each Connection after Setup
After setting everything up, do an initial run — check whether each connection works as planned.
Play around with different routings – experiment with other outboard effects, swap around inputs/outputs on the fly – giving you an idea of how much more flexibility you’ve got with a patchbay installed!
Be vigilant about any technical glitches or sound problems that might creep in during this testing phase.
Labelling Everything for Easy Identification
Whether a large-scale pro-studio setup or a compact home recording station, your patchbay can soon transform into a complex maze of connections.
Labeling everything as clearly as possible is crucial for seamless operation and troubleshooting.
Ordinary adhesive labels or stickers can be helpful for this. Also, color-coded cables can further aid in distinguishing between different lines.
Consider using spreadsheet software (like Microsoft Excel or Google Sheets) to maintain a comprehensive guide for your setup.
A sample labeling could be:
- “Mic 1 IN”, “Mic 1 OUT”, “Keyboard L&R,” “Guitar DI” etc.
This brings us to the end of the basic rundown on using a patchbay.
Good planning, correct setup techniques, and thorough testing are essential to successfully unleashing the true power of your studio’s central hub — the humble yet irreplaceable patchbay.
Also Read: How To Teach Breath Control? [Easy Exercises For Singers]
Essential Tips When Using a Patchbay
From my experience in managing complex studio setups, I’ve collated some essential tips to streamline the process when using a patchbay.
Important Cable and Label Guides
Labeling your cables and jacks is the first step toward maintaining an organized patchbay system.
Despite it seeming like a time-consuming task, it’s worth every minute when trying to locate that elusive lead in a jumble of seemingly identical cables.
- Use labels that are durable and easy to read. Colored adhesive tapes can serve as significant visual indicators.
- Mark both ends of each cable with the name of the equipment they connect.
- Ensuring proper cable management reduces wear and tear from unnecessary tugging and pulling.
Creating a Patchbay Diagram
One cannot underestimate the value of having an up-to-date patchbay diagram.
This sheet acts as your road map through your studio’s jungle of interconnected devices – guiding you swiftly to your desired destination.
- Draw up a basic layout of your patchbay on paper or digitally using appropriate software.
- Mark each input and output point and align them with their corresponding equipment.
- Keep updating your diagram whenever there are changes in the equipment setup.
Double-checking Phantom Power Settings
One topic that often leads to debate among audio enthusiasts is phantom power.
In some cases, sending phantom power through connected mics can lead to damage – yet, in other scenarios, it’s required for operation!
So my advice, especially for those embarking on their initial patchbay journey, Is to double-check whether any connected device needs phantom power.
If not required, make sure you have it switched off to bridge any chances of potential device damage.
Avoiding Duplication during Operations or Setup
In all things audio-related (and life in general!), avoid duplication! Believe it or not, duplication crops up way too often than one may think.
If you have split signals from multiple sources feeding into one destination—ensure these are handled appropriately!
Various outputs from an audio source can result in destructive interference—leading to poor audio quality or, in worse-case scenarios—damage!
So those were some insider tricks from yours truly: the label master—cable connector—phantom power controller, and most importantly—the relentless duplicator checker!
A splash of this wisdom goes a long way, transforming that heap of cables into the brains behind an efficient studio setup.
Also Read: How To Keep Christmas Music Lessons Fun Online? [Easy Tips]
FAQs About patchbay
What is the primary function of a patchbay in a studio?
A patchbay is an organized central system connecting and directing signals between various audio devices within a studio.
How does a patchbay improve work efficiency in the studio?
It eliminates the need for constant plugging and unplugging of various audio devices directly, thus speeding up workflow and maintaining an organized setup.
What types of connections are available in Patchbays?
Typically, patchbays make use of 1/4″ TRS (Tip-Ring-Sleeve), TS (Tip-Sleeve), or XLR connections, depending on your gear setup.
Are there different modes in which a patchbay can function?
Yes, Patchbays come in different modes ranging from normal to half-normal and to thru modes, each with unique signal routing characteristics.
Why is it important to label a patchbay?
Labeling enhances clarity when working with multiple connections. It saves time trying to trace specific cables and prevents unintentional connection errors.
Conclusion
Understanding how to use a patchbay is crucial for anyone involved in audio production.
With various types (Normal, Half-Normal, and Thru) and connections (RS, TS, and XLR), a patchbay offers immense flexibility for signal routing in your studio.
The golden rules of usage: Top jacks for outputs and bottom jacks for inputs. Always test your connections after setup and label everything for easy future reference.
Ahoy, mateys, your voyage into the land of successful audio signal control is now set! Embrace the efficiency a patchbay brings on board — enjoy hassle-free connections with this remarkable innovation in audio technology.
