Several elements come into play in sound and audio engineering to generate the perfect sound.
It’s almost like creating a symphony, with each instrument playing its unique role. One such element that often causes many people to scratch their heads is phase cancellation.
So, what is phase cancellation? Stated it’s when two sounds match in frequency and amplitude but out of phase annihilate each other when combined.
Phase cancellation could be your best friend or worst enemy in the intricate world of audio engineering.
Think of it as a double-edged sword; it can contribute to producing great recordings when used appropriately, but if misunderstood or overlooked, it could also cripple even the most astoundingly arranged composition.
Now buckle up because we’re going on a revealing journey to unlock this mystery called phase cancellation.

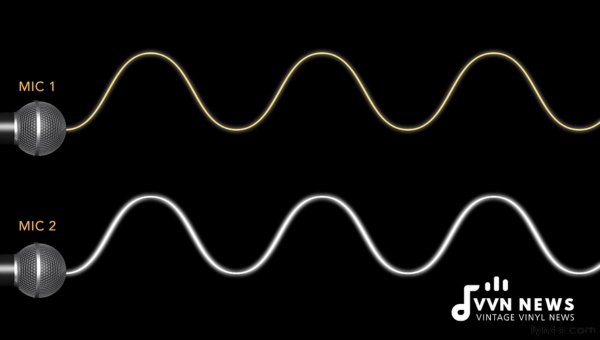

What Is Phase Cancellation?
Phase Cancellation is an acoustic phenomenon that happens when two audio waves of the same frequency are out of phase, reducing or eliminating the sound. This occurs when one waveform’s compression (high pressure) coincides with the other’s rarefaction (low pressure), causing them to cancel each other out.
The result is a diminished or entirely muted sound. Phase cancellation can be an issue in multi-microphone recording setups or poorly placed speakers but can also be deliberately used for creative effects in music production and sound design.
This might sound like an anomaly or error, but it’s not always unwanted. Phase cancellation can be a valuable tool for audio engineers.
It eliminates or decreases specific frequencies in a track to generate room for other elements or clarify the overall mix.
Nevertheless, unintended phase cancellation can harm your mix, so understanding when and where it occurs is essential.
This simple concept forms a crucial part of audio production and manipulation. Mastering it can indeed open doors for producing sonically intricate and balanced compositions.
Also Read: 20 Best Phaser Pedals [Top Picks For Epic Sound Effects]
Causes Behind Phase Cancellation
Many factors come into play in causing phase cancellation, but today, we’ll dive deep into the three primary culprits behind this sonic phenomenon.
Inadequate Microphone Usage
One of the primary causes behind phase cancellation is the misuse of microphones during recording.
When you place two mics at varying distances from a single sound source, they capture the same sound with different time delays.
Since sound travels at a finite speed, this slight delay could cause one mic to record the wave’s peak while the other records a trough – thereby inducing phase cancellation.
If you’re recording using two or more mics (I.e., drum kit or guitar amplifier), it’s essential to understand and experiment with mic placement.
Using techniques like the 3:1 rule, which suggests that each microphone used should be placed thrice the distance apart as they are from the source, could help reduce phase issues substantially.
Instrumental Doubling & Extreme Panning
Instrument doubling is when you record an instrument twice with identical performance and then pan one recording to the extreme left and another to the extreme right in your stereo field to create a broader sound image.
This certainly provides an expansive soundscape but can potentially trigger phase cancellation when listened to in mono.
Mono compatibility is crucial, especially when your music is played on devices that sum mono tracks to mono, like smartphones or specific PA systems.
While instrumental doubling produces a vibrant stereo image, consider its potential risk and use this technique judiciously.
Effect of Comb Filtering
Comb-filtering can also lead to significant phase cancellation issues. It occurs when a signal path combines with a delayed version (this could arise in multiple mic recordings or reflections off nearby surfaces).
The resultant frequency response shows several evenly spaced dips – giving it the appearance of a comb – hence its name.
Phases at these frequencies cancel each other out due to destructive interference causing noticeable gaps in your sound’s frequency spectrum.
Comb filtering can severely compromise your mix by eliminating parts of your audio’s essential content.
How To Detect Phase Cancellation?
Being aware of phase cancellation is one thing, but being able to detect it in your audio tracks is another crucial aspect of this sonic phenomenon.
As an audio enthusiast or professional, it’s paramount to understand how to identify phase cancellation in your mixes.
For that purpose, I’ll elaborate on three practical techniques: testing sound on stereo speakers, the mono mixing method, and implementing specialized plugins for spotting phase cancellation.
Test Your Sound on Stereo Speakers
First, one elementary yet reliable method involves testing your sound on stereo speakers.
Phase cancellation often appears as a lack of bass or thinner sounding mix when you listen to your track in stereo.
However, our ears are sometimes unreliable judges due to their non-linear frequency response. This method should ideally be part of a broader strategy for detecting phase issues.
Mono Mixing Method
Another superb technique implicates the use of mono-mixing. This involves changing your mix from stereo to mono and observing if any voices or instruments vanish or significantly diminish from the mixture.
Since phase cancellation becomes more pronounced in a mono setting than stereo, you’re more likely to notice these issues in a mono mix.
- Choose any track you suspect could have phase cancellation.
- switch your DAW (Digital Audio Workstation) into mono mode instead of listening in the usual stereo settings.
- Now listen carefully, analyzing if any sounds are disappearing or reducing drastically.
If you notice such discrepancies while applying the mono mix setting, then the chances are high that you may be dealing with phase cancellation issues.
Also Read: Can We Mix Bass In Stereo? 2024 [Mixing The Kick Drum & Bass]
Employ Specialized Plugins for Spotting Phase Cancellation
The world of digital audio workstations (DAWs) offers specialized plugins for detecting elusive culprits such as phase cancellations.
One example is Voxengo PHA-979 which isn’t just designed to show you where there might be issues; it is also built to help correct them!
These plugins analyze waveforms for overlapping frequencies and give visual indications wherever destructive interference may occur due to phase misalignments.
Leaving unchecked phase cancellation within your mix may diminish some elements or frequencies undesirably.
Start implementing these practical techniques and tools today to produce precise, superior-quality audio!
Preventing Phase Cancellation
Phase cancellation can be a formidable adversary when producing or mixing songs or tracks.
Understanding how to forestall its occurrence is an essential aspect of sound engineering. Some practical techniques can nip phase cancellation right in the bud.
Correct Positioning of Microphones
Phase issues can easily creep in when recording the same source with multiple microphones.
Each microphone picks up sound at slightly different times, leading to phase displacement between the sounds they capture.
A slight delay might seem trivial, but phase cancellation occurs when these sounds are combined.
The trick here is utilizing the 3:1 rule while placing your microphones. This rule suggests that the distance between two mics should be three times the distance from each mic to its source.
Following this rule ensures that any discrepancy in phase will be minimal and less likely to cause noticeable cancellation effects.
Individual Room Recording
Another approach to preventing unintended phase cancellation is isolating each instrument in a separate room during recording sessions – an ‘individual room recording’ approach.
This way, there’s no chance of microphones assigned for one instrument picking up sounds from another source, resulting in simpler and cleaner mixing stages.
Changing the Phase
Sometimes, tweaking the placement of your mics doesn’t suffice or isn’t a practical option due to constraints such as space limitations or specific stylistic demands.
In these cases, altering the phase would sidestep any limitations and settle brewing phase issues.
Various methods are available for changing phase; one popular way is flipping/inverting the polarity switch on your mixing console or audio interface for one channel out of two identical ones with opposing steps.
Application of Phase Plugins
With technological leaps revolutionizing every field and offering groundbreaking solutions, there’s no shortage of great tools for audio engineers that tackle complex problems like phase cancellations head-on.
Phase Correction plugins are among those audio plugins specifically designed to handle simple and complex phase issues efficiently without having extensive know-how about acoustics or physics.
Companies like Izotope, Waves, and Little Labs offer professional and versatile plugins that identify traces of potential destructive interference and provide comprehensive solutions to address them.
Preventing phase cancellation boils down to thoughtful planning during recording and strategic implementation at mixing stages paired with the productive use of technological aids where necessary.
Also Read: 25 Fundamental Audio Mixing Tips & Techniques of 2024
6 Techniques to Tackle Phase Cancellation in Mixes
Once you grasp the concept of phase cancellation, the next step is learning how to manage it in your mixes. Here are six techniques that can help you tackle phase cancellation:
Halt Phase Cancellation at the Outset
The best practice is to prevent phase cancellation even before it occurs. This primarily implies proper microphones and instrument positioning during the recording process.
Ensure all sound sources and mics are appropriately placed to capture a more genuine sound without any phase-related issues.
You can also employ the “3:1 rule,” which dictates that the distance between two mics should be three times the distance from each mic to its intended sound source.
Following this guideline helps reduce potential microphone interference, thereby decreasing phase cancellation possibilities.
Explore Beyond Polarity
Just flipping polarity (an effective method on its own, no doubt) sometimes isn’t enough to address complex phasing issues.
There are creative ways, though, like offsetting one waveform slightly from another (also known as ‘sliding’) or adjusting an instrument’s mic position to avoid undesired cancellations.
This would require a keen ear and preciseness because even shifting by milliseconds can enormously impact your output.
Nonetheless, experimenting with different positions until you find a sweet spot can work wonders!
Inspect Overlapping Drum Sounds
While mixing drum tracks, avoid overlapping sounds with a high risk of inducing phase cancellations.
Bass and snare drum hits present a typical scenario; both produce low-frequency rumble resonating at similar frequency bands, leading to potential cancellations.
Tools like spectrum analyzers could assist you in spotting these overlaps visually. Once identified, tuning your drums differently or employing equalization (EQ) could remedy this issue without substantially altering your drum tone.
Be Mindful While Correlating Sound EQing
When implementing EQ modifications on layered or similar sounds (like multiple guitar tracks), avoid accidentally creating frequency mismatches, causing phase cancellations.
For instance, using subtractive EQ on one guitar track to create space for another part might seem logical, but it may trigger phase issues if done excessively.
Instead of rushing into drastic EQ alterations, gentle carving while focusing on frequency overlaps can help foster healthier mixes.
Utilize Stereo Imaging Plugins Sparingly
Many engineers resort to using stereo imaging plugins to create expansive and immersive sonic spaces – an approach that can lead to phase problems if mismanaged.
These plugins manipulate the left and proper signal phases; excessive use or improper settings quickly stir up artificial stereo width, only leading to problematic mono compatibility due to rampant cancellations.
Applying these sparingly and continually cross-checking your mix in mono is recommended to identify any lurking phase gremlins.
Turning “Phase Issues” into Opportunities
Instead of perceiving it as a potential problem always haunting your mixes, consider using phase cancellation creatively.
A classic example is the ‘Haas Effect’, where you strategically delay one stereo channel slightly more than the other, yielding a comprehensive and lively stereo image without destroying mono compatibility entirely.
Simultaneously, it enriches your audio with widened appeal when listened to through Headphones or in a Stereo setup. It might lose its charm when switched over to Mono mode!
FAQs About phase cancellation
How do you reduce phase cancellation?
You can reduce phase cancellation by aligning tracks in time, flipping the phase one way, using a delay or phase adjustment plugin, or re-recording the out-of-phase material.
What is the opposite of phase cancellation?
The opposite of phase cancellation is phase addition or constructive interference, where one wave’s peak aligns with another’s peak, amplifying the signal.
Can we hear phase shift?
Yes, in some situations, we can hear phase shift. It can affect the timbre of sounds and cause changes in spatial perception, although it’s often subtle.
How do you detect phase cancellation?
You can detect phase cancellation by listening carefully for thin or hollow sounds in your mix. Visualization tools such as vectorscopes or phase meters can also help.
What is the difference between comb filtering and phase cancellation?
Phase cancellation results from two identical audio signals aligning out of phase, reducing the amplitude. Comb filtering, on the other hand, is a type of phase cancellation occurring at multiple frequencies, creating a series of peaks and troughs.
Conclusion
Phase cancellation can make or break your audio mix. It’s a complex yet intriguing facet of sound manipulation.
Understanding phase cancellation allows you to create cleaner and sharper combinations.
Still, one must avoid unintended occurrences resulting in a muddy mix.
Remember to always check for phase issues before finalizing any track. Experimentation and practice are key here; over time, you’ll gain discernment toward utilizing phase cancellation as a creative tool rather than viewing it as an obstacle.
