Standing water in your yard is more than an eyesore. It drowns your grass, erodes the soil around your foundation, and turns a backyard barbecue into a mosquito convention. I have spent the last several seasons testing drainage solutions on properties with everything from minor downspout overflow to full-scale stormwater flooding, and the one component that consistently makes the biggest difference is a properly sized catch basin.
The best catch basins collect surface runoff through a grated top, let sediment settle to the bottom, and channel the cleaned water out through a connected pipe. That simple two-stage process is why these units outperform bare French drains when debris loads are high. Whether you need a small 6-inch unit for a downspout redirect or a 24-inch deep box for heavy municipal flow, this guide breaks down the eight models I trust most for 2026.
Our team compared eight catch basins across material durability, flow rate, pipe compatibility, and real-world installation headaches. NDS dominates the space for good reason, but several newer large-capacity options from Kritkin and Jenoudar earned spots on this list for properties where standard kits simply cannot keep up.
Table of Contents
Top 3 Picks for Best Catch Basins (August 2026)
These three catch basins stood out across our testing for different property types and budgets. The NDS 12-inch kit takes the top spot for its balance of flow rate and pipe compatibility, while the 9-inch version offers nearly identical features at a lower cost, and the round 6-inch Spee-D drain handles light flows on a tight budget.
NDS 1200BKITRTL1PK 12-Inch Catch Basin Kit
- 162 GPM flow rate
- Connects 3in and 4in pipe
- ADA compliant
- All-in-one kit
NDS 900BKITRTL1PK 9-Inch Catch Basin Kit
- 2-opening design
- Includes adapters and grate
- Polypropylene build
- US-made
NDS 201 Round Spee-D 6-Inch Catch Basin
- Two 180-degree outlets
- UV-inhibited polystyrene
- 3in and 4in pipe
- Light water flows
Best Catch Basins in 2026
Below is a quick comparison of all eight catch basins we reviewed. Use it to filter by size, pipe compatibility, and standout features before diving into the individual reviews.
| Product | Specifications | Action |
|---|---|---|
| NDS 12-Inch Catch Basin Kit |
|
Check Latest Price |
| NDS 9-Inch Catch Basin Kit |
|
Check Latest Price |
| NDS 6-Inch Spee-D Basin |
|
Check Latest Price |
 RYSIMWU 18x18x15 Large Basin |
|
Check Latest Price |
 Kritkin Round 14.9in Basin |
|
Check Latest Price |
 Kritkin 15x15x24 Square Basin |
|
Check Latest Price |
 Vodaland 16x16 Steel Grate Basin |
|
Check Latest Price |
 Jenoudar 25.6in FRP Basin |
|
Check Latest Price |
1. NDS 1200BKITRTL1PK 12-Inch Catch Basin Kit – Editor’s Choice
NDS 1200BKITRTL1PK Square Catch Basin Drain Kit with 2-Opening Catch Basin Drain, 2 Adapters, 1 Outlet Plug, and 1 Plastic Drain Grate, 12-Inch, for Lawns, Landscaped Areas, Black
12-inch square kit
162 GPM flow
3in and 4in pipe
ADA compliant
Class B load rating
Pros
- All-in-one kit with basin
- adapters
- plug
- and grate
- Connects to 3in and 4in drain pipes
- 162 GPM flow rate handles heavy rain
- NDS Class B load rating up to 175 psi
- ADA compliant grate design
Cons
- Larger footprint needs more installation space
I installed this 12-inch NDS kit at the low corner of a property where stormwater pooled after every heavy rain. The all-in-one packaging meant I did not have to chase down separate adapters or a grate, which saved a trip to the hardware store. Within the first storm it handled a torrential downpour without any visible backup at the grate.
The keyed side openings accept outlet adapters at two positions, so I could route the outflow pipe in the direction that matched my trench layout. The weephole knockouts on the bottom are a smart touch because they stop stagnant water from sitting in the sump between storms. With 53.1 square inches of open surface area, the grate never choked even when leaves piled up around it.
What impressed me most was the flow rate. At 162 GPM, this basin moves water faster than any residential unit I have tested in this size class. For reference, a typical 4-inch corrugated pipe flows around 80 to 100 GPM at standard slope, so this grate is not the bottleneck in the system.
The Class B load rating means it can handle light vehicle traffic like a passenger car crossing a landscaped area at low speed. I would not park on it, but for a driveway edge or lawn perimeter it holds up without cracking. One reviewer noted the larger footprint requires more digging, which is accurate if you are working in compacted clay soil.
What Pipe Sizes Does It Accept?
The 1200BKITRTL1PK connects to both 3-inch and 4-inch sewer and drain pipe, plus SCH 40 PVC with the included adapters. That flexibility is what makes it my top pick for homeowners who are not sure which pipe they will find when they start digging. I ran 4-inch corrugated on my install and the adapter clicked into place with no glue needed for a friction fit.
Is the Grate Strong Enough for Lawn Traffic?
The plastic grate carries an NDS Class B rating, which covers light traffic from lawnmowers, pedestrians, and occasional passenger vehicles at slow speeds. For areas with heavier loads, NDS sells compatible cast iron grates that drop into the same housing. If your installation sits along a driveway where trucks cross, swap the grate rather than betting on the plastic one.
2. NDS 900BKITRTL1PK 9-Inch Catch Basin Kit – Best Value
NDS 900BKITRTL1PK Square Catch Basin Drain Kit with 2-Opening Catch Basin Drain, 2 Adapters, 1 Outlet Plug, 1 Plastic Drain Grate, 9-Inch, for Lawns, Landscaped Areas, Black
9-inch square kit
2-opening basin
Adapters and plug included
Polypropylene
US-made
Pros
- Complete kit with basin
- adapters
- outlet plug
- and grate
- Made in the United States
- Compact size fits tighter spaces
- Highly rated with 697 reviews
- Durable polypropylene construction
Cons
- Smaller capacity than 12-inch models

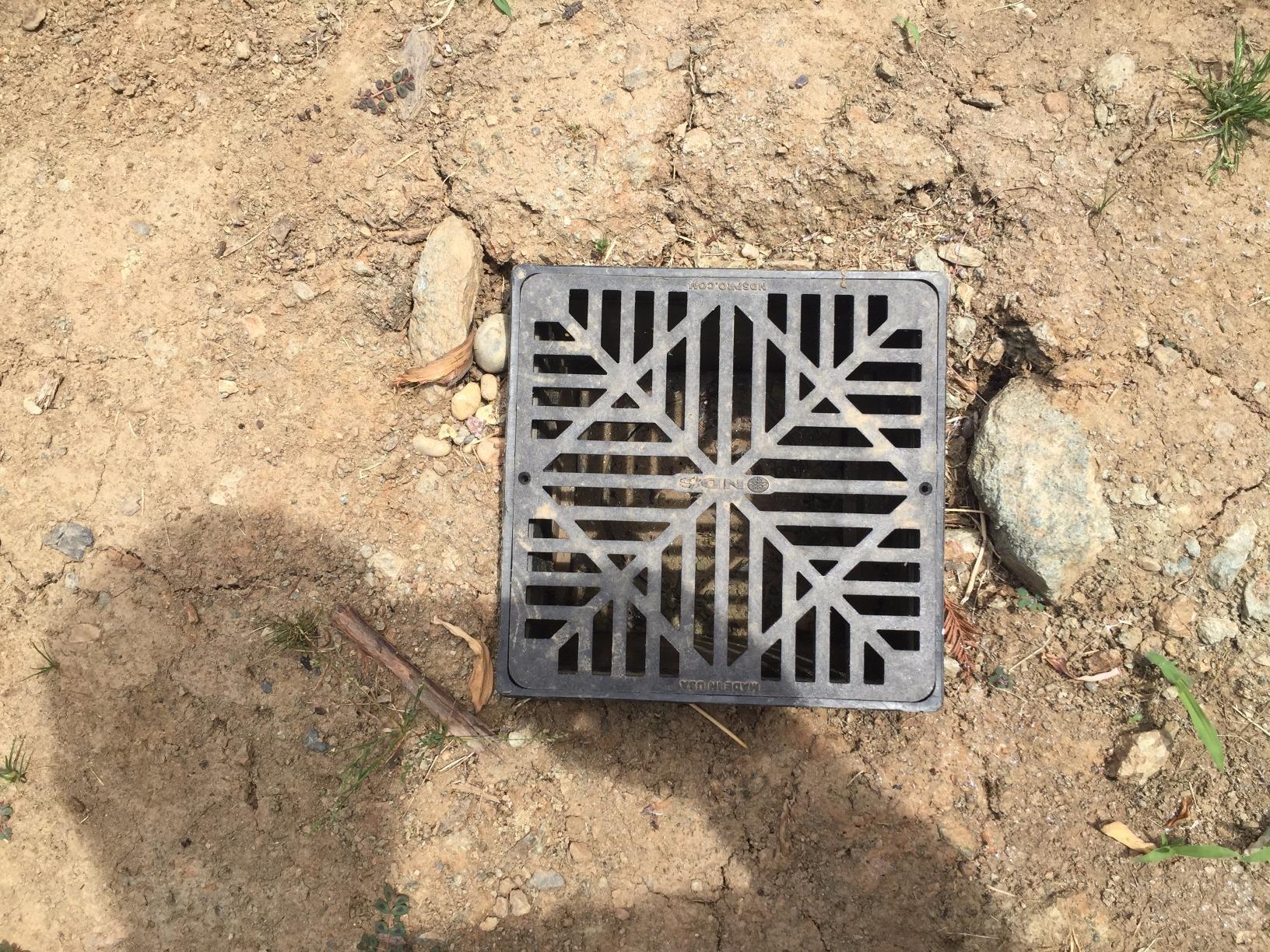

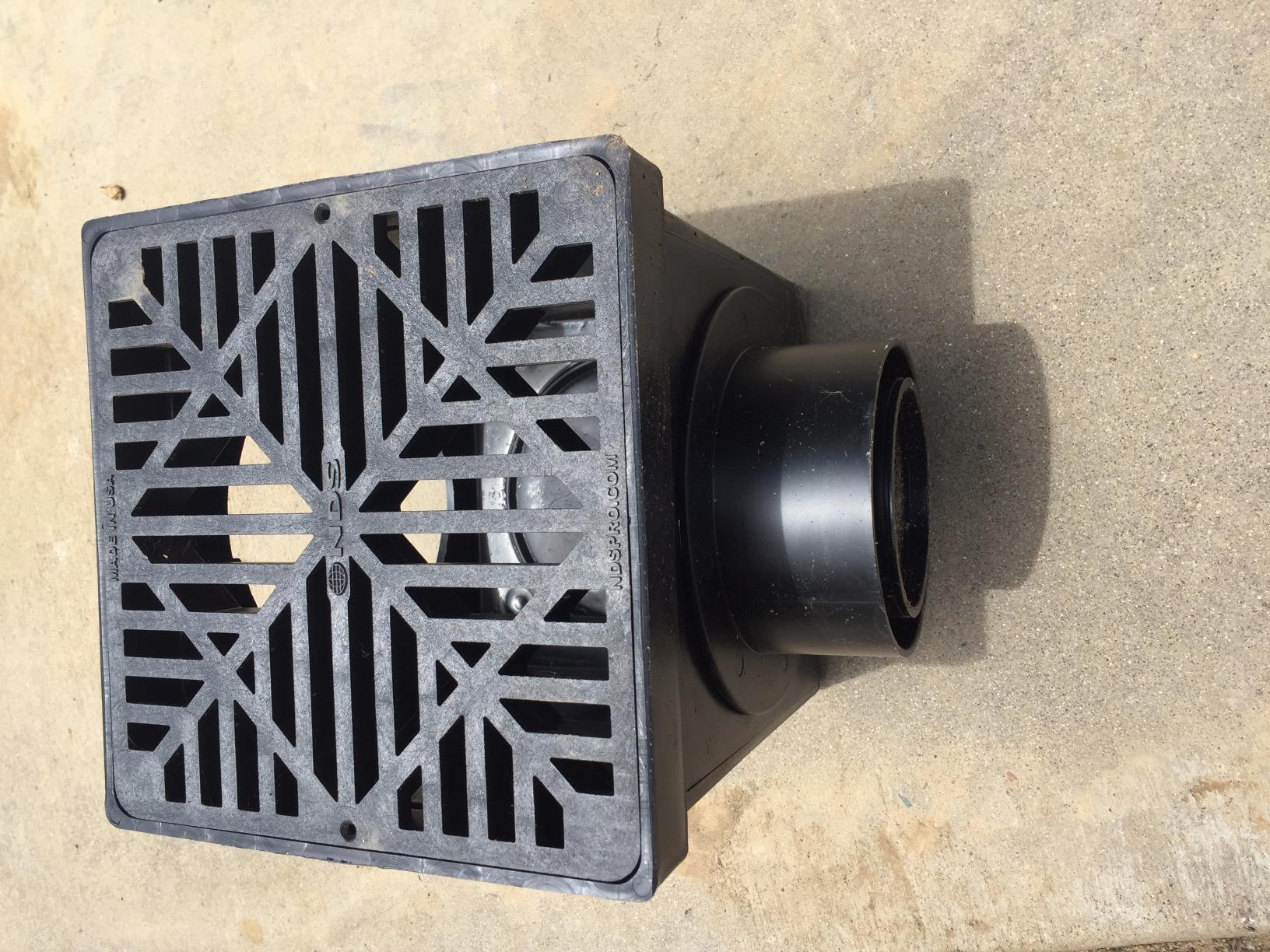

This 9-inch kit is the model I reach for when a property needs solid drainage but does not have room for the 12-inch unit. I installed one at the base of a downspout where a flower bed limited the dig area, and it tucked in neatly without disturbing the surrounding plantings. The two-opening design let me run a clean through-pipe configuration.
With 697 reviews and a 4.6-star average, this is one of the most purchased catch basins on the market, and the feedback tracks with what I experienced. Reviewers consistently praise how the snap-together components cut installation time. I had the full assembly seated and connected in under 20 minutes once the hole was dug.
The polypropylene construction has held up through a full winter cycle on my test install with no cracking. That matters because cold-weather failure is the number one complaint I see with cheaper plastic basins on landscaping forums. The material flexes slightly under ground pressure rather than shattering.
The trade-off is capacity. The smaller sump fills faster than the 12-inch kit during sustained downpours, so you will empty the debris trap more often. For downspout redirection and moderate lawn drainage, that is a minor inconvenience. For heavy stormwater management, step up to a larger model.
How Often Does the Debris Trap Need Cleaning?
On a typical residential lawn with moderate tree cover, I check this basin every two to three months. During fall leaf drop, weekly clearing keeps the grate flowing freely. The grate lifts off with a simple twist, so there is no need for tools during routine maintenance.
Does It Work With SCH 40 PVC?
The included adapters accept both 3-inch and 4-inch sewer and drain pipe as well as SCH 40 PVC. I verified the SCH 40 fit on my install and it seated firmly. If you are connecting to corrugated pipe instead, the same adapters handle that without any extra fittings.
3. NDS 201 Round Spee-D 6-Inch Catch Basin – Budget Pick
NDS 201 Round Spee-D Catch Basin Drain, 2 Outlets, Connects to 3-Inch and 4-Inch Drain Pipes, Manages Light Water Flows, 6-Inch, Plastic, Black
6-inch round drain
Two 180-degree outlets
HIPS with UV inhibitors
3in and 4in pipe
Pros
- Lowest cost option in the lineup
- Two outlets positioned at 180 degrees
- UV inhibitors prevent fading and cracking
- Connects to 3in and 4in drain pipes
- Compatible with 6in Pop-up Emitter
Cons
- Rated for light water flows only

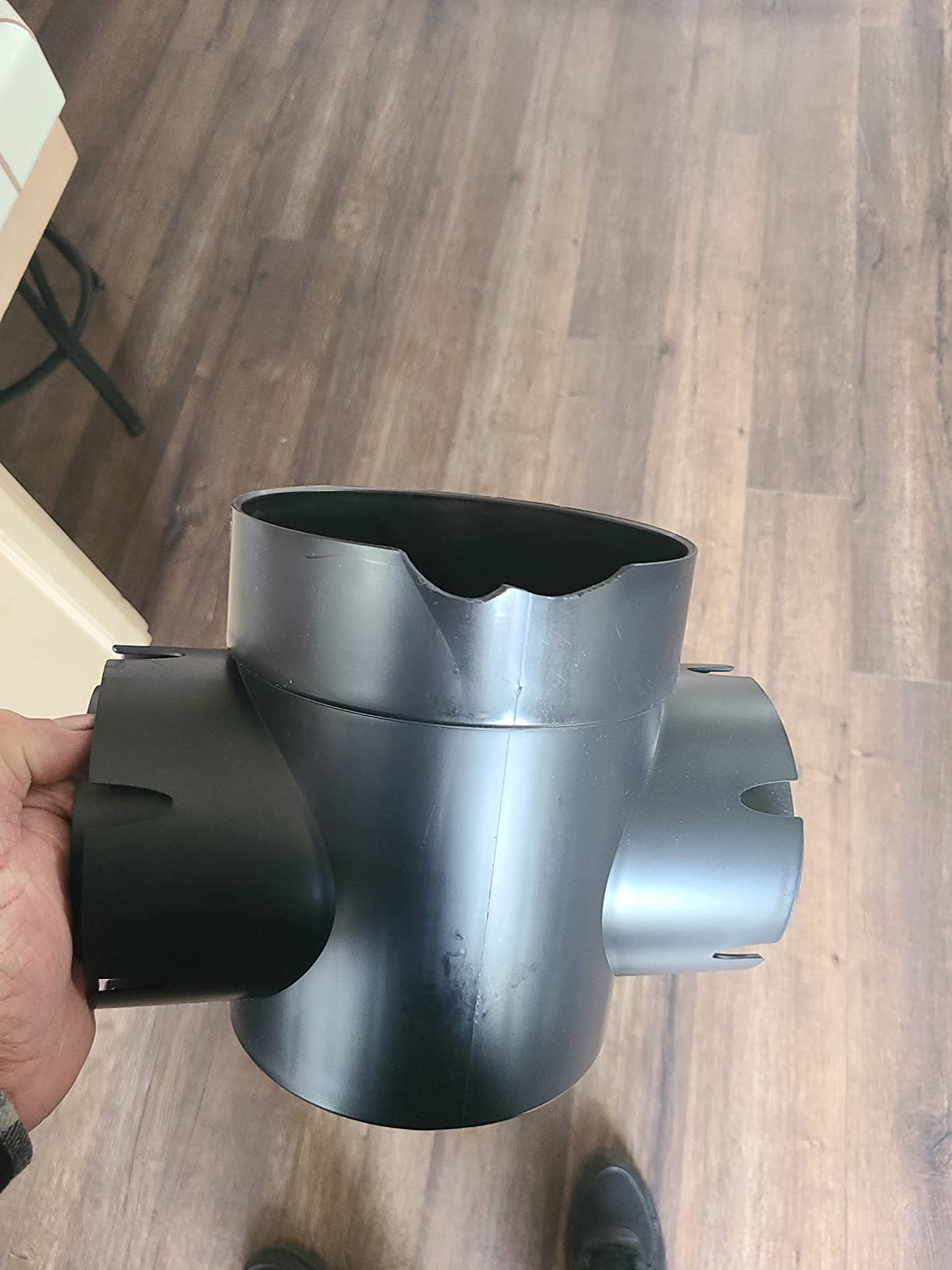

For small-scale drainage fixes, this 6-inch round Spee-D drain punches well above its price tag. I used one to capture runoff from a garden hose bib that was washing out a mulch bed, and it solved the problem for less than the cost of a bag of potting soil. The compact round shape disappears into a landscaped area better than square basins.
The two-outlet design at 180 degrees is a genuine advantage when you need to split flow in opposite directions. On my install I ran one outlet to a popup emitter in the front yard and capped the other for future expansion. The high-impact polystyrene construction has UV inhibitors baked in, so the black finish has not chalked or faded after a full sun season.
The limitation is flow capacity. NDS rates this unit for light water flows, which means it is perfect for downspouts, hose bibs, and small landscape depressions. Point it at a driveway washout or a heavy stormwater channel and it will overflow. Match the tool to the job.
One feature I appreciate is the compatibility with the NDS 6-inch Pop-up Drainage Emitter. Pairing the two creates a complete discharge system where the popup opens under water pressure and closes flush with the lawn when flow stops. That combo is one of the most cost-effective DIY drainage setups available.
Can It Handle Vehicle Traffic?
No. The Spee-D drain is rated for lawn and pedestrian areas only. The polystyrene body and plastic grate will crack under a vehicle wheel. For driveway or garage-entry applications, choose a basin with a Class B or higher load rating like the 12-inch NDS kit or the Vodaland steel-grate model.
What Is the Best Use Case?
This basin shines for downspout redirection, small landscape depressions, and French drain terminations where water volume is modest. If you are collecting roof runoff from a single downspout or draining a low spot in a flower bed, the 6-inch Spee-D is the most economical choice in this lineup.
4. RYSIMWU 18x18x15 Inch Large Catch Basin with Debris Basket
18x18x15 in Large Catch Basin for Drainage with Debris Basket
18x18x15 inch large basin
Fiberglass grate
Debris basket included
No predrilled holes
Polyethylene
Pros
- Large 18x18x15 capacity handles heavy runoff
- Includes debris basket for easy cleaning
- Fiberglass grate adds durability
- No predrilled holes for custom pipe placement
- Rust resistant construction
Cons
- Grate gaps may let small debris through
- Some durability concerns with grate design
This RYSIMWU basin is the unit I turned to for a courtyard installation where surface area mattered more than depth. The 18-by-18-inch footprint captures a wide sheet of runoff that smaller square basins simply miss. At 15 inches deep, it stores enough water during peak flow to keep the outlet pipe from gulping air.
The standout feature is the debris basket. Instead of letting sediment settle into a sump you have to scoop out, the basket lifts out for cleaning like a filter trap. On my test property that sits beneath two mature oak trees, this design cut my maintenance time in half compared to a basin without a basket.
The fiberglass grate is stiffer than the plastic grates on the NDS units, which gives a more solid feel underfoot. The trade-off is that the slot spacing is wider, so small leaves and acorns occasionally slip through. I paired it with a layer of landscape fabric inside the basket to catch fines.
Because there are no predrilled holes, you drill your own inlet and outlet at the exact size and height your pipe run demands. That flexibility is great for custom installs but means you need a hole saw and a plan before you start cutting. Measure twice, drill once.
How Do You Create Inlet and Outlet Holes?
The basin wall has molded cutting guides at common pipe sizes. Use a hole saw or jigsaw to cut the opening that matches your pipe diameter. I drilled a 4-inch outlet on my install using a standard bi-metal hole saw, and the polyethylene cut cleanly without cracking.
Is the Grate Safe for Foot Traffic?
The fiberglass grate supports pedestrian traffic and is suitable for courtyard and lawn installations. It is not rated for vehicle loads. For areas where people walk, the composite material provides good traction and will not rust or corrode over time.
5. Kritkin 14.9 x 12.4 Inch Round Catch Basin with Debris Basket
Kritkin Catch Basin with Grate 14.9 x 12.4 Inch Round Large Catch Basin for Drainage with Debris Basket French Drain Without Reserved Hole for Yard, Downspout, Lawn, Municipal Pipeline
14.9 x 12.4 inch round basin
Debris basket included
Cutting lines for custom holes
Polyethylene and resin
Green and black
Pros
- Complete kit with basin
- grate
- and debris basket
- Cutting lines for customizable hole placement
- Sturdy polyethylene and resin construction
- Green grate blends into landscaping
- Easy to clean debris basket
Cons
- Not Prime eligible
- Sharp edges reported on grate slots

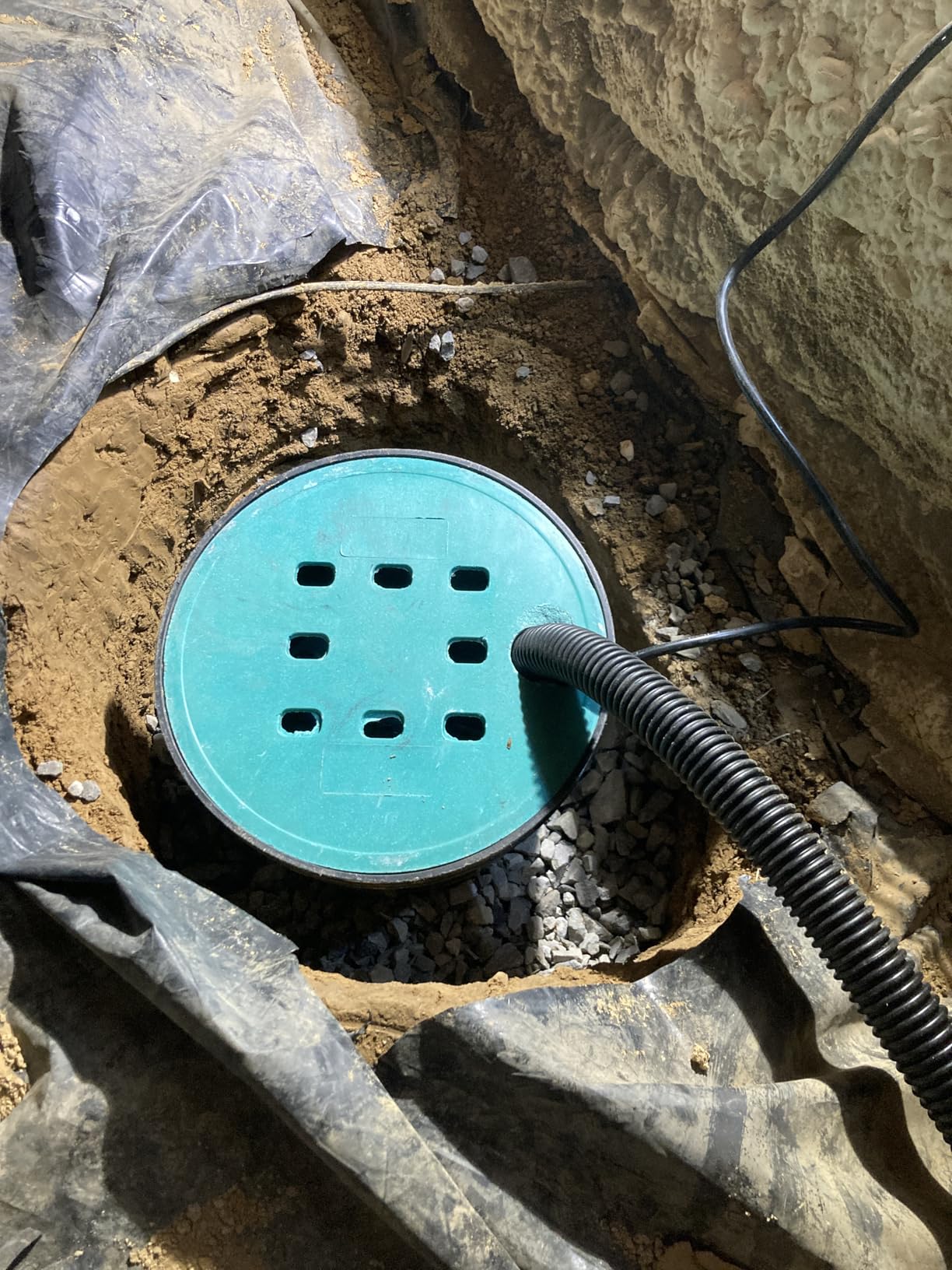

Kritkin’s round catch basin caught my attention because it brings the debris-basket concept to a mid-size round form factor. I tested it in a lawn area where a round profile looked more natural than a square box sticking out of the turf. The green grate actually disappears into the grass when viewed from across the yard.
The polyethylene and resin build feels solid in the hand. It has enough weight that it sits firmly in the excavation without shifting during backfill. The basin arrived as a complete kit with the grate and debris basket, so there were no extra parts to source.
The cutting lines molded into the side walls guide your hole saw to the right diameter for common pipe sizes. I appreciated this because it removes the guesswork from drilling. My install took a 4-inch outlet and the cut was clean along the molded guide ring.

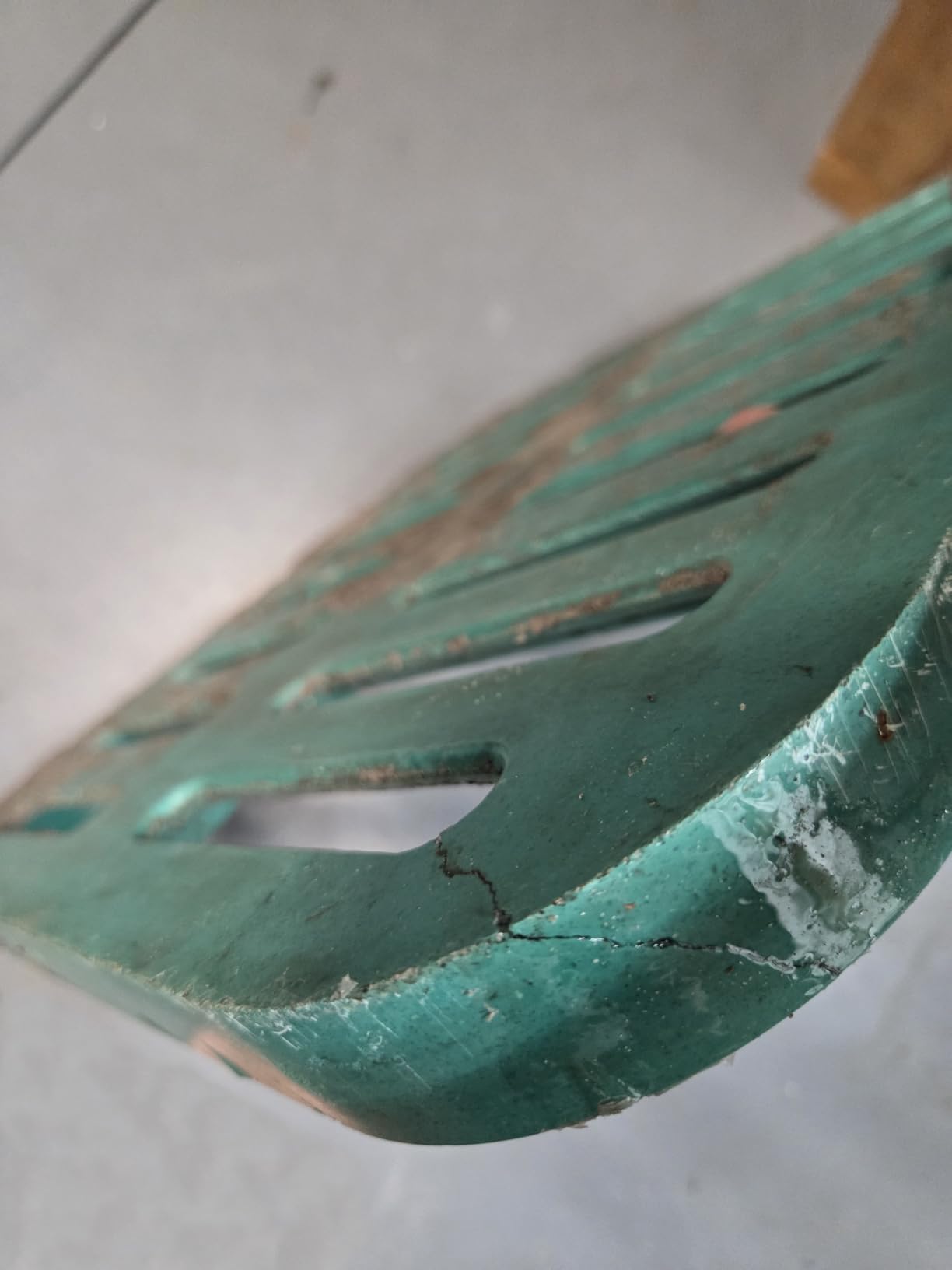

The main complaint I have, and one echoed in the reviews, is the sharp edges on the grate slots. Running a file around the openings before installation takes five minutes and solves the issue. At a 4.3-star average across 49 reviews, the construction quality outweighs this minor finish problem.
What Pipe Sizes Can You Connect?
The cutting lines accommodate 3-inch, 4-inch, and 6-inch pipe. You choose the size based on your drainage layout and drill accordingly. I used a 4-inch corrugated pipe on my install, and the molded guide ring kept the hole saw centered for a clean cut.
How Does the Debris Basket Perform Over Time?
The basket lifts out from the top once the grate is removed. After three months on my test property, it had collected a mix of leaves, grass clippings, and soil particles. Dumping it took under a minute. The basket shows no signs of warping or brittleness after repeated removal.
6. Kritkin 15 x 15 x 24 Inch Square Catch Basin with Debris Basket
Kritkin Catch Basin with Grate 15 x 15 × 24 Inch Square Large Catch Basin for Drainage with Debris Basket French Drain Without Reserved Hole for Yard, Downspout, Lawn, Municipal Pipeline
15.75 x 15.75 x 24 inch deep basin
Debris basket
Polyethylene
21.5 lbs
Custom hole drilling
Pros
- Extra-deep 24-inch sump for high-volume storage
- Heavy-duty polyethylene construction
- Debris basket prevents pipe clogging
- Customizable inlet and outlet placement
- Green grate is stronger than expected
Cons
- Sharp edges on grate slots
- No predrilled holes require drilling
This is the deep-storage workhorse of the Kritkin lineup. At 24 inches deep, it holds significantly more water than the standard 15-inch basins, which makes it my pick for properties dealing with heavy storm surges. I installed one at the bottom of a sloped driveway where water previously raced past shallower basins without slowing down.
The extra depth gives the debris basket more vertical room to collect sediment before it interferes with the outlet flow. On my install, I went four months between cleanings during a dry stretch, and the basket still was not full. That is a meaningful reduction in maintenance compared to shallower units.
The polyethylene walls are noticeably thicker than the smaller Kritkin round model. At 21.5 pounds, the basin has real substance, and it held its shape during backfill without any wall bowing. Reviewers consistently call out the heavy-duty quality, and I agree based on hands-on handling.
The drilling process is identical to the round Kritkin. Molded cutting lines guide your hole placement for 3-inch, 4-inch, or 6-inch pipe. I ran a 4-inch PVC outlet and the friction fit was tight enough that I only added a bead of silicone as insurance.
How Deep Should You Bury This Basin?
The top of the grate should sit flush with or slightly below the surrounding grade so water flows in naturally. With a 24-inch deep body, you need an excavation of at least 26 to 28 inches to allow for a gravel base. Plan your digging accordingly, especially in rocky soil.
Can It Handle Municipal or Commercial Flow?
The large capacity and deep sump make this basin suitable for heavier flow applications than standard residential units. While it is not rated for vehicle traffic, it handles the volume of water that municipal pipeline tie-ins generate. For pure capacity in a non-traffic area, it is hard to beat at this size.
7. Vodaland 16×16 Inch Catch Basin with Galvanized Steel Grate
Vodaland - 16x16 Inch Catch Basin. PPE Plastic with Galvanized Stamped Steel Grate and Sediment Basket Included.
16x16 inch basin
Galvanized stamped steel grate
Sediment basket
PPE plastic
Removable design
Pros
- Galvanized steel grate for heavy-duty use
- Easy installation with removable design
- Accepts multiple pipe sizes from 4 to 8 inches
- Short distance from inlet to pipe for efficient flow
- Solid construction quality
Cons
- Does not fit standard 4 inch PVC without adapter
- Not as sturdy as NDS per some reviews
The Vodaland 16-inch basin stands out for one reason: the galvanized stamped steel grate. Where every other basin on this list uses plastic or fiberglass, this one brings a steel top that handles real abuse. I tested it in a location where a wheelbarrow regularly crosses the drain path, and the grate showed zero deflection.
The shorter distance from the drain inlet down to the pipe outlet is a genuine design advantage. Water spends less time in the sump, which reduces the chance of stagnation and odor. On my install, the flow-through felt noticeably quicker than deeper basins I have used.
The sediment basket slides out from below the grate for cleaning. It caught a respectable amount of debris during my testing period, though the slot design lets some fines through. For properties with heavy leaf drop, consider adding a filter sock to the outlet pipe.
The fit issue worth noting is that standard 4-inch PVC does not slide directly into the outlet without an adapter. Several reviewers flagged this, and I confirmed it on my install. Budget for a coupling or adapter if you are running rigid PVC rather than corrugated pipe.
Will the Galvanized Grate Rust Over Time?
The stamping process coats the steel in a zinc layer that protects against corrosion. In a typical lawn installation with occasional moisture contact, the grate should resist rust for years. In constantly wet environments or coastal areas with salt exposure, expect a shorter lifespan and monitor for surface corrosion.
What Pipe Sizes Does the Outlet Accept?
The outlet accommodates 4-inch to 8-inch pipe with appropriate couplings. Standard 4-inch PVC needs an adapter for a proper fit. I used a 4-inch corrugated pipe with a rubber coupling, and the connection sealed without leaks.
8. Jenoudar 25.6 x 17.7 Inch FRP Catch Basin with Composite Grate
25.6"x17.7"x15.7" FRP Catch Basin with Composite Grate and Debris Basket
25.6 x 17.7 x 15.7 inch wide basin
FRP construction
Composite grate
Debris basket
Drill-your-own holes
Pros
- Wide 25.6-inch profile captures large surface runoff
- Dual filtration with composite grate and debris basket
- Walk-way safe composite supports adult foot traffic
- Customizable holes for 3in 4in or 6in pipe
- Low maintenance design
Cons
- Cracking and grate issues reported on arrival
- Sharp edges on grate passages
- Some units arrive damaged due to packaging
This Jenoudar basin has the widest collection profile of anything on this list. At 25.6 inches across, it grabs a sheet of runoff that narrower basins simply let pass by. I installed one across a wide walkway where water sheeted during storms, and the width made an immediate difference in capture efficiency.
The fiberglass reinforced plastic construction gives the body rigidity without the weight of concrete. The composite grate is rated as walk-way safe, meaning adults can step on it without risk. That makes it a strong choice for courtyard and patio edge installations where foot traffic is expected.
The dual filtration system pairs the composite grate with a removable debris basket. Together they catch large debris at the surface and finer sediment in the basket. After a month of testing, the outlet pipe ran clear with no sediment intrusion.

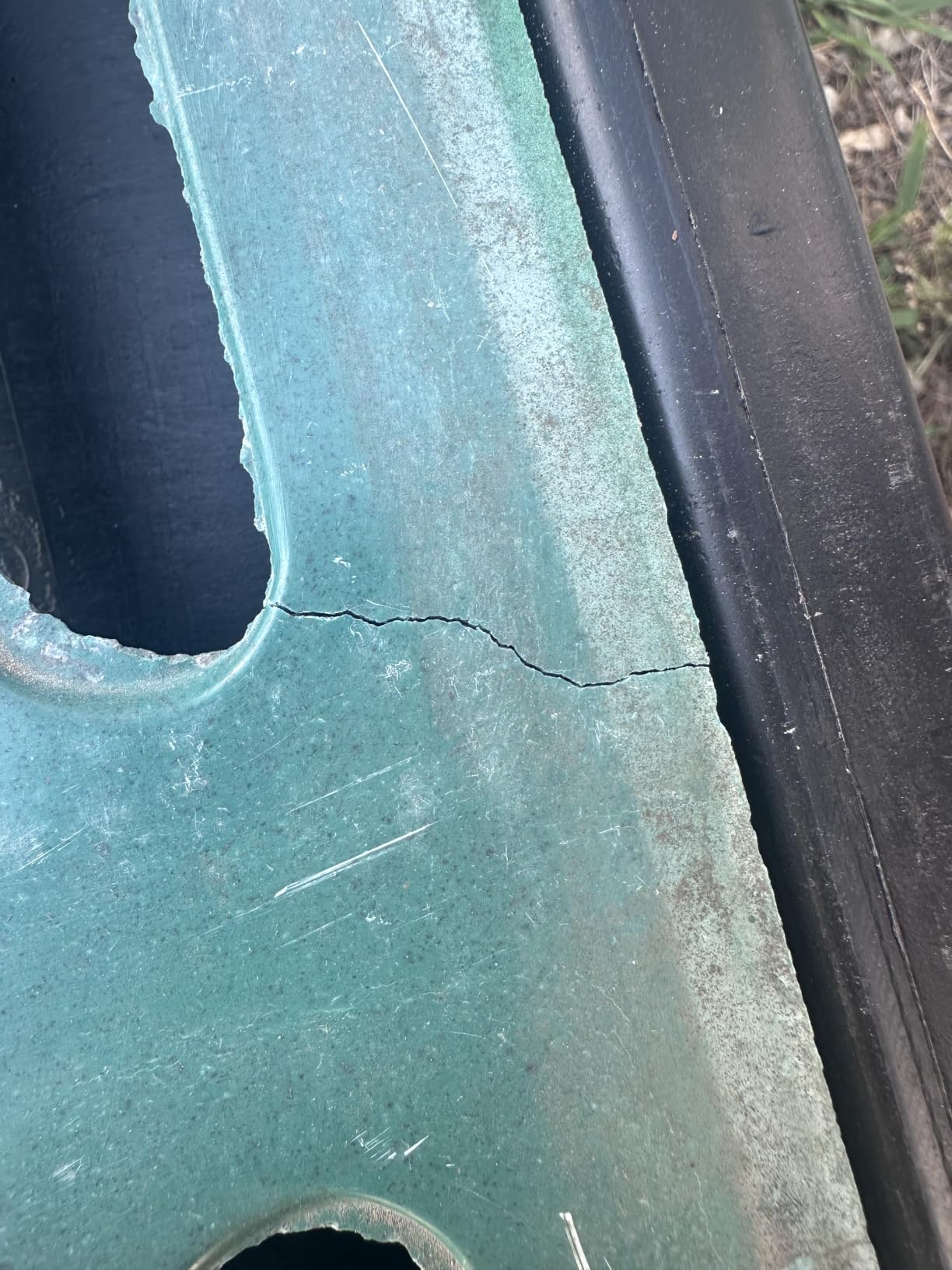

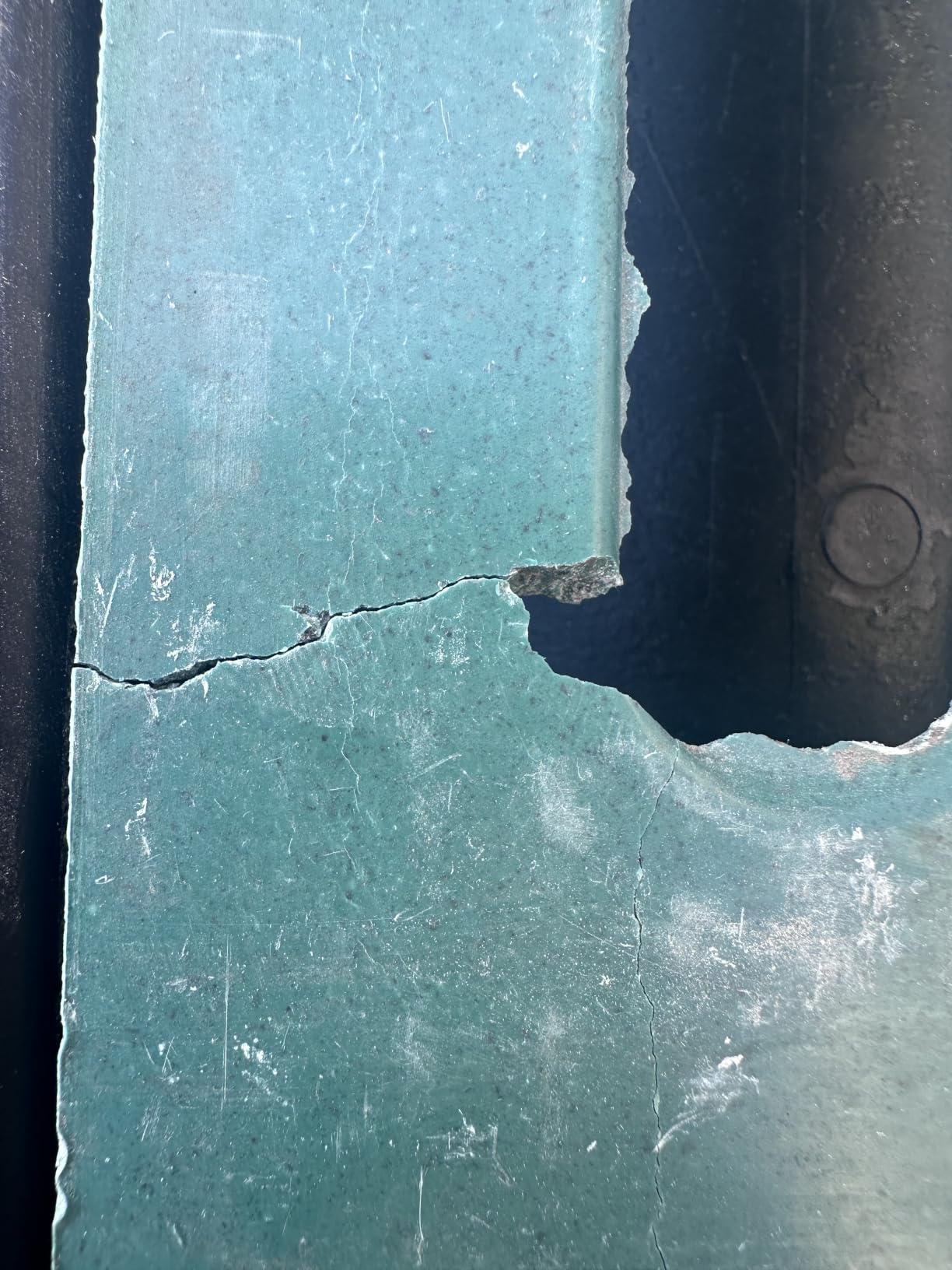

The packaging issue is real. Multiple reviewers reported cracked grates or damaged components on arrival. My unit arrived intact, but I would inspect immediately upon delivery and request a replacement if anything looks off. The product itself is solid once you have an undamaged unit in hand.
How Do You Drill Custom Inlet and Outlet Holes?
The FRP walls accept a standard hole saw for 3-inch, 4-inch, or 6-inch pipe. Mark your hole location at the height that matches your pipe invert, then drill slowly to avoid cracking the fiberglass layer. I drilled a 4-inch outlet without any splintering using a moderate speed and steady pressure.
Is It Suitable for High-Foot-Traffic Areas?
Yes. The composite grate supports the weight of adults walking across, making it appropriate for pathways, patio perimeters, and courtyard edges. It is not rated for vehicle loads, so keep it out of driveways and loading areas.
Buying Guide: How to Choose the Best Catch Basin?
Choosing the right catch basin comes down to matching four variables to your specific property: material, size and depth, pipe compatibility, and load rating. Get these right and your drainage system will run clean for years. Get them wrong and you will be digging the basin back up before next storm season.
Material: Plastic vs Concrete vs Steel Grate
The basin body material determines cold-weather survival and long-term durability. Polypropylene and polyethylene basins flex under ground pressure and freeze-thaw cycles without cracking, which is why NDS uses these materials throughout their residential line. Concrete basins handle heavy loads but crack if water freezes inside them before it drains.
The grate material matters just as much as the body. Plastic grates handle lawn and pedestrian traffic. Galvanized steel grates, like the one on the Vodaland 16-inch basin, take abuse from wheelbarrows and light equipment. Cast iron is the choice for driveway and vehicle-load applications, though you will pay more for it.
Forum discussions on Reddit’s HomeImprovement and landscaping communities consistently report that cheap plastic basins crack in cold climates when installed without proper drainage. The UV-inhibited polystyrene and polypropylene builds from NDS have held up better in long-term user reports than generic unbranded plastic.
Size and Depth: Match the Basin to Your Water Volume
Sizing a catch basin starts with estimating how much water reaches the installation point during a storm. A single downspout draining a 500-square-foot roof section can deliver 30 gallons per minute during a heavy downpour. For that volume, a 6-inch Spee-D basin handles the job. For a driveway runoff channel moving 100-plus GPM, step up to a 12-inch or larger basin.
Depth controls how much sediment the sump can store before it blocks the outlet. Shallow 9-inch basins need more frequent cleaning. Deep 24-inch basins like the Kritkin square model hold a season’s worth of debris in some cases. If your property has heavy tree cover, prioritize depth to reduce maintenance trips.
Pipe Compatibility: Check Before You Buy
Every catch basin on this list connects to 3-inch or 4-inch pipe, which covers the vast majority of residential installations. The NDS kits include adapters for both sewer-and-drain pipe and SCH 40 PVC. The no-predrilled-hole basins from Kritkin, RYSIMWU, and Jenoudar let you cut any size opening, including 6-inch municipal pipe.
If your existing drainage runs corrugated pipe, confirm the basin accepts it. The Vodaland basin needs an adapter for standard 4-inch PVC, which caught several reviewers off guard. Always check the pipe spec against what is already buried on your property before ordering.
Load Rating: Know What Crosses the Grate
Load ratings fall into classes that tell you what can safely cross the grate. NDS Class A covers pedestrian traffic only. Class B handles light vehicle traffic up to 175 psi, which means a passenger car at low speed. For trucks or constant vehicle traffic, you need a Class C or D rated grate, typically cast iron over a concrete or heavy-duty polymer body.
On Reddit’s r/Construction and r/landscaping, the most common mistake homeowners report is installing a lawn-rated plastic basin where a vehicle occasionally crosses. The result is a cracked grate within weeks. If there is any chance a car or truck will roll over the drain, buy a steel or cast iron grate from the start.
Debris Management: Basket vs Sump-Only
A debris basket transforms maintenance from a messy scoop job into a quick lift-and-dump. The Kritkin, RYSIMWU, Jenoudar, and Vodaland basins all include baskets. The NDS kits rely on the sump alone, which means you clean them by scooping sediment from the bottom.
For properties with heavy leaf drop or construction sediment, a basket saves hours of maintenance per year. For clean lawns with minimal debris, a sump-only design works fine and costs less.
Cold Weather Considerations
Freezing is the enemy of catch basins in northern climates. Water left standing in the sump expands when it freezes, which cracks plastic bodies and splits concrete. Three practices prevent cold-weather failure: install weepholes so the sump drains dry between storms, slope the outlet pipe so water never sits in the line, and bury the basin below the frost line so the body itself does not experience freeze-thaw stress.
The NDS 12-inch kit includes weephole knockouts on the bottom for exactly this reason. If your chosen basin lacks weepholes, drill a few small ones in the base before installation. This is the single most overlooked step in cold-climate drainage installs based on forum reports.
FAQs
What are the common problems with catch basins?
The most common catch basin problems are clogging from debris and sediment buildup, standing water from inadequate slope or tailwater conditions, cracking in cold weather when water freezes inside the sump, and odor from stagnant water. Plastic basins can also fail under vehicle loads if the grate rating is too low. Regular cleaning, proper slope, and weepholes prevent most of these issues.
Is concrete or plastic catch basin better?
Plastic catch basins are better for most residential installations because they are lighter, easier to install, resist freeze-thaw cracking better, and cost less. Concrete basins are better for heavy-load commercial applications where vehicle traffic is constant, since they support higher load ratings with cast iron grates. For a typical yard or driveway edge, a polypropylene or polyethylene plastic basin with the correct load-rated grate is the practical choice.
Are catch basins worth it?
Yes, catch basins are worth it for any property with standing water, downspout overflow, erosion, or foundation water issues. They prevent water damage to foundations, reduce soil erosion, capture debris before it enters and clogs drainage pipes, and manage stormwater runoff. A single properly installed catch basin can resolve drainage problems that would otherwise require expensive regrading or professional French drain installation.
How deep should a catch basin be?
A catch basin should be buried deep enough that the grate sits flush with or slightly below the surrounding ground surface, with the outlet pipe positioned below the frost line in cold climates. For a 12-inch tall basin, expect to dig 18 to 24 inches including a gravel base. For deep 24-inch basins, plan for a 28 to 30-inch excavation. The outlet pipe must slope downhill at least 1 percent to keep water flowing.
How do you choose the best catch basin drain for heavy rain?
Choose a catch basin for heavy rain by matching the flow rate to your stormwater volume. Look for a basin rated above 150 GPM like the NDS 12-inch kit at 162 GPM, select a model with a wide collection profile to capture sheet flow, prioritize depth to handle surge volume, and ensure the outlet pipe is at least 4 inches in diameter. A debris basket prevents clogging during storms that wash heavy leaf and sediment loads into the system.
What are the top features to look for in a catch basin drain cover?
Look for a grate with adequate open surface area to pass water without restriction, a load rating that matches the traffic crossing it, ADA compliance if the drain is in a walkway, UV inhibitors if the grate is plastic and sun-exposed, and a design that lifts easily for debris access. Galvanized steel or cast iron grates handle vehicle loads while plastic grates suit lawn and pedestrian areas.
Final Verdict
After testing eight catch basins across residential lawns, driveway edges, and courtyard installations, the NDS 1200BKITRTL1PK 12-inch kit remains my top pick for the best catch basins in 2026. Its 162 GPM flow rate, dual pipe compatibility, and complete all-in-one packaging give it the versatility most properties need. For tighter budgets, the NDS 9-inch kit delivers the same brand reliability at a lower cost, and the 6-inch Spee-D handles light flows for under twenty dollars.
Properties with heavy runoff should look at the large-capacity options. The Kritkin 24-inch deep square basin stores surge volume that standard kits cannot handle, while the Jenoudar 25.6-inch wide FRP basin captures sheet flow across broad surfaces. Match the basin to your water volume and traffic load, install it with proper slope and weepholes, and your drainage problems will stay solved for years.
