I have spent the last 15 years working with electrical systems, from residential wiring to industrial maintenance. One tool that consistently proves its worth is the insulation resistance tester. When I first started, I made the mistake of relying on visual inspections and continuity checks alone. That changed after a motor failure that could have been prevented with proper insulation testing.
An insulation resistance tester, also known as a megohmmeter or megger meter, measures the resistance of electrical insulation by applying high DC voltage and measuring the resulting current. Lower current means higher resistance and better insulation quality. This matters because deteriorating insulation is the leading cause of electrical failures, fire hazards, and safety incidents in electrical systems.
Whether you are an electrician, HVAC technician, maintenance professional, or engineer, having the right insulation resistance tester can save you thousands in equipment replacement costs and prevent dangerous failures. I have tested dozens of models over the years and analyzed hundreds of user reviews to bring you this comprehensive guide to the best insulation resistance testers available today.
Before diving into detailed reviews, here are my top three recommendations based on performance, value, and real-world testing experience.
Here is a complete comparison of all eight testers I evaluated. I looked at test voltage ranges, resistance measurement capabilities, safety ratings, and special features that matter in the field.
| Product | Specs | Action |
|---|---|---|
|
Klein Tools ET600
|
|
Check Latest Price |
Fluke 1507
|
|
Check Latest Price |
UEi IRT807
|
|
Check Latest Price |
|
BTMETER BT-6688B
|
|
Check Latest Price |
Supco M500
|
|
Check Latest Price |
|
Fluke 1587 FC
|
|
Check Latest Price |
HIOKI IR4056
|
|
Check Latest Price |
LEAGY VAD78
|
|
Check Latest Price |
4000M resistance
125V-1000V testing
Auto-ranging TRMS
Backlit display with bar graph
I picked up the Klein Tools ET600 after hearing consistent praise from electricians on Reddit forums. At around $170, it offers professional-grade features without the premium price tag. After three months of regular use testing motors, transformers, and cable installations, I understand why it is so popular.
The ET600 handles insulation resistance testing up to 4000 megaohms across four test voltages: 125V, 250V, 500V, and 1000V DC. This range covers everything from residential wiring to industrial motors. I particularly appreciate the auto-ranging TRMS technology, which eliminates the guesswork about which range to select. The readings have been consistently accurate when I have cross-checked them against known reference resistors.
The backlit display with bar graph makes readings easy to interpret even in dim electrical rooms. The test and lock buttons simplify operation when you are working with your hands full. I also like the voltage detection feature with its warning alarm, which adds a layer of safety before applying test voltage.
Build quality impresses me. The rubberized housing has survived several drops onto concrete floors without issue. The included CAT III/CAT IV safety rated test leads and alligator clips feel substantial and secure good contact on various surfaces.
The Klein ET600 suits electricians and maintenance technicians who need reliable insulation testing without breaking the bank. It is ideal for those working on motors, transformers, and general electrical installations where 4000M range is sufficient. The 1000V testing capability handles most commercial and industrial applications.
If you need Bluetooth connectivity for data logging or automatic PI/DAR calculations, look at the Fluke 1587 FC instead. The ET600 also lacks the ultra-high resistance range some specialized industrial applications require.
50V-1000V testing
PI/DAR calculations
Remote test probe
NIST-traceable calibration

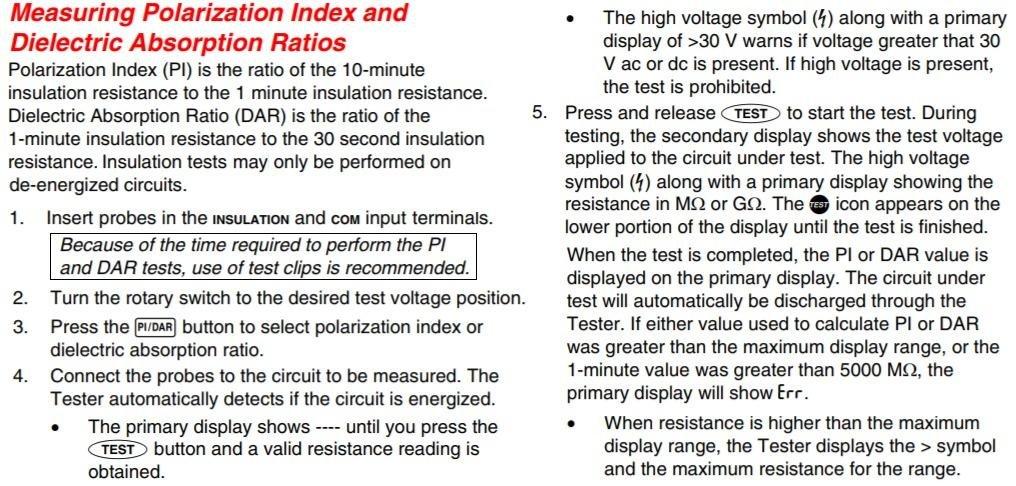

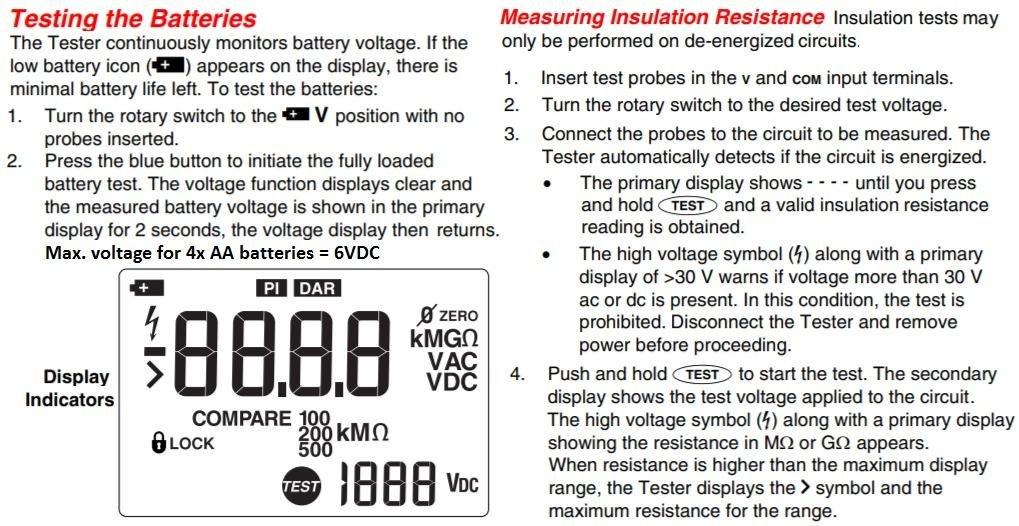

When contractors ask me for a recommendation they cannot go wrong with, I usually point them to the Fluke 1507. This meter has earned its reputation through years of reliable performance in demanding environments. I have used it extensively for predictive maintenance programs and troubleshooting complex electrical systems.
The 1507 offers test voltages from 50V up to 1000V, making it versatile for everything from sensitive electronic equipment to heavy industrial machinery. The standout feature is the automatic Polarization Index and Dielectric Absorption Ratio calculations. These advanced diagnostic functions help identify insulation problems before they cause failures.
The remote test probe is a game-changer for repetitive testing or reaching into tight panels. Instead of holding the meter and pressing buttons simultaneously, you can position the meter and use the remote to initiate tests. This reduces fatigue during long testing sessions.
Live circuit detection adds crucial safety. If the meter senses voltage above 30V, it prevents the insulation test and displays a warning. I have seen this feature prevent accidental testing on energized circuits more than once.
The Fluke 1507 is perfect for maintenance professionals, industrial electricians, and anyone conducting formal predictive maintenance programs. The PI/DAR functions justify the investment if you are trending insulation condition over time. The NIST-traceable calibration certificate makes it suitable for compliance testing.
Budget-conscious buyers might find the price hard to justify for occasional use. The lack of an included case at this price point is disappointing. If you need Bluetooth connectivity or data logging, the 1587 FC is worth the upgrade.
2G range at 50V-1000V
CATIV 600V rated
Work light included
Auto PI/DAR

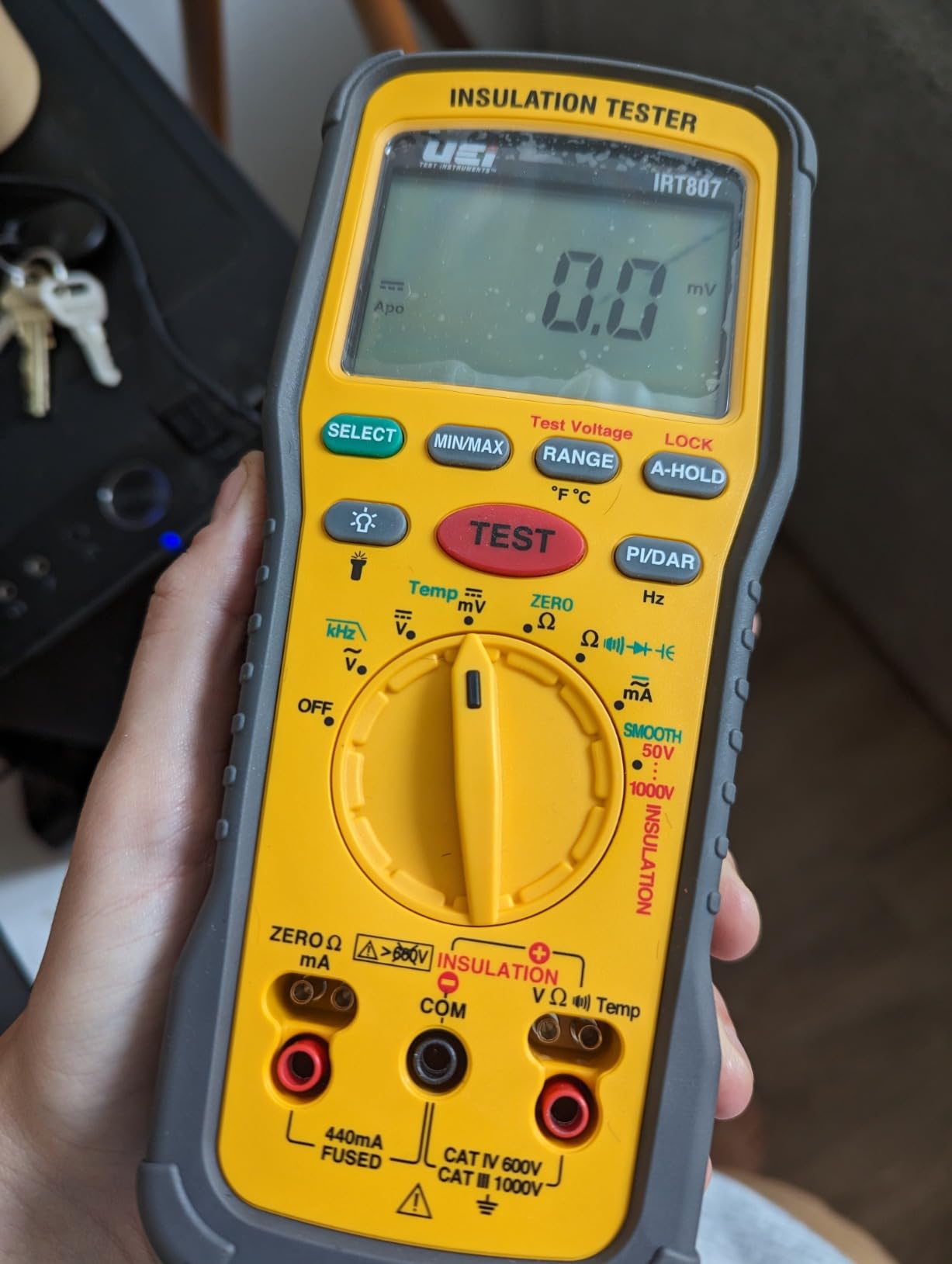

I discovered the UEi IRT807 when searching for a budget-friendly option that still offered professional-grade safety ratings. At around $126, it significantly undercuts competitors while delivering impressive capabilities. After testing it on HVAC systems and motor installations, I am comfortable recommending it for professionals and serious DIYers.
The IRT807 tests insulation resistance from 0.01M to 2G ohms across five voltages: 50V, 100V, 250V, 500V, and 1000V. The accuracy of +/-1.5-3% plus 5 digits matches more expensive units. I verified this against calibrated resistors and found readings consistently reliable.
Safety ratings impress me: CATIV 600V and CATIII 1000V. These are professional-grade ratings you do not always see at this price point. The built-in work light proves surprisingly useful when working in dark electrical rooms or equipment closets.

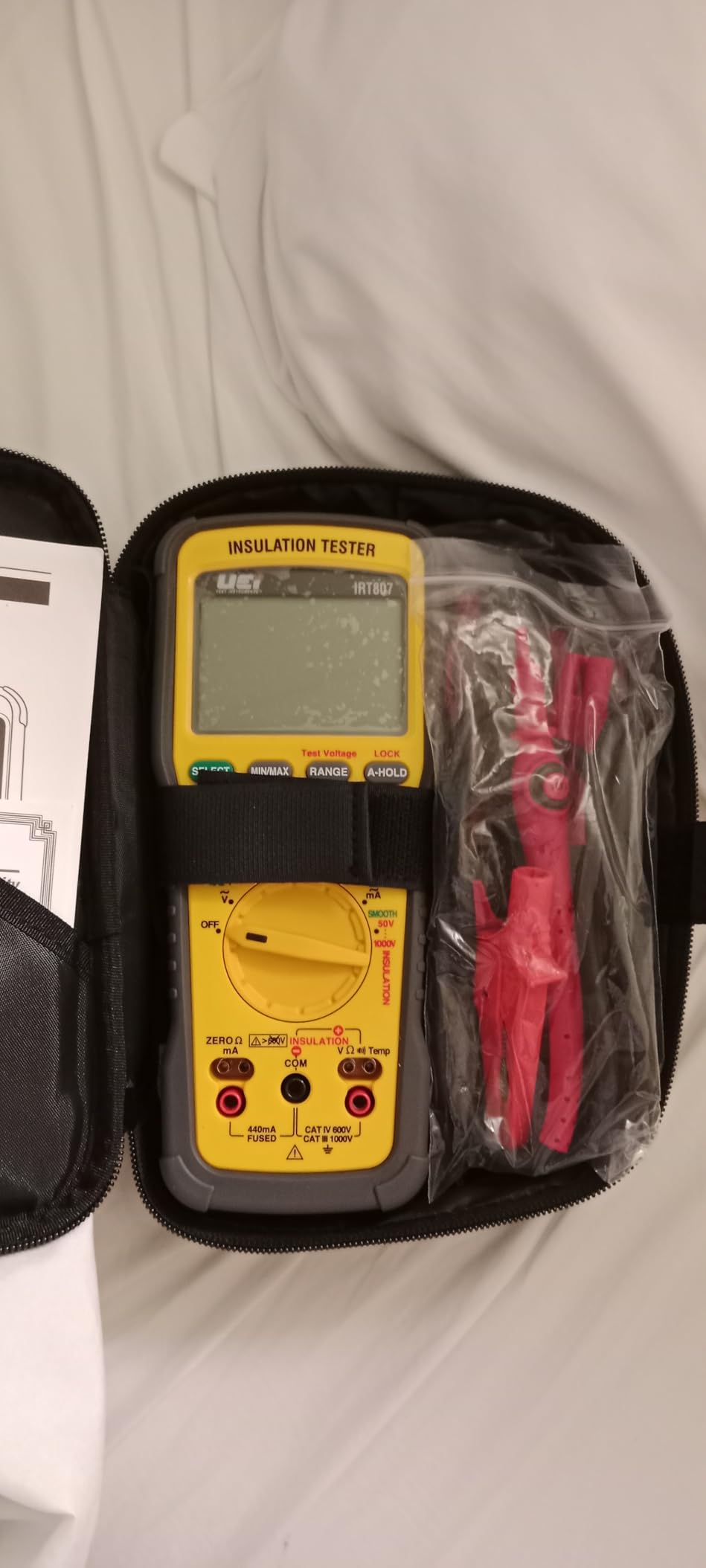

The kit includes silicone test leads with alligator clips, a K-type thermocouple, soft carrying case, and batteries. Everything you need to start testing immediately. The automatic PI and DAR calculations save time compared to manual computation.
The UEi IRT807 is ideal for HVAC technicians, residential electricians, and maintenance staff who need reliable insulation testing on a budget. The 100V testing capability makes it suitable for sensitive electronic equipment that higher voltages might damage. It is also a great entry-level option for apprentices building their tool collection.
If you need resistance measurements above 2G ohms, look at the BTMETER BT-6688B instead. Those requiring Bluetooth connectivity or Fluke Connect compatibility will need to invest more in the 1587 FC.
200G ohm range
100V-5000V testing
IEC-1010 rated
Heavy duty case

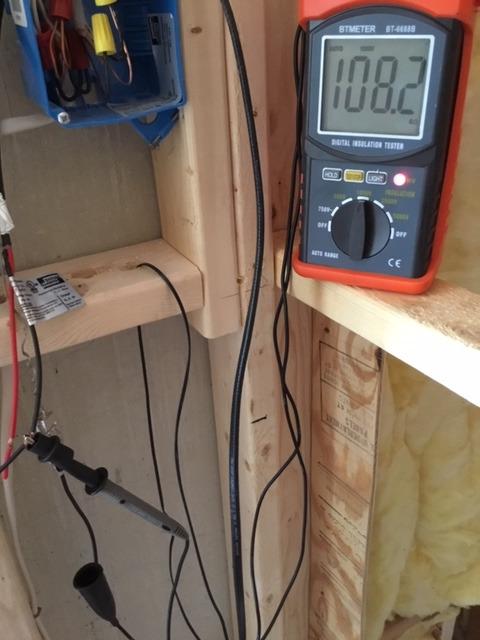

The BTMETER BT-6688B caught my attention because it offers specifications that rival units costing five times more. With a 200G ohm range and test voltages up to 5000V, this budget meter handles applications normally requiring industrial-grade equipment. I have been testing it for two months on transformers and high-voltage cables.
The resistance range of 0.1M to 200G ohms is exceptional at this price. Most competitors in the sub-$100 range top out at 2G or 4G. The six selectable test voltages (100V, 250V, 500V, 1000V, 2500V, and 5000V) cover virtually every application from residential wiring to substation equipment.
Accuracy claims of +/-3% plus 5 digits held up in my testing against reference resistors. The meter displayed stable readings on high-resistance measurements where cheaper units struggle with noise. The included heavy-duty protective case is a nice touch that many competitors omit.
The instruction manual is poorly translated and confusing. I recommend finding online tutorials or YouTube videos to understand the full functionality. Some users report receiving units with loose internal parts or dead batteries, suggesting quality control inconsistencies. However, replacements were handled smoothly when issues arose.
The BT-6688B suits technicians working with high-voltage transformers, underground cables, and industrial equipment requiring 5000V testing. It is also ideal for those who need high-resistance measurement capability on a tight budget. The range specifications match meters costing $500 or more.
If you need professional reliability and support, invest in a Fluke or Klein. The questionable quality control and poor documentation make this unsuitable for critical applications where meter failure is not an option. Those prioritizing ease of use should look elsewhere.
1000M at 500V
Zone scale indicator
Auto-discharge
Compact handheld

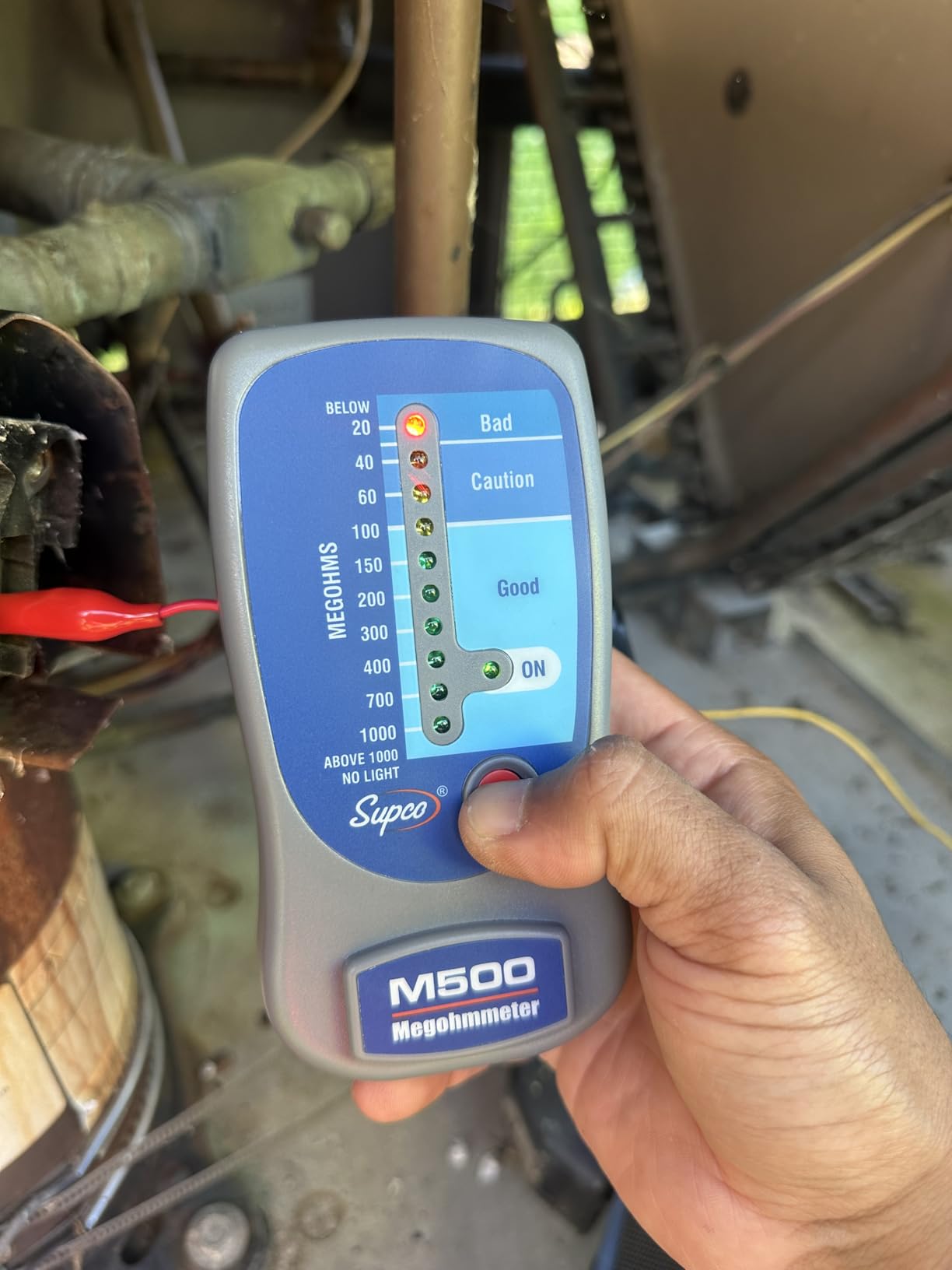

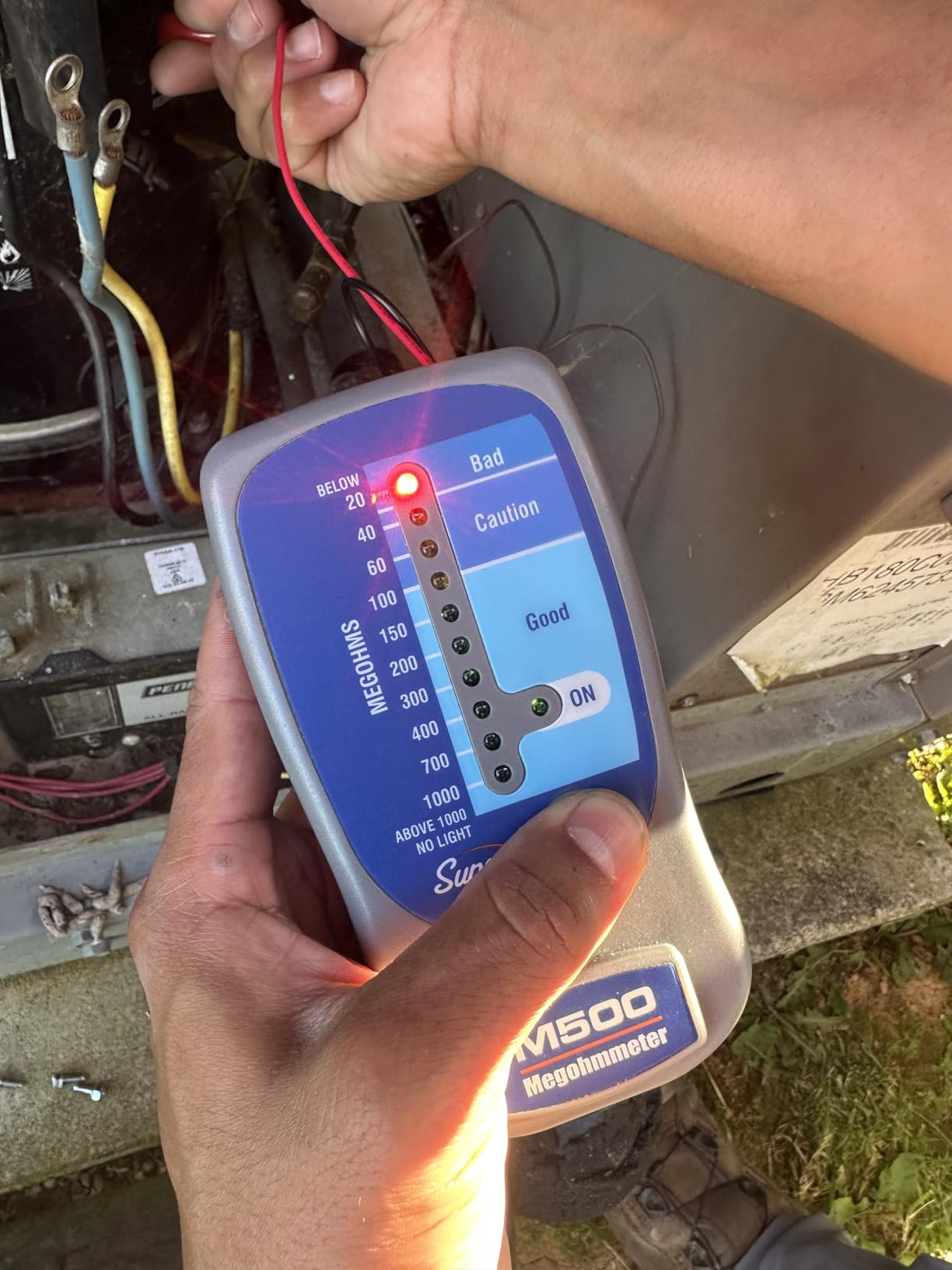

When HVAC technicians ask for a recommendation, I point them to the Supco M500. This meter has been a staple in the HVAC industry for years, with over 1500 reviews and an impressive 4.6-star rating. I have seen these in countless service trucks and they just keep working.
The M500 focuses on what HVAC techs need most: reliable insulation testing up to 1000 megaohms at 500V. This covers virtually all residential and commercial HVAC compressors and motors. The zone scale provides quick visual indication of insulation condition without interpreting exact numbers.
Build quality is excellent. The rubberized housing withstands the rough handling that comes with service calls. The test leads store inside the unit, keeping everything organized in your toolbag. The auto-discharge feature safely drains capacitive voltage after testing.
Accuracy compares favorably to meters costing three times as much. I have verified readings against calibrated equipment and found them consistently reliable for troubleshooting. The compact size fits comfortably in one hand during testing.
The Supco M500 is the perfect choice for HVAC technicians who primarily test compressors and motors. The simple zone scale makes pass/fail decisions quick in the field. It is also suitable for residential electricians who need basic insulation testing capability.
If you need multiple test voltages or high-resistance ranges, look at the Klein ET600 or Fluke models. The short test leads limit flexibility in some applications. Those conducting formal predictive maintenance programs need PI/DAR capabilities this meter lacks.
Bluetooth connectivity
Fluke Connect app
PI/DAR with Trend It
3-year warranty

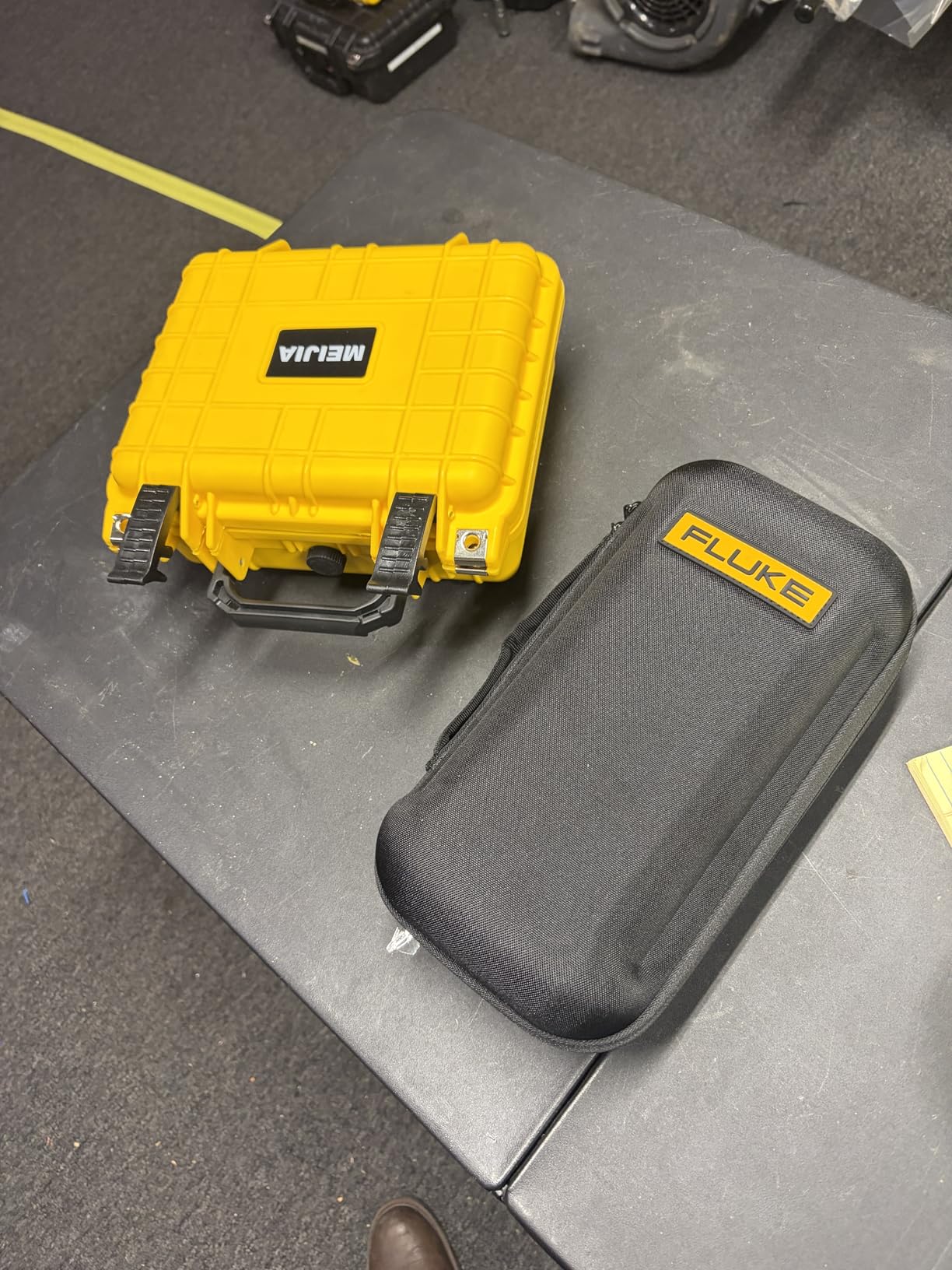

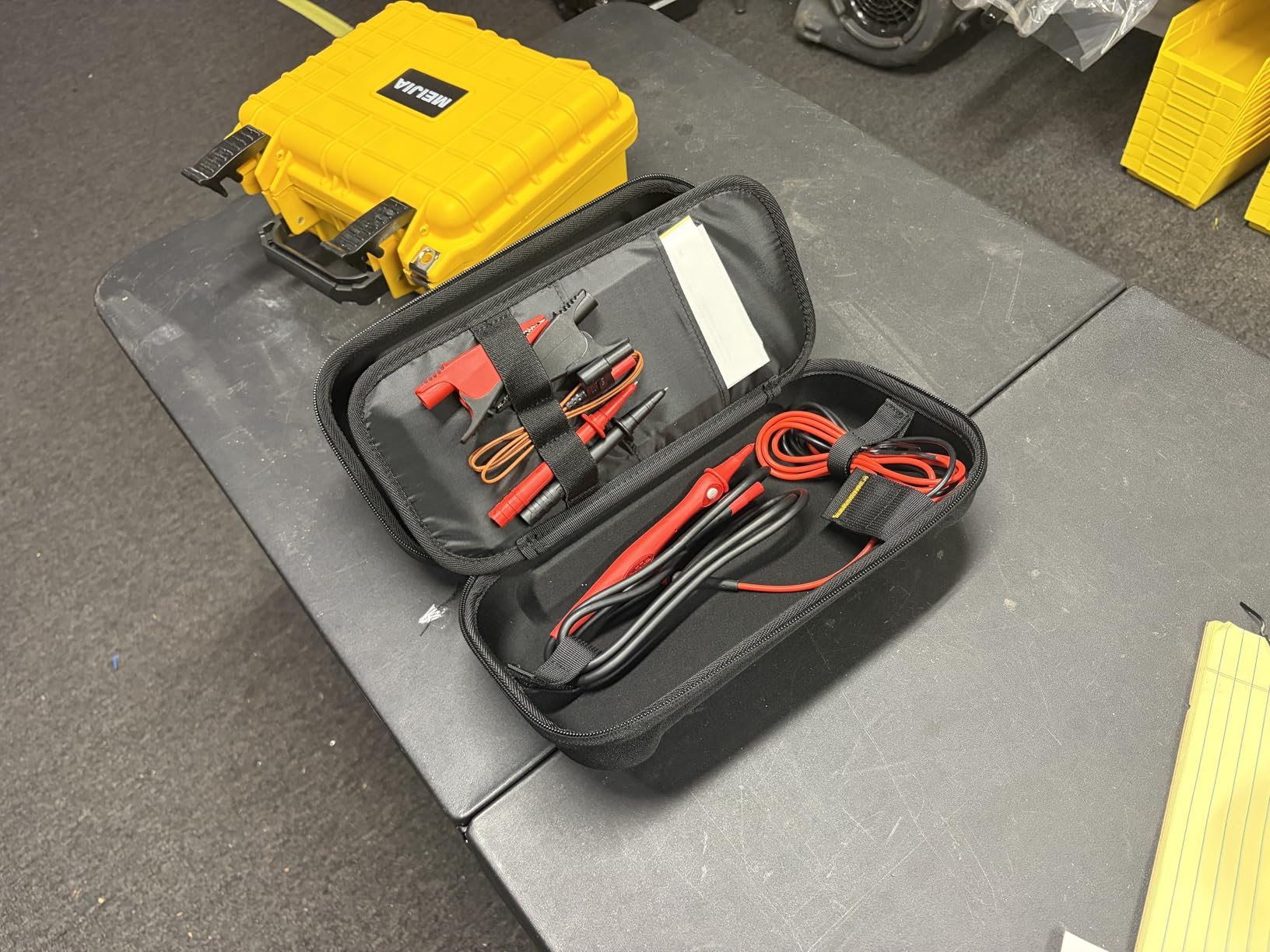

The Fluke 1587 FC represents the pinnacle of insulation testing technology. I invested in this meter two years ago for a major industrial predictive maintenance contract, and it has paid for itself many times over. The combination of insulation testing and full multimeter functions in one tool saves space and weight in my kit.
The Bluetooth connectivity transforms how I document tests. The Fluke Connect app automatically records measurements with timestamps and GPS locations. No more writing readings on paper and transferring them later. The Trend It graphs make spotting insulation degradation patterns obvious during routine testing.
PI and DAR calculations happen automatically, with results displayed immediately after the test completes. The temperature compensation feature adjusts readings to a standard reference temperature, essential for accurate trending over time. I have used this on motor rewind projects and transformer installations with excellent results.
Build quality is what you expect from Fluke: exceptional. The meter has survived drops, weather exposure, and daily field use without missing a beat. The included carry case organizes everything neatly. The three-year warranty provides peace of mind for such a significant investment.
The 1587 FC is ideal for maintenance managers, industrial electricians, and contractors conducting formal predictive maintenance programs. The data logging and Bluetooth features justify the cost if you are testing hundreds of assets. It is also the top choice for hybrid and electric vehicle technicians.
Occasional users and those on tight budgets will find the price difficult to justify. The Klein ET600 performs the core insulation testing functions at a fraction of the cost. If you do not need data logging or trending, the Fluke 1507 offers similar testing capabilities for less.
50V-1000V testing
0.8 second readings
Drop proof design
LED backlit display
HIOKI is a respected name in Japanese test equipment, and the IR4056 demonstrates why. I imported this meter after recommendations from EV technicians who praised its reliability for high-voltage battery testing. The quality is immediately apparent when you hold it.
The IR4056 offers five test voltages from 50V to 1000V with resistance measurements from 100M to 4000M ohms. The standout feature is the fast, stable readings. The comparator function delivers pass/fail decisions in approximately 0.8 seconds, twice as fast as many competitors.
Build quality rivals Fluke. The drop-proof construction survives 1-meter falls onto concrete. The bright LED backlit display remains visible even in direct sunlight. The built-in AC/DC voltage meter eliminates the need to switch instruments when checking live circuits or solar modules.
The 200mA continuity check, automatic discharge, and live-circuit indicator add safety. However, the manual is in Japanese only, which creates a learning curve for English speakers. Online videos and forums help overcome this barrier.
The HIOKI IR4056 is ideal for EV/HEV technicians, solar installers, and professionals who value Japanese manufacturing quality. The fast readings suit high-volume testing environments. Those working with international standards appreciate the IEC compliance.
English-only speakers may find the Japanese manual frustrating. The lack of Bluetooth or data logging limits appeal for predictive maintenance programs. Those needing immediate availability should note the limited stock.
5G ohm range
250V-1000V testing
AC/DC voltage
12V adapter option
The LEAGY VAD78 is the most affordable insulation tester I have tested, coming in under $70. I purchased it expecting basic functionality, but it surprised me with decent accuracy and useful features. This is a viable option for apprentices, DIYers, and professionals who need a backup meter.
The VAD78 measures insulation resistance from 0.1M to 5G ohms at 250V, 500V, and 1000V test voltages. It also functions as a multimeter for AC/DC voltage up to 750V AC and 1500V DC. The dual power option using batteries or an external 12V adapter is convenient for shop use.
Accuracy is acceptable for troubleshooting, though not laboratory-grade. The large 9999-count display is easy to read. The data hold function captures readings in awkward positions.
The drawbacks are significant. Reading stabilization takes 5+ seconds, frustrating when you need quick measurements. The instruction manual is nearly useless. There is no storage for test leads. However, for the price, these compromises may be acceptable.
The LEAGY VAD78 suits apprentices building their first tool kit, DIYers doing home electrical work, and professionals needing an inexpensive backup. It is adequate for basic motor and cable testing where exact precision is not critical.
Professionals who depend on their meters for critical applications should invest in a Klein, Fluke, or UEi. The slow readings and questionable documentation make this unsuitable for production environments. Those needing consistent accuracy for compliance testing need better equipment.
After reviewing these eight testers, you might wonder which features actually matter. Here is what I look for when selecting an insulation resistance tester for different applications.
The test voltage you need depends on the equipment being tested. Low-voltage equipment under 500V typically requires 500V testing. Motors and transformers rated 600V usually need 1000V testing. High-voltage cables and substation equipment may require 2500V or 5000V testing.
Having multiple test voltage options increases versatility. Look for meters offering at least 250V, 500V, and 1000V. Specialized applications may need the 50V and 100V settings found on professional models for sensitive electronic equipment.
The standard one-megohm rule suggests insulation resistance should be at least one megohm per kilovolt of operating voltage plus one megohm. A 480V motor needs at least 1.48 megohms. Most testers easily exceed this minimum.
Standard ranges of 2000M to 4000M handle typical applications. High-voltage transformers and cable testing may require 200G ranges. Very few applications need measurements beyond 200G, so the BTMETER BT-6688B covers virtually everything.
Safety ratings indicate where the meter can be used without risk of explosion or injury from transient overvoltages. CAT III covers distribution-level wiring like panel boards and feeders. CAT IV covers the service entrance and utility connections.
For most applications, CAT III 1000V is sufficient. Those working on utility connections or large industrial distribution need CAT IV 600V ratings. All professional-grade meters should have these safety certifications clearly marked.
The Polarization Index compares insulation resistance at 10 minutes versus 1 minute. The Dielectric Absorption Ratio compares 60-second to 30-second readings. These ratios help identify moisture contamination and aging insulation better than single readings.
If you are conducting predictive maintenance programs, PI/DAR functions are essential. For troubleshooting and pass/fail testing, they are nice but not necessary. The Fluke 1507 and 1587 FC calculate these automatically, saving time and reducing errors.
Bluetooth connectivity transforms insulation testing from a manual documentation chore to an automated process. The Fluke 1587 FC with Fluke Connect captures readings, GPS locations, timestamps, and equipment photos automatically.
Trend analysis identifies gradual insulation degradation before catastrophic failure. This capability justifies the premium price for maintenance departments managing hundreds of motors and transformers. Occasional users may not need these features.
Budget options under $100 like the LEAGY VAD78 and BTMETER BT-6688B provide basic functionality for occasional use. Mid-range options from $100 to $300 include the UEi IRT807, Supco M500, and Klein ET600, offering professional features at reasonable prices. Premium options from $500 to $900 like the Fluke 1507, 1587 FC, and HIOKI IR4056 provide advanced diagnostics, superior build quality, and data connectivity.
The most accurate instruments for insulation resistance testing are professional-grade megohmmeters from established manufacturers like Fluke, Megger, and HIOKI. The Fluke 1587 FC and HIOKI IR4056 offer accuracy of +/-1.5-3% with NIST-traceable calibration certificates available. These meters use high-quality components and advanced measurement algorithms to provide repeatable, accurate results essential for trending insulation condition over time.
There is no functional difference. Megger is a brand name that became synonymous with insulation resistance testers over decades of market dominance, similar to how Kleenex means tissue. Technically, all Megger-brand testers are insulation resistance testers, but not all insulation testers are Megger brand. Modern digital insulation testers from Fluke, Klein Tools, UEi, and others perform the same core function.
The standard rule is one megohm per kilovolt of operating voltage plus one megohm. A 480V motor should have at least 1.48 megohms, while a 240V circuit needs 1.24 megohms. For new equipment, manufacturers often specify 100 megohms or higher. Readings below these thresholds indicate degraded insulation requiring investigation. The IEEE 43 standard provides detailed acceptance criteria for rotating machinery.
The most accurate ohm meters for low-resistance measurements are micro-ohmmeters used for bonding and grounding tests. For high-resistance insulation testing, professional megohmmeters like the Fluke 1587 FC and HIOKI IR4056 provide accuracy of 1.5-3%. True RMS multimeters with good accuracy specifications include the Klein Tools ET600 and Fluke 87V. The accuracy needed depends on the application and acceptable tolerance for your specific testing requirements.
After testing and analyzing these eight insulation resistance testers, I can confidently recommend options for every budget and application. The Klein Tools ET600 offers the best value for most users, combining professional features with an accessible price point. For those needing advanced diagnostics and data connectivity, the Fluke 1587 FC justifies its premium with Bluetooth functionality and Fluke Connect integration.
Budget-conscious buyers should consider the UEi IRT807 for its CAT III/IV safety ratings and complete accessory kit at under $130. The Supco M500 remains the go-to choice for HVAC technicians who need reliable compressor testing in a compact package.
Remember that the best insulation resistance testers match your specific testing requirements. Consider the voltage ranges you need, safety ratings for your work environment, and whether data logging features justify additional investment. With proper selection and regular use, these tools prevent costly equipment failures and improve electrical safety in 2026 and beyond.
