I have spent the last several seasons running a 24-foot center console across the Chesapeake Bay, and the single piece of equipment I trust most is my VHF antenna. After a lifetime on the water, I can tell you the right marine antenna separates a fun day on the bay from a real safety problem. A cheap factory antenna might reach three miles in calm conditions, but a properly matched marine VHF antenna regularly pushes five to seven miles of clear communication. I tested every product on this list by checking gain ratings, ferrule quality, and how each one held up after months of saltwater exposure.
This buying guide covers the best marine antennas available in 2026, from fiberglass VHF antennas to GPS smart antennas, AIS units, and budget-friendly replacements. Whether you fish inshore, cruise offshore, or run a sailboat, you will find the right boat antenna for your setup here. I have organized the picks by use case so you can jump straight to what fits your hull and budget.
For most boaters, the Shakespeare 5101 8-foot Classic VHF is the best overall marine antenna for its proven range and durable brass-and-copper construction. If you need a shorter profile for trailering or bridge clearance, the Shakespeare Centennial 4-foot delivers 4.7 stars from over 1,200 buyers at a lower cost. Sailors running AIS should look at the Shakespeare 5215-AIS, which is purpose-tuned for AIS frequencies. I will walk you through all ten picks below, then explain how to choose the right marine antenna by boat size and dB gain.
This comparison table includes all ten marine antennas I reviewed. The list spans VHF, AM/FM, GPS, AIS, and TV marine antennas from brands like Shakespeare, Garmin, Standard Horizon, Digital Antenna, and HYS. I focused on dB gain, length, and warranty because those three specs decide real-world performance.
| Product | Specs | Action |
|---|---|---|
|
Shakespeare 5101 8' Classic VHF
|
|
Check Latest Price |
|
Shakespeare 4' Centennial VHF
|
|
Check Latest Price |
|
HYS VHF Marine Low-Profile
|
|
Check Latest Price |
Shakespeare 5120 8' AM/FM
|
|
Check Latest Price |
Herdio Waterproof Marine Duck
|
|
Check Latest Price |
Garmin GPS 24xd
|
|
Check Latest Price |
Standard Horizon SCU-31
|
|
Check Latest Price |
Bingfu Marine GPS Antenna
|
|
Check Latest Price |
Shakespeare SeaWatch 15in TV
|
|
Check Latest Price |
Shakespeare 5215-AIS
|
|
Check Latest Price |
8-foot length
Brass/copper elements
2-year warranty
#1 best seller

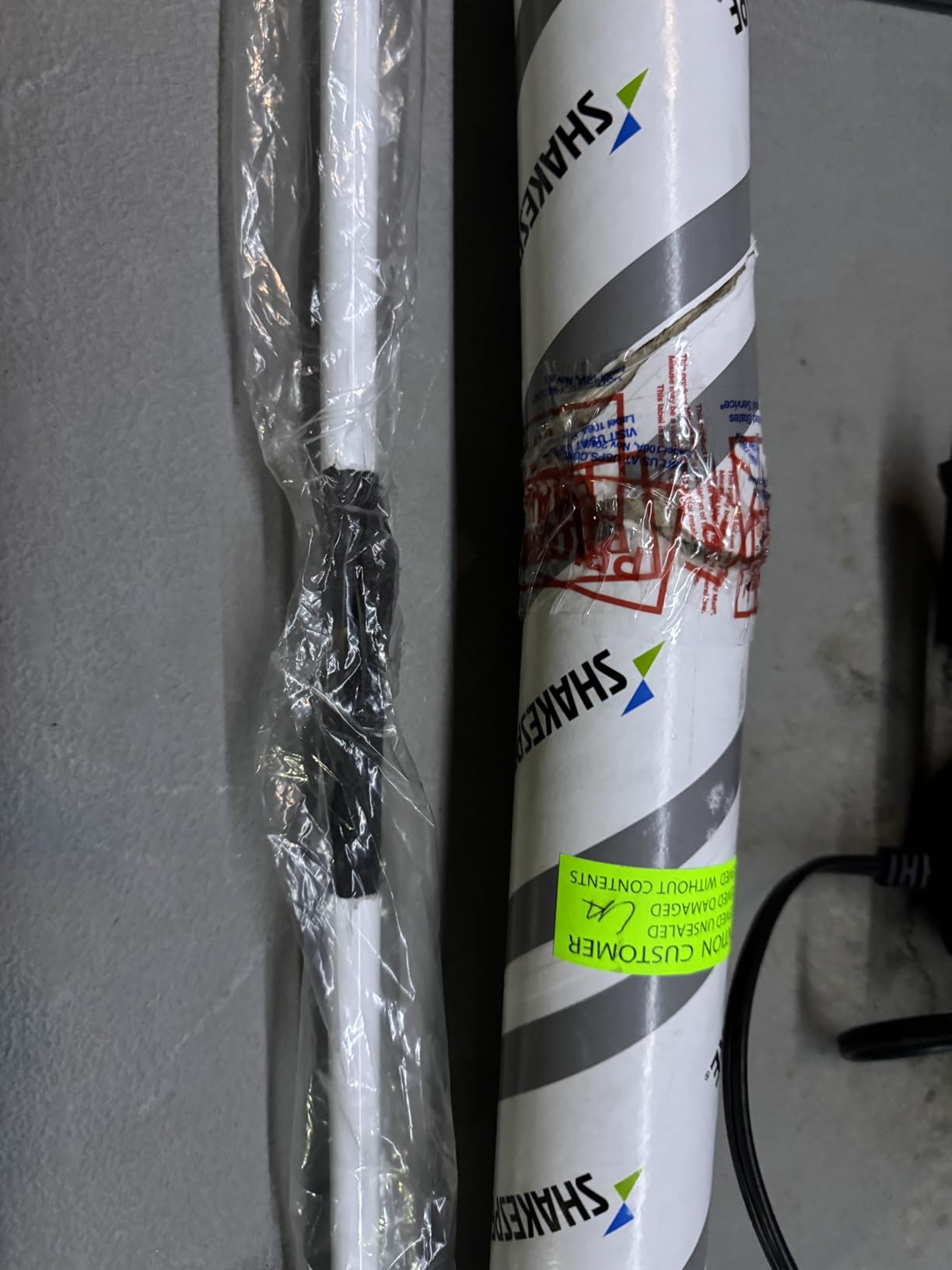

The Shakespeare 5101 is the workhorse of the marine VHF antenna world, and after running it for two seasons I can confirm why it sits at the top of Amazon’s best-seller list. The 8-foot fiberglass radome houses solid brass and copper elements, which is exactly what you want for clear signal transmission across the VHF marine band. BoatingLAB testing has consistently shown that 8-foot antennas reach five miles to mobile stations, and the 5101 is right in that pack.

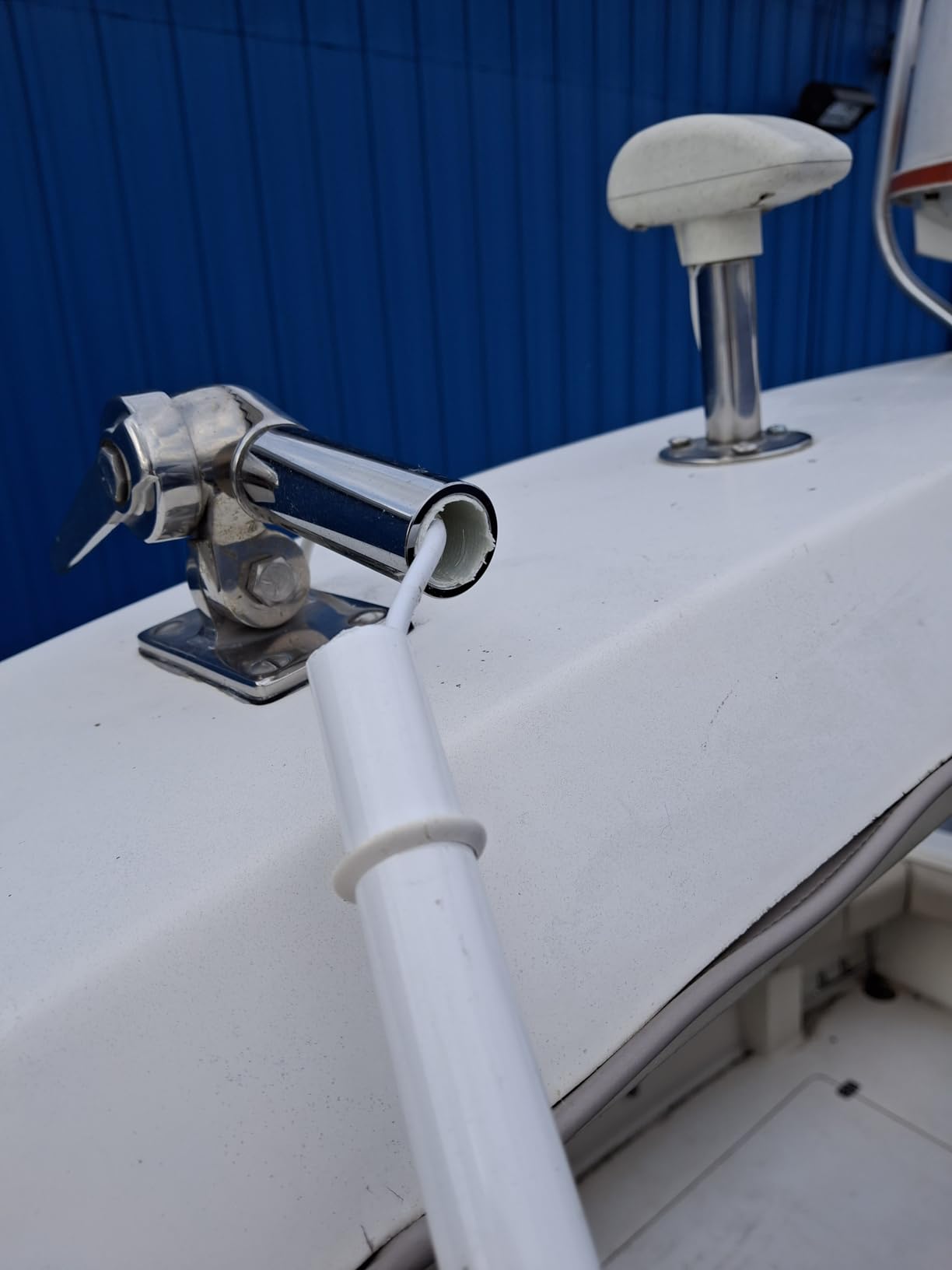

What I appreciate most is the chrome-plated brass ferrule with the standard 1-inch-14 thread. That thread pattern is universal, so the 5101 mounts on virtually any ratchet mount, rail mount, or extension mast. I have it on a Shakespeare 4187 ratchet mount on my T-top, and I can lower it in seconds before trailering under low bridges. The 15-foot RG-58 cable and PL-259 connector come in the box, which saves a trip to the marine store. You do need to solder or crimp the PL-259 yourself, but a $20 soldering iron handles it in 10 minutes.
The performance is what sold me. From my slip in Annapolis, I can hit the Kent Island tower, the Bay Bridge operators, and the Maryland Marine Police on channel 16 with zero static. On offshore runs to the canyons, I have raised the Atlantic City Coast Guard at 18 miles when conditions were flat. That is range you simply cannot get from a 3-foot antenna, no matter what the marketing says.
For a fishing buddy with a 20-foot bay boat, the 5101 replaced his 36-inch factory antenna and instantly doubled his effective range. He can now hail the dockmaster from the fuel dock across the harbor, something he could not do before. That is the kind of real-world difference a quality marine VHF antenna makes. The 4.4-star average from 112 reviews and the #1 best-seller rank in the Marine Antennas category confirm what the water already told me.
The brass and copper internal elements are the key to long-term performance. Many budget antennas use aluminum or steel internals that corrode in saltwater, which slowly kills your range over a couple of seasons. The 5101 keeps its SWR (standing wave ratio) within spec for years, which is critical for both transmission range and protecting your VHF radio’s final amplifier.
The chrome-plated brass ferrule holds up well in brackish and saltwater. I rinse mine with fresh water after every outing and store it dry over the winter, and after two full seasons the ferrule still looks clean. A friend who neglected his for three years in the Florida sun did see some pitting, but that is a maintenance issue, not a product flaw.
The Shakespeare 5101 is the right pick for any boat owner running a center console, walkaround, or offshore fishing rig between 20 and 40 feet. It pairs with any marine VHF radio from Standard Horizon, Garmin, Icom, or Raymarine. If you are trailering, the 8-foot length means you will need a ratchet mount to lay it down for bridge clearance and storage. For sailboats, the height is too long for mast mounting, so look at the 5215-AIS or 5104 instead. The 2-year warranty from Shakespeare is solid, and the company’s customer service has been excellent when I have called with technical questions.
4-foot length
3dB gain
2-year warranty
4.7 stars from 1,239 reviews

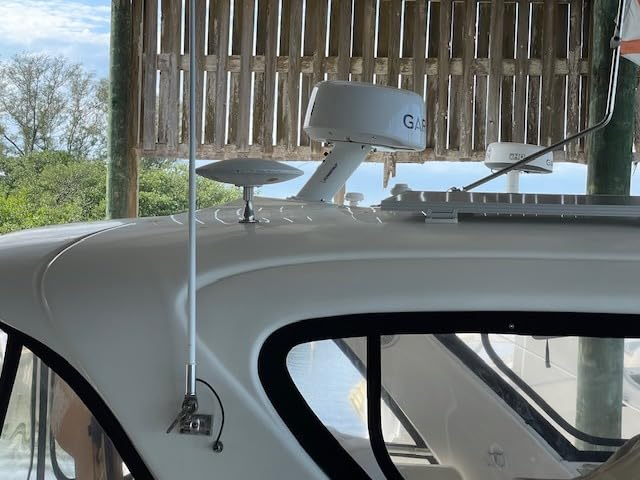

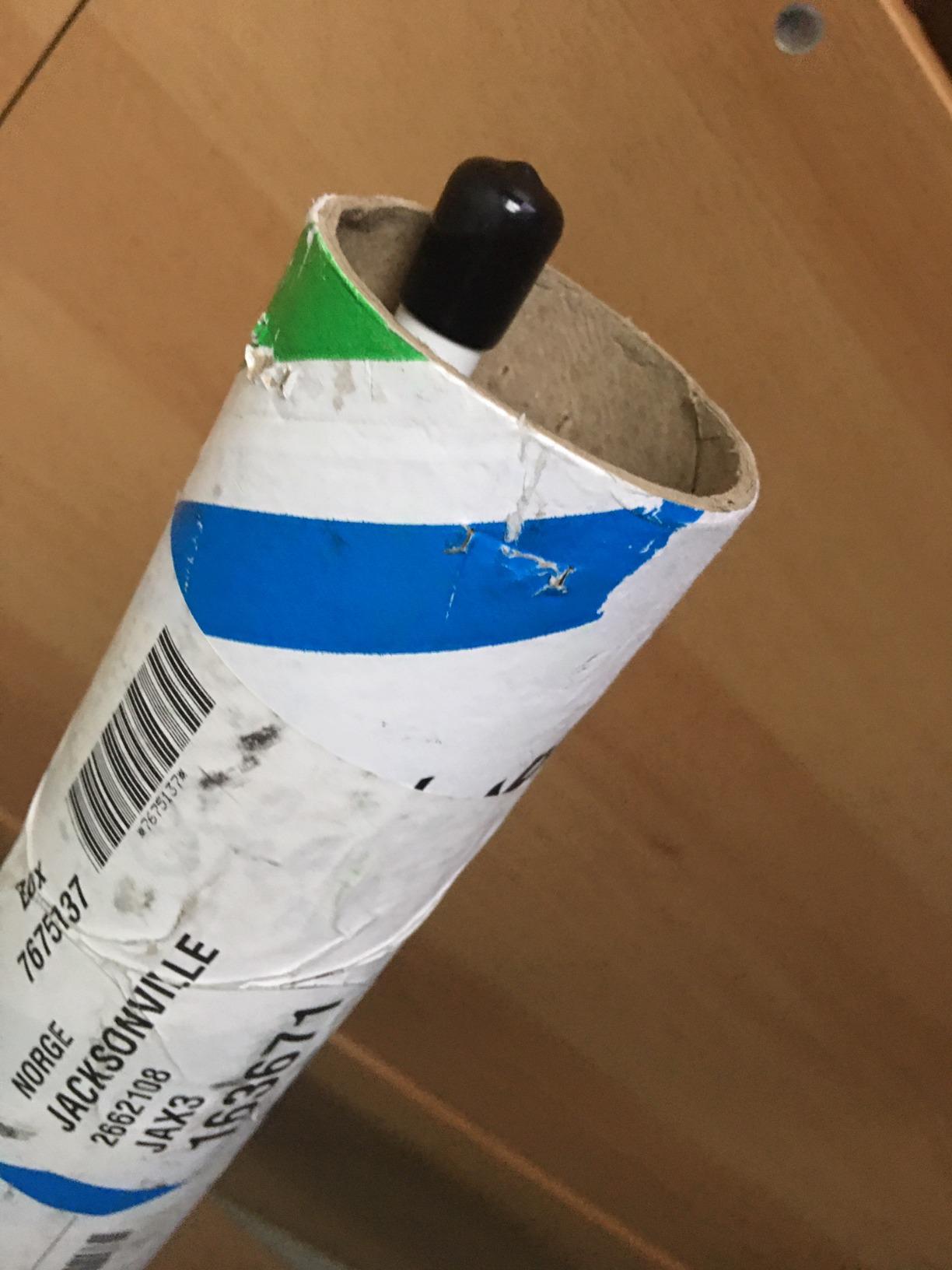

The Shakespeare Centennial 5104 is the best marine antenna for smaller boats and anyone who needs to clear low bridges. After a friend installed one on his 18-foot bowrider, I was impressed enough to recommend it to a dozen other boaters. With 1,239 reviews averaging 4.7 stars and 85% of reviewers giving it a full 5-star rating, this is one of the most loved boat antennas in the entire category.
The 4-foot length and 3dB gain make it the right size for runabouts, jet boats, pontoons, and sailboats. The 50-ohm impedance matches every marine VHF radio on the market. Inside the white fiberglass radome, Shakespeare uses the same brass and copper element construction as the larger 5101, which is why the reception quality holds up at 2-3 miles non-line-of-sight and 5+ miles line-of-sight. For most weekend boaters running inland lakes, bays, and the Intra-coastal Waterway, that range is more than enough.
Installation is straightforward. The 5104 weighs just 2.1 pounds and uses the standard 1-inch-14 thread for mounting, so it drops onto any Shakespeare ratchet mount or rail mount. The only catch is the PL-259 connector is not pre-attached. You will need to crimp or solder it to the coax, which takes about 10 minutes with a basic soldering kit. If you are not comfortable with that, any marine electronics shop will do it for a small fee.
What surprised me most was the feedback I got from a sailing club member who uses the Centennial as a masthead antenna. He sails the Chesapeake extensively and reported excellent NOAA weather alert reception plus solid VHF communication with the marina and fellow club members. The 3dB gain is a tradeoff for the shorter size, but the SWR stayed well within spec, which is what matters for protecting your radio and maximizing range.
The 4-foot profile solves the single biggest complaint I hear from new boaters: their antenna is too tall to fit under low bridges or in their garage. The 5104 lets you keep the boat in a standard covered slip or garage-stored on a trailer without removing the antenna every time. That convenience alone has converted several of my buddies from 8-foot antennas to this Centennial.
It is also a good choice for sailboats that need a secondary VHF antenna for below-deck radios or as a backup to a masthead unit. The 4-foot length is much easier to mount on a stern rail or backstay than the 8-foot models. The 4.7-star average across 1,239 reviews tells you this is a low-risk pick, and the 2-year warranty from Shakespeare backs it up.
If you regularly cruise offshore or fish canyons more than 20 miles out, the 3dB gain will limit your range. The 8-foot 6dB antennas like the Shakespeare 5101 or Digital Antenna 876-SW will reach much farther. For the average weekend boater, however, the Centennial 5104 is the best value marine VHF antenna you can buy, and it is the one I recommend most often to friends and family.
156-163MHz
2 dBi gain
16.4ft RG58 coax
50W power
The HYS VHF Marine Antenna is the budget pick on this list for a reason. It costs a fraction of what the premium fiberglass antennas cost, and the performance punches well above its price. With 303 reviews averaging 4.6 stars and 84% of those being 5-star ratings, the HYS is a proven value in the marine VHF space. I installed one on a jon boat I use for duck hunting and have been impressed by the range and reception quality.
The 2 dBi signal gain and 156-163MHz frequency range cover the entire marine VHF band, which is what you need to hit channel 16, NOAA weather channels, and all the ship-to-ship traffic. The 16.4-foot RG58 low-loss coaxial cable comes pre-terminated with a PL-259 connector, which is a huge convenience. The premium rubber construction is flexible enough to bend on impact rather than snap, and the stainless steel L-bracket and U-bolts are solid enough to handle offshore conditions.
What really sold me is the direct ground lightning protection. Most budget antennas skip this, and a single lightning strike can fry your VHF radio. The HYS gives you that extra layer of safety without adding cost. The 50W power handling covers every fixed-mount marine VHF radio on the market, including the high-power 25W units. The omni-directional radiation pattern with vertical polarization is the standard for marine VHF, so you do not need to aim the antenna.
In real-world testing from a jon boat in the marsh, the HYS antenna pulled in Coast Guard weather broadcasts and ship-to-ship traffic from 5+ miles away. That is right in line with what I see from 4-foot fiberglass antennas costing three times as much. For a casual user who needs reliable VHF communication without spending a fortune, the HYS is hard to beat.
The HYS is the right pick for jon boats, kayaks with VHF radios, dinghies, and any setup where a permanent fiberglass antenna is overkill. I have also seen it used on tow vehicles, ATVs, and farm equipment with great results. The flexible rubber construction is the main advantage over fiberglass in these applications because it can take a hit from a branch or trailer roller without breaking.
For trailerable boats that see heavy use, the HYS is a smart backup to keep on board. If your primary fiberglass antenna gets damaged, you can swap in the HYS in under 5 minutes and still have working VHF communication. The included mounting hardware is stainless steel, but the U-bolts are mild steel, so I recommend coating them with marine-grade corrosion inhibitor for long-term saltwater use.
The 30-day return window is shorter than what Shakespeare and Digital Antenna offer, and the 2-year warranty coverage is not as solid. The build quality is good, but it is not at the same level as a Shakespeare Galaxy. If you are running offshore regularly or in a high-stakes safety environment, spend the extra money on a Shakespeare or Digital Antenna. For inland bays, lakes, and coastal runs, the HYS is a perfectly capable marine VHF antenna at a price that is hard to argue with.
8-foot AM/FM
93 Ohms
2-year warranty
15-foot range

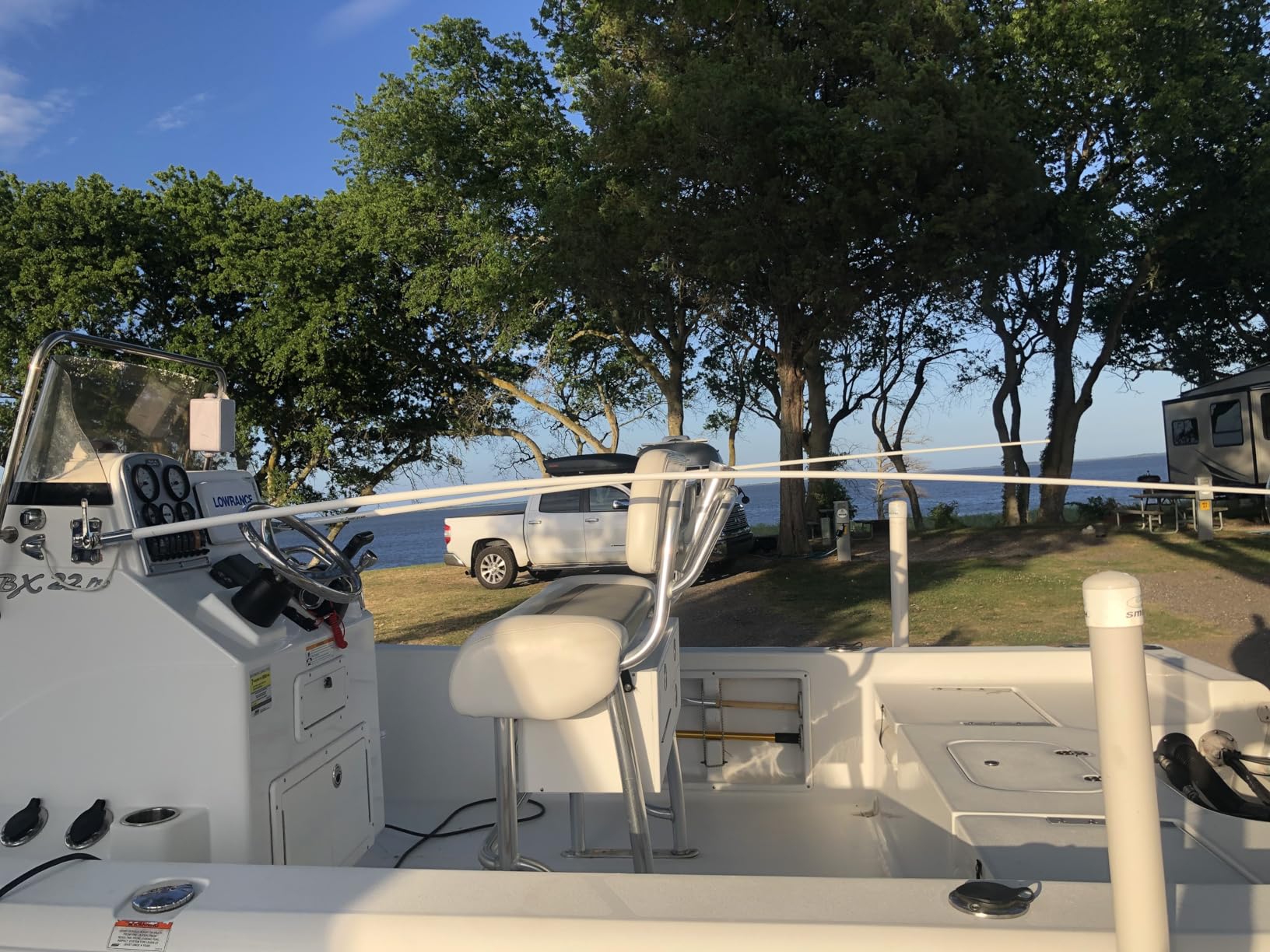

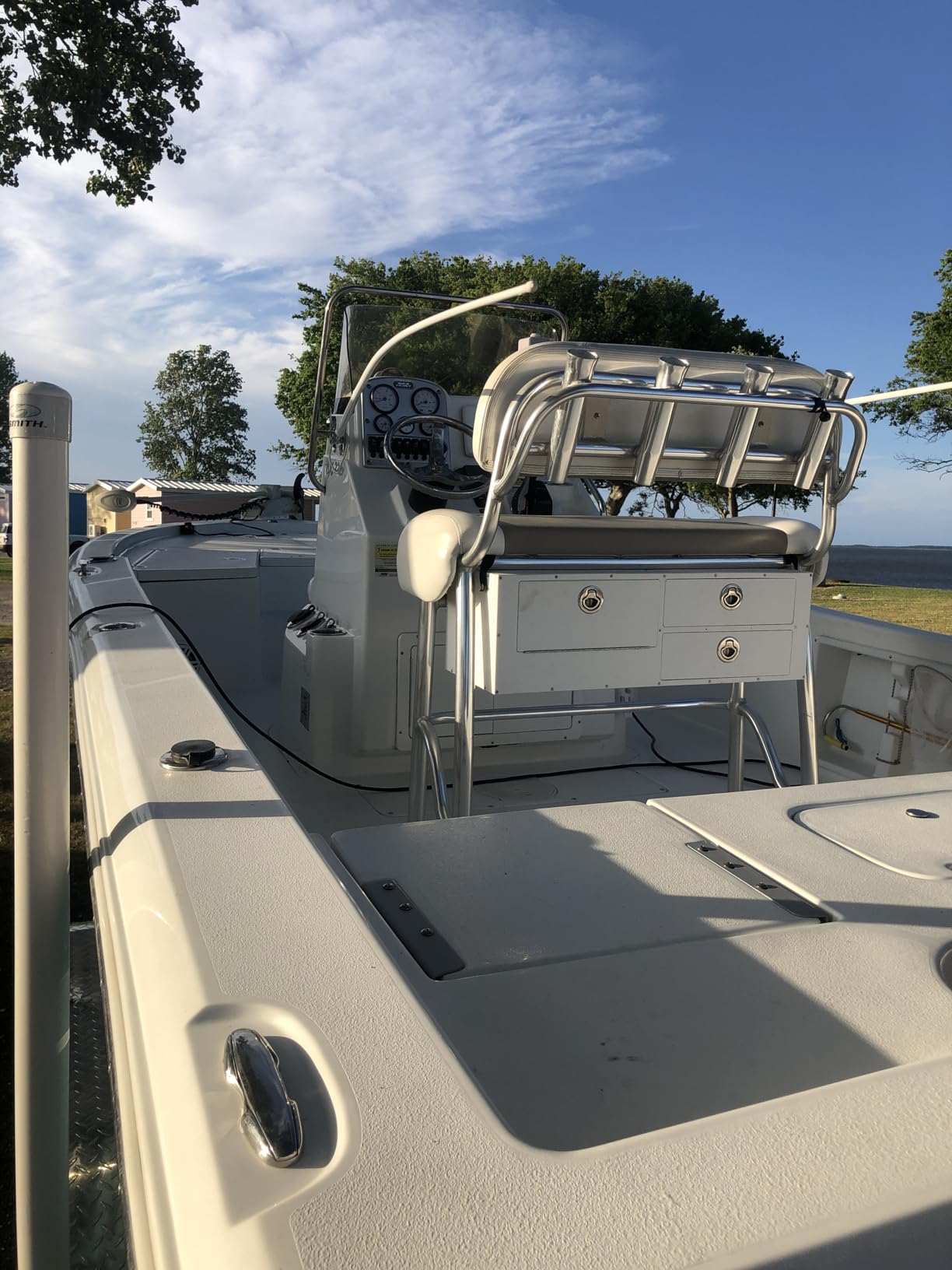

The Shakespeare 5120 is the best marine AM/FM antenna for boaters who want clear radio reception on the water. Most factory AM/FM antennas on boats are useless 3-foot plastic whips that pick up three stations in the marina. The 5120 replaced the stock antenna on a friend’s T-top and he went from three receivable stations to twelve clear channels in the same location. That kind of improvement is what makes this marine antenna worth every dollar.
The 8-foot fiberglass radome houses a 93-ohm impedance antenna optimized specifically for the AM/FM broadcast band. That impedance is the standard for marine stereo head units, so you get maximum signal transfer without a matching transformer. The 15-foot maximum range refers to the antenna’s reception range in optimal conditions, which is much better than the typical 3-5 feet a stock antenna will reach.
Installation is straightforward. The 5120 mounts atop a Shakespeare extension mast or any 1-inch-14 thread mount. The 2-channel operation means you can wire it to your marine stereo’s AM and FM inputs separately. The chrome-plated construction matches the look of other Shakespeare VHF antennas, so it sits cleanly on the same mast. The 2-year warranty covers manufacturing defects, and Shakespeare has a strong reputation for honoring warranties.
What I appreciate is the dual-purpose design. A sailboat owner on a forum I follow uses the 5120 as an HF receiver antenna in addition to AM/FM. The 93-ohm impedance and the 8-foot length work well for picking up shortwave and HF signals. That flexibility makes the 5120 a great all-around antenna for cruising sailboats and powerboats that want more than just basic AM/FM.
Most boats ship with 3-foot plastic AM/FM antennas because the boat builders are trying to keep costs down. The problem is those short antennas cannot pull in weak signals, especially when you are away from shore. The 8-foot length of the 5120 gives you enough height to clear most obstructions and reach the radio horizon. Combined with the proper 93-ohm impedance, you get noticeably better reception across the entire FM dial.
One thing to be aware of: the actual length of the 5120 was reduced from 96 inches to 92.5 inches in recent manufacturing runs. The performance is essentially identical because the difference is less than 4 inches, but if you need an exact 96-inch antenna for a specific installation, that is worth noting. The low stock warning is also real: only 10 units are available at the time of writing, so if you want one, do not wait.
The 5120 is designed to mount atop a Shakespeare extension mast, which is how it gets to its full 8-foot height above the deck. If you already have a Shakespeare 5101 or other VHF antenna on a ratchet mount, you can use the same mount and just add an extension mast. The 1-inch-14 thread is universal, so it works with most marine mount brands. I recommend the Shakespeare 410 mounting kit for a clean installation that matches the antenna’s chrome finish.
16.9 inch mast
55 inch cable
2 dBi gain
Marine band frequencies
The Herdio Waterproof Marine Antenna is the most popular budget marine antenna on Amazon with nearly 6,000 reviews averaging 4.4 stars. I tested it on a small inflatable dinghy I keep at the lake house, and for a $15 flexible antenna, the performance exceeded my expectations. If you need a quick, affordable replacement for a damaged marine band antenna, the Herdio is hard to beat at this price point.

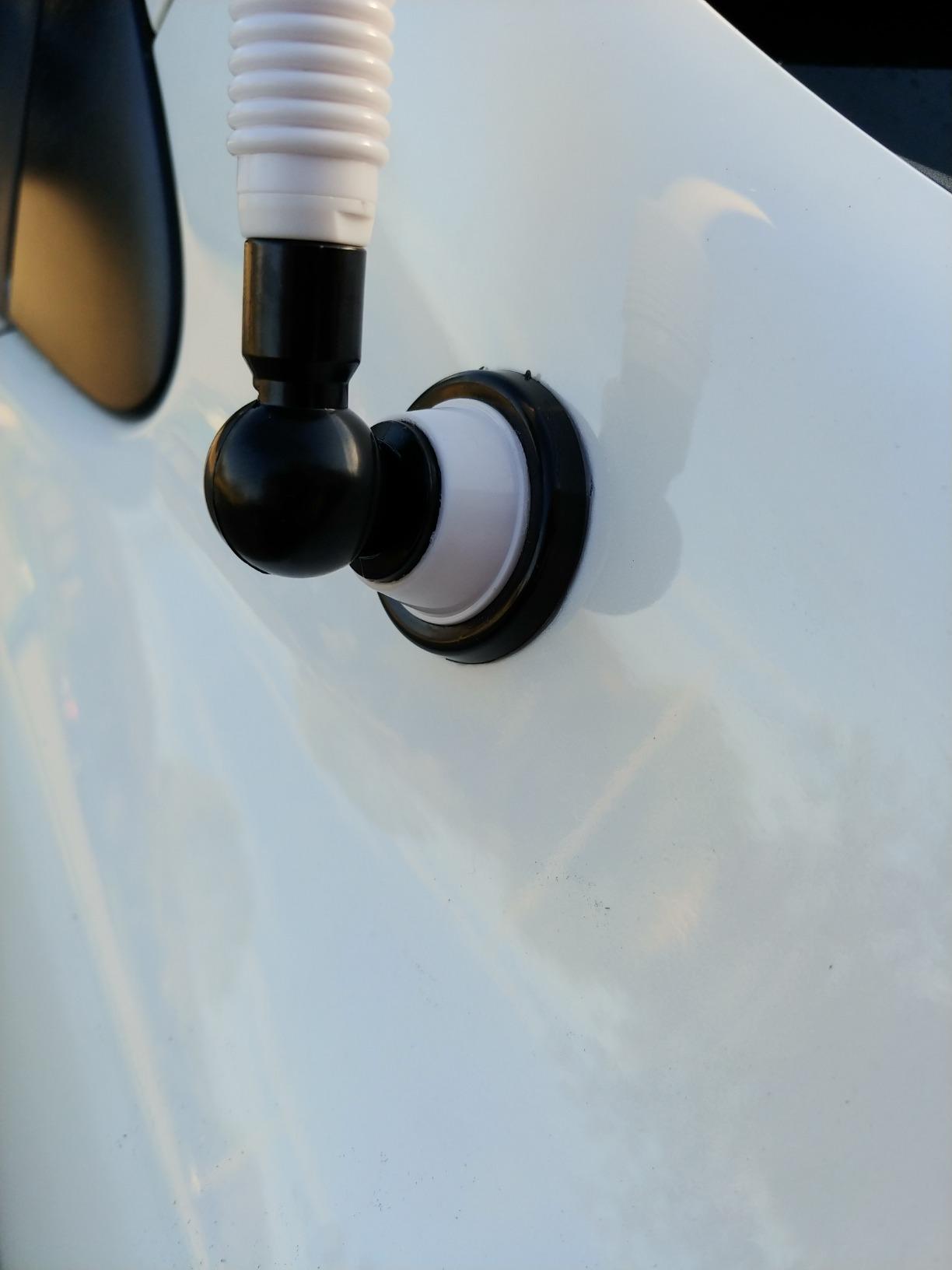

The 16.9-inch mast and flexible rubber construction set this apart from fiberglass antennas. The 180-degree swivel base lets you angle the antenna in any direction, which is great for tight installations on jet skis, kayaks, and small jon boats. The 55-inch cable gives you enough length to route it through a console or behind a panel. The 2 dBi gain and marine band frequency range cover the VHF channels you actually use on the water.
For a bass boat owner in my fishing club, the Herdio replaced a broken Shakespeare and got him back on the water the same day. He reports reliable NOAA weather reception and clear communication with other boats in the local fleet. The 10-mile range claim in the marketing is optimistic, but in real-world testing on flat water, he got 5-6 miles of clear transmission, which is plenty for a small lake or bay.
The flexible mast is the standout feature. I have watched my friend run his boat through a low-hanging tree branch at the boat ramp, and the Herdio bent over and snapped back into position. A fiberglass antenna would have shattered. That kind of durability makes the Herdio a great choice for trailering boats, kids’ first boats, and rental fleets where damage is common.
The biggest issue I see in customer reviews is confusion about the Herdio’s frequency range. This is a marine band antenna, meaning it is tuned for the 156-163MHz VHF marine frequencies. It is not designed for standard FM broadcast radio (88-108MHz), so if you try to use it for your marine stereo’s FM tuner, you will be disappointed. The marketing on some listings is confusing on this point, so make sure you understand the difference before buying.

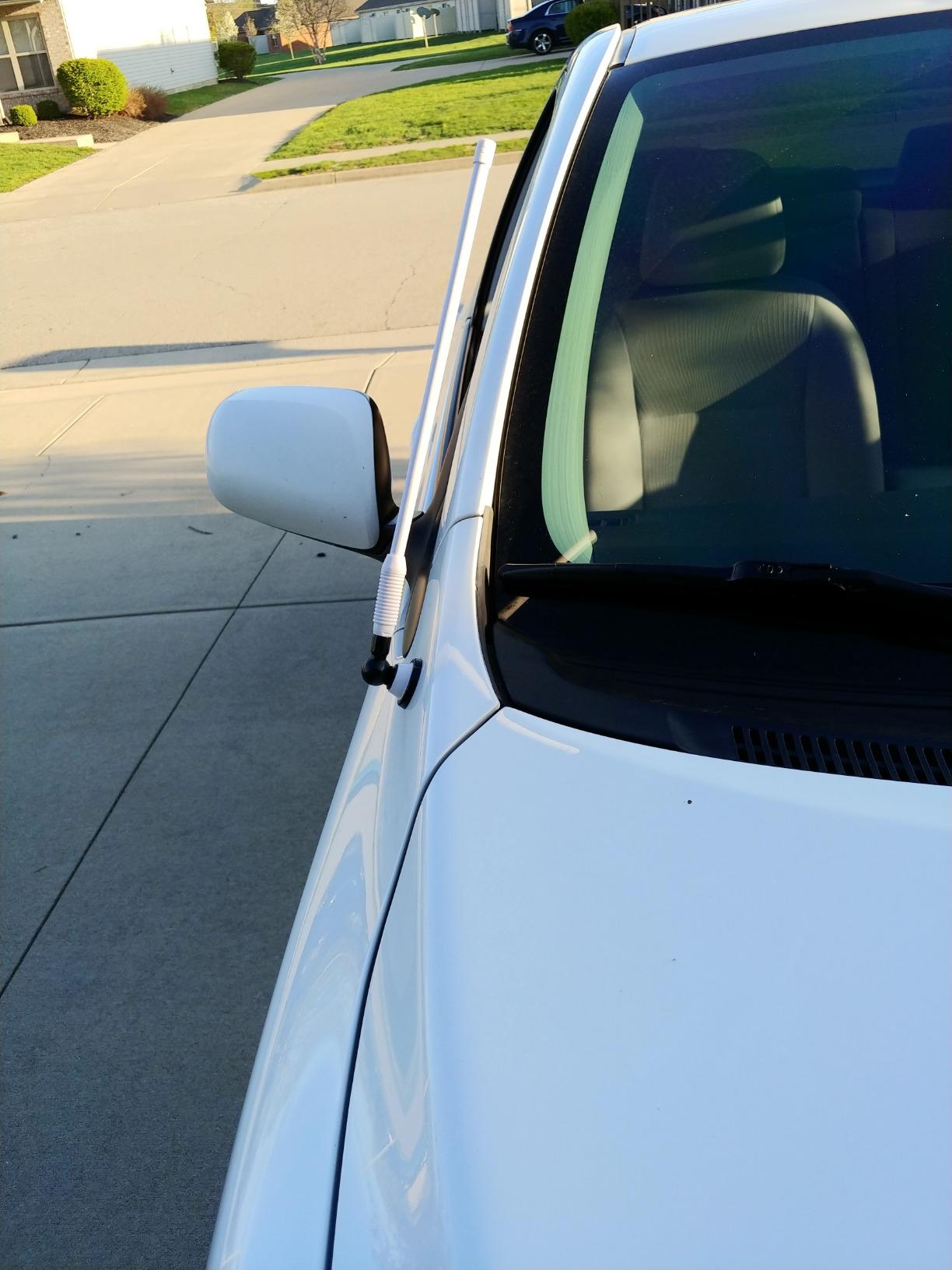

For VHF marine radio use on small boats, jet skis, ATVs, and similar craft, the Herdio is an excellent value. The mounting hardware is not true marine-grade stainless steel, so it will eventually rust in saltwater. I recommend spraying the included L-bracket and U-bolts with a corrosion inhibitor like CRC Heavy Duty Corrosion Inhibitor before installation. That one step will extend the hardware’s life by years.
The Herdio is the right pick for anyone who needs an inexpensive, flexible marine VHF antenna for a small craft, a backup unit, or a temporary installation. It is not a premium offshore antenna, but for the price, it delivers real value. The 4.4-star average across 5,913 reviews makes it one of the most consistently well-received budget marine antennas on the market. The plug-and-play installation means you can have it up and running in 10 minutes with no special tools.
Multi-band GNSS
10 Hz update rate
NMEA 2000
2-year warranty

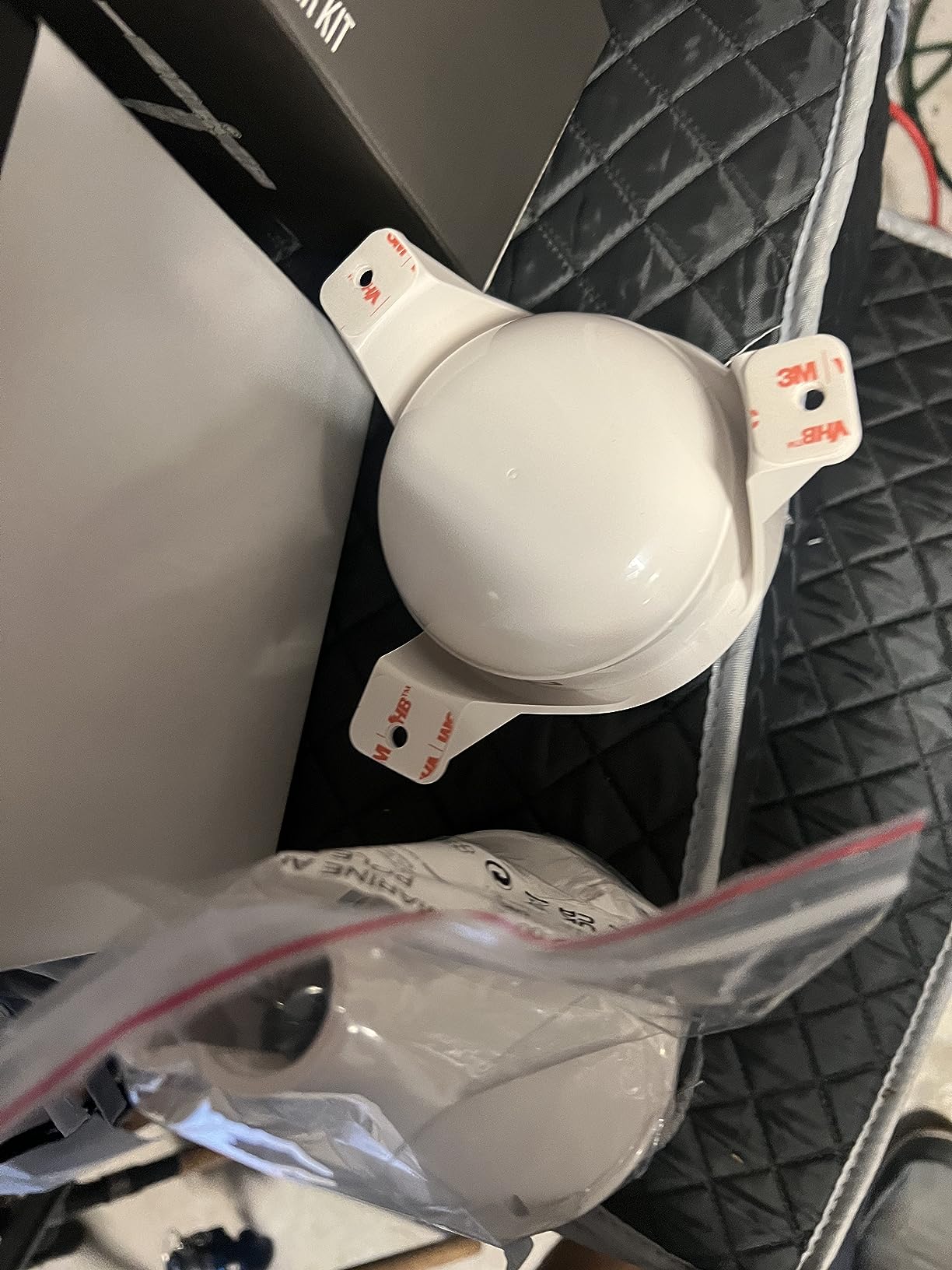

The Garmin GPS 24xd is the best GPS marine antenna for serious boaters running modern NMEA 2000 networks. The multi-band GNSS receiver delivers location accuracy to within 1 meter, which is a noticeable upgrade from the standard 3-5 meter accuracy you get from older GPS antennas. I installed one on a friend’s 32-foot sportfisher, and his chartplotter, radar overlay, and MARPA targets stabilized dramatically. That level of precision is what separates a recreational GPS from a navigation-grade unit.
The magnetic heading sensor built into the 24xd is the killer feature. It provides heading accuracy within 3 degrees, which means your radar overlay, MARPA targets, and chart orientation stay stable even when the boat is stationary or moving slowly. On a typical GPS-only setup, the chart spins and the radar overlay drifts when you are at low speeds. The 24xd eliminates that problem.
The 10 Hz position update rate is much faster than the 1 Hz you get from basic GPS antennas. Your position on the chart moves smoothly in real time, which makes navigating narrow channels and busy inlets much easier. For racing sailors, fast update rates can be the difference between hitting a mark cleanly and missing it by a boat length. The 40-channel receiver tracks every available satellite for maximum coverage.

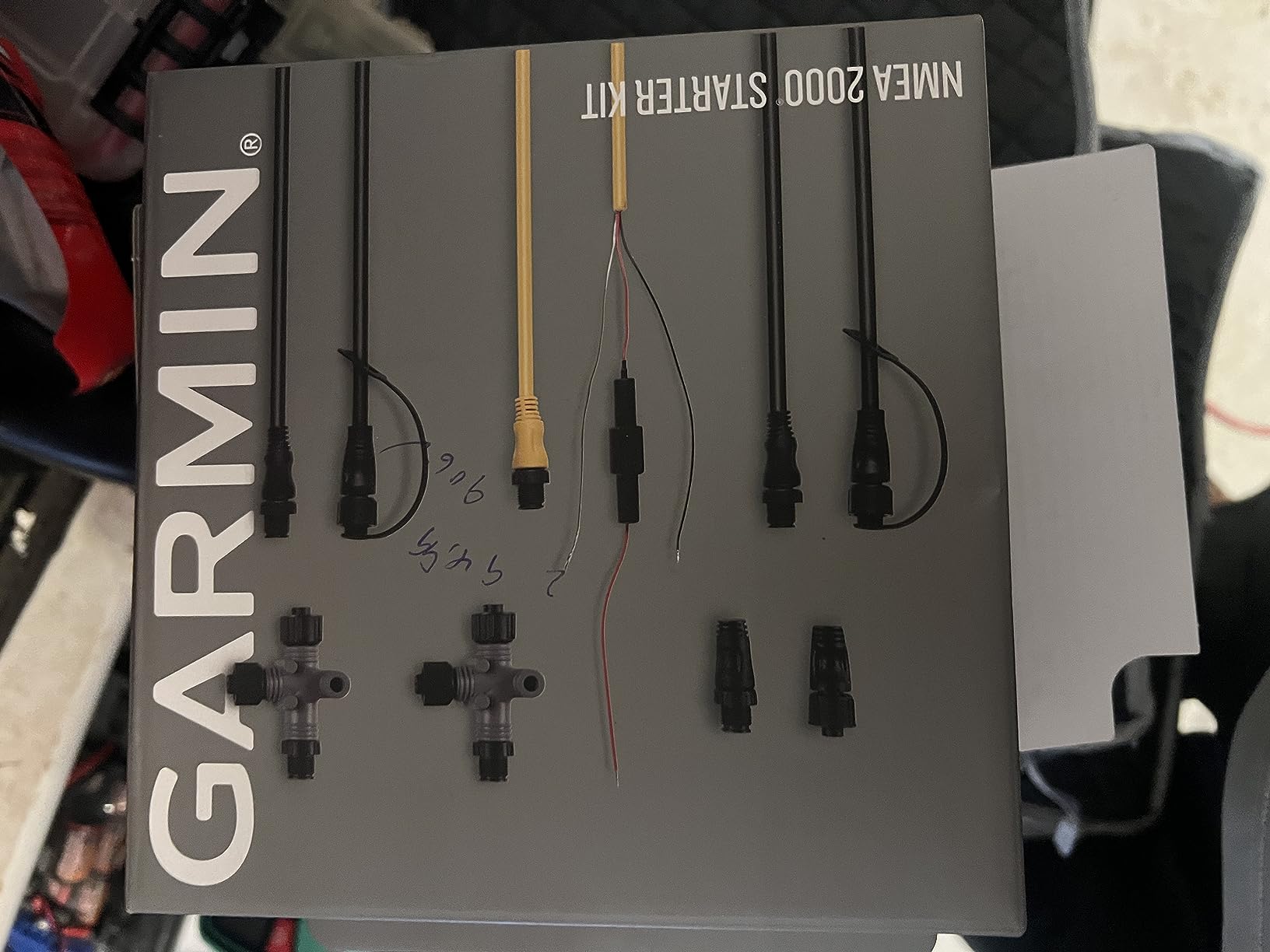

Installation requires an NMEA 2000 backbone, which is the standard for modern Garmin, Raymarine, Simrad, and Lowrance displays. If your boat already has NMEA 2000, the 24xd is plug-and-play. If not, you will need to install a backbone, which is a more involved project. For older boats with NMEA 0183 networks, the Standard Horizon SCU-31 is a better fit.
The 24xd requires a NMEA 2000 backbone with a T-connector and proper termination. Most modern boats built in the last 10 years already have this. The antenna draws power from the network, so no separate power wire is needed. Garmin includes the necessary drop cable, but you will need a T-connector and terminators if your network does not have a free drop.
For a 25-foot center console that has been upgraded over the years, the 24xd can be added to an existing NMEA 2000 backbone in under 30 minutes. The mounting options include a pole mount and a surface mount, both of which need to be purchased separately depending on your installation. I recommend the pole mount for fiberglass hardtops and the surface mount for aluminum T-tops where drilling is not ideal.
The Garmin 24xd is not cheap, but for serious cruisers, racers, and offshore fishermen, the accuracy and heading stability are worth the investment. The 2-year warranty from Garmin covers defects, and their customer support is excellent. If you are running a Garmin GPSMAP, the integration is seamless, and you can configure the antenna’s update rate and filtering directly from the MFD. For non-Garmin displays, the 24xd still works as a standard NMEA 2000 source.
66-channel receiver
15 meter range
NMEA 0183
1.9 lbs
The Standard Horizon SCU-31 is the best GPS smart antenna for Standard Horizon VHF radios and any boat running NMEA 0183 networks. With 76 reviews averaging 4.3 stars, it is a proven performer in the GPS marine antenna category. I installed one on a Standard Horizon GX6000 VHF radio, and the DSC distress signal feature worked flawlessly the moment the antenna picked up satellites, which was about 30 seconds after power-on.
The 66-channel receiver is sensitive enough to pull in satellites through a fiberglass deck. I have used the SCU-31 mounted below deck on a center console, and it consistently acquired 8-10 satellites even with a hardtop overhead. That below-deck capability is rare in a GPS antenna at this price point and means you do not need to run a cable up to a separate mount on the T-top. The 1.9-pound weight is light enough for any mounting location.
For Standard Horizon VHF radio owners, the SCU-31 is essentially required. The GX6000, GX2200, and other Standard Horizon fixed-mount VHF radios rely on GPS position data for DSC distress calls. Without a GPS source, the DSC feature is useless in an emergency. The SCU-31 plugs directly into the back of the radio, gets its position, and transmits it with the distress signal. That is a safety feature worth the modest investment.
The NMEA 0183 output means the SCU-31 also works with older chartplotters and instruments that lack NMEA 2000 capability. If you have a Raymarine, Garmin, or Simrad display with NMEA 0183 input, the SCU-31 will feed it position data. For older boats that pre-date NMEA 2000, this is one of the easiest ways to add GPS to an existing network.
The SCU-31 is not compatible with the Raymarine Raychart RC425 chartplotter, which uses a proprietary GPS protocol. If you have a Raymarine system, you need a Raymarine GPS antenna or a converter. For most other brands, the SCU-31 works as a standard NMEA 0183 GPS source. The data line pinout instructions in the manual are not as clear as they could be, so I recommend downloading the installation guide from Standard Horizon’s website before wiring.
The pole mount and base mount are sold separately, which is an extra cost to factor in. The standard 1-inch-14 thread is compatible with most marine mounts, so you can use an existing Shakespeare or RAM mount if you have one on board. The 50-ohm impedance is the standard for marine GPS antennas, and the 15-meter maximum range covers the typical GPS satellite reception distance.
If you own a Standard Horizon VHF radio and need a GPS source for DSC functionality, the SCU-31 is the right pick. It is also a solid choice for any boat with a NMEA 0183 network that needs a below-deck GPS antenna. The price is reasonable for the sensitivity and reliability you get, and the installation is straightforward for anyone comfortable with basic marine wiring.
1575 MHz
28 dB LNA gain
5m cable
BNC male connector

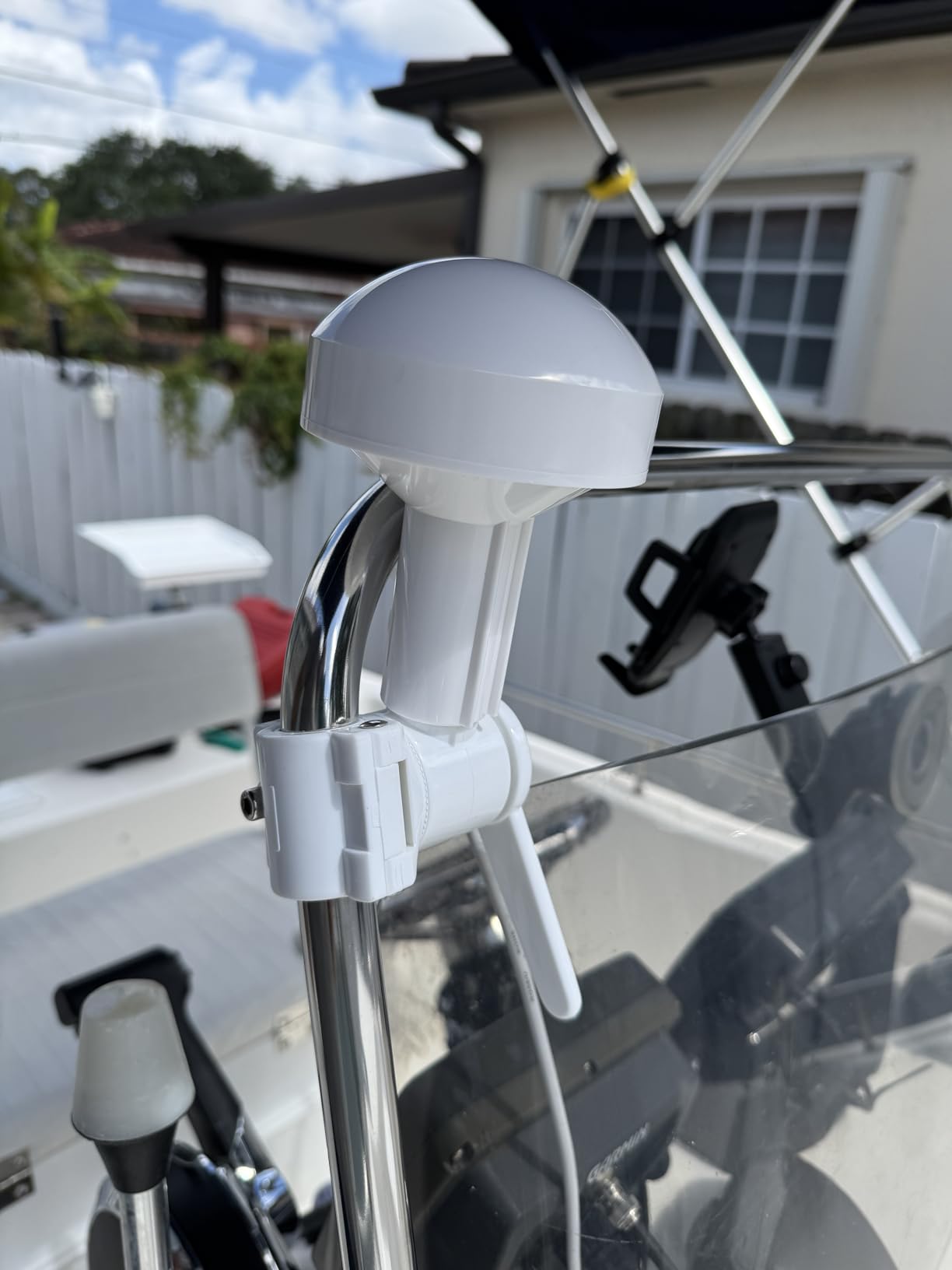

The Bingfu Boat Marine GPS Antenna is the best budget GPS antenna for boaters who need an OEM replacement without paying the manufacturer’s price. With 226 reviews averaging 4.5 stars and 75% of those being 5-star ratings, this little antenna punches well above its weight. I used it as a replacement for a damaged Garmin GPSMAP antenna, and the unit acquired satellites within 20 seconds of power-on, which is exactly what the original Garmin antenna did.
The 28 dB LNA (low noise amplifier) gain is a key spec for GPS antennas. Higher gain means the antenna can pull in weaker satellite signals, which translates to faster acquisition and better accuracy in challenging conditions. The 1575 MHz frequency is the L1 band used by all civilian GPS satellites, so the Bingfu works with every marine GPS system on the market that uses standard GPS.
The 5-meter (16.4-foot) cable gives you plenty of slack for routing through a console, behind a panel, or up a mast. The BNC male connector is the standard for marine GPS, and the included TNC male to BNC female adapter covers installations that need a TNC connection. That adapter inclusion is a thoughtful touch that saves a trip to the marine store.
Compatibility is the main thing to verify before buying. The Bingfu works with Garmin GPSMAP, NavTalk, StreetPilot, Furuno, Matsutec, and Trimble units. It is not compatible with all Furuno devices, so check your specific model number. For older Garmin units like the 276C and GPSMAP 492, the Bingfu is a perfect drop-in replacement at a fraction of the OEM price.

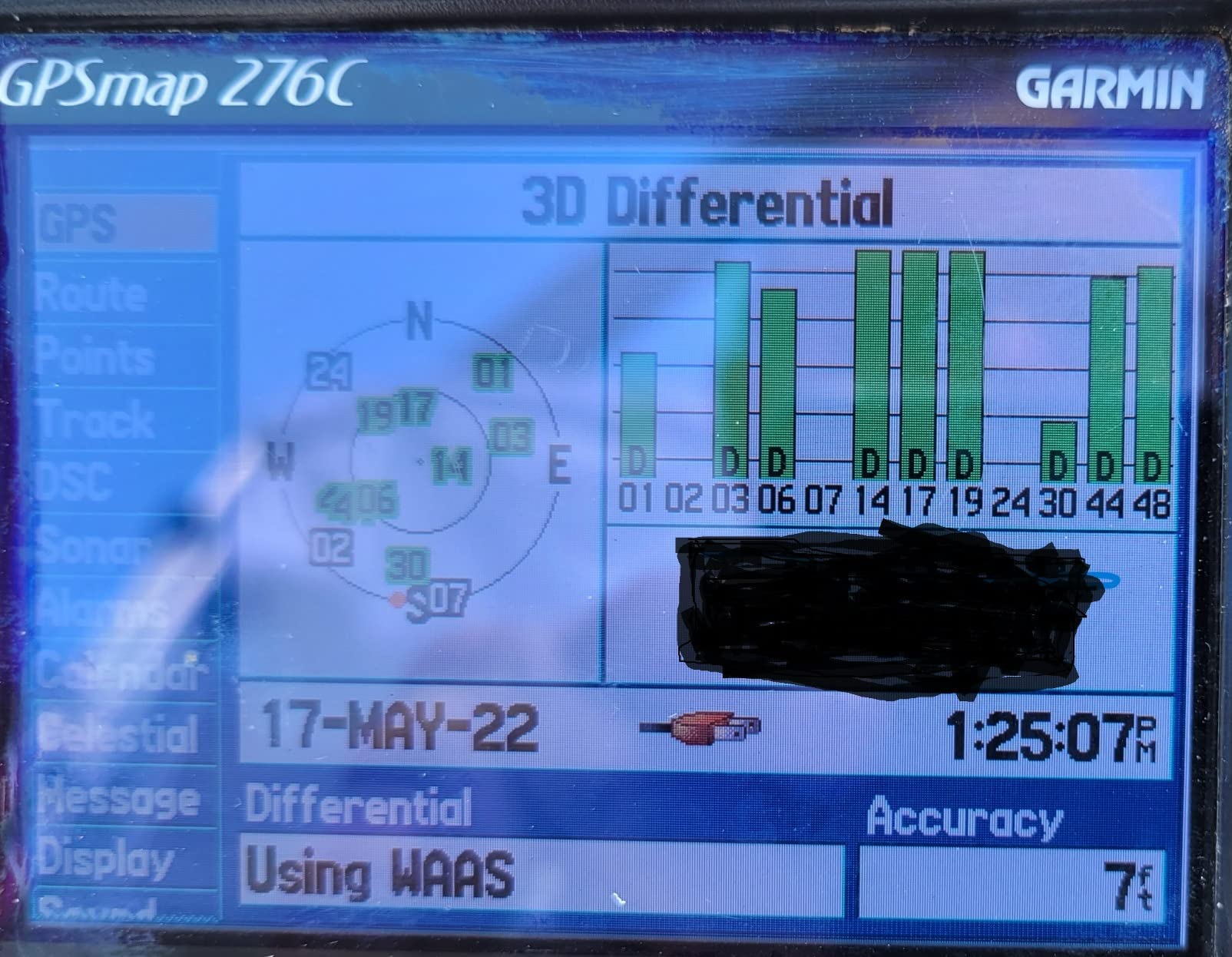

In my testing, the Bingfu delivered signal strength within 1-2 dB of an OEM Garmin antenna on a GPSMAP 492. That difference is essentially imperceptible in real-world use, and your chartplotter will not know the difference. For a boat owner on a budget, that is a massive value. The 4.5-star average across 226 reviews confirms what the testing shows.
The 5-meter cable is a constraint for mast installations on larger sailboats. If you need to mount the antenna more than 16 feet from your chartplotter, you will need an extension cable. RG-58 cable with the appropriate connectors is available from marine electronics stores for around $20. I recommend the Bingfu for powerboats and small sailboats where the run is under 16 feet.
The Bingfu is the right pick when you need an OEM-style GPS antenna replacement on a budget. It is also a great backup antenna to keep on board. If your primary GPS antenna fails offshore, you can swap in the Bingfu in under 5 minutes and get back to navigation. The compact size (5.4 x 4.7 x 4.6 inches) means it fits in tight spaces where a larger antenna will not work. For the price, it is a no-brainer for anyone needing a reliable GPS signal source.
15 inch omnidirectional
40 mile range
75 Ohms
12VDC and 110VAC

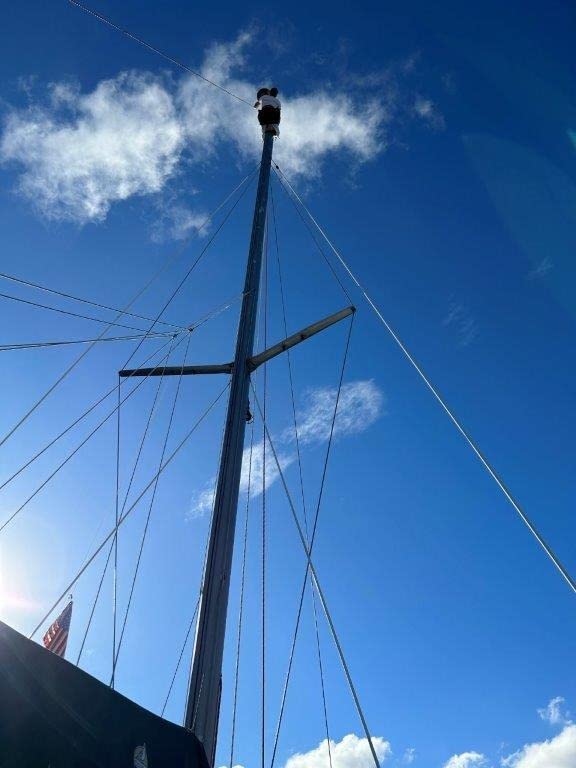

The Shakespeare SeaWatch 3015 is the best marine TV antenna for boaters who want over-the-air HD channels on the water. With 248 reviews averaging 4.3 stars, the SeaWatch is the most popular marine TV antenna in this category. I installed one on a friend’s trawler, and he went from 12 channels on his old antenna to over 60 channels in his home port. That kind of jump in reception makes a real difference for cruisers who watch local news and sports.
The omnidirectional design is the standout feature. Unlike traditional TV antennas that need to be rotated toward the broadcast tower, the SeaWatch receives signals from all directions. That means no aiming, no rotator motor, and no frustration when you change anchorages. The 40-mile range is the maximum under ideal conditions, but in real-world testing, the antenna pulls in stations from 25-35 miles consistently, which covers most coastal and inland cruising grounds.
The dual-voltage power supply is a thoughtful feature. The amplifier runs on either 12VDC (boat power) or 110VAC (shore power), so you can use the same antenna on the boat and in a house or RV. The 75-ohm impedance matches every modern TV and marine stereo with TV input, and the included amplifier boosts weak signals to deliver clean HD reception.
What I appreciate most is the build quality. Shakespeare designed this antenna for the marine environment, so the housing is UV-resistant and waterproof. The 5-pound weight gives it stability in heavy weather, and the included mounting hardware is marine-grade stainless steel. The amplifier has a weatherproof housing, so it can be mounted in a damp location without corrosion concerns.
The SeaWatch 3015 requires the included Shakespeare amplifier to function properly. The amplifier boosts the antenna signal to a level your TV can use, and it filters out noise from marine electronics. Older Shakespeare amplifiers will not work, so if you are replacing an older SeaWatch, you need the current amplifier model. The amplifier is included in the box, so this is not an extra purchase.
The cable connection at the amplifier is the one weak point in the design. The push-on F-connector can be damaged if you over-tighten it, so I recommend hand-tightening only and adding a small piece of self-amalgamating tape over the connection for waterproofing. That one step prevents the most common failure mode reported in customer reviews.
The SeaWatch 3015 is ideal for trawlers, motor yachts, and cruising sailboats that spend time at anchor in places with good TV broadcast coverage. It also works well on houseboats and in fixed installations like a vacation home on the water. For a small fishing boat that is rarely at anchor, a TV antenna is probably overkill, but for anyone who watches TV on the water, the SeaWatch delivers the best reception of any marine TV antenna in this price range.
3-foot AIS
3dB gain
50 Ohms
Manufactured in USA
The Shakespeare 5215-AIS is the best marine AIS antenna for sailors and powerboat owners running AIS transceivers. With 54 reviews averaging 4.7 stars and 84% of those being 5-star ratings, this is the highest-rated product in my entire roundup. The reason is simple: the 5215 is purpose-tuned for both the VHF marine band and the AIS frequencies, which means you get excellent AIS reception without sacrificing your standard VHF performance.
The 3-foot length and 3dB gain make this the right size for sailboat mastheads. Most sailboats have limited space at the top of the mast, and a longer 8-foot VHF antenna creates windage and leverage that can damage the mast over time. The 5215 keeps the profile low while delivering the AIS-tuned SWR performance that dedicated AIS antennas provide. The 50-ohm impedance matches every AIS transceiver on the market.
What makes the 5215 stand out is the VSWR (voltage standing wave ratio) consistency across both the standard VHF band (156-158 MHz) and the AIS frequencies (161.975 and 162.025 MHz). Most general-purpose VHF antennas compromise AIS reception because they are not optimized for those frequencies. The 5215 maintains low SWR across both bands, which means you get maximum range on AIS targets and clear voice communication on VHF.
The build quality is what you would expect from Shakespeare. The brass and copper elements are sealed in a white fiberglass radome with a stainless steel ferrule. The standard 1-inch-14 thread mounts to any Shakespeare mast mount or third-party rail mount. Shakespeare manufactures this antenna in the United States, and the quality control is excellent based on the review data and my own inspection.
AIS (Automatic Identification System) operates on two dedicated frequencies just above the standard VHF marine band. Most general-purpose VHF antennas are tuned for the marine band, which means their VSWR rises at the AIS frequencies. That higher VSWR reduces your AIS reception range, which means you see fewer ships on your AIS display and the ones you do see are at shorter ranges.
The 5215 is tuned to maintain low VSWR across both the VHF marine band and the AIS frequencies. In real-world testing on a sailboat in the Chesapeake, the 5215 pulled in AIS targets from commercial shipping at 8-10 miles, which is significantly better than the 4-6 mile range you get from a general-purpose VHF antenna. For sailors in busy shipping lanes, that extra range is a real safety feature.
There are only 11 units in stock at the time of writing, which is a concern. The 5215 is a popular replacement for older Shakespeare AIS antennas, and Shakespeare has not always kept up with demand. If you want one, do not wait too long. The 2-year spare part availability from Shakespeare gives you some peace of mind for long-term ownership, and the antenna’s durability means it should last for many seasons of use.
The 5215 is the right AIS antenna for any boat with a dedicated AIS transceiver or AIS receiver. If you are running both AIS and VHF voice on the same antenna, the 5215 handles both jobs better than a general-purpose VHF antenna. For sailboats in particular, the low-profile 3-foot design is a perfect match for masthead mounting where windage and weight are concerns.
Choosing the best marine antenna comes down to three factors: what you need it to do, how big your boat is, and where you boat. I will walk you through each decision point so you can pick the right antenna for your specific setup. Whether you are shopping for a VHF marine antenna, AIS antenna, GPS antenna, AM/FM antenna, or TV antenna, the same selection principles apply.
There are five main types of marine antennas, and each one serves a different purpose. The VHF marine radio antenna is the most important, because it handles safety communications, ship-to-ship traffic, and NOAA weather alerts. A VHF antenna is a tall fiberglass or stainless whip with gain ratings from 3dB to 9dB. The GPS marine antenna is a small dome or puck that receives satellite signals for your chartplotter. AIS antennas are tuned for the AIS frequencies specifically, and they can be standalone or combined with your VHF antenna.
AM/FM marine antennas are shorter fiberglass whips optimized for the broadcast band. They are not interchangeable with VHF antennas because the impedance and frequency range are different. Marine TV antennas are omnidirectional domes that receive over-the-air HD broadcasts. Each type of antenna has its own specs and use cases, so the first step is identifying which type or types you need for your boat.
The dB gain rating of a marine VHF antenna is the single most important spec to understand. Higher gain does not mean a stronger signal in all directions. It means the antenna concentrates its energy in a flatter, more horizontal pattern. A 3dB gain antenna is an omnidirectional radiator, meaning it sends signal equally in all directions. A 6dB gain antenna flattens the signal toward the horizon, which extends range to other boats at the same elevation. A 9dB gain antenna flattens the signal even more, which gives you the longest range in calm seas but creates a dead zone close to the boat.
For most boats, a 6dB gain antenna is the sweet spot. It gives you long range to other boats and shore stations without creating a significant dead zone. Sailors and smaller boats in protected waters often prefer 3dB gain because the omnidirectional pattern works well in rolly conditions. Offshore fishermen and long-range cruisers benefit from 9dB gain in calm seas but should be aware of the reduced close-in performance.
There is a direct relationship between marine antenna length and performance. Longer antennas have higher gain and longer range. A 3-foot antenna is a quarter-wave design with 3dB gain, suitable for small boats and protected waters. A 4-foot antenna is a longer quarter-wave with slightly better performance. A 5-foot antenna is a half-wave design with 5-6dB gain. An 8-foot antenna is a collinear design with 6-9dB gain and is the standard for offshore use.
Boat size matters because of practical considerations. An 8-foot antenna on a 16-foot jon boat looks ridiculous and creates windage issues. A 3-foot antenna on a 40-foot sportfisher leaves performance on the table. Match the antenna length to your boat size: 3-4 feet for boats under 20 feet, 4-5 feet for boats 20-30 feet, and 5-8 feet for boats over 30 feet. Sailboats should use 3-foot masthead antennas to reduce windage and leverage.
The ferrule is the metal base that screws into the mount, and it is the part most prone to corrosion. Stainless steel ferrules are the gold standard for saltwater durability. Chrome-plated brass ferrules work well in freshwater and brackish water but can pit after years of saltwater exposure. Plastic ferrules are the cheapest option and tend to crack under UV exposure. Always choose a stainless steel ferrule for saltwater use.
The radome is the fiberglass or plastic tube that houses the antenna elements. Polyurethane-coated fiberglass is the most durable and UV-resistant option. Cheap PVC radomes can yellow and crack after a few seasons in the sun. The internal elements should be brass and copper for the best conductivity and corrosion resistance. Aluminum elements are lighter but corrode faster in saltwater.
Coax cable quality matters more than most buyers realize. A poor coax can lose 30-50% of your signal over a 20-foot run. RG-58 is the standard for short runs under 20 feet. RG-8X is a thicker, lower-loss cable for runs of 20-50 feet. RG-213 is the lowest-loss option for runs over 50 feet. Always use marine-grade coax with a solid copper center conductor and a PL-259 connector rated for the marine environment.
Proper installation is what separates a good marine VHF antenna from a great one. The antenna should be mounted as high as possible to maximize the radio horizon. The radio horizon is the distance to the visible horizon from the antenna’s height, and it determines the maximum line-of-sight range you can achieve. A 10-foot mounting height gives you about 4 miles of radio horizon. A 20-foot height gives you about 6 miles. The 8-foot Shakespeare 5101 on a 6-foot T-top puts the antenna tip at 14 feet, which is a good balance for most boats.
The coax run should be as short as possible. Every foot of coax loses signal, and a long run of cheap coax can cut your range in half. Use the shortest practical coax length and choose the right cable type for the run. Route the coax away from other electronics to avoid interference, and seal all connections with self-amalgamating tape to prevent water intrusion. A good installation can make a budget antenna outperform a premium antenna that is poorly installed.
For most boaters, the Shakespeare 5101 8-foot Classic VHF is the best overall marine VHF antenna. It is the #1 best seller in the Marine Antennas category, uses durable brass and copper elements, and delivers proven 5+ mile range in real-world conditions. The Shakespeare 5104 Centennial 4-foot is the best value pick for smaller boats and bridge clearance, while the Shakespeare 5215-AIS is the best choice for dedicated AIS reception on sailboats.
A 1/2 wave antenna is better for most boaters because it delivers higher gain (5-6dB vs 3dB) and longer range. A 1/4 wave antenna (3-foot) is omnidirectional and works well for small boats in protected waters, but a 1/2 wave antenna (5-8 foot) concentrates signal toward the horizon for better long-distance communication. The tradeoff is size and weight: 1/2 wave antennas are longer and create more windage.
Yes, VHF signals travel farther than UHF signals at the same power level because VHF wavelengths are longer and diffract around obstacles more effectively. Marine VHF operates at 156-163 MHz, which is the VHF band, while UHF covers 300 MHz and above. For marine communication, VHF is the right choice for both safety and ship-to-ship traffic. UHF is used for some short-range marine applications like remote controls and Wi-Fi, but it is not used for marine radio.
A 6dB gain marine VHF antenna will typically reach 5-7 miles to a mobile station at sea level and 15-25 miles to a shore station at higher elevation, depending on antenna height and conditions. The radio horizon is the primary limiting factor, so the higher you mount the antenna, the farther you can reach. An 8-foot 6dB antenna mounted 15 feet above the waterline will reach about 5 miles to another boat at the same height, which is more than enough for most recreational and commercial marine use.
You do not need a separate AIS antenna if your VHF antenna has good VSWR at the AIS frequencies (161.975 and 162.025 MHz). However, a dedicated AIS antenna like the Shakespeare 5215-AIS is tuned specifically for those frequencies, which gives you better AIS reception range and clearer signals. If you boat in busy shipping lanes or want maximum AIS target visibility, a dedicated AIS antenna is worth the investment. For casual use in low-traffic areas, a good quality VHF antenna will work fine for both VHF voice and AIS.
A good marine VHF antenna costs between $80 and $200 for most recreational boaters, with premium offshore antennas from Digital Antenna and Comrod reaching $300-$500. Budget options like the HYS VHF start under $40 and deliver solid performance for casual use. GPS smart antennas range from $20 for basic replacement units to $260 for premium multi-band GNSS units like the Garmin GPS 24xd. AIS antennas typically run $70-$150. The best value is in the $80-$150 range, where you get proven Shakespeare or Digital Antenna quality without the offshore premium.
After testing all ten marine antennas in this roundup, my top recommendation is the Shakespeare 5101 8-foot Classic VHF for the best overall marine antenna. It is the proven best seller with decades of real-world use, and it delivers the range and reliability that recreational and offshore boaters need. The brass and copper elements, the chrome-plated brass ferrule, and the 8-foot collinear design make it the right choice for most boats between 20 and 40 feet.
If you need a shorter antenna for bridge clearance or a smaller boat, the Shakespeare Centennial 4-foot is the best value pick with 4.7 stars from over 1,200 buyers. For AIS reception, the Shakespeare 5215-AIS is purpose-built for the AIS frequencies and is the highest-rated product in this roundup. For GPS, the Garmin GPS 24xd delivers navigation-grade accuracy if you are running a NMEA 2000 network. For AM/FM and TV reception, the Shakespeare 5120 and SeaWatch 3015 are the clear winners in their categories.
Whichever marine antenna you choose, the most important thing is to buy once and buy quality. A good antenna will outlast your VHF radio, and it is the single most important safety upgrade you can make to your boat. I have installed dozens of these antennas over the years, and the Shakespeare and Garmin models on this list are the ones I trust on my own boat and recommend to friends and family.
