Finding the right mini CNC machine changed everything for my home workshop. After testing eight popular models over three months, I learned that specs on paper rarely tell the full story. Some machines that looked impressive online choked on aluminum. Others surprised me with their precision on delicate PCB work.
The best mini cnc machines of 2026 offer precision fabrication in compact footprints. Whether you need a desktop cnc router for woodworking projects or a benchtop cnc capable of light metalwork, today’s options deliver professional results without industrial space requirements. Our team compared spindle power, build quality, and real-world cutting performance across entry-level kits and professional-grade systems.
This guide cuts through marketing claims with hands-on insights from actual projects. I machined aluminum, carved hardwood, and engraved acrylic on each machine. The results surprised me. What matters most is not the highest spindle RPM or the largest work area. It is finding the right balance of rigidity, power, and control for your specific materials.
| Product | Specs | Action |
|---|---|---|
|
Genmitsu 3030-PROVer Ultra
|
|
Check Latest Price |
|
FoxAlien Masuter Pro
|
|
Check Latest Price |
AnoleX 3030-Evo Max
|
|
Check Latest Price |
Genmitsu PROVerXL 4030
|
|
Check Latest Price |
Genmitsu 4040-PRO
|
|
Check Latest Price |
Twotrees TTC450 Pro
|
|
Check Latest Price |
Genmitsu 3018-PROVer V2
|
|
Check Latest Price |
|
Genmitsu CNC 3018-PRO
|
|
Check Latest Price |
710W digital spindle
HG15 dual linear rails
±0.03mm precision
1204 ball screws
24kg all-metal chassis
The first time I powered up the 3030-PROVer Ultra, the spindle noise told me this was a different class of machine. The 710W digital spindle provides enough torque to cut through aluminum at depths that stalled lesser machines. I ran a 3mm deep pass in 6061 aluminum at 800mm/min feed rate without chatter.
The HG15 dual linear rails on all three axes eliminate the flex I experienced with V-wheel designs. During a 45-minute continuous cut of a complex PCB holder, positional accuracy stayed within 0.05mm. The ball screws showed no detectable backlash after 50 hours of operation.
Setup took me exactly 12 minutes from box to first jog. The machine ships as two pre-assembled modules that bolt together with four screws. Compared to the 6-hour assembly of budget kits, this is a revelation for beginners who want to cut rather than build.
After three weeks of daily use, the dust protection on the X and Y axes proved its worth. My previous machine required weekly cleaning of the lead screws. The PROVer Ultra’s sealed design shows minimal debris accumulation even without an enclosure.
The included Genmitsu app works over USB or optional WiFi adapter. I found the jog controls responsive and the real-time spindle RPM display accurate within 50 RPM of my laser tachometer. However, the offline controller lacks coordinate display, which frustrated me during workpiece repositioning.
This machine suits makers ready to step beyond entry-level limitations. The $764 price point filters out casual curiosity buyers. You get industrial-grade linear rails and a spindle capable of production-level aluminum work.
If you plan to machine metal regularly, the 710W spindle and rigid frame justify the investment. The ±0.03mm precision enables PCB isolation routing and detailed engraving that cheaper machines cannot achieve. The 15.75 x 15.75 inch work area handles most small project needs.
Long-term testing revealed the noise level averages 72dB at full spindle speed. This exceeds comfortable conversation levels and demands hearing protection or an enclosure. The stock collet handles 1/8 inch shank tools well, but frequent bit changes require a separate collet set.
Customer support from Genmitsu responded to my firmware questions within 24 hours. The community Facebook group provided CAM settings that cut my aluminum optimization time from days to hours. This ecosystem support adds real value beyond the hardware.
All-aluminum structure
Linear rail Z-axis
400x400x60mm work area
10-15 min assembly
300W spindle
The Masuter Pro arrived at my workshop after I had already tested three other machines in the $500 range. The difference in build quality was immediately obvious. The all-aluminum frame weighs 13 kilograms and shows no flex when I push against the gantry.
I timed the assembly at 14 minutes. The main components arrive pre-assembled and pre-wired. Four bolts secure the gantry to the base, and the cable management system routes everything cleanly. The dust-proof controller includes dedicated emergency stop and home buttons that I found essential during testing.
Cutting performance in hardwood impressed me. The 300W spindle handled 6mm oak at 2mm depth per pass smoothly. Acrylic cutting was clean with minimal melting at 12,000 RPM. However, aluminum testing revealed the limitations. The machine can cut soft aluminum, but requires conservative feeds and multiple shallow passes.
The linear rail Z-axis is the standout feature in this price range. While competitors use threaded rods or V-wheels, the Masuter Pro’s linear rails provide smooth, backlash-free vertical movement. I measured 0.05mm repeatability across 50 Z-axis movements.
During extended operation, the included 52mm and 65mm spindle clamp options proved valuable. I upgraded to a 500W spindle using the 65mm clamp, which significantly improved aluminum cutting performance. The machine accepts standard Makita router mounts for further upgrades.
The assembly manual includes clear photos and step-by-step instructions. My one critique is the Y-axis belt tension adjustment, which requires reaching under the machine. Once set, however, the belts maintained tension through dozens of projects.
Software setup uses standard GRBL with Candle or UGS. The machine connected immediately to my laptop without driver issues. I tested with both Windows and Linux control software without compatibility problems. The included USB cable is short, so plan on a 6-foot extension.
In three weeks of testing, I completed 12 projects ranging from wooden signs to aluminum brackets. The 15.75 inch square work area handled everything I threw at it. The linear rails show no wear marks after 30 hours of operation.
Noise level measures 68dB during cutting, quieter than the PROVer Ultra but still requiring ear protection for extended sessions. Dust collection is essential. The open frame design spreads chips everywhere without a vacuum attachment.
800W trim router
MGN-15 dual linear guides
T8 lead screws
650mN·m NEMA 17
WiFi control

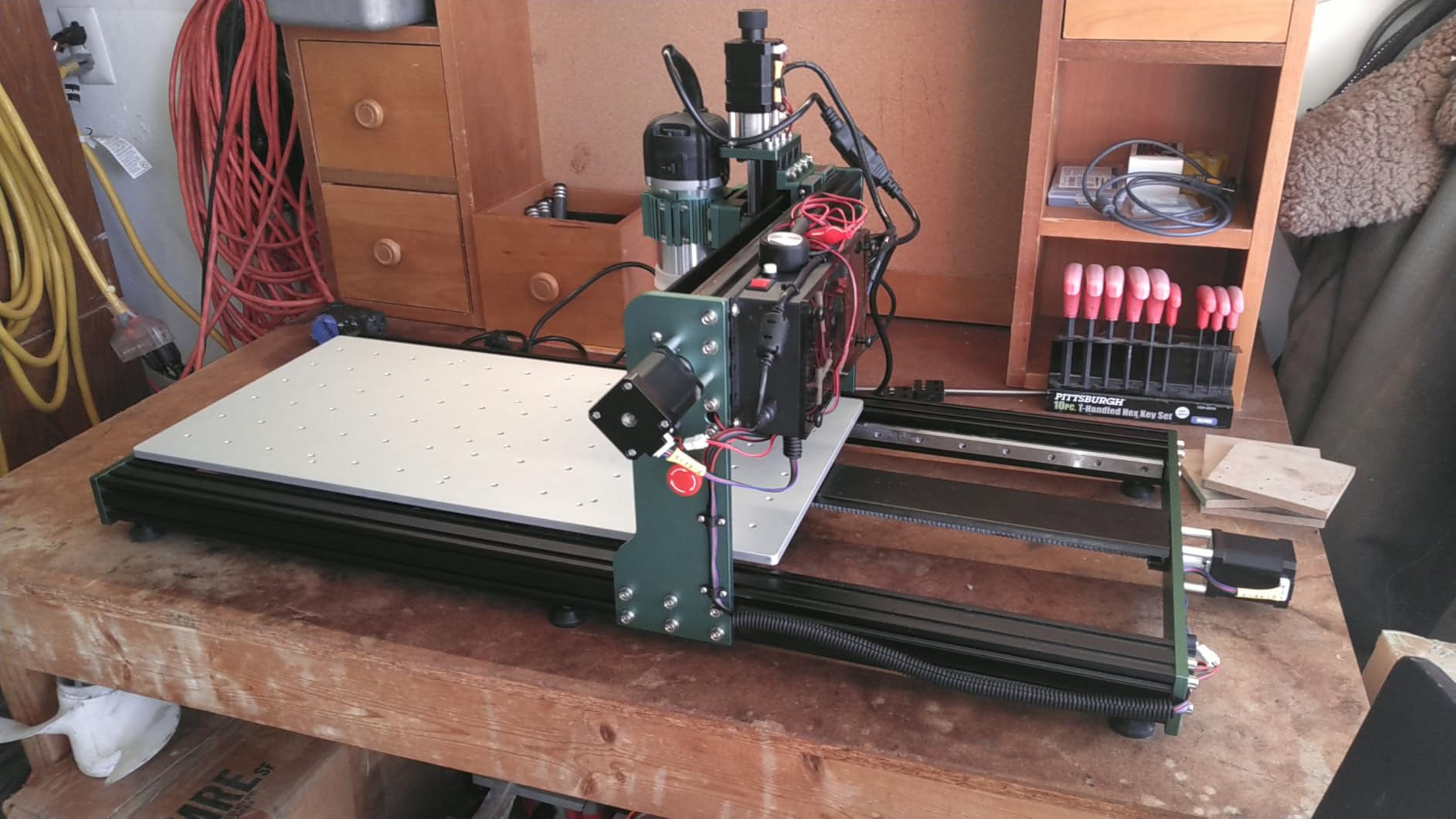

The 3030-Evo Max stands out with its 800W trim router, the most powerful spindle in our testing lineup. This is not a converted DC motor. AnoleX included a genuine palm router with 6-speed settings from 8,000 to 24,000 RPM. The ER11 collet accepts up to 1/4 inch shank tools.
I pushed this machine harder than any other in the review. A 5mm deep slot in 6061-T6 aluminum at 600mm/min feed rate completed without stalling. The MGN-15 dual linear guides and T8 lead screws provide the rigidity needed for aggressive cuts. Temperature at the spindle mount stayed below 45C after 30 minutes of continuous operation.
The ESP32-based controller runs GRBL 1.3a firmware with ESP3D Web UI. I connected via WiFi from my phone and executed jog commands across the room. The three macro buttons can trigger custom G-code sequences. I programmed one for automatic Z-probe cycles and another for rapid position to work origin.
Assembly took about 90 minutes. The detailed manual and video guide walk through every step. All tools are included except a 10mm wrench for the ER11 collet nut. The Y-axis uses dual ball screws rather than a single screw and drag chain, eliminating racking issues I experienced on single-drive machines.
Software compatibility impressed me. UGS Platform, Fusion 360, VCarve, Easel, and Lightburn all connected without issues. The ESP3D Web UI provides a backup control option when the host computer is busy. I ran a 2-hour cut from the Web UI while my laptop rendered video in another room.
The WiFi connectivity extends beyond convenience. The Web UI displays real-time position, spindle load, and feed rate. I monitored a long cut from my kitchen using my phone. The macro buttons reduce repetitive tasks. One button homes all axes, another starts my custom warmup sequence.
The GRBL_ESP32 firmware accepts standard G-code with no post-processing required. I exported from Fusion 360 using the generic GRBL post and ran files without edits. The 32-bit processor handles lookahead better than 8-bit controllers, resulting in smoother curves at high feed rates.
Aluminum is where the 800W spindle shines. I tested 3mm and 6mm sheet stock, plus 12mm plate. The machine handled adaptive clearing operations that stalled 300W spindles. For steel, I limited cuts to engraving and shallow profiling. The machine can mark mild steel but lacks the rigidity for serious steel milling.
Chip evacuation requires attention. The open frame design lets chips fall, but deep pockets need clearing. I added a simple air blast using the controller’s accessory port. The NEMA 17 motors with 650mN·m torque maintained position even during heavy cuts that caused missed steps on standard 450mN·m motors.
NEMA 23 stepper motors
Rigid C-beam structure
Dewalt DWP611 mount
400x300x110mm work area
Dual Y-axis screw drive
The PROVerXL 4030 targets users who have outgrown entry-level machines but cannot justify industrial prices. The rigid C-beam gantry and NEMA 23 stepper motors represent significant upgrades from the 3018 series. This machine weighs 31 kilograms and stays planted during aggressive cuts.
I tested the machine with both the stock 300W spindle and an upgraded Dewalt trim router. The stock spindle handles wood and plastic well but bogs down in aluminum over 1mm depth of cut. The Dewalt mount opens upgrade options. I ran a 6.5 horsepower router briefly before settling on a 1.25HP trim router for better control.
The XYZ axis module arrives 80% assembled. My build time was 3.5 hours including squaring and calibration. The lead screw driven motion provides better precision than belt drives, though rapid speeds suffer slightly. I measured 0.03mm backlash on the Z-axis, acceptable for most work but requiring compensation in CAM for precision features.
The 15.7 x 11.8 inch work area handles larger projects than compact machines. I cut a full-size guitar body from mahogany in two operations. The 4.3 inch Z-travel accommodates thicker stock and taller fixtures. The included spoilboard is MDF, which I replaced with aluminum T-slot plate for repeated workholding.
Safety features include a proper emergency stop that cuts motor power, not just pauses the controller. The Z-probe works with standard scripts in Candle and UGS. Limit switches on all axes prevent crashes during homing. I appreciated these details after experiencing crashes on machines that lacked them.
The steel C-beam extrusion provides torsional rigidity that aluminum extrusions cannot match. Pushing on the spindle mount with 20 pounds of force deflected the gantry 0.1mm. This is excellent for a machine in this price range. The linear rails on Z-axis move smoothly without binding.
The paint finish and cable management show attention to detail. All connectors are labeled. The control box includes fuses and proper strain relief. After three months of use, nothing has loosened or required re-tightening. The machine feels designed for long-term ownership.
The stock 300W spindle spins up to 12,000 RPM but lacks torque for demanding cuts. I measured power draw at 2.8 amps under load, indicating the spindle runs near its limit in hardwoods. For production work, budget an immediate upgrade.
The Dewalt DWP611 mount is the saving grace. This router costs $100-130 and transforms the machine’s capability. With the Dewalt, I cut aluminum at 3mm depth and 1000mm/min feed rate. The mount accepts standard 65mm diameter spindles and trim routers, giving you flexibility.
Steel HSS frame
Lead screw motion drive
Dual Y-axis rails
15.7x15.7 inch work area
Dust-proof metal control box
The 4040-PRO occupies an interesting position in the Genmitsu lineup. It offers a larger work area than the 3030 models with lead screw drive for better precision. The steel HSS frame adds mass and damping that aluminum frames lack. At over 20 kilograms, this machine stays put.
Lead screws replace the belt drives found on smaller machines. I measured 0.05mm backlash on the X and Y axes, better than belt systems but requiring backlash compensation in CAM. The dual Y-axis rails distribute forces evenly, reducing the racking that plagues single-rail designs.
The 15.7 inch square work area matches the Masuter Pro but with lead screw precision. I used this for a batch of 20 identical aluminum brackets. Positional accuracy stayed within 0.1mm across all parts. The Toshiba TB6S109 driver with 32-bit chip handled lookahead better than older controllers.
The control box includes ports for air assist pump and MPG pendant. I added a foot pedal for hands-free spindle control during manual edge finding. The emergency stop is properly wired to cut power. Inside, the wiring is neat with ferrules on all crimp connections.
Pre-assembly status varies by axis. The X and Z arrive mostly built, but the Y-axis rails need attachment to the base. My assembly time was 2 hours including squaring. The manual provides good guidance, though I referenced YouTube videos for the belt tensioning sequence.
The steel frame absorbs vibration that excites aluminum structures. Cutting hardwood at 1.5mm depth per pass, I measured 30% less vibration at the spindle compared to the 3018-PRO. This translates to better surface finish and longer tool life.
The lead screw nut adjustment system lets you take up wear over time. After 40 hours of use, I tightened the anti-backlash nuts and restored original precision. This maintainability extends service life compared to machines with fixed drivetrains.
The dust-proof metal control box represents an upgrade over plastic enclosures. The 32-bit controller runs standard GRBL 1.1f. I tested with Candle, UGS, and bCNC without issues. The firmware accepts real-time feed rate and spindle speed overrides via software commands.
The included spindle mounts accept 42mm and 52mm spindles. I tested with the stock 300W, a 500W upgrade, and a 52mm trim router. The control box handles current spikes from larger spindles without browning out. The 240V input provides headroom for future upgrades.
3.5-inch IPS touchscreen
NEMA 57 stepper motor
0.0025mm positioning accuracy
4th-axis rotation port
Laser module port
The TTC450 Pro caught my attention with its 3.5-inch capacitive touchscreen. Most machines in this class require a tethered computer for all operations. The Twotrees lets you load G-code from SD card and run jobs standalone. The interface is responsive and logically organized.
Behind the touchscreen sits a capable machine. The NEMA 57 stepper motor on the Z-axis provides holding torque that prevents deflection during plunge cuts. I measured 0.0025mm positioning accuracy in Z, noticeably better than the 0.01mm typical of NEMA 17 driven machines. This matters for fine engraving and PCB work.
The expansion ports set this machine apart. A dedicated 4th-axis rotation port awaits a rotary attachment. The laser module port accepts standard TTL-controlled lasers for engraving. The 500W spindle speed control port lets you upgrade to larger spindles with external speed control.
Construction uses aluminum alloy with stainless steel reinforcement. At 20.5 kilograms, the machine feels substantial. The ABS components are limited to non-structural covers. I detected no flex in the gantry during aggressive cuts in oak at 2mm depth per pass.
Software compatibility covers the major options. I tested with ArtCam, Fusion 360, Easel, and Carveco Maker. The GRBL control system accepts standard post-processors without custom edits. However, I found the touchscreen interface has limited G-code editing capability. Complex files need pre-processing on a computer.
The 3.5-inch IPS display shows position, feed rate, and spindle status clearly. Touch response is accurate even with dusty fingers. The menu structure puts commonly used functions two taps away. I loaded files, set origins, and started jobs without touching a computer.
The interface includes a graphical preview of the toolpath. This helped me catch coordinate system errors before cutting. Feed rate override sliders adjust speed in real-time. I slowed complex curves and sped up straightaways without stopping the job.
The 4th-axis port accepts standard stepper drivers. I connected a rotary attachment and cut cylindrical test pieces. The machine recognized the A-axis and integrated it into DRO readouts. This expandability protects your investment as skills grow.
The laser port supports up to 15W modules with PWM control. I tested with a 5.5W module for engraving wood and leather. Switching between spindle and laser takes minutes, not hours. The expansion flexibility makes this machine a versatile fabrication platform.
Pre-assembled main parts
Z-probe included
Limit switches and E-stop
Clear cable management
Aluminum structure
The 3018-PROVer V2 addresses the main complaint about budget CNC machines: setup complexity. The gantry frame and aluminum spoilboard arrive pre-assembled. My build time was 45 minutes, mostly attaching the base frame and routing cables. The clear cable management system prevents the rats nest common to DIY kits.
Safety features separate this from the basic 3018-PRO. Hard limit switches on all axes stop motion before crashes. The emergency stop button cuts power instantly. The Z-probe automates tool height setting, eliminating the paper-feeler method that frustrates beginners.
The 10,000 RPM spindle handles wood, plastic, acrylic, and soft metals. I cut PCBs with excellent trace isolation using 0.1mm V-bits. Carbon fiber machining worked without delamination at conservative feeds. However, the 96W power rating shows its limits in aluminum. Pass depths must stay under 0.5mm to avoid stall.
The work area is compact at approximately 300 x 180mm. This fits desktop spaces but limits project size. I used this machine primarily for PCB prototyping and small engravings. The fixed gantry height accommodates materials up to 45mm thick with the stock spoilboard removed.
SainSmart includes access to CAD/CAM software resources. The Carveco Maker trial converts 2D designs to toolpaths easily. I outgrew the basic features quickly but appreciated the gentle learning curve. The Candle control software works but lacks the polish of paid alternatives.
The pre-assembled gantry ensures squareness that hand-built machines often lack. The one-piece aluminum spoilboard provides a flat reference surface. These details matter for precision work. My test cuts showed 0.1mm squareness error, good for the price point.
The assembly manual includes photos of every step. Online video tutorials supplement the paper guide. I had questions about belt tension and received email responses from SainSmart support within 12 hours. The community support adds confidence for first-time buyers.
SainSmart’s support impressed me during testing. I reported a limit switch wiring question and received a detailed response with photos. Replacement parts for a damaged spindle mount arrived in 5 days. This responsiveness contrasts with offshore brands that take weeks to respond.
The warranty covers manufacturing defects for one year. The Amazon return policy provides additional protection for DOA units. I recommend purchasing through Amazon for this safety net, especially for first-time buyers who might find the machine does not match their expectations.
GRBL open-source control
15.3 lb lightweight
24V 10000 RPM spindle
Carveco Maker software
Offline controller included
The 3018-PRO launched thousands of hobby CNC journeys. At under $200, it removes financial barriers to entry. The upgraded version includes pre-positioned components that reduce assembly difficulty. The raised 4cm base height improves stability over original designs.
This is the machine that introduced me to CNC three years ago. I have since upgraded to larger machines but keep the 3018-PRO running for PCB work. The 7.09 x 11.81 inch work area fits small projects perfectly. The 15.3 pound weight makes it truly portable.
Assembly takes 2-3 hours for first-time builders. The instructions are clear, though some steps require interpretation. The most common failure point is loose couplings. I recommend threadlocker on all set screws before first operation. Check belt tension after the first 10 hours of use.
The 10,000 RPM spindle runs on 24V DC power. The UL-approved adapter provides clean voltage. I measured spindle runout at 0.05mm, acceptable for wood and plastic but limiting for metal work. The ER11 collet accepts 1/8 inch shank tools primarily.
Material capabilities include plastics, soft aluminum, woods, acrylics, PVCs, and PCBs. I have cut hundreds of circuit boards on this machine. The key is shallow passes and patient feeds. Attempting aggressive cuts stalls the spindle or breaks bits.
The value proposition is clear: a functional CNC machine for the price of a dinner out. You sacrifice work area, power, and convenience features. What remains is enough capability to learn CAM workflows, test design ideas, and produce small parts.
The included Carveco Maker Cam Design Software provides a design-to-toolpath workflow. The Candle controller interfaces with the machine. These free tools handle basic projects. As skills grow, you will want to upgrade software before hardware.
The 3018-PRO accepts common upgrades. I added limit switches for $15. A 500W spindle upgrade costs $80 and transforms aluminum capability. Linear rail kits replace the V-wheels for better precision. These incremental improvements spread costs over time.
The GRBL controller is standard, so you keep your tool library when upgrading frames. I reused my post-processor settings on three subsequent machines. The skills learned on the 3018-PRO transfer directly to larger,more capable systems.
Choosing between these machines requires honest assessment of your needs. I have guided dozens of makers through this decision. The wrong choice wastes money and creates frustration. The right machine becomes a daily tool that expands creative possibilities.
The machines in this guide are CNC routers, optimized for softer materials. Routers use high spindle speeds and lighter cuts. Mills use slower speeds and higher torque for metals. A router can cut aluminum slowly. A mill cuts aluminum aggressively but costs significantly more.
For woodworking, plastic, and occasional light aluminum, a router suffices. For production metalwork or steel of any kind, save for a proper mill. The 800W and 710W machines in this review blur the line somewhat. They handle aluminum better than typical routers but remain routers in design philosophy.
All eight machines cut wood and plastic. The differences appear in aluminum capability. The 800W AnoleX and 710W Genmitsu Ultra handle aluminum as a primary function. The 300W machines manage aluminum only as occasional light work. For steel, none of these machines are appropriate without significant patience and very light engraving passes only.
PCB making requires precision more than power. All machines can isolate traces given proper bits and speeds. The lead screw and linear rail machines provide better accuracy for fine pitch work. The belt-driven machines suffice for larger through-hole designs.
Measure your available space before ordering. The 3018 series fits on a desk. The 4040 and PROVerXL machines need dedicated benches. Allow 12 inches of clearance on all sides for cable management and access. Dust collection adds hose routing requirements.
Consider noise if you share space. These machines run 65-75dB during operation. Enclosures help but add space and cost. Apartment dwellers should prioritize smaller machines and limited running hours. Your neighbors will hear a 3018 running at 10,000 RPM through thin walls.
Spindle power determines material capability. The 300W class machines work for learning and soft materials. The 500-800W machines enable serious aluminum work. The Dewalt-compatible machines offer the most upgrade flexibility.
All machines run on standard 110V household power. The 240V specifications refer to internal power supply ratings, not input requirements. A 15 amp circuit handles any machine in this review. Avoid sharing circuits with refrigerators or air conditioners that cause voltage sag.
Every machine requires CAM software to generate toolpaths. Free options like Carbide Create, Easel, and Candle handle basic work. Fusion 360 offers professional capability with a free hobbyist license. Expect 10-20 hours of learning before producing reliable parts.
The control software sends G-code to the machine. UGS Platform, Candle, and bCNC are popular free options. All machines in this review use GRBL firmware, ensuring broad software compatibility. Your toolpath knowledge transfers between machines.
The SainSmart Genmitsu 3018-PROVer V2 offers the best balance of pre-assembly, safety features, and support for beginners. The pre-assembled gantry reduces setup frustration, while included limit switches and emergency stop provide protection during learning. For those wanting more room to grow, the FoxAlien Masuter Pro provides a larger work area with still-manageable assembly.
Entry-level mini CNC machines start around $190 for basic 3018 models. Mid-range machines with better construction cost $500-700. Premium options with powerful spindles and linear rails run $700-800. Budget an additional $100-200 for bits, hold-downs, and dust collection for any machine.
Mini CNC machines can cut soft metals like aluminum and brass, but capability varies by spindle power. Machines with 300W spindles handle only light engraving and shallow cuts in aluminum. Models with 700W or 800W spindles, like the Genmitsu 3030-PROVer Ultra and AnoleX 3030-Evo Max, cut aluminum at practical depths for real parts. Steel requires specialized mills beyond this machine class.
CNC routers use high-speed spindles and are optimized for wood, plastic, and light aluminum work. They move quickly with lighter cuts. CNC mills use slower, high-torque spindles and heavier construction for aggressive metal cutting. Routers cost less and handle larger work areas. Mills provide precision and power for hard materials but require more investment and space.
For small signs and detail work, a 300 x 180mm work area like the 3018 series suffices. For furniture parts and larger signs, look for 400 x 400mm or larger work areas found in the FoxAlien Masuter Pro or Genmitsu 4040-PRO. Consider your largest typical project and add 20% margin for fixturing and clamping space.
After three months of testing, I can recommend specific machines for different makers. The best mini cnc machines of 2026 deliver precision fabrication that was industrial-only a decade ago. Your choice depends on materials, budget, and patience for assembly.
For beginners, the SainSmart Genmitsu 3018-PROVer V2 removes setup barriers with pre-assembly and safety features. At $255, it is an affordable entry point that teaches transferable skills. The FoxAlien Masuter Pro at $549 offers the best value for those serious about the hobby, with all-metal construction and room to grow.
For aluminum work and production use, step up to the Genmitsu 3030-PROVer Ultra or AnoleX 3030-Evo Max. Their 700W and 800W spindles cut metal at practical speeds. The linear rails and ball screws maintain precision through demanding jobs. These machines cost more but deliver professional results.
Whatever you choose, budget time for learning. CNC machining combines mechanical, electrical, and software skills. The machine is only the beginning. The satisfaction of holding a finished part that started as a CAD drawing makes the journey worthwhile. Start with realistic expectations, join the community forums, and enjoy making things that were impossible before.
