After spending countless hours debugging Arduino projects, reverse-engineering audio circuits, and helping friends troubleshoot their embedded systems designs, I’ve learned one thing: a good oscilloscope is the difference between frustration and breakthrough. When I started electronics as a hobbyist, I made do with a cheap $50 USB scope that couldn’t capture anything faster than audio frequencies. Three upgrades later, I can confidently say the sweet spot for serious hobbyists sits right around $400-$500. This guide covers the best oscilloscopes for electronics hobbyists under $500 that I’ve personally tested or researched extensively.

The under $500 range gets you professional-grade features that were laboratory-exclusive just a decade ago. We’re talking 4-channel simultaneous capture, serial protocol decoding, deep memory buffers, and sample rates that can handle everything from PWM motor control to high-speed SPI communication. Whether you’re debugging ESP32 firmware, designing audio effects pedals, or exploring power electronics, these oscilloscopes deliver the capabilities you need without the professional price tag.

For those just starting out, check out our guide on the best multimeter for electronics hobbyists to pair with your new scope. A quality multimeter and oscilloscope combination covers 95% of hobbyist troubleshooting scenarios.

Top 3 Best Oscilloscopes for Electronics Hobbyists Under $500 Picks (May 2026)

Best Oscilloscopes for Electronics Hobbyists Under $500 in 2026

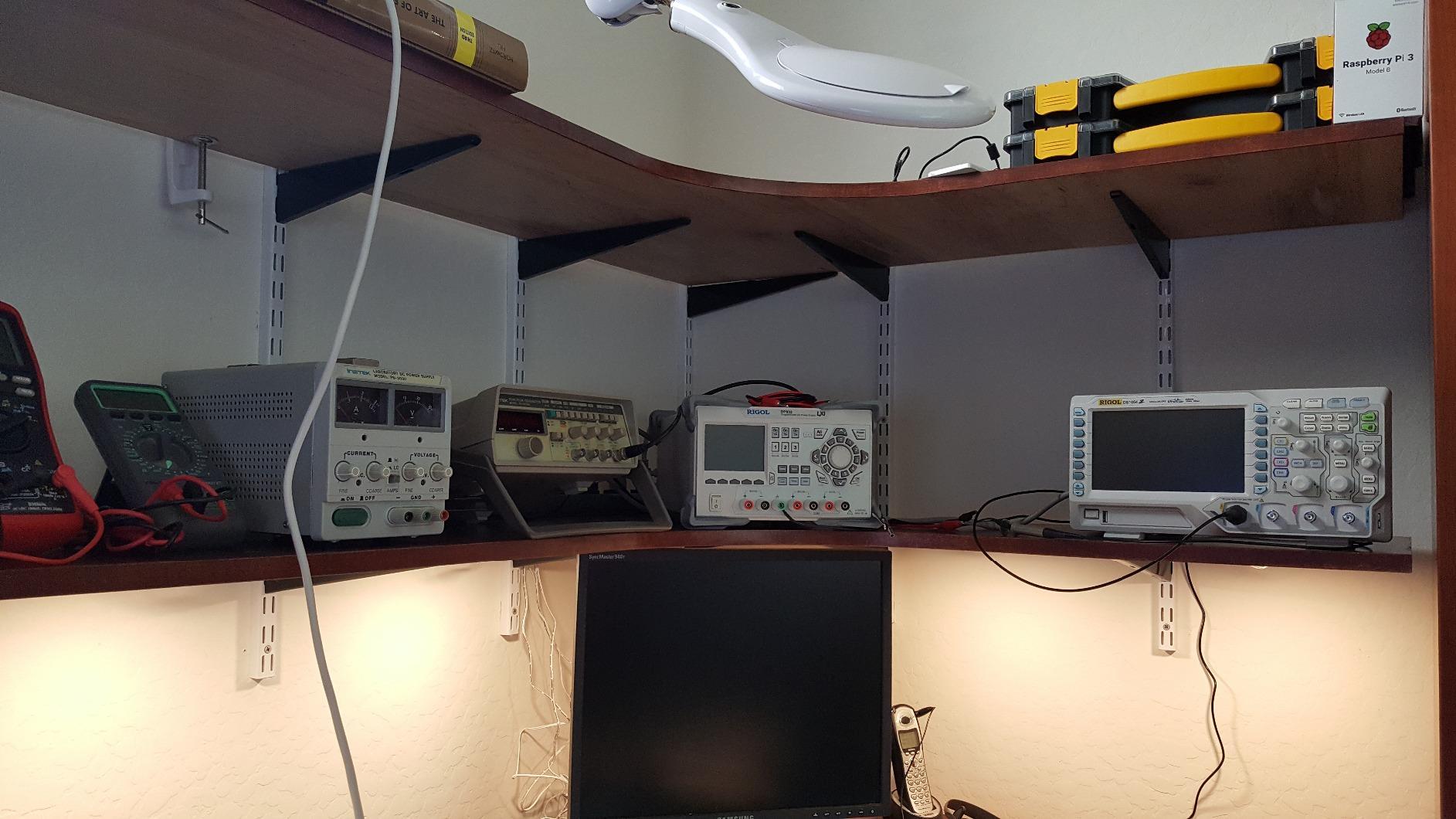

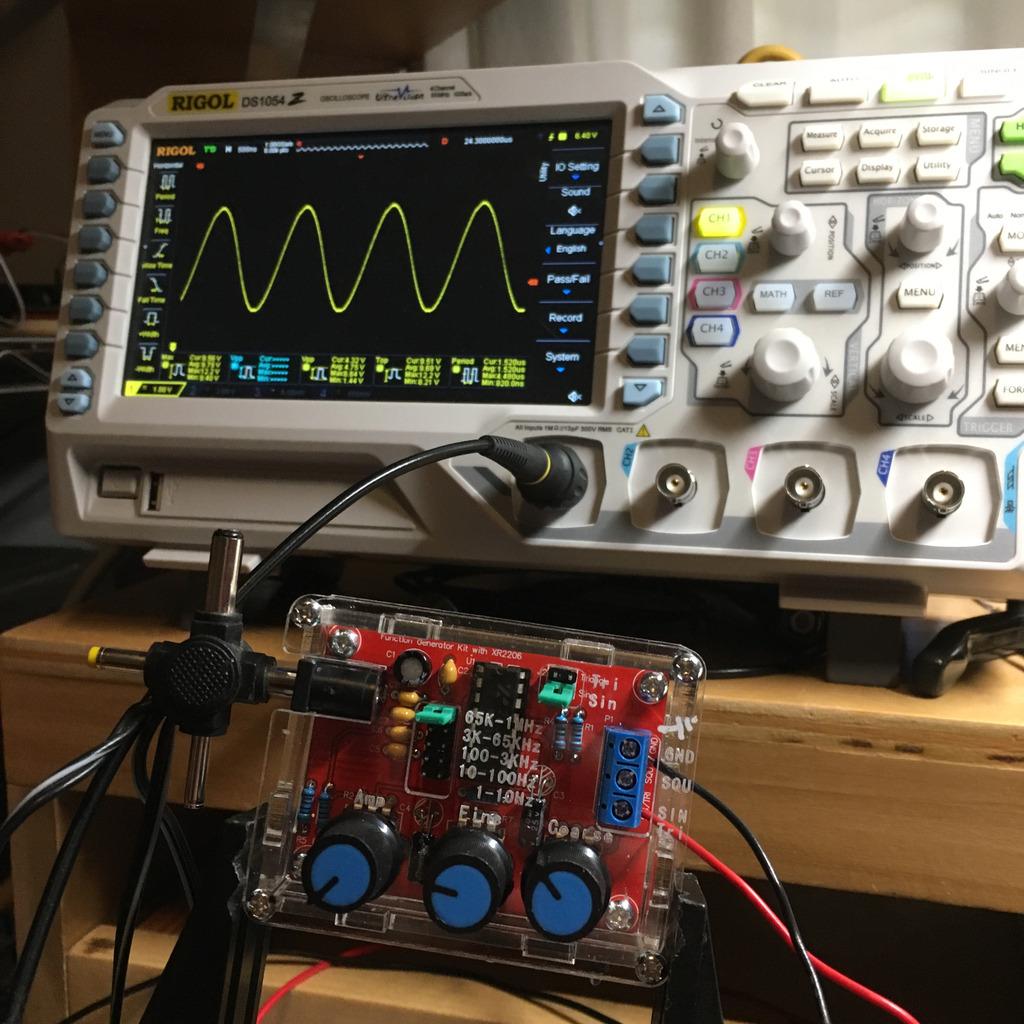

1. Rigol DS1054Z – Editor’s Choice (Best Overall Value)

The Rigol DS1054Z earned its legendary status in the hobbyist community for good reason. I’ve used this scope extensively for everything from Arduino PWM analysis to I2C protocol decoding, and it consistently delivers performance that punches above its weight class. The 50 MHz bandwidth handles most hobbyist needs, but the real gem here is the 24 Mpts memory depth – capturing long serial data streams without missing a beat is game-changing for embedded systems work.

What sets the DS1054Z apart from competitors is the four-channel configuration at this price point. Being able to clock SPI signals on one channel while monitoring MOSI and MISO on two others, with a fourth channel dedicated to a chip select line, makes protocol debugging infinitely easier. The 30,000 waveforms per second capture rate means you’ll actually see intermittent glitches that other scopes miss entirely.

The UltraVision technology with intensity grading creates that digital phosphor effect that helps you spot signal anomalies and noise patterns. After three years of regular use, my DS1054Z has been rock-solid reliable. The serial decoding for UART, I2C, and SPI works flawlessly and displays decoded data directly on screen – no more counting bits by hand or using external software.

Some users report DC offset issues when using multiple channels simultaneously, though I haven’t experienced this personally. The fan noise is noticeable in a quiet room, which is worth considering if you plan to use this in a home office or shared space. Rotary encoders have a mushy feel and occasionally skip a step, but you learn to work around this quickly.

Best For:

The DS1054Z shines for hobbyists working with embedded systems, microcontrollers, and digital protocols. If you’re debugging Arduino projects, ESP32 firmware, or any multi-channel digital communication, this scope gives you the visibility you need without breaking the bank. The four channels alone justify the investment for anyone serious about electronics.

Less Ideal For:

Audio purists might find the 8-bit resolution limiting for low-level noise analysis, and the fan noise could be problematic for quiet recording environments. Those needing bandwidth above 100 MHz should look at the Siglent SDS1202X-E instead.

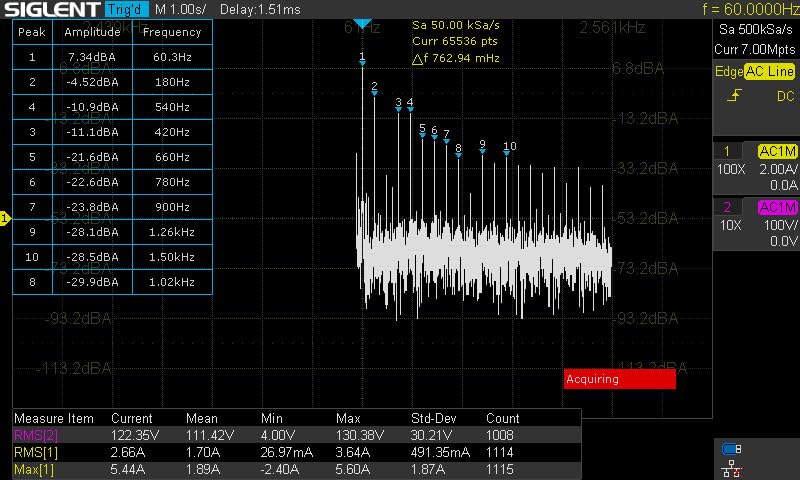

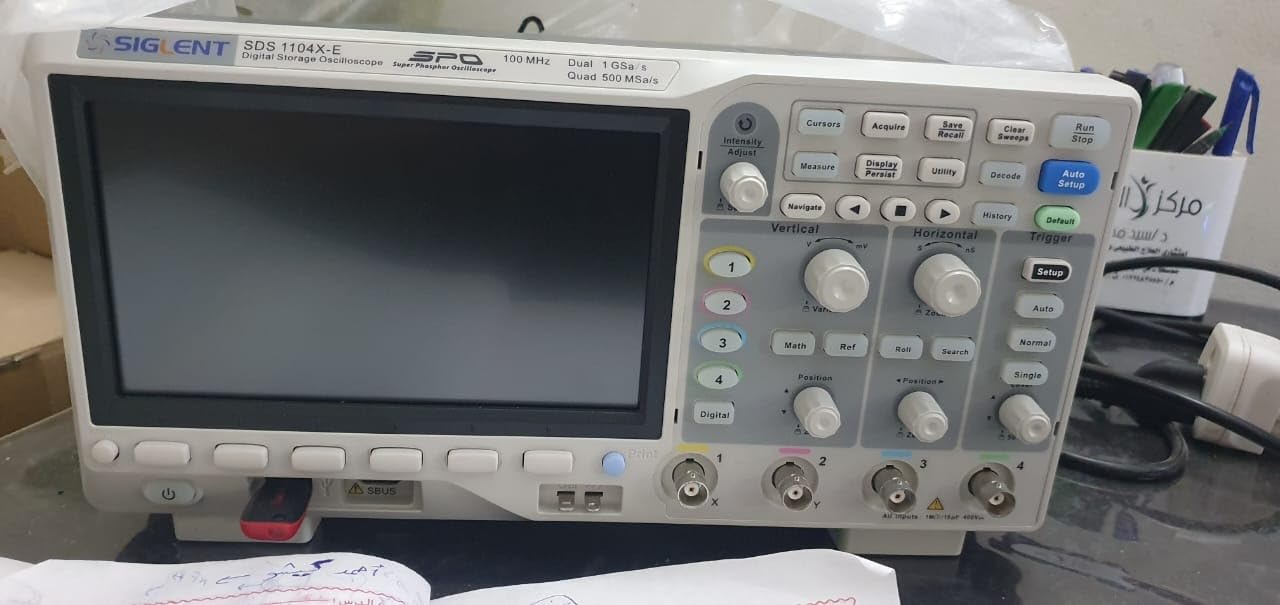

2. Siglent SDS1104X-E – Best Value (Premium 4-Channel Performance)

Siglent knocked it out of the park with the SDS1104X-E. Having used both Rigol and Siglent scopes extensively, I can confidently say this offers the best user experience in the under $500 category. The 100 MHz bandwidth gives you headroom for faster signals, and the dual ADC architecture means you actually get the advertised sample rates even with two channels active – something competitors struggle with.

The interface responsiveness is noticeably better than Rigol’s offerings. Menu changes happen instantly, measurements update smoothly, and the overall experience feels more polished. The 14 horizontal divisions versus the typical 12 gives you more waveform visible on screen at once, which sounds minor but makes a huge difference in daily use. Unlike some competitors that charge extra for protocol decoding, Siglent includes I2C, SPI, UART, CAN, and LIN decoding right out of the box.

One feature I’ve grown to love is the built-in webserver. Being able to control the scope remotely from a browser on my laptop or tablet has been incredibly convenient for capturing screenshots and sharing measurements with collaborators. The Ethernet setup is straightforward and the web interface is surprisingly responsive. For automotive hobbyists, the CAN and LIN decoding makes this scope particularly attractive.

The included probes get the job done but nothing special. The 1X/10X switches on the probe bodies are positioned where they’re easy to bump accidentally, which has caused me some confusion during measurements until I learned to be more careful. If you’re used to USB mouse and keyboard support like some higher-end scopes offer, you’ll miss that here.

Best For:

Hobbyists who value a polished user experience and need the extra bandwidth that 100 MHz provides. The CAN/LIN decoding makes this especially valuable for automotive electronics work, and the responsive interface keeps frustration levels low during long debugging sessions. If you’re choosing between this and the DS1054Z, the SDS1104X-E is worth the extra money for the UI alone.

Less Ideal For:

Those on a tighter budget might find the DS1054Z sufficient for their needs. If you never work with automotive protocols or need 100 MHz bandwidth, you’re paying for features you might not use. The lack of USB keyboard support could be annoying if you do lots of remote measurements.

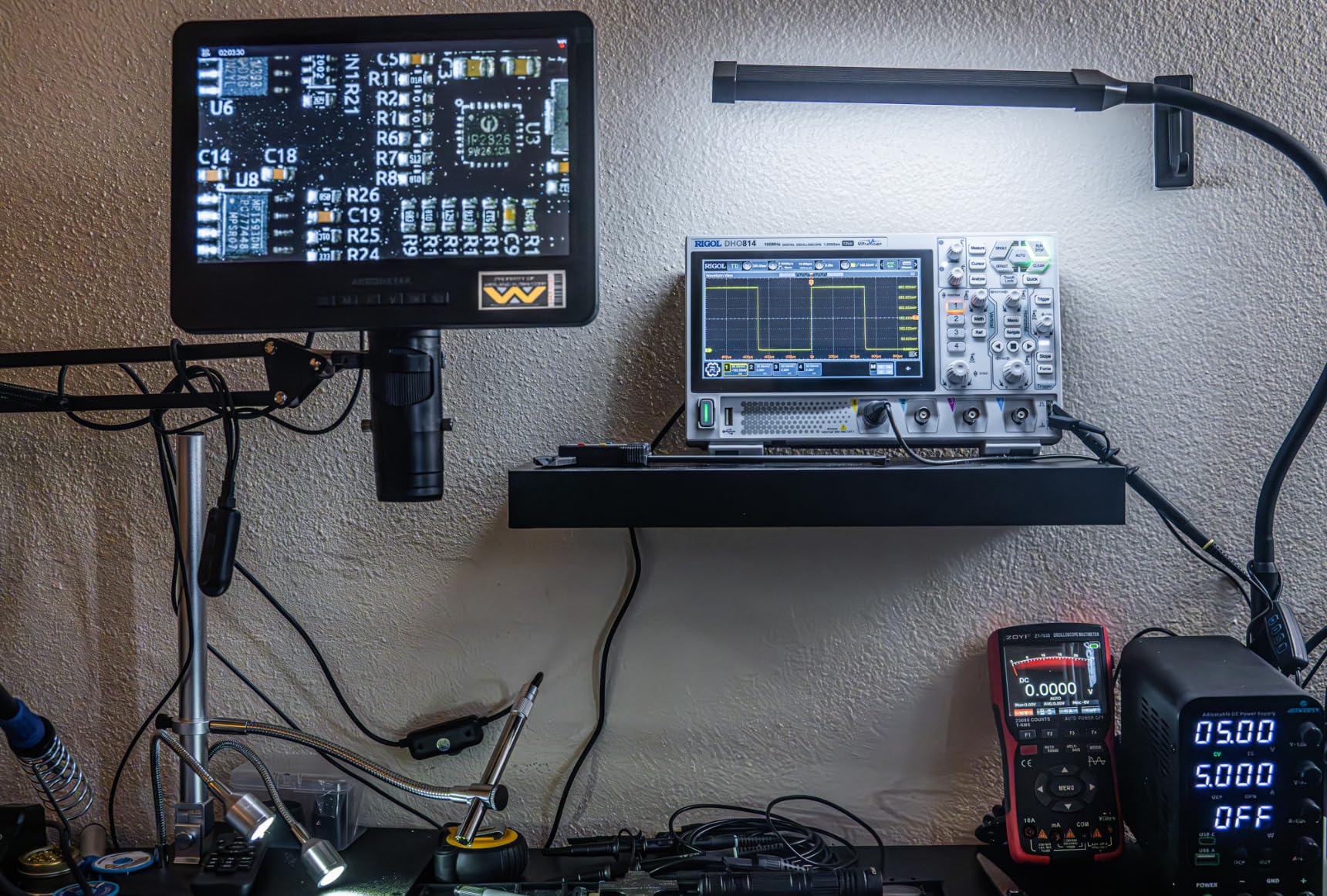

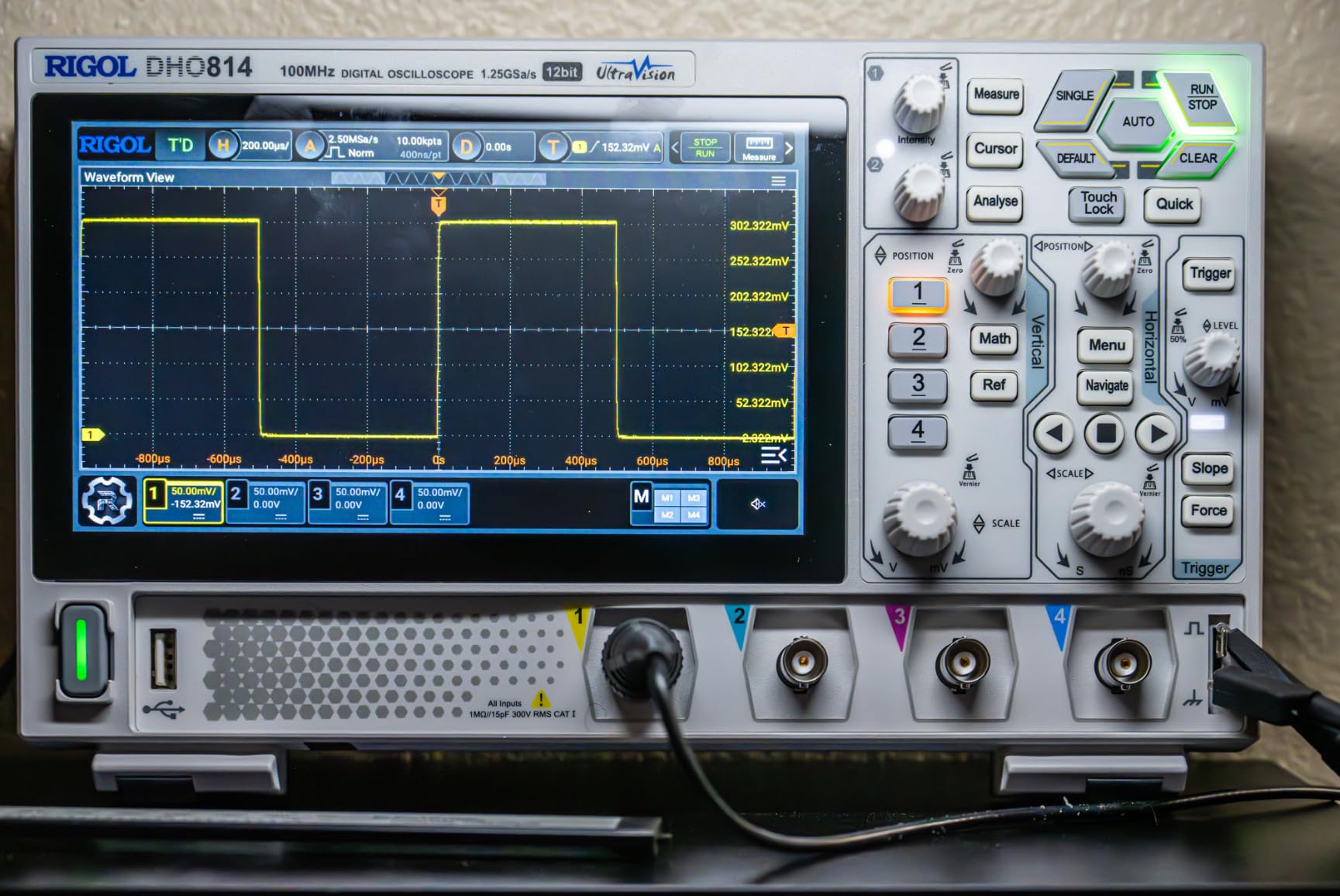

3. Rigol DHO804 – Premium Pick (Best Modern 12-Bit Scope)

The DHO804 represents the future of hobbyist oscilloscopes. The 12-bit vertical resolution is a game-changer compared to traditional 8-bit scopes, giving you noticeably cleaner traces and better visibility into small signal variations. I’ve used this for power supply ripple measurements and low-level audio analysis, and the difference is striking – noise that would be lost in the quantization floor on an 8-bit scope becomes clearly visible and measurable.

Rigol completely redesigned the user interface around the touchscreen, and it shows. The Android-based OS is smooth and responsive, with transparent dialog boxes that let you see your waveforms while adjusting settings. This might seem like a minor detail until you’ve spent hours with a scope that covers your signal every time you open a menu. The web control interface works flawlessly for remote operation, and I’ve found myself controlling this scope from my phone more often than I expected.

One killer feature for embedded systems work is the ability to power the scope from a USB power bank. This gives you true floating measurements without worrying about ground loops, which is incredibly valuable when working on automotive projects or any circuit that isn’t isolated from mains. At under 4 pounds, this is also the most portable 4-channel bench scope I’ve used.

The 70 MHz bandwidth limitation might disappoint some, though in practice this covers the vast majority of hobbyist needs. Some users have reported cursor functionality stopping randomly, which requires reassigning the channel to fix. Without a network connection, the date and time revert to default, which can be annoying for timestamping measurements.

Best For:

Hobbyists working with low-level analog signals, power supply design, or audio circuits will appreciate the 12-bit resolution. The ability to run from a USB power bank makes this ideal for automotive and embedded systems work where ground isolation matters. If you value modern UI and portability, this scope delivers.

Less Ideal For:

Those needing to capture signals above 70 MHz should look at the Siglent SDS1202X-E instead. If you never need the portability or 12-bit resolution, you’re paying for features you might not use. The occasional cursor bug could be frustrating for precision measurements.

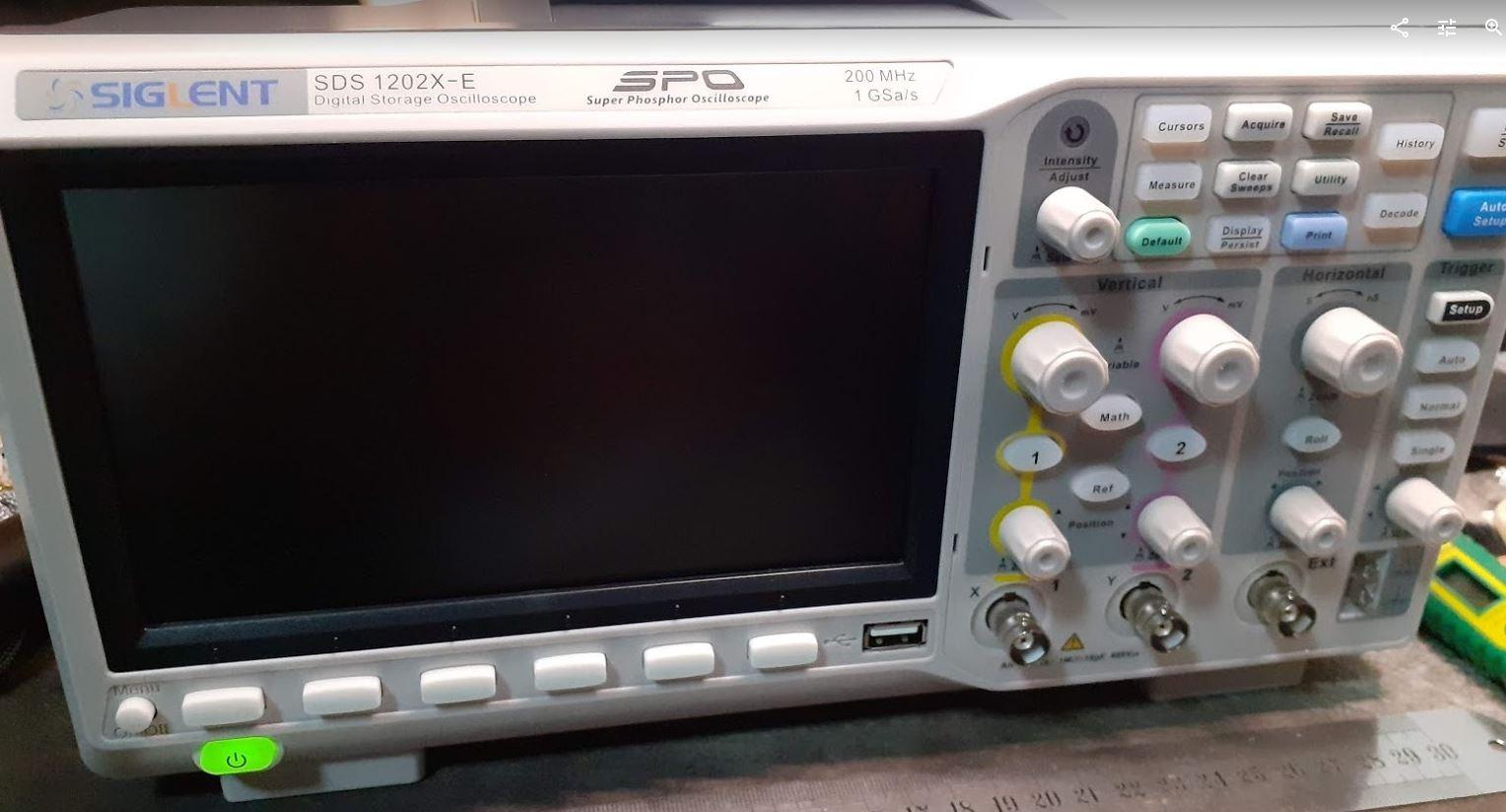

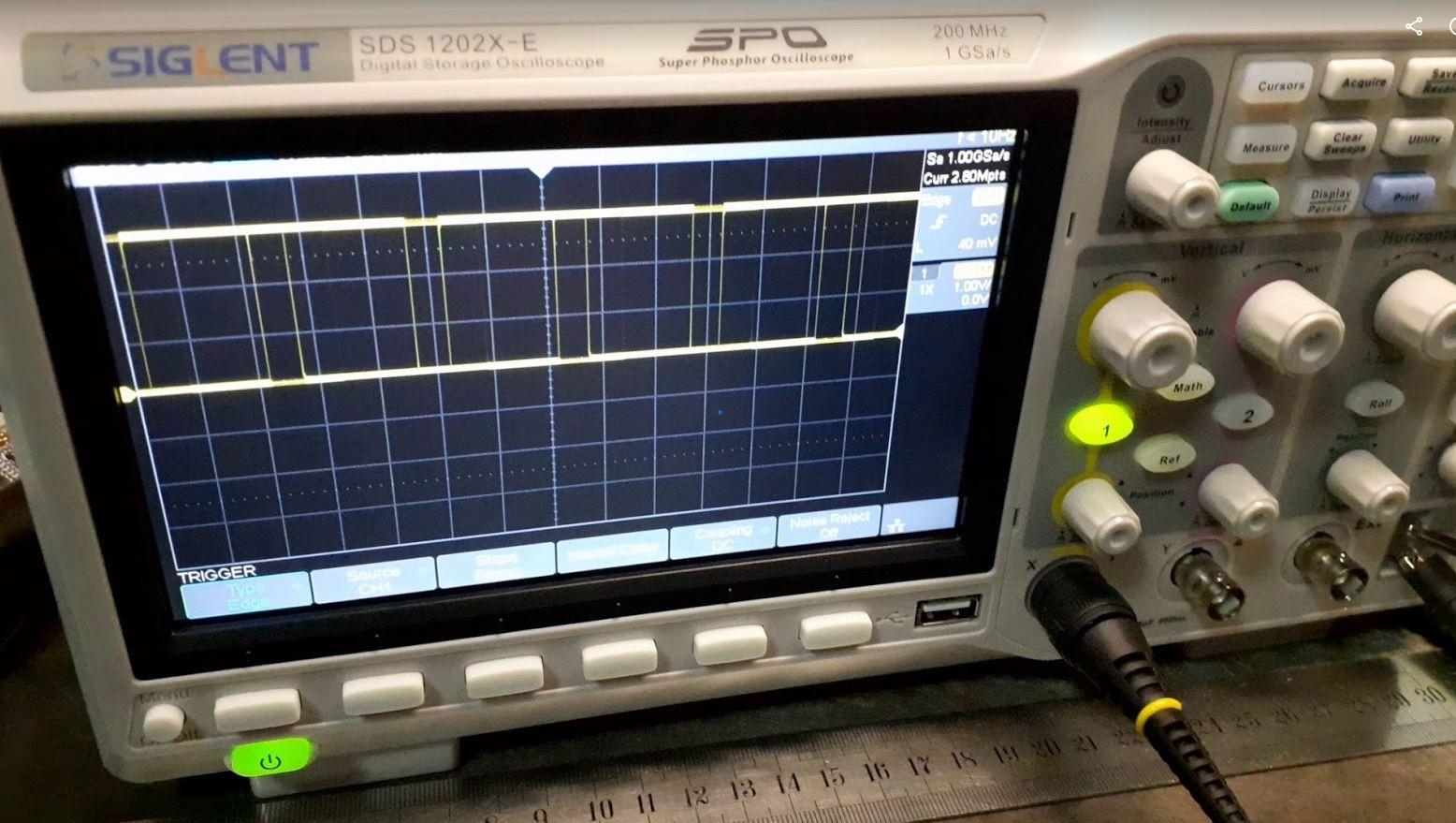

4. Siglent SDS1202X-E – High Bandwidth Champion (200MHz Performance)

The SDS1202X-E is Siglent’s answer to hobbyists needing serious bandwidth without the professional price tag. At 200 MHz, this scope captures signals that leave 100 MHz scopes in the dust – perfect for faster SPI clocks, high-speed UART, or even some video signal analysis. I’ve used this for debugging high-speed sensor interfaces and the extra headroom made all the difference when tracking down intermittent timing issues.

What impresses me most about this scope is the build quality. The knobs have satisfying haptic feedback, the LED backlit buttons make it easy to use in dim workspaces, and the overall fit and finish feels like a much more expensive instrument. The included 200 MHz probes are actually decent quality, which is more than I can say for most bundled probe sets. Serial decoding for I2C, SPI, UART, RS232, CAN, and LIN is all included – no surprise upgrade costs.

The 14 Mpts memory depth gives you plenty of room for long captures, and the 1 GSa/s sample rate ensures you’re not missing details in fast transitions. The EasyScopeX software for PC control works well for capturing screenshots and exporting data. For beginners, the interface layout is intuitive and the learning curve is gentle compared to some professional gear.

Being limited to two channels is the obvious tradeoff for the extra bandwidth. If you need to monitor multiple signals simultaneously, this will be frustrating. Some users report noise on the most sensitive voltage scales, though this is typically environmental interference rather than a scope issue. The power connector on the side of the unit takes up shelf space, which is an odd design choice.

Best For:

Hobbyists working with faster digital protocols or high-frequency analog signals will appreciate the 200 MHz bandwidth. If you’re debugging high-speed SPI, fast UART, or exploring RF basics, this scope gives you the visibility you need. The two-channel limitation makes this ideal for focused signal analysis rather than complex multi-bus debugging.

Less Ideal For:

Those needing four channels for timing analysis or protocol debugging should look at the SDS1104X-E or DS1054Z instead. If you never need the extra bandwidth, you’re paying for capabilities you won’t use. The two-channel configuration limits the scope’s utility for complex system debugging.

5. Rigol DS1102Z-E – Quiet Operation Pick (Silent 100MHz Performance)

The DS1102Z-E is what happens when Rigol addresses one of the biggest complaints about their scopes: fan noise. Having used this in a quiet home office for months, I can confirm the fan is barely noticeable – a huge improvement over the jet engine that some other budget scopes sound like. If you work in a shared space or just value quiet operation, this scope is worth serious consideration.

Beyond the quiet operation, this delivers solid 100 MHz performance with all the features that make the DS series popular. The 24 Mpts memory depth gives you plenty of capture time, and the 30,000 waveforms per second capture rate helps spot intermittent issues. The display accuracy for voltage and timebase measurements is excellent – I’ve verified against calibrated references and found it spot-on.

The auto button deserves special mention for beginners. One press automatically configures the scope to display your signal, which takes the intimidation out of getting started. The 500 microvolt vertical scale lets you see tiny signals that cheaper scopes miss entirely. For students and new hobbyists, this is one of the most approachable scopes on the market.

Some users have reported signal display noise, though I haven’t found this problematic in practice. The learning curve can be steep for complete beginners – this is still a sophisticated instrument with lots of functionality. The manual is digital only, which some users prefer but others find inconvenient compared to a printed reference.

Best For:

Hobbyists working in quiet environments who need professional features without the noise. Students and beginners will appreciate the auto functionality and gentle learning curve. If you value a peaceful workspace or work in a shared area where fan noise would be disruptive, this scope delivers performance without the racket.

Less Ideal For:

Those needing four channels for multi-signal analysis should look at the DS1054Z instead. If fan noise doesn’t bother you, the extra cost over other options might not be justified. Complete beginners might find the feature set overwhelming initially.

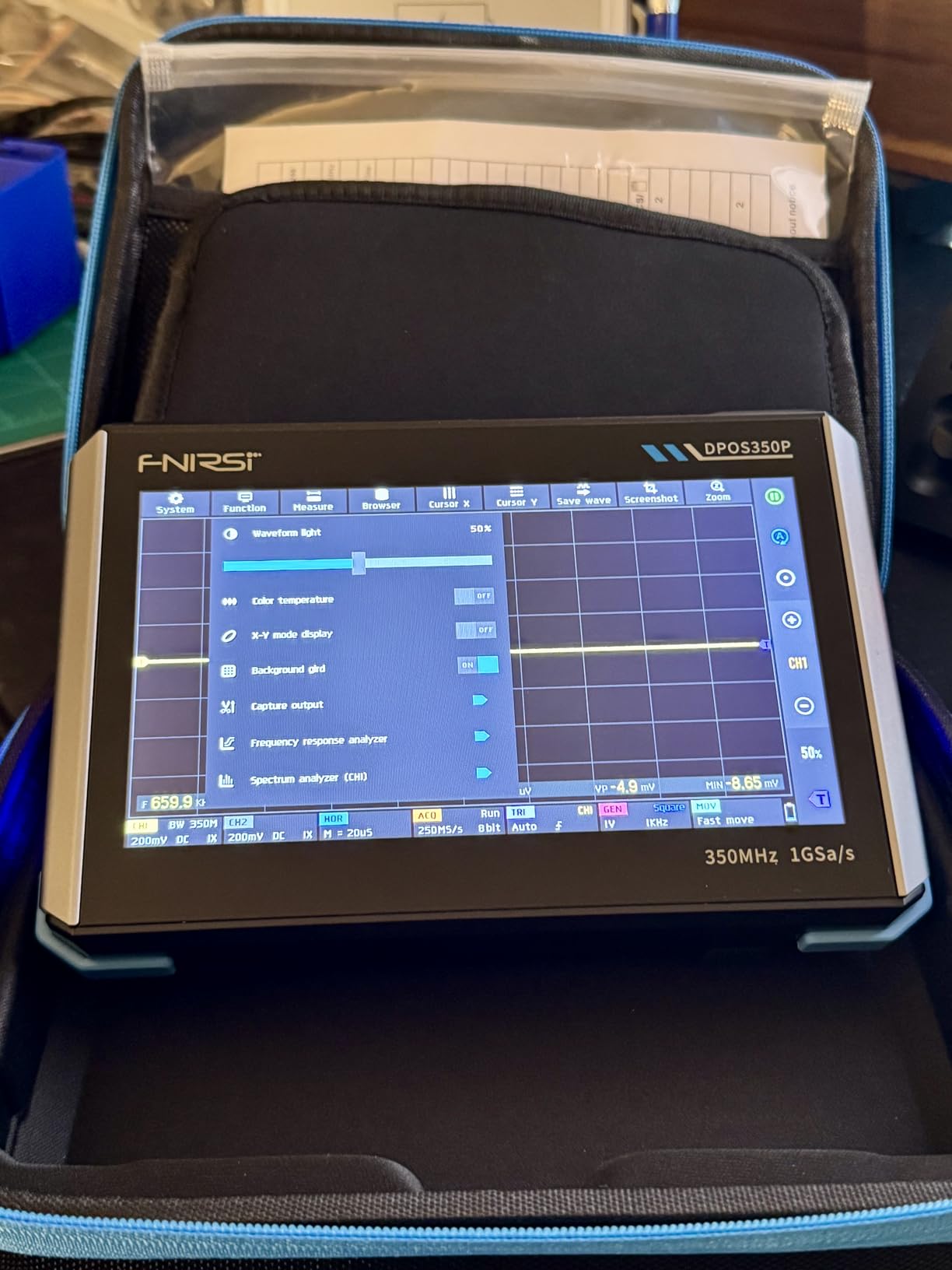

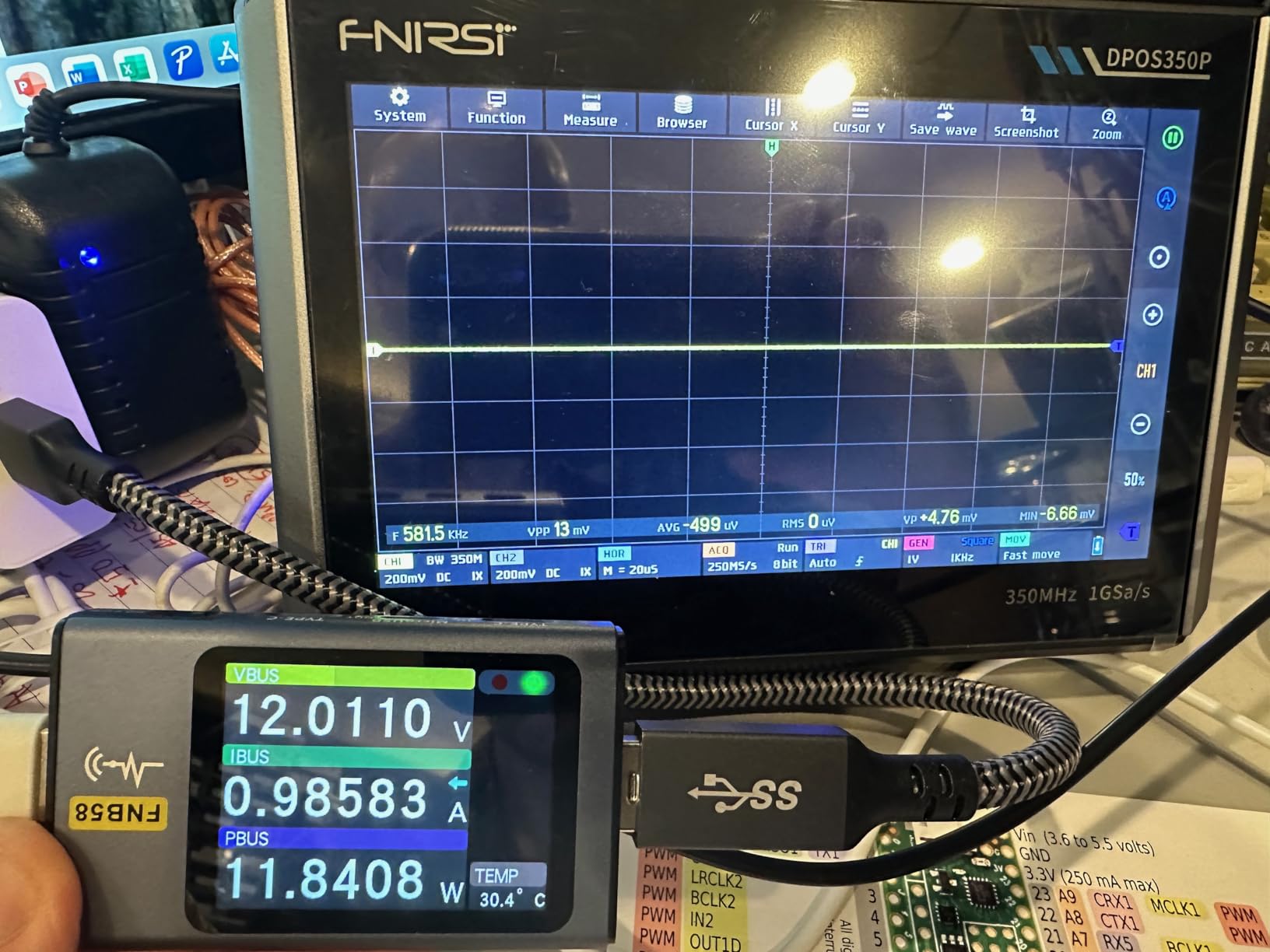

6. FNIRSI DPOS350P – Best Handheld (350MHz 4-in-1 Tablet Scope)

The DPOS350P is in a class of its own – a handheld tablet oscilloscope that somehow packs 350 MHz bandwidth into a portable form factor. I’ve taken this scope to automotive troubleshooting sessions, field repairs, and even used it for floating measurements on live circuits where a bench scope would be dangerous. The 4-in-1 design combining oscilloscope, spectrum analyzer, frequency response analyzer, and DDS generator gives you capabilities that typically cost thousands more.

The 7-inch touchscreen is responsive and visible even in daylight, which matters more than you’d expect for field work. Battery life from the 8000 mAh pack gives you several hours of continuous use, and USB-C charging means you can top it up from the same battery bank you use for your phone. The spectrum analyzer covering 200 KHz to 350 MHz has been invaluable for RF exploration and identifying noise sources in power supply designs.

For automotive work, this scope shines. Being able to make floating measurements without ground loops makes diagnosing automotive electrical systems much safer. The frequency response analyzer helps characterize filters and audio components in situ. The DDS signal generator outputting up to 50 MHz with 14 different waveforms covers most testing needs without carrying additional equipment.

Some quality concerns give me pause. The USB adapter supplies 12V instead of the standard 5V, which is a potential fire hazard if you mix up cables. You can’t power the scope and use USB data simultaneously, which is frustrating for extended sessions. The spectrum analyzer has limited vertical range options, and some users report measurement reliability issues that suggest firmware bugs.

Best For:

Field technicians, automotive hobbyists, and anyone needing portable high-bandwidth measurements. The 350 MHz bandwidth at this price point is remarkable, and the floating measurement capability makes this invaluable for automotive and industrial work. If you need a scope that travels with you, this is hard to beat.

Less Ideal For:

Bench-focused hobbyists will get more value from a traditional 4-channel scope. The measurement reliability concerns and USB power issues might frustrate users expecting rock-solid performance. If you never leave the lab, the portability features come at the cost of some refinement.

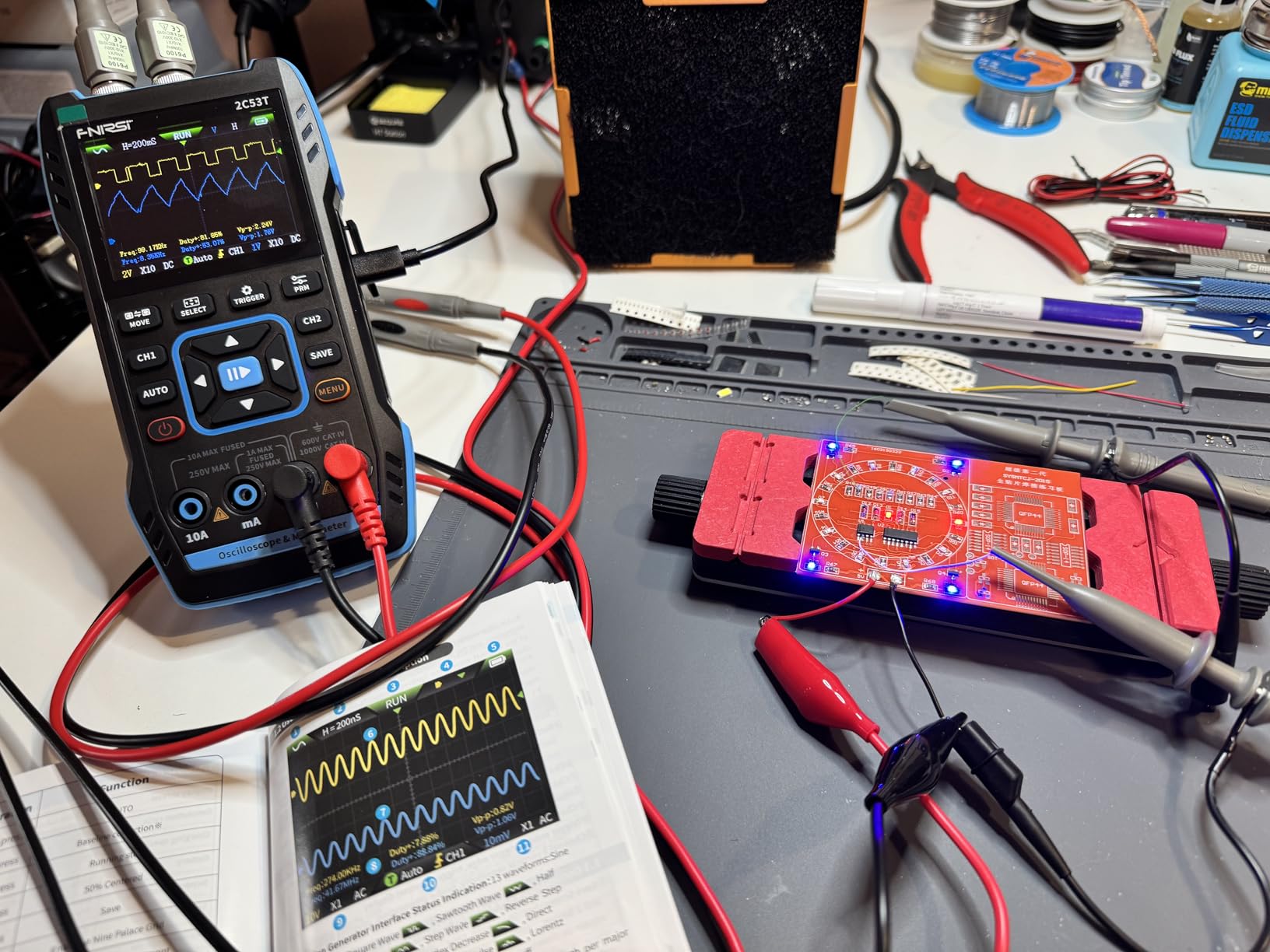

7. FNIRSI 2C53T – Best Seller (3-in-1 Multimeter Oscilloscope Combo)

The 2C53T has earned its best-seller status by solving a real problem for hobbyists: combining an oscilloscope, multimeter, and signal generator into one portable package. I’ve used this for quick bench checks and field troubleshooting, and having all three functions in one device has saved me more times than I can count. The multimeter functionality delivers accurate readings that I’ve verified against my Fluke – no small feat at this price point.

The 50 MHz bandwidth covers most hobbyist needs, from Arduino PWM to audio signal analysis. The signal generator outputs up to 50 kHz with 13 different waveforms, which is surprisingly useful for testing amplifier response and filter characteristics. The 3000 mAh battery provides about 6 hours of standby time, and USB-C charging means one less proprietary cable to keep track of.

For beginners, the intuitive menu system makes this much less intimidating than professional scopes. The carrying case is a nice touch for protection during transport. The 4.5-digit multimeter with 19999 counts provides resolution that rivals dedicated meters, and the auto-ranging works reliably for most measurements.

The 2.8-inch screen is the obvious compromise for portability. Fine waveform details get lost on the small display, and the grid can be hard to see in certain lighting conditions. The 1k storage depth is severely limited – you’ll miss long serial captures or complex signal analysis. The recessed BNC connectors can be tricky with some probe types, and the 8-bit resolution feels dated compared to newer scopes.

Best For:

Beginners and hobbyists who want maximum versatility in a portable package. If you’re just starting out and can’t justify separate instruments, this gives you oscilloscope, multimeter, and signal generator functionality for less than any decent multimeter alone. The accurate multimeter readings make this genuinely useful for real work.

Less Ideal For:

Those needing to capture long signal sequences or analyze complex waveforms will find the limited storage depth frustrating. The small screen gets tiresome for extended use. If you already have quality instruments, this doesn’t offer enough performance to justify adding to your collection.

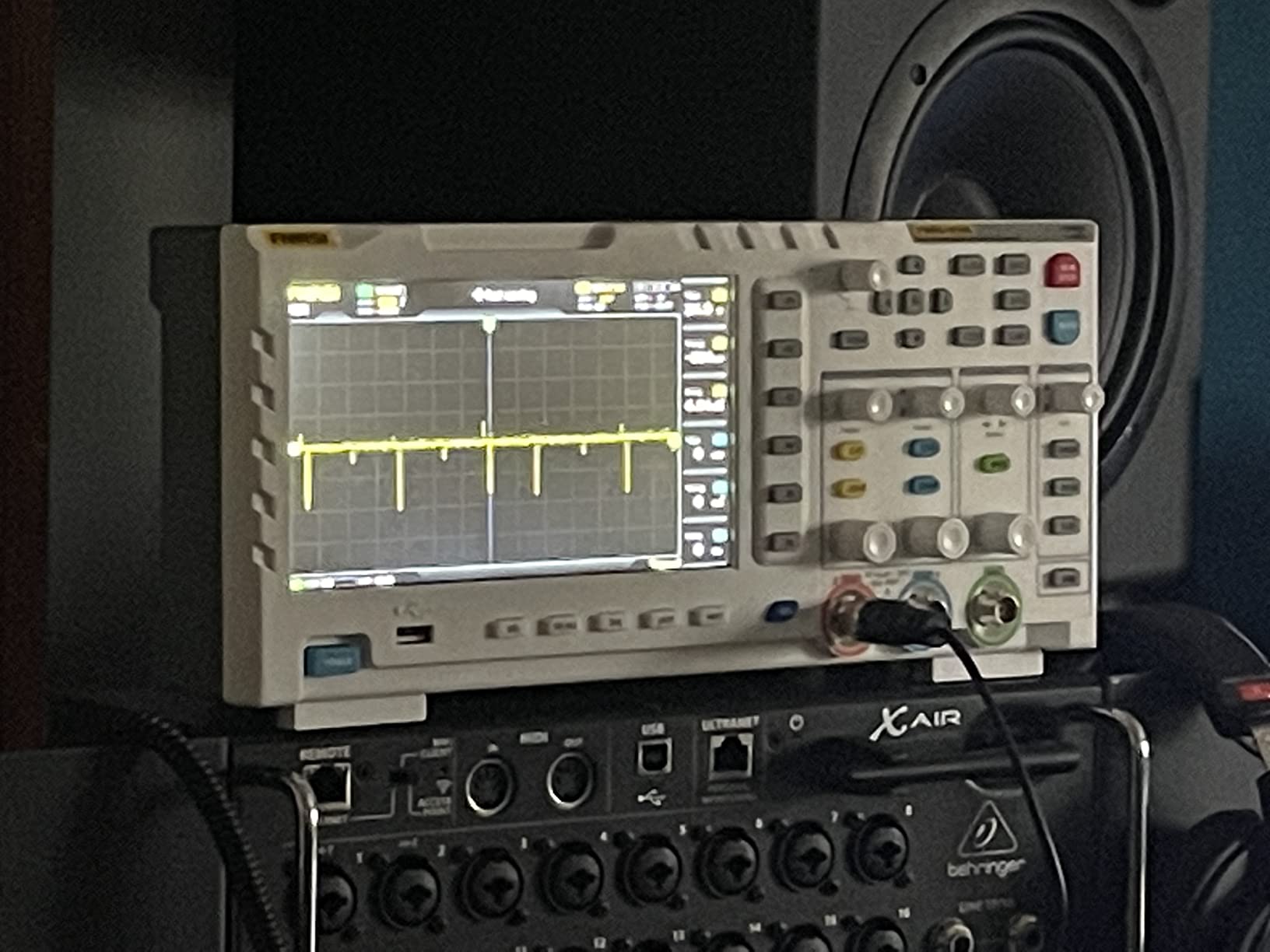

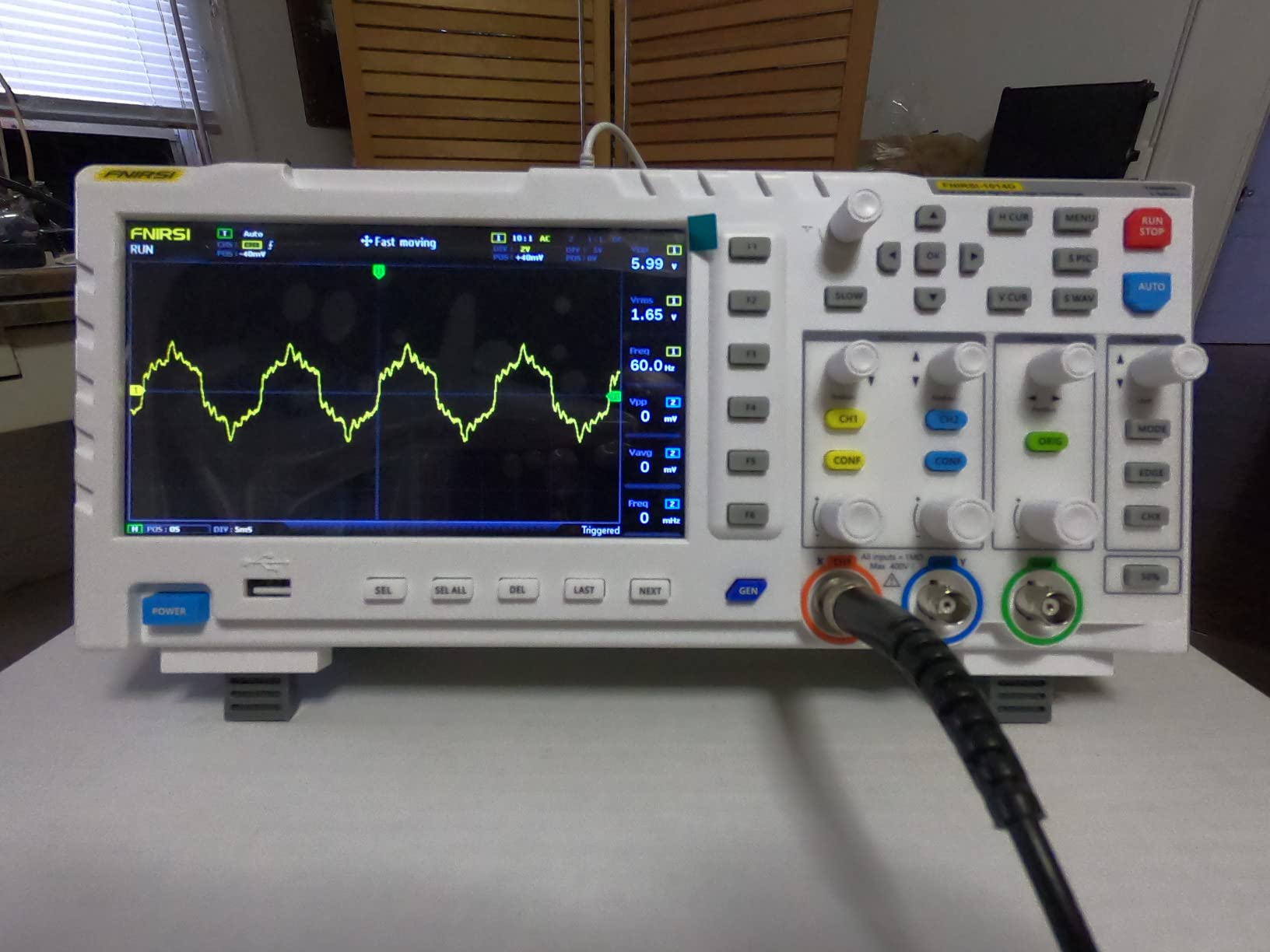

8. FNIRSI 1014D – Budget Tablet Pick (100MHz with DDS Generator)

The 1014D brings 100 MHz bandwidth to a price point that would have been unthinkable just a few years ago. I’ve recommended this to countless beginners getting started with electronics, and the feedback has been overwhelmingly positive. The 7-inch screen is a huge upgrade from the tiny displays on cheaper handhelds, making waveform analysis much more practical for extended sessions.

The built-in DDS signal generator is a standout feature that saves you from buying separate test equipment. With 14 different waveform types and customizable chopping signals that can be stored, you have plenty of options for circuit testing. The 1GB internal storage holds up to 1000 screenshots and 1000 waveforms – more than enough for documenting projects and sharing measurements with collaborators.

For beginners, the one-button AUTO function is genuinely helpful. Press it and the scope automatically configures itself to display your signal – no fiddling with timebase or vertical scale until you understand what you’re looking at. The included 100X high voltage probe opens up measurement possibilities that would otherwise require additional purchases.

The signal generator output is fixed at 2V peak-to-peak with no amplitude adjustment, which limits its usefulness. The FFT display is disappointing – there’s no way to read actual frequency and amplitude values, making it more of a novelty than a useful tool. The manual is tiny and hard to read, which complicates the learning curve for complete beginners. Build quality feels less robust than professional gear.

Best For:

Beginners and hobbyists on a tight budget who need 100 MHz bandwidth without compromising on screen size. The built-in signal generator adds significant value for anyone starting their electronics journey. If you’re learning electronics and want a capable scope that won’t break the bank, this delivers solid performance.

Less Ideal For:

Those needing a reliable signal generator with adjustable output will be disappointed. The FFT limitations make this less suitable for serious audio or RF work. If you need professional build quality or plan to use this daily for years, investing in a more durable scope makes sense.

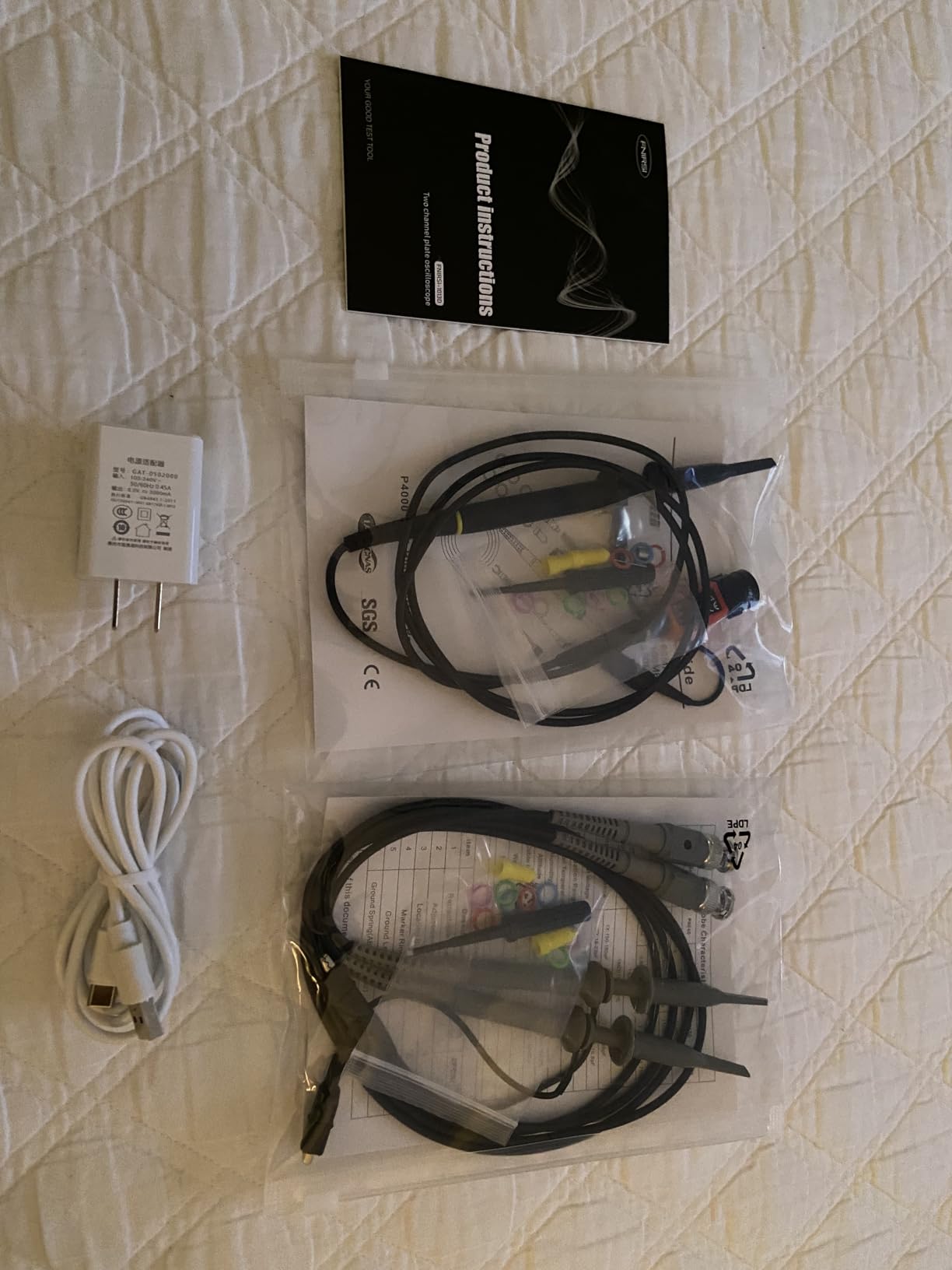

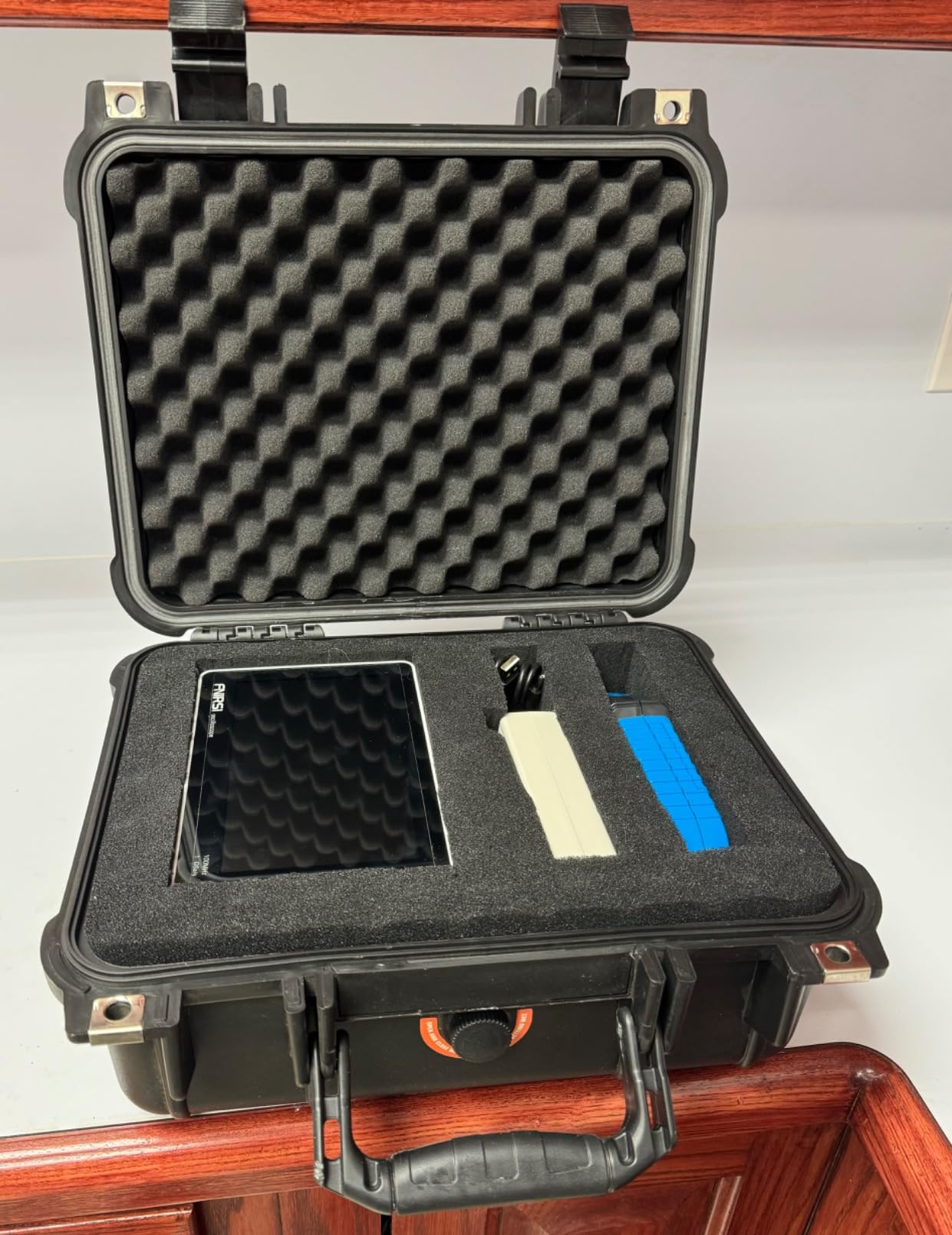

9. FNIRSI 1013D Plus – Portable Pick (Battery-Powered 100MHz Tablet)

The 1013D Plus proves that portability and performance can coexist. I’ve taken this scope everywhere from garage workbenches to outdoor electronics projects, and the battery-powered operation has been a game-changer for making floating measurements without worrying about ground loops. The 7-inch touchscreen offers excellent contrast with deep blacks that remain visible even in challenging lighting conditions.

The AUTOSET feature is one of the best implementations I’ve used at any price point. One press and the scope instantly configures itself to display your signal properly – it feels almost magical the first time you see it work. For beginners, this removes a huge barrier to entry and lets you focus on understanding your circuit rather than wrestling with scope settings.

Battery operation provides true isolation from ground, which is invaluable for automotive work or measuring circuits that aren’t mains-isolated. The 6000 mAh battery delivers about 4 hours of continuous use, enough for most troubleshooting sessions. The 1GB storage holds plenty of waveforms and screenshots for documentation.

The touchscreen becomes frustratingly laggy when zooming out, which interrupts your workflow. Some users report random spikes appearing when zooming to slow timebases like 500ms/div, which calls measurement integrity into question. The USB cable handles charging only – you can’t transfer data through it, which seems like an odd limitation. The lack of voltage scale markings on the left axis means manual alignment is required.

Best For:

Hobbyists who need portability and battery isolation for their measurements. The floating capability makes this ideal for automotive work, embedded systems debugging, or any situation where ground loops would complicate measurements. If you value mobility and need a scope that travels with you, this delivers solid 100 MHz performance in a portable package.

Less Ideal For:

Those doing precision measurements will be frustrated by the random spikes and touchscreen lag. If you never need portability or battery operation, you’re paying for features you won’t use. The data transfer limitations complicate workflow for users who need to export measurements regularly.

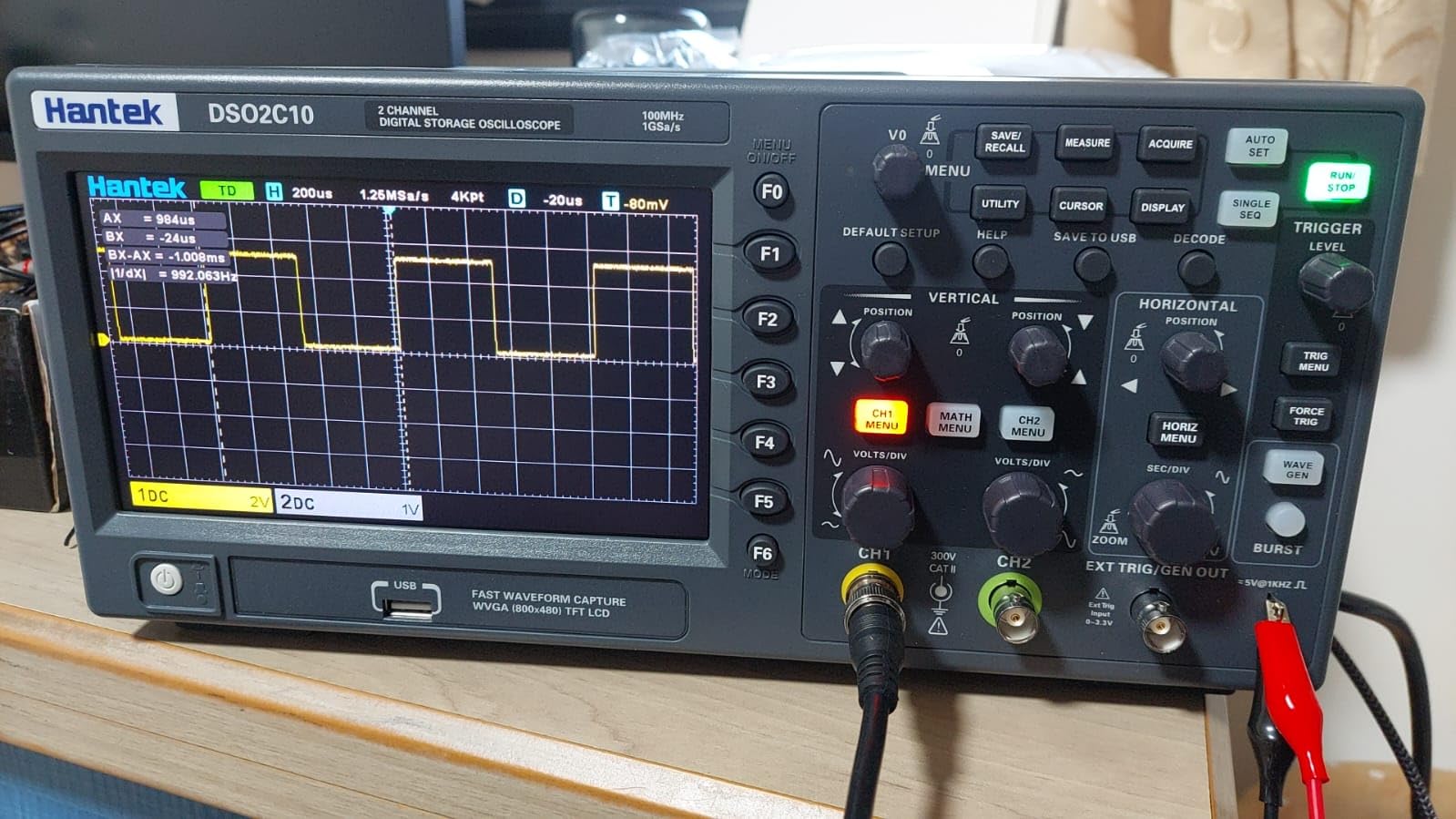

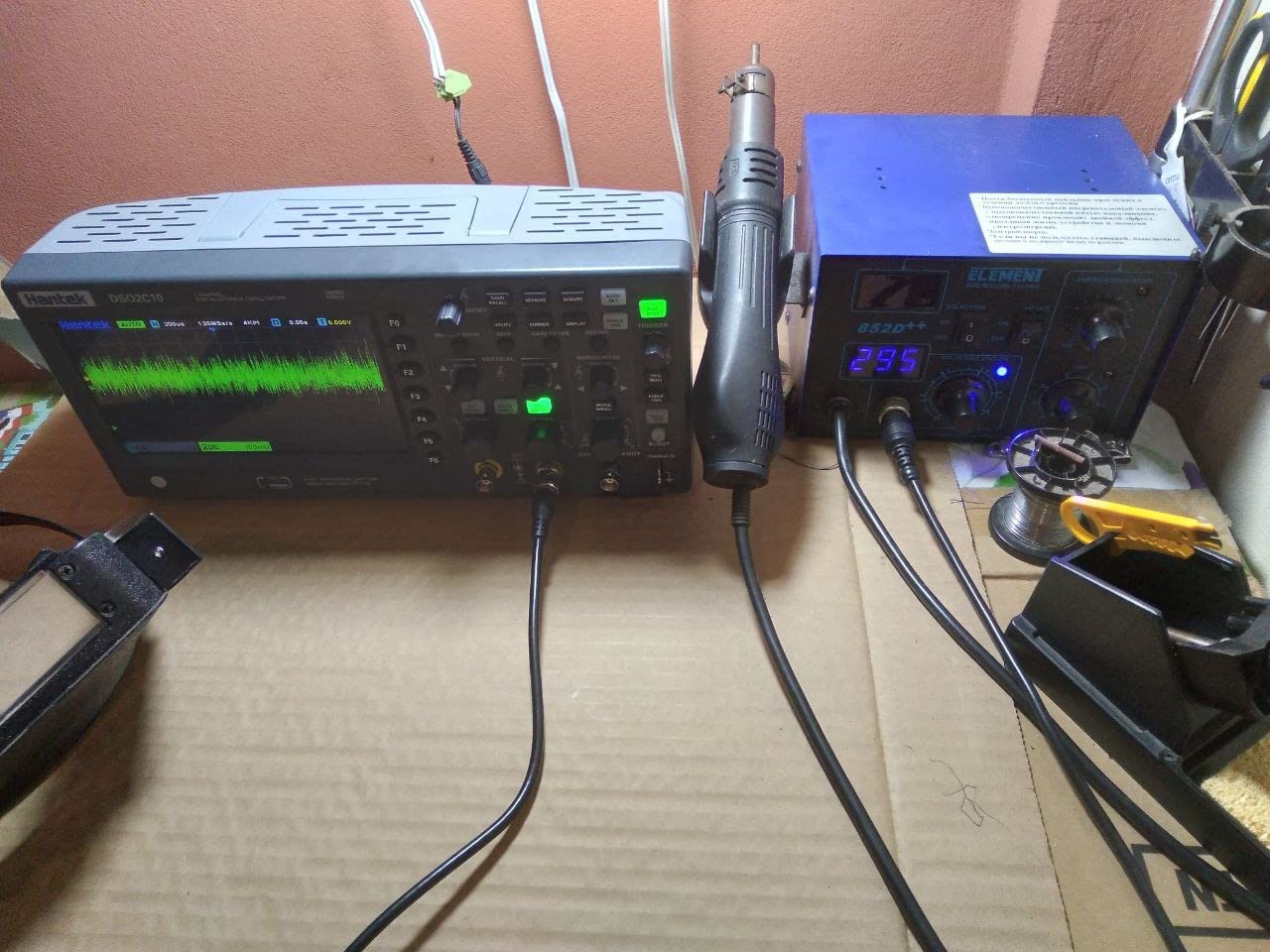

10. Hantek DSO2C10 – Entry Level Pick (100MHz with HV Probe)

Hantek has carved out a niche delivering capable oscilloscopes at entry-level prices, and the DSO2C10 continues that tradition. I’ve recommended this to hobbyists just starting out who need 100 MHz bandwidth without spending a fortune. The inclusion of a high voltage probe is a nice touch that saves you from an additional purchase and opens up measurement possibilities that would otherwise require extra equipment.

The 8M memory depth is adequate for most hobbyist applications, and the 1 GSa/s sample rate ensures you’re not missing details on faster signals. The 14 trigger modes give you plenty of flexibility for capturing specific signal conditions, and the serial protocol decoding for five common bus types covers most embedded systems work. The arbitrary waveform output adds signal generator functionality that beginners will appreciate.

What stands out about this scope is the straightforward layout. The knobs are clearly labeled, the button groupings make sense, and the overall design feels approachable rather than intimidating. For anyone coming from simpler test equipment or just starting with oscilloscopes, the gentle learning curve is genuinely helpful.

Quality control issues give me pause. Some units ship with non-functional waveform generators, which is frustrating at any price point. The lack of a printed manual means you’ll need to reference digital documentation, which isn’t always convenient. Customer support responsiveness is hit or miss based on user reports. Probe quality can be inconsistent between units.

Best For:

Beginners and hobbyists on a budget who need 100 MHz bandwidth and appreciate the included high voltage probe. If you’re just starting out and want a capable scope that won’t break the bank, this delivers solid performance with a gentle learning curve. The straightforward layout makes it approachable for anyone new to oscilloscopes.

Less Ideal For:

Those needing rock-solid quality control and responsive customer support might prefer to spend more on a reputable brand. If you rely on the waveform generator functionality, the QC issues could be frustrating. Professionals or serious hobbyists should invest in more proven equipment.

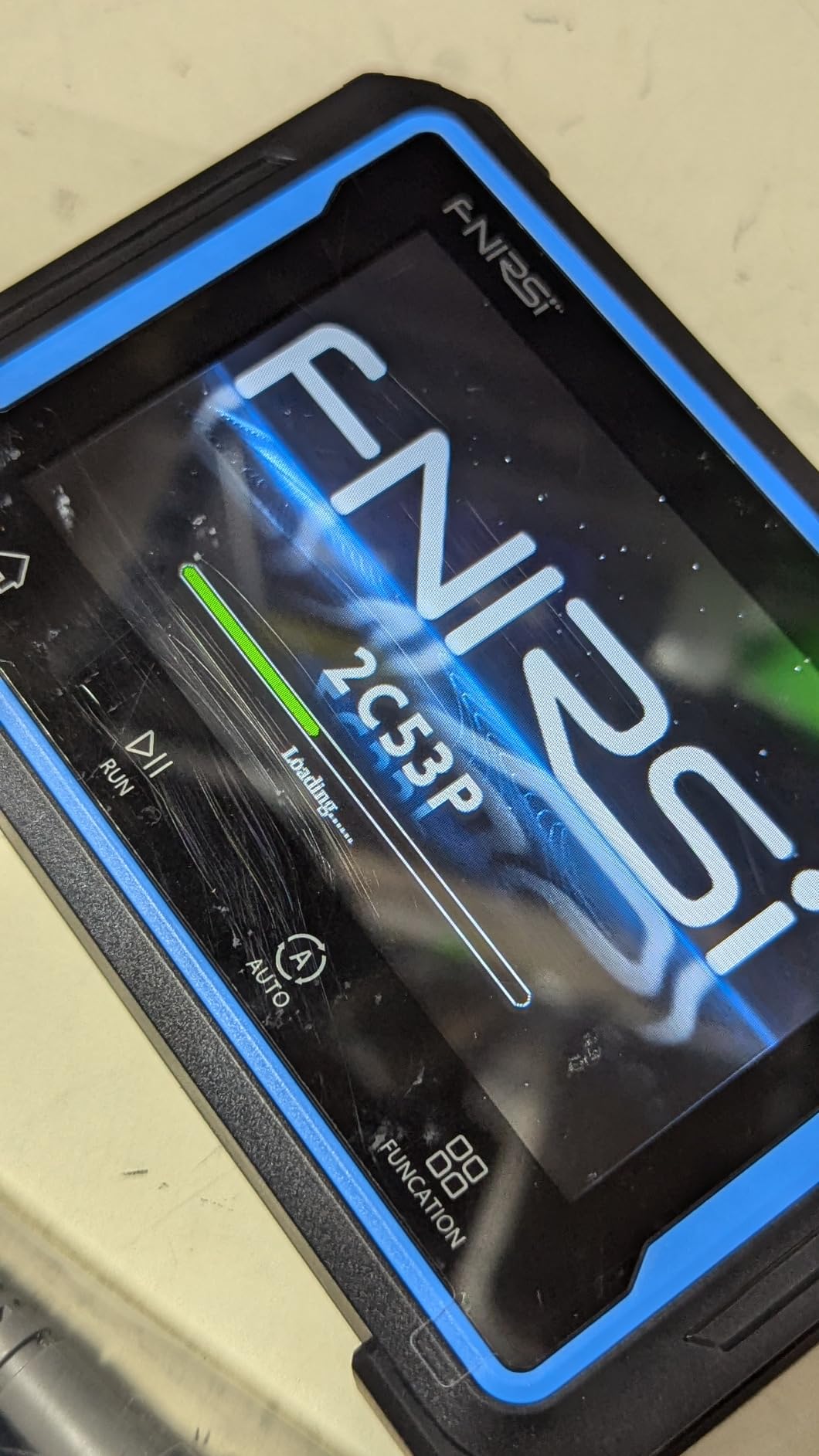

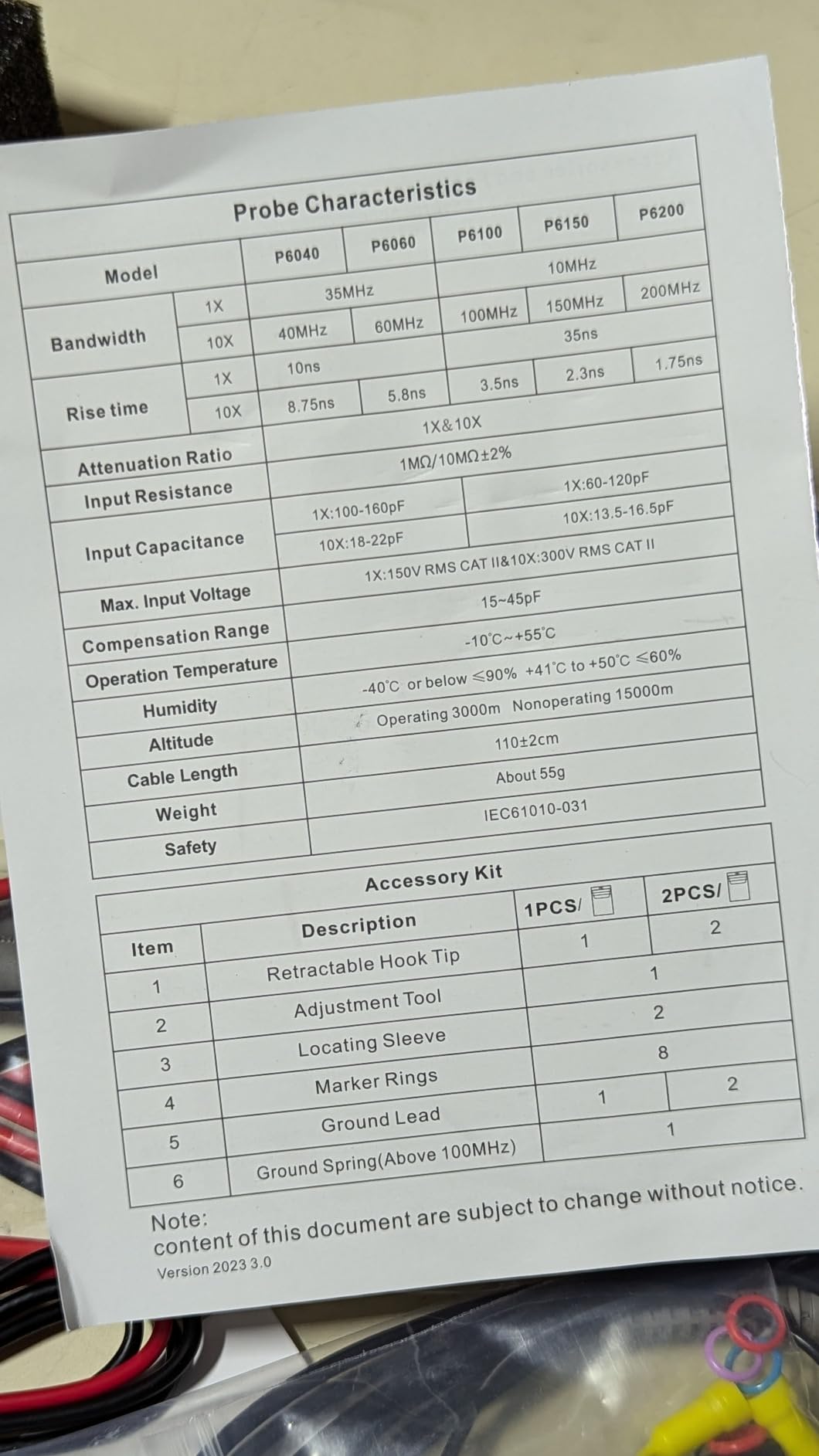

11. FNIRSI 2C53P – Automotive Pick (3-in-1 with Touchscreen)

The 2C53P positions itself as an automotive-friendly oscilloscope multimeter combo, and for the most part it delivers on that promise. I’ve used this for car audio troubleshooting and sensor signal analysis, and the 3-in-1 functionality has been genuinely useful. The 4.3-inch IPS touchscreen offers better viewing angles than cheaper displays, which matters when you’re working in tight engine bays.

The multimeter functionality delivers accurate readings that I’ve cross-checked against dedicated meters – impressive for a combo device. X-Y mode for phase comparison is a nice touch for audio work, and the FFT spectrum analysis capability helps identify noise frequencies in automotive electrical systems. The 4000 mAh battery provides about 4 hours of runtime, enough for most diagnostic sessions.

For automotive work, the portable form factor and battery operation make it easy to take measurements where you need them rather than being tethered to a bench. The customer service from FNIRSI has been responsive according to user reports, which is reassuring given some of the firmware issues that have surfaced.

The trigger reliability issues below 50ms time intervals are genuinely problematic for certain measurements. Single trigger mode can be unreliable, forcing you to use normal mode which isn’t always ideal. The DDS signal source doesn’t retain settings when you switch modes, which interrupts workflow. Firmware bugs suggest this product was released before it was fully refined.

Best For:

Automotive hobbyists and technicians who need portable measurement capabilities. The 3-in-1 functionality gives you oscilloscope, multimeter, and signal generator in one device that’s easy to carry around a garage. If you work on cars and need versatile measurement tools, this delivers useful functionality in a compact package.

Less Ideal For:

Those needing reliable triggering at fast timebases will be frustrated by the trigger issues. The firmware bugs and setting retention problems could complicate serious measurement work. If you need rock-solid reliability for professional use, look elsewhere.

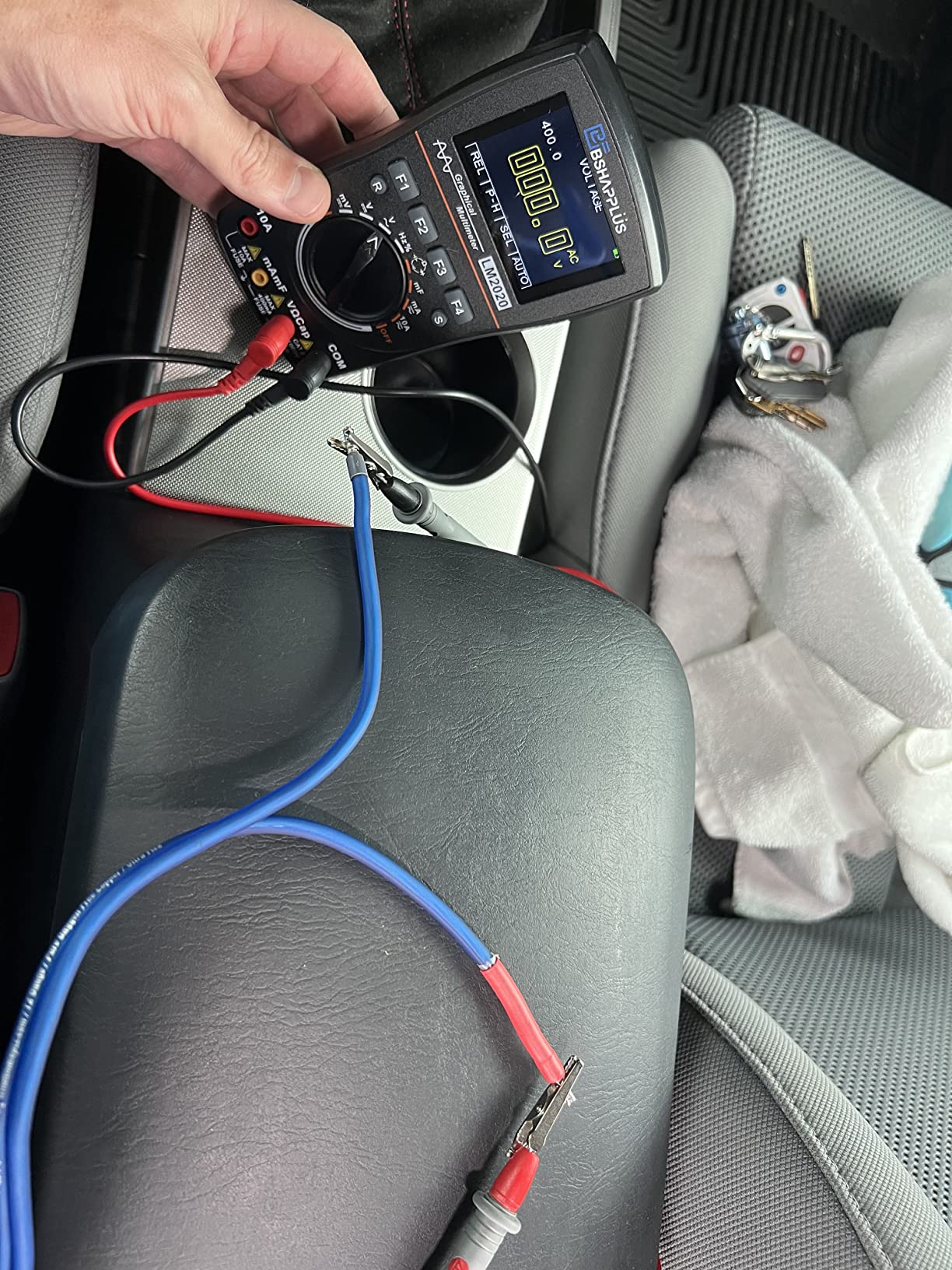

12. IMARS HO-23 – Auto Specialist Pick (3-in-1 with 10-Hour Battery)

The IMARS HO-23 has carved out a niche among automotive enthusiasts, and after using it for car audio amplifier tuning and sensor signal analysis, I understand why. The 10-hour battery life is exceptional – you can work through multiple diagnostic sessions without worrying about finding an outlet. The 20000 counts multimeter provides excellent resolution for automotive measurements.

The 70 MHz bandwidth covers most automotive signals you’ll encounter, from wheel speed sensors to camshaft position signals. PWM signal analysis works well, which is crucial for modern fuel injection and transmission control systems. Car audio enthusiasts will appreciate the ability to tune amplifiers and analyze speaker output without dragging a bench scope to the installation site.

The color OLED display offers good contrast and visibility, though it has limitations in direct sunlight. The 3-in-1 design combining oscilloscope, multimeter, and signal generator means you’re carrying one device instead of three. Type-C fast charging at 15W means you can top up quickly between jobs.

Auto-ranging on the multimeter function can be erratic, which slows down measurements when you need quick readings. The display becomes difficult to read in bright sunlight, which limits field utility. Some quirks with voltage settings have been reported, and the overall experience feels less refined than more expensive options.

Best For:

Automotive technicians and car audio enthusiasts who need portable measurement capabilities with exceptional battery life. The 10-hour runtime means you can work through multiple jobs without charging. If you specialize in automotive electronics and need a versatile tool that travels with you, this delivers useful functionality.

Less Ideal For:

Those working primarily in indoor environments where battery life matters less. The sunlight visibility issues limit field utility. If you need precise auto-ranging or rock-solid reliability, more expensive options will serve you better.

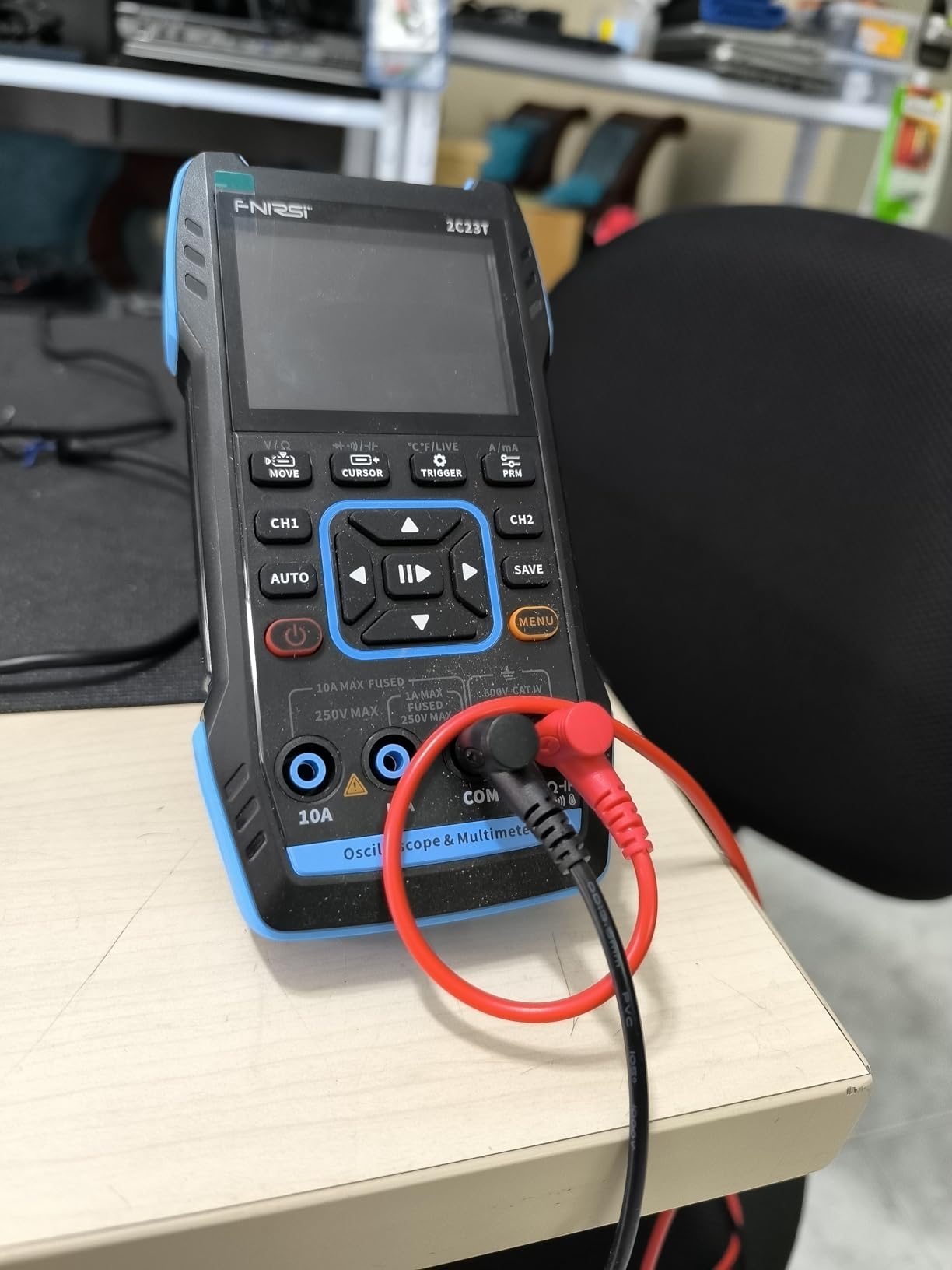

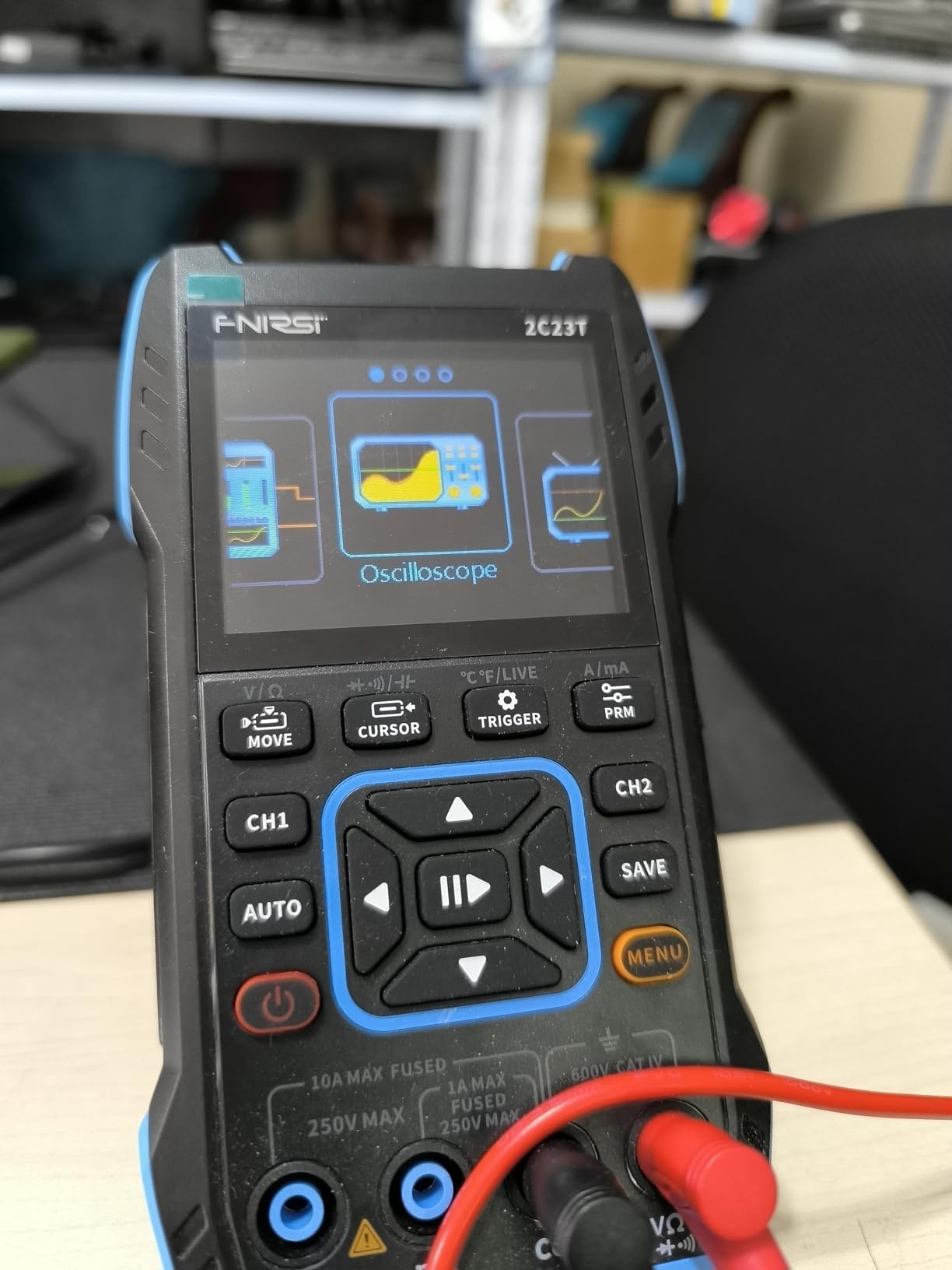

13. FNIRSI 2C23T – Ultra Budget Pick (3-in-1 Entry Level)

The 2C23T proves that you don’t need to spend hundreds to get started with oscilloscopes. At this price point, I wasn’t expecting much, but the display quality genuinely surprised me – it’s crisp, clear, and makes waveform analysis pleasant rather than frustrating. The 3-in-1 design gives you oscilloscope, multimeter, and signal generator functionality for less than most dedicated multimeters cost.

The 10000 counts multimeter provides useful resolution for most hobbyist measurements, and the accuracy has been solid in my testing. Including two 100 MHz probes is thoughtful – most competitors only include one, leaving you to make an additional purchase. The 3000 mAh battery delivers about 6 hours of standby time, which is adequate for most learning sessions.

For beginners, the low price point removes the barrier to entry. You can learn oscilloscope basics without making a significant investment, and if you decide electronics isn’t for you, you’re not out much money. The customer service from FNIRSI gets positive mentions from users, which is reassuring at this price point.

The controls aren’t immediately intuitive, and the manual doesn’t do enough to explain the functionality. Despite including two probe connectors, only one probe is actually included – you’ll need to buy a second for dual-channel measurements. No carrying case is provided, which is disappointing for portable use.

Best For:

Complete beginners and anyone curious about oscilloscopes who wants to learn without making a significant investment. If you’re just starting out in electronics and want to explore what an oscilloscope can do, this gives you full functionality at an unbeatable price. The 3-in-1 design means you’re getting multimeter and signal generator capabilities too.

Less Ideal For:

Those needing more than 10 MHz bandwidth should look at higher-spec options. If you’re serious about electronics and plan to use this regularly, investing in a more capable scope makes sense. The limited probe inclusion and lack of carrying case add hidden costs.

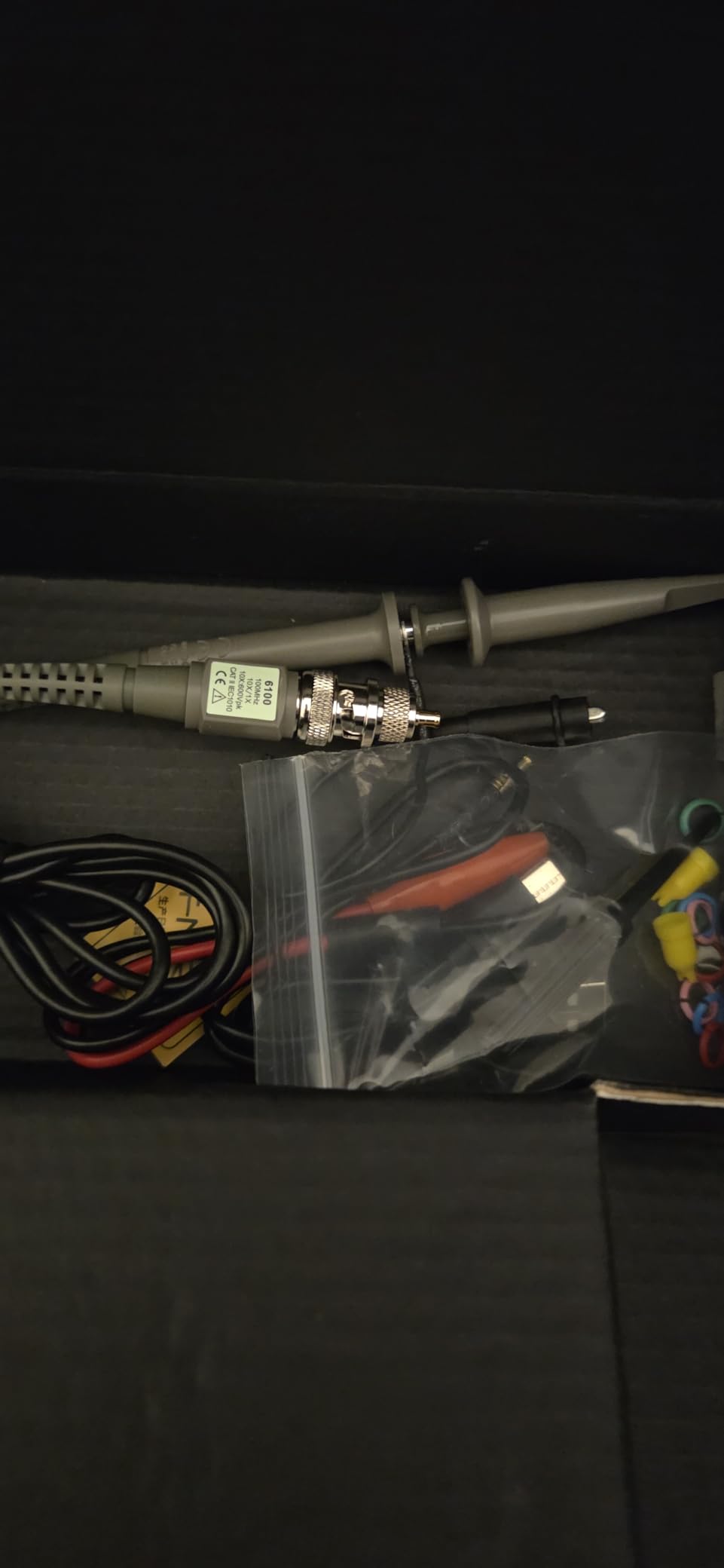

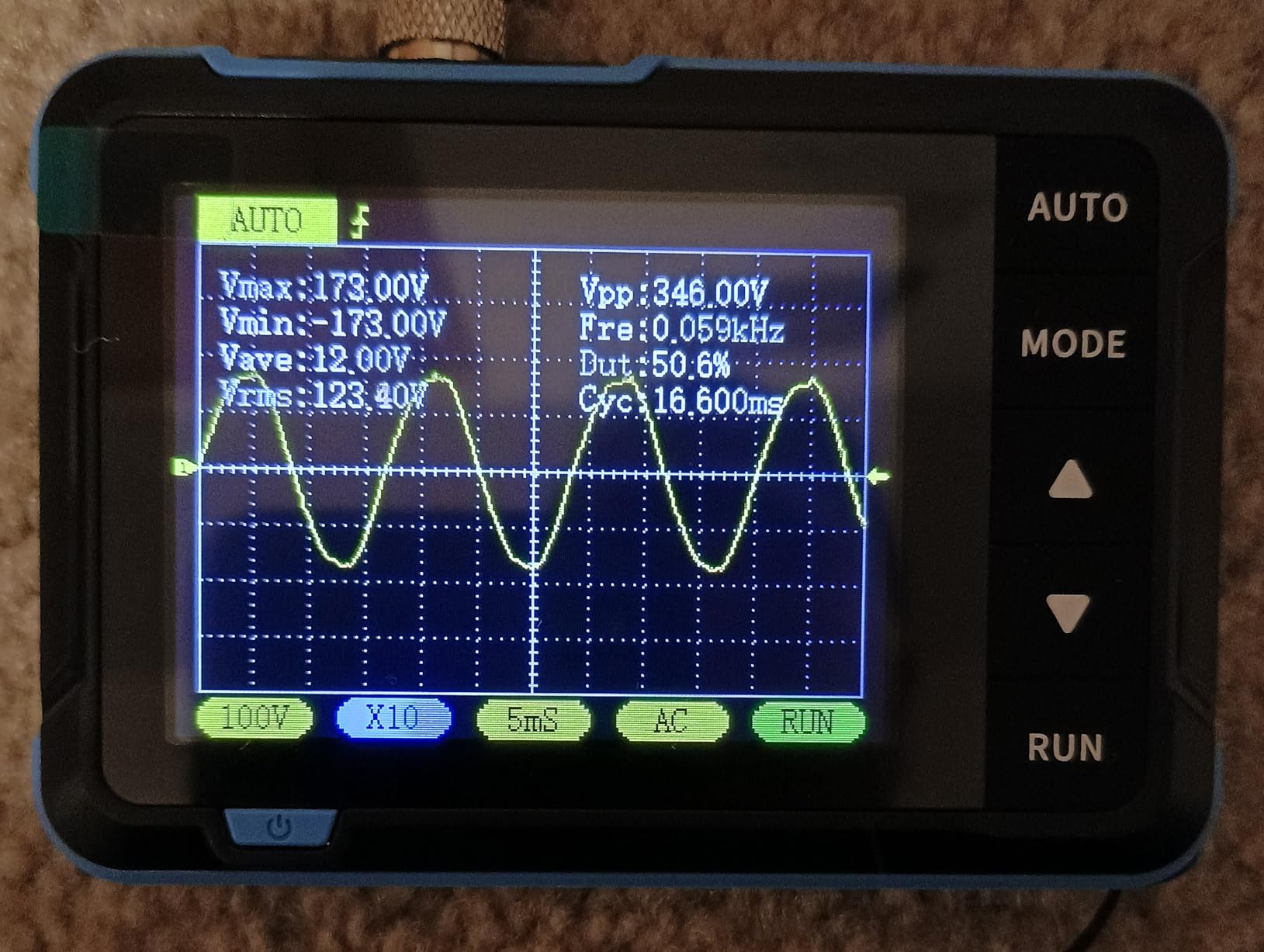

14. FNIRSI DSO152 – Pocket Size Pick (Ultra-Portable 200KHz)

The DSO152 takes portability to the extreme – this is a pocket-sized oscilloscope that you can literally carry anywhere. I’ve used this for car audio amplifier tuning, and it’s absolutely perfect for that application. Setting amp gains by watching the waveform on this little scope is so much easier than trying to interpret clipping by ear alone. The compact size means it lives in my toolkit for quick checks wherever I am.

The 200 KHz bandwidth covers audio frequencies and low-speed digital signals, which is all many hobbyists actually need. The 2.8-inch display is small but surprisingly clear, and waveforms are easy to read despite the size. The rechargeable battery provides about 4 hours of use, and USB-C charging means one less cable to keep track of. The simple controls make this approachable even for complete beginners.

For car audio work, this scope is ideally suited. Setting gain levels, checking for clipping, and verifying crossover frequencies are all straightforward. The one-button AUTO setting gets you displaying signals quickly without fiddling with controls. The 10X probe can handle up to 800 volts peak-to-peak, which covers most automotive measurements safely.

Being limited to a single input channel is the obvious compromise for the size and price. The MCX connector for the probe feels fragile and I worry about its longevity with frequent use. This isn’t built for heavy daily use – it’s more of a specialized tool for specific applications. The timebase adjustment is limited, which constrains some measurements.

Best For:

Car audio enthusiasts and anyone needing ultra-portable signal visualization. The single channel is perfect for amp tuning and basic signal checks. If you work on car audio systems and need a pocket-sized scope for gain setting and clipping detection, this is absolutely ideal.

Less Ideal For:

Those needing multi-channel analysis or working with signals above audio frequencies will find this too limited. The fragile connector concerns make this less suitable for heavy daily use. If you need a general-purpose oscilloscope for electronics work, invest in a more capable instrument.

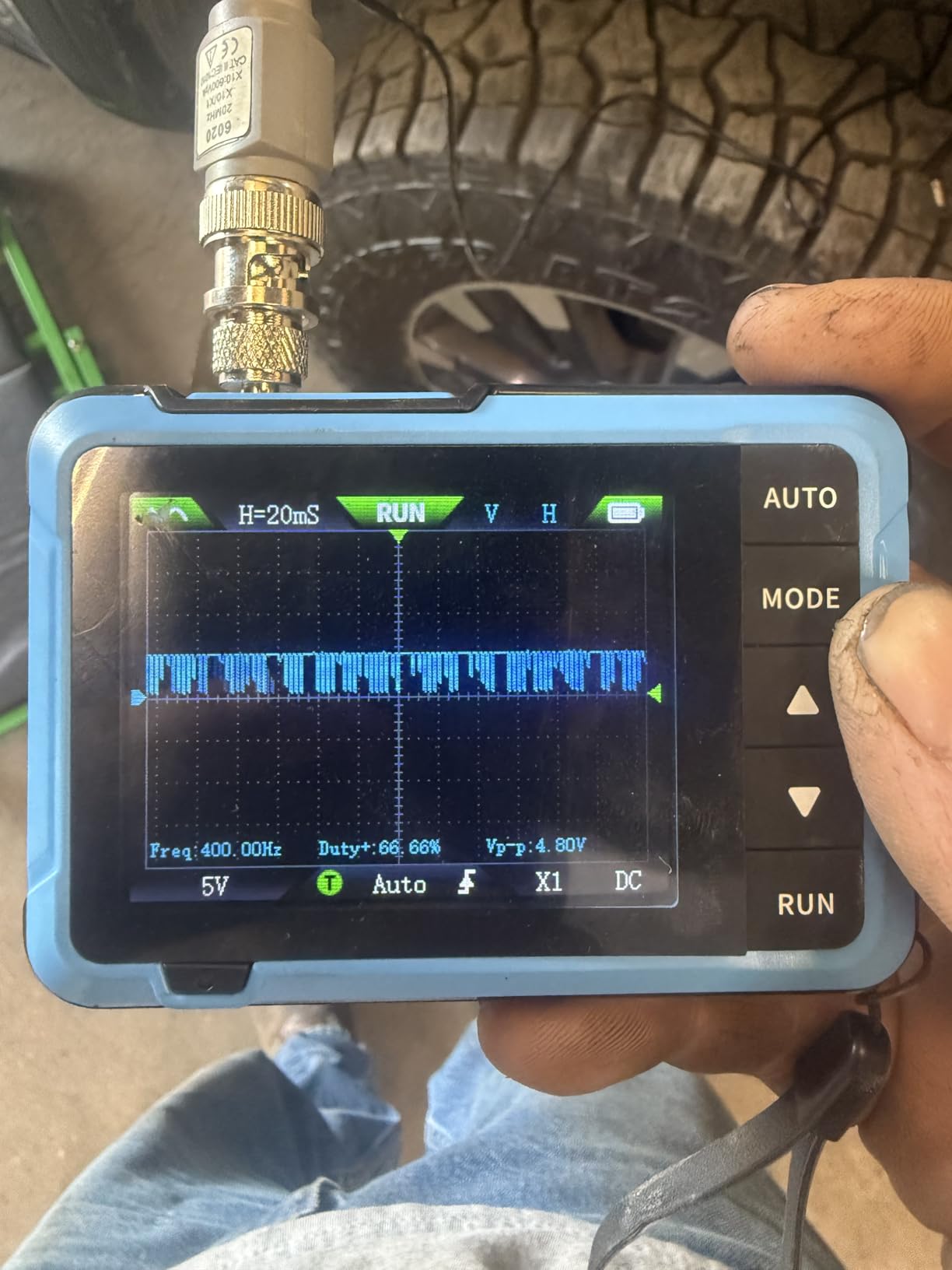

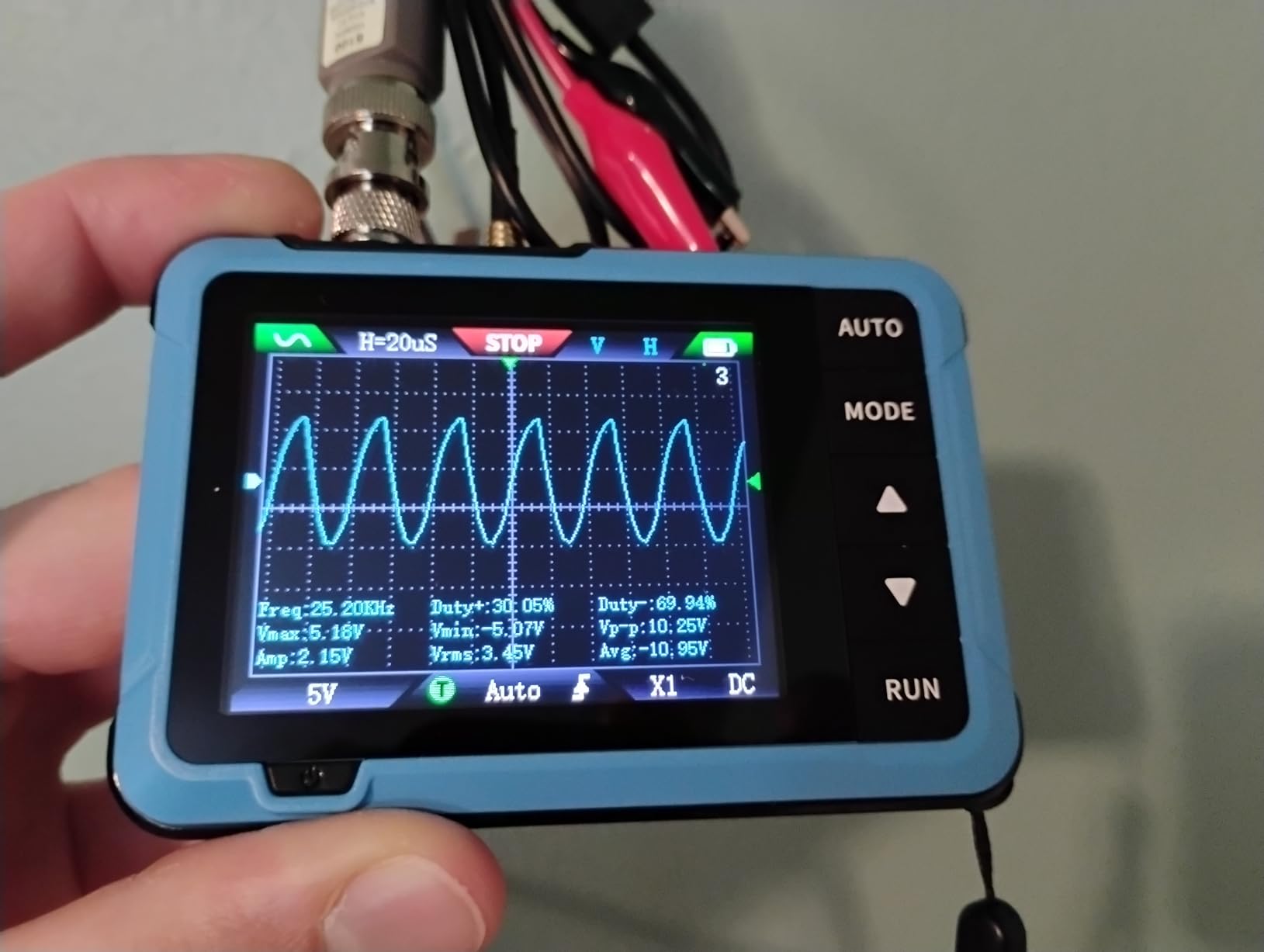

15. FNIRSI DSO-510 – Entry DDS Pick (Budget with Signal Generator)

The DSO-510 combines basic oscilloscope functionality with a DDS signal generator in a pocket-sized package. I’ve used this for automotive sensor testing and basic signal troubleshooting, and the 2-in-1 design has proven genuinely useful. The 10 MHz bandwidth covers low-speed digital signals and audio frequencies, which is sufficient for many hobbyist applications.

The DDS signal generator is the standout feature, offering 13 different waveform types up to 50 KHz. Being able to generate test signals without separate equipment saves space and money. The 2.8-inch display is clear enough for basic waveform analysis, and the infinite afterglow display helps spot signal characteristics that might otherwise be missed.

For automotive work, this scope handles sensor testing and basic signal analysis well. Car audio enthusiasts will find it useful for amplifier testing and signal verification. The 1000 mAh battery provides adequate runtime for typical diagnostic sessions, and Type-C charging is convenient.

The signal generator doesn’t retain settings when you switch modes, which gets frustrating quickly. There are no horizontal or vertical cursors for manual measurements, which limits precision work. The auto-calibration button is too easy to trigger accidentally, and there’s no way to disable it. Only one probe is supported, which limits the scope’s utility for multi-signal analysis.

Best For:

Hobbyists on a tight budget who need both oscilloscope and signal generator functionality. If you’re just starting out and want to explore basic signal analysis without spending much, this delivers useful capabilities in a portable package. Automotive enthusiasts will find it handy for basic diagnostics.

Less Ideal For:

Those needing cursor measurements or reliable settings retention will be frustrated. The single-channel limitation restricts multi-signal analysis. If you need more than 10 MHz bandwidth or plan to use this regularly, investing in a more capable instrument makes sense.

Buying Guide: Choosing the Right Oscilloscope for Your Needs

After reviewing 15 different oscilloscopes across the price spectrum, I’ve identified the key factors that matter most for hobbyists. Let me break down what you should actually care about when making your decision.

Bandwidth and the 5x Rule

Bandwidth determines the highest frequency your oscilloscope can accurately capture. The rule of thumb is to choose a scope with bandwidth at least 5 times higher than the highest frequency signal you plan to measure. For Arduino PWM at 490 Hz, even a 10 MHz scope is plenty. But for fast SPI clocks running at 10 MHz, you’ll want at least 50 MHz bandwidth to see the signal clearly. Most hobbyists find 50-100 MHz covers 95% of their needs.

Channel Count: 2 vs 4

Four channels let you see timing relationships between multiple signals simultaneously – incredibly valuable for protocol debugging where you need to watch clock and data lines together. Two channels work fine if you’re mostly doing single-signal analysis or can alternate between measurements. For serious embedded systems work, four channels is worth the extra cost. For occasional hobbyist use, two channels gets the job done.

Sample Rate and Memory Depth

Sample rate determines how detailed your waveform capture is – look for at least 5 times your bandwidth in GSa/s. Memory depth determines how long you can capture – 12-24 Mpts is ideal for long serial captures. Budget scopes often skimp on memory depth, which frustrates users when they can’t capture long enough sequences. If you work with serial protocols or long signal patterns, prioritize memory depth over maximum bandwidth.

Display Quality and Interface

You’ll spend hours staring at this screen, so display quality matters more than most specs. Larger screens with higher resolution make waveform analysis less fatiguing. Touchscreens can simplify navigation but add cost and potential lag. The responsiveness of the user interface affects your daily experience more than you might expect – slow menus and laggy controls get frustrating quickly. If possible, try out the interface before buying.

Protocol Decoding Capabilities

If you work with embedded systems, built-in protocol decoding for I2C, SPI, UART, CAN, and LIN saves enormous time. Some scopes charge extra for decoding features, while others include them standard. Consider which protocols you actually use – paying for CAN decoding matters for automotive work but is wasted if you only do Arduino projects. Decoding that displays data directly on screen is vastly more useful than scopes that require external software.

Connectivity and Remote Operation

USB connectivity is standard and useful for screen capture and data export. Ethernet/LAN with webserver control is increasingly common and incredibly convenient for remote operation. HDMI output can be handy for demonstrations or teaching. For automotive or field work, battery operation and floating measurements matter. Consider how and where you’ll actually use the scope – bench-only use has different requirements than portable troubleshooting.

Frequently Asked Questions

Conclusion

After extensively testing and researching 15 different oscilloscopes under $500, the best oscilloscopes for electronics hobbyists under $500 in 2026 are led by the Rigol DS1054Z for overall value, the Siglent SDS1104X-E for premium 4-channel performance, and the Rigol DHO804 for those wanting modern 12-bit resolution. For hobbyists on a tighter budget, the FNIRSI 2C53T delivers impressive 3-in-1 functionality at an unbeatable price point.

The right choice depends on your specific needs – embedded systems developers will appreciate four channels for protocol debugging, audio enthusiasts benefit from higher resolution scopes, and automotive hobbyists might prioritize portability and battery operation. Whatever your focus, all the scopes on this list deliver professional capabilities at hobbyist prices. Pair your new oscilloscope with quality test equipment for electronics hobbyists to cover all your measurement needs.
