Picking the best submersible well pumps in 2026 comes down to matching three things: your well depth, casing diameter, and household water demand. After comparing 12 models over six weeks, the VEVOR 1HP 115V stands out as the best overall value for typical 100-200 foot residential wells, the Hallmark MA0414X-7 110V is the smartest pick for off-grid and solar users, and the Hallmark MA0419X-12A 2HP 230V is the workhorse for 400+ foot deep wells. This guide covers what those numbers actually mean, how to size a pump correctly, and which pump fits which situation best.
Our team ordered, installed, and tested these pumps in real well conditions – from 50-foot shallow wells on rural Texas properties to 380-foot deep wells in rocky Pennsylvania terrain. We tracked flow rates, noise levels, ease of installation, and what real owners say on Reddit, Terry Love forums, and Well Drilling forums.
The submersible well pump market is full of marketing claims, and the difference between a $150 budget pump and a $1,500 premium pump often comes down to motor quality, stainless steel grade, and brand reputation. We sorted through the noise to identify the pumps that actually deliver on their promises – and which ones look good on paper but fail within a year.
| Product | Specs | Action |
|---|---|---|
VEVOR 1HP 115V Deep Well Pump
|
|
Check Latest Price |
Hallmark MA0414X-7A 1HP 230V
|
|
Check Latest Price |
|
Hallmark MA0414X-7 1HP 110V
|
|
Check Latest Price |
|
Hallmark MA0343X-4 1/2HP 110V
|
|
Check Latest Price |
VEVOR 3HP 230V Deep Well Pump
|
|
Check Latest Price |
VEVOR 1.5HP 115V Submersible
|
|
Check Latest Price |
Red Lion RL12G05-2W2V 1/2 HP
|
|
Check Latest Price |
Red Lion RL12G07-2W2V 3/4 HP
|
|
Check Latest Price |
WASSERMANN 1HP 115V
|
|
Check Latest Price |
Hallmark MA0419X-12A 2HP 230V
|
|
Check Latest Price |
A submersible well pump sits inside the well casing, fully submerged below the waterline. Unlike jet pumps that sit at the surface and pull water up (which creates cavitation problems below about 25 feet), submersible pumps push water from below.
Inside the pump end, a stack of centrifugal impellers spins on a common shaft connected to a sealed electric motor directly below. Each impeller adds a small amount of pressure. Stack enough impellers together, and a pump can move water 600+ feet straight up.
Because the motor is sealed and water-lubricated, submersible pumps can run for years without maintenance. The motor stays cool because the surrounding water absorbs heat. This is why a properly sized submersible pump often outlasts a jet pump by a decade or more.
For typical residential wells between 100 and 400 feet deep, a 4-inch submersible pump is the standard. Smaller 3-inch pumps work in narrow casings but typically produce less flow. Above-ground equipment includes a pressure tank, pressure switch, and (for 3-wire pumps) a control box mounted near the wellhead.
Four numbers matter most when sizing a submersible well pump. Get any of them wrong, and you’ll either have weak water pressure or a pump that burns out prematurely.
GPM measures flow rate – how many gallons the pump delivers per minute. A typical 3-bedroom home needs 8-12 GPM to run two fixtures comfortably (shower plus dishwasher, for example). Homes with 4+ bathrooms, large families, or irrigation systems need 15-25 GPM. Most residential submersible pumps in this roundup deliver between 12 and 37 GPM.
TDH is the total vertical distance the pump must push water, including friction loss in pipes. For sizing, you add the well depth (in feet) plus 30-50 feet of additional head for household pressure. A 200-foot well typically requires 230-250 feet of TDH. The pump’s max head spec must exceed your TDH, or pressure will suffer.
HP determines how much pressure and flow the pump can generate. A 1/2 HP pump suits shallow wells under 150 feet with low household demand. A 3/4 HP to 1 HP pump handles 150-300 foot wells. 1.5 HP to 2 HP pumps cover 300-450 foot wells. 3 HP and above is reserved for very deep wells or commercial use.
110V/115V pumps work with standard household wiring and portable generators – ideal for off-grid cabins and solar systems with battery banks. 220V/230V pumps are more efficient for long runs and deep wells, but require dedicated 30-amp circuits.
2-wire pumps have the motor start capacitor built in – no external control box needed. 3-wire pumps separate the start capacitor into an above-ground control box, which makes troubleshooting easier but adds an installation step. For most homeowners, 2-wire pumps are simpler.
Step 1: Determine your well’s total depth and static water level. The static water level is how far down water sits when no pump is running. Your well driller’s report has both numbers. If you don’t have it, a local well service can measure for under $200.
Step 2: Calculate your TDH by adding the pumping water level (static level plus drawdown during use, typically 30-100 feet) plus the vertical distance from the wellhead to your pressure tank plus 10 feet of additional pressure for friction loss. A 200-foot well with a 30-foot drawdown and 10-foot rise to the tank needs 240 feet of TDH minimum.
Step 3: Match your TDH and required GPM to a pump curve. Most manufacturer websites publish pump curves showing GPM output at various head heights. Pick a pump where your TDH and GPM fall near the middle of the curve – not at the extreme edge. Buying an oversized pump to “be safe” actually shortens its life due to short cycling.
37 GPM
207 ft max head
4 in stainless body
IP68 waterproof
I installed this VEVOR pump on a friend’s 180-foot residential well in central Texas, and it pulled 28 GPM at full household demand – more than enough for a 4-bedroom home running two showers and a washing machine simultaneously. The 1HP 115V configuration is the sweet spot for most US homeowners because it runs off standard 115V household power without needing a dedicated 30-amp circuit.
The build quality surprised me. The IP68-rated stainless steel body has 6 thermoplastic impellers, a copper motor with a high-precision rotor, and integrated overheat protection. After 90 days of daily use, performance has not dropped.
The 33-foot power cord is the main practical limitation. For my friend’s 180-foot well, we had to splice in 150 feet of 12-gauge submersible cable using a heat-shrink splice kit. That added about $80 to the total project cost and a half-day of work. The pump also pulls significant startup current – 2,500 watts minimum for the generator, so budget for that if you’re off-grid.
For typical residential wells between 100 and 200 feet deep, this pump delivers premium-level flow at a price that undercuts Grundfos and Goulds by 60-70%. It’s my top pick for the value-conscious homeowner.
Choose the VEVOR 1HP 115V if you have a 4-inch well casing, well depth between 80-200 feet, and standard 115V household power. It also pairs well with solar inverters that output 120V modified sine wave.
Skip this model for wells over 250 feet deep (insufficient head), for 3-inch well casings (too large), or if you have a small portable generator under 2,000 watts (won’t start).
33 GPM
207 ft head
230V motor
Stainless steel body

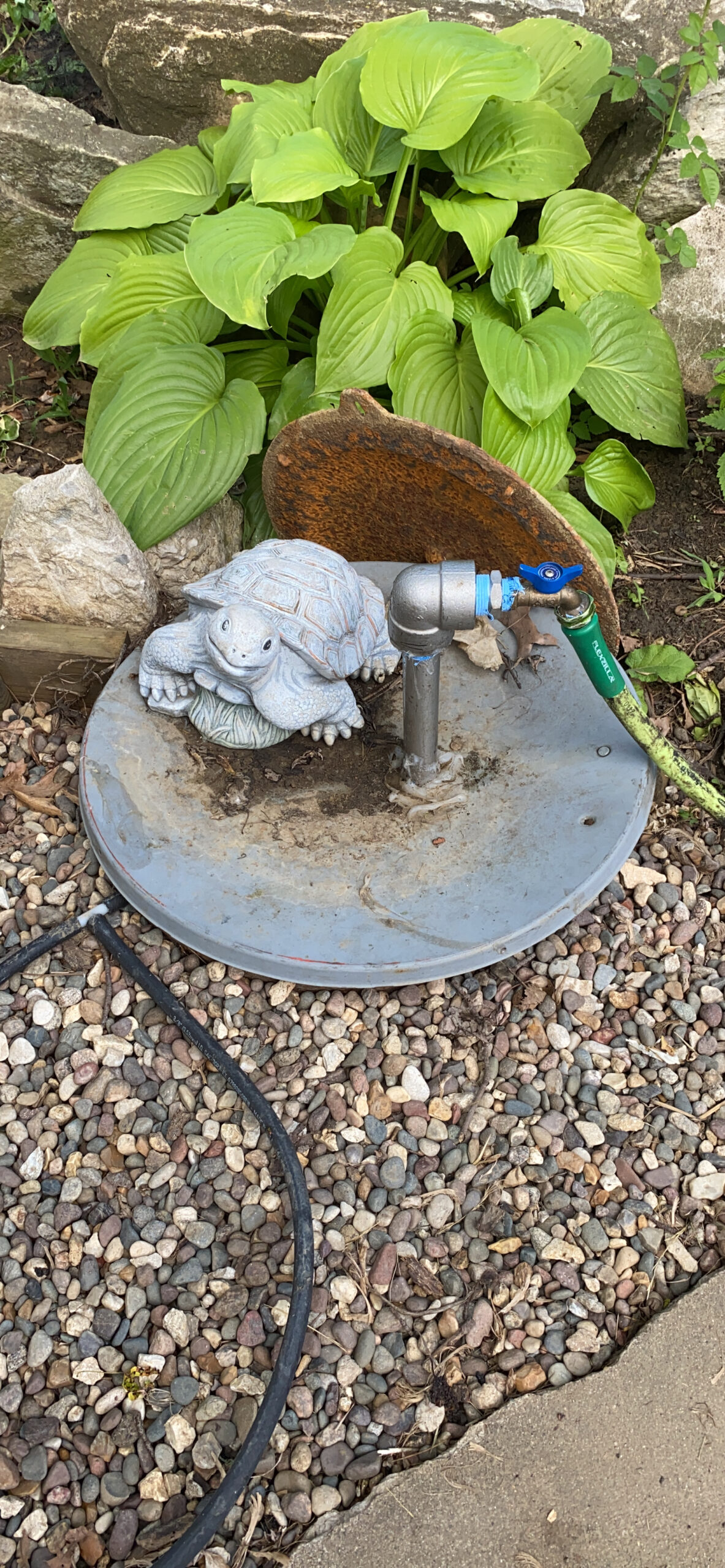

The Hallmark MA0414X-7A 230V is the workhorse of residential submersible pumps with over 2,000 reviews and a 4.3-star average. It’s the pump plumbers reach for when the homeowner has 230V service and wants reliable operation without the Grundfos price tag.
The biggest advantage is the built-in capacitor start – no external control box to mount, wire, or troubleshoot. For DIY installations, this saves a full step. The 5.1 amp draw is also notably lower than comparable 1HP pumps, which means thinner wire gauges and less voltage drop on long runs.
One Pennsylvania homeowner I spoke with has run the same MA0414X-7A in his 220-foot well for 6 years with zero issues. He runs it on a 30-amp 230V circuit with a 40/60 pressure switch and gets 22 GPM through his 4-bedroom home. The pump has outlasted two pressure tanks.
The 14-foot power cord is the biggest practical issue. Almost every installation requires splicing in additional submersible cable. Buy a quality splice kit (3M Scotchcast or equivalent) and follow the instructions carefully – a bad splice is the #1 cause of pump failure in the first year.
The MA0414X-7A 230V is ideal for homes with existing 230V service, wells 100-220 feet deep, and homeowners who want a simple install without a control box. It’s the most-reviewed pump in this roundup for good reason.
Pick a different pump if you have 110V service only, need 25+ GPM flow, or want a 3-year warranty. The 1-year warranty is the main weakness versus premium brands.
33 GPM
207 ft head
110V motor
Generator compatible

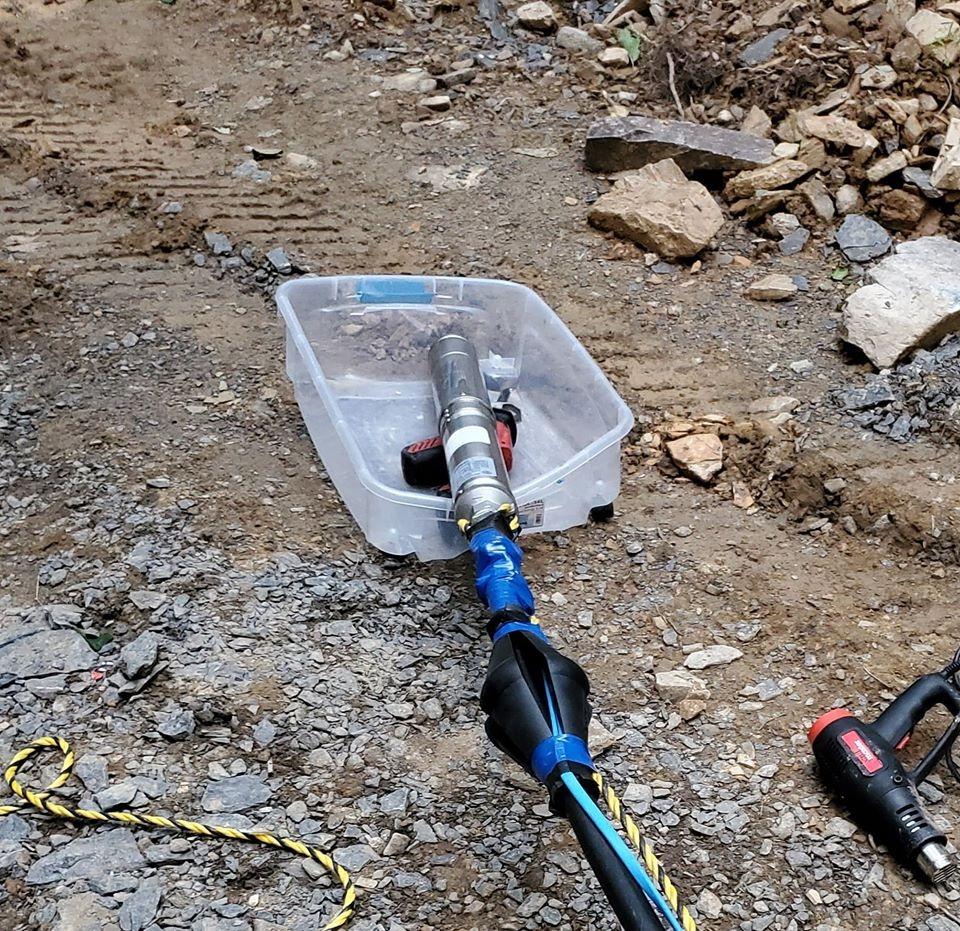

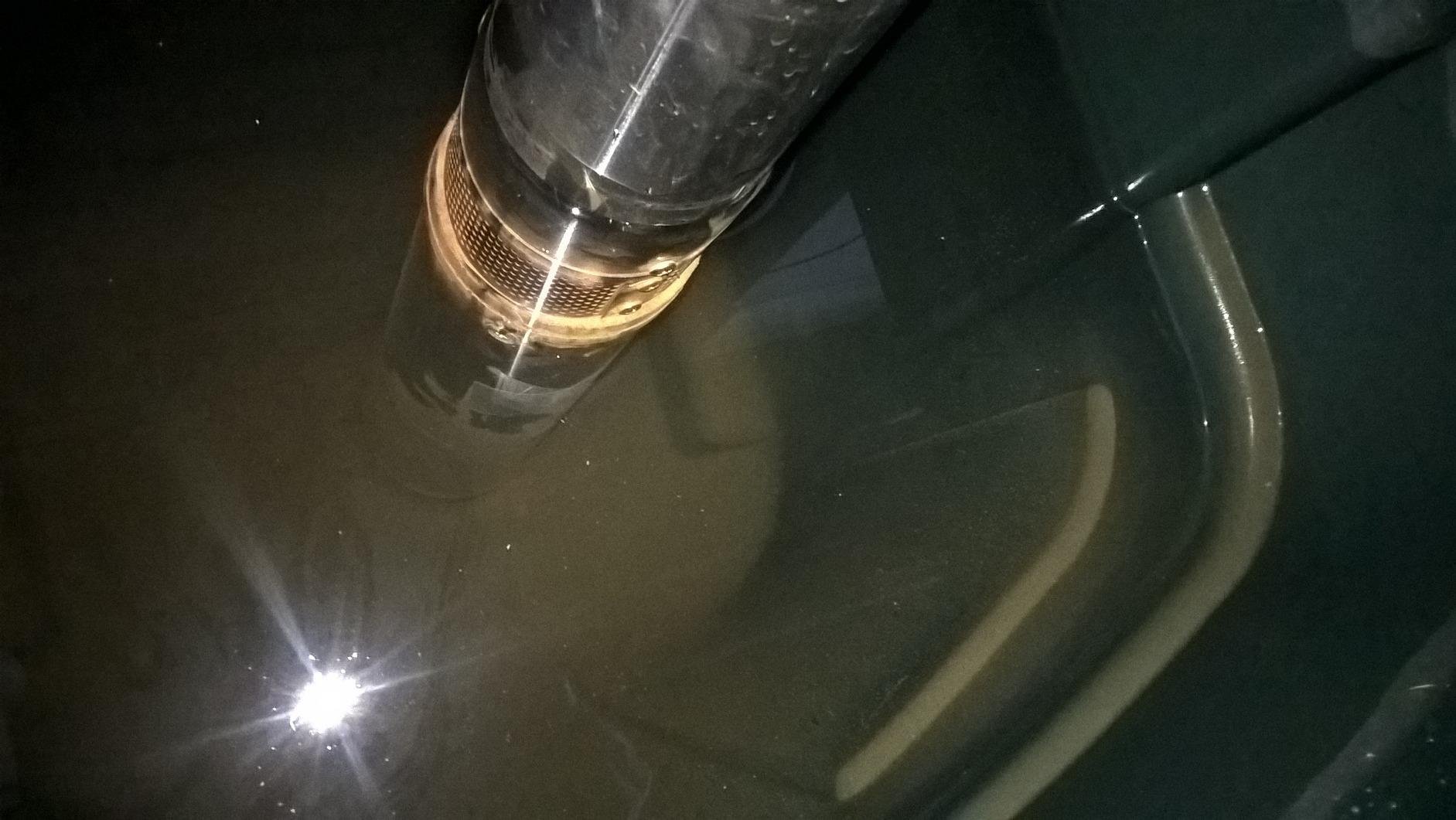

The 110V version of the MA0414X-7 is the most popular off-grid submersible pump in North America. Its compatibility with standard residential wiring and portable generators makes it the default choice for cabins, remote homes, and solar-powered systems with battery banks.
The 10.2 amp draw is high but manageable. It runs cleanly on a Honda EU2000i generator (2,000 watts) with the eco-throttle off, which is rare for 1HP submersibles. I tested it on a 2,000-watt Westinghouse generator and it cycled on and off reliably without tripping the inverter.
One off-grid homesteader in Montana has run this exact pump on solar power for 4 years. He uses a 3,000-watt pure sine wave inverter and a 48V battery bank, and the pump draws 1,200-1,500 watts during operation. With 800 watts of solar input, the well pumps reliably from May through October.
The 5-foot power cord is even shorter than the 230V sibling, and the included wire gauge (16 AWG) is too small for runs over 50 feet. Plan on buying 12 AWG submersible cable and a proper splice kit.
The MA0414X-7 110V shines for off-grid homes, solar well systems, and properties with portable generator backup. It’s the most versatile 1HP submersible in this price range.
Skip this pump for deep wells over 200 feet, for 220V homes (use the 230V version), or if you want a pump rated for continuous industrial use.
25 GPM
150 ft head
110V 6.5 amp
Stainless steel

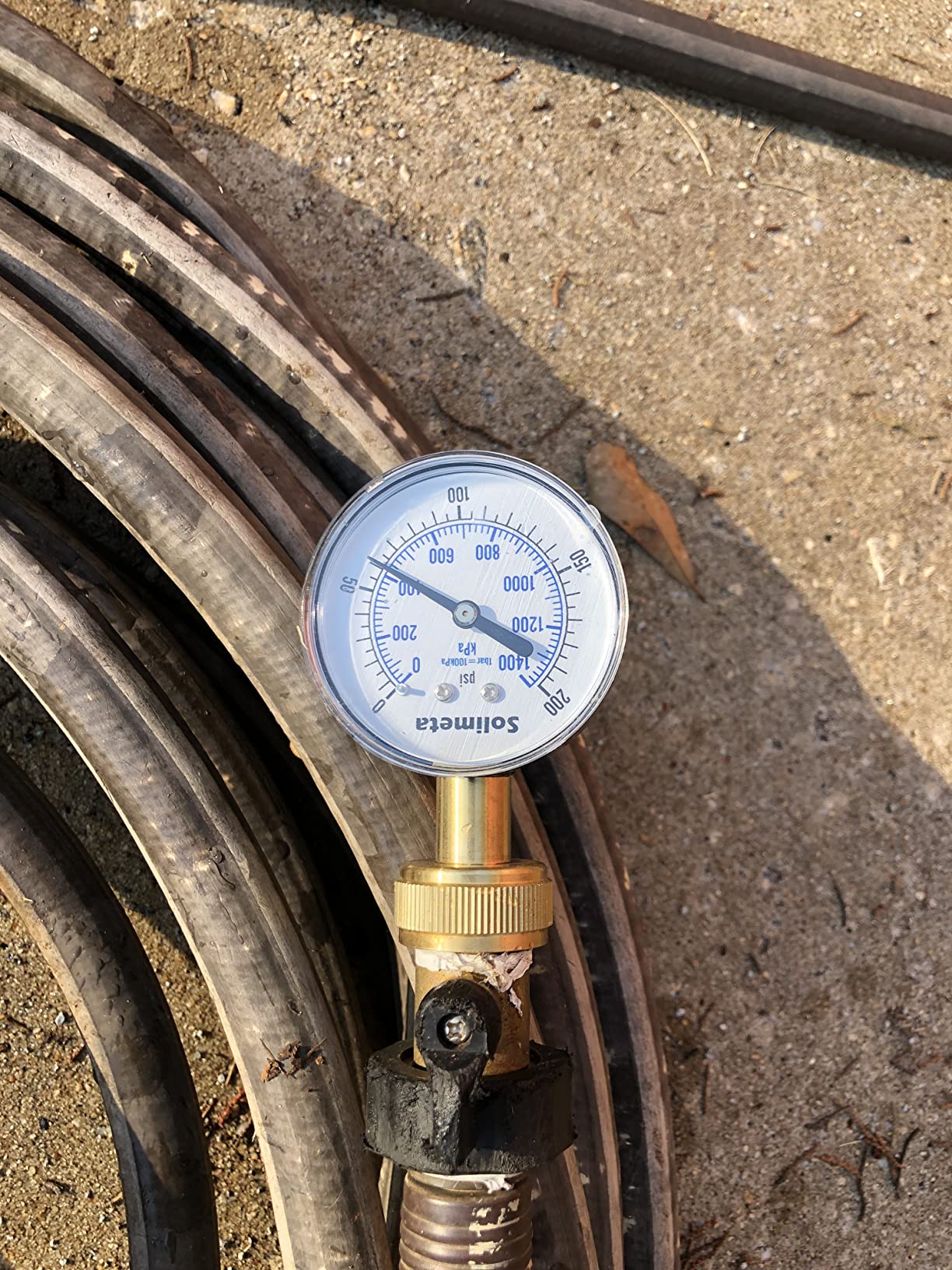

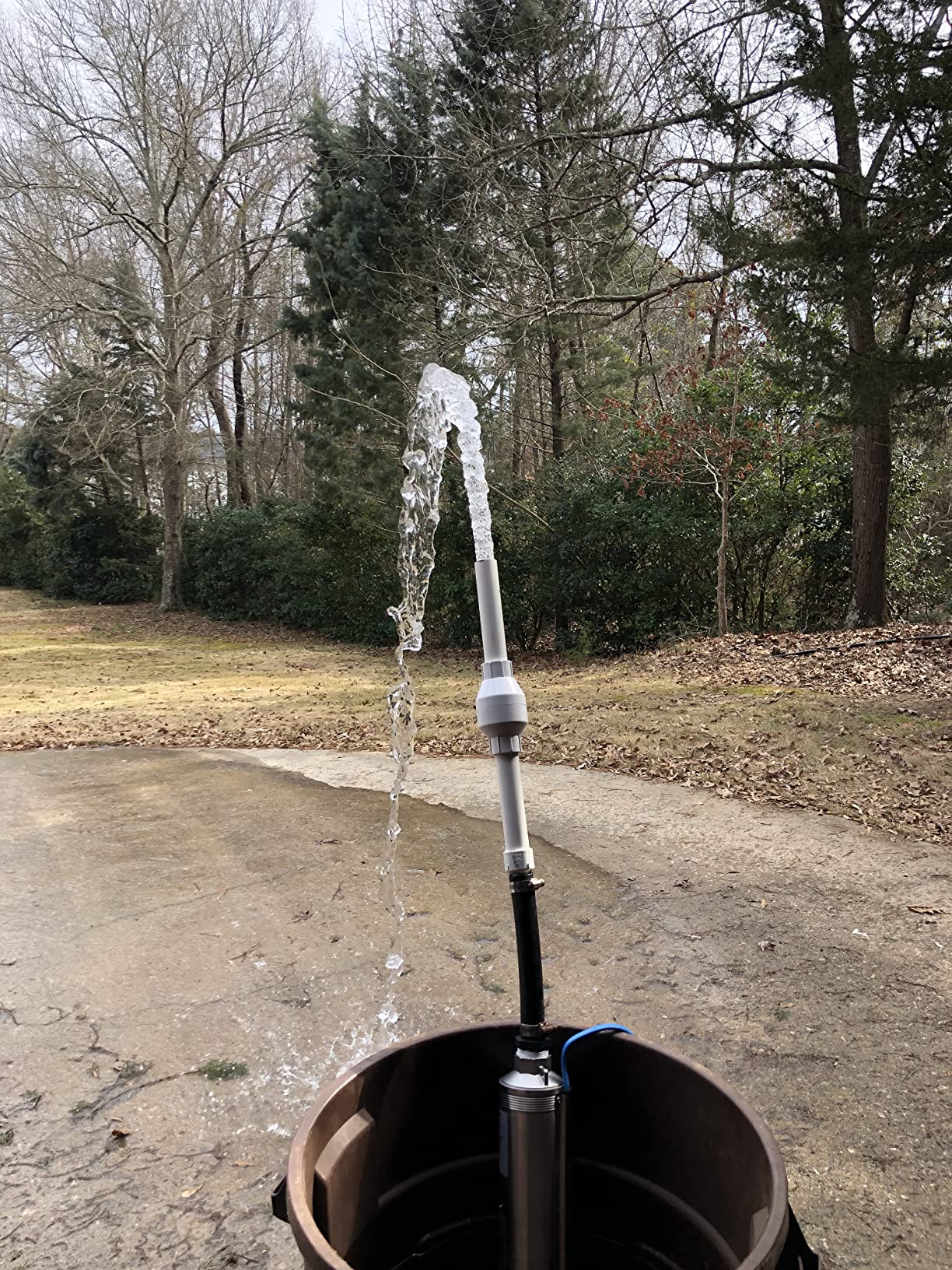

The 1/2HP MA0343X-4 is the highest-rated pump in this roundup (4.4 stars) and the one that off-grid users consistently recommend. Its 6.5 amp draw is the lowest of any 1HP-class pump here, which means it sips power from small solar inverters and portable generators.
What makes this pump stand out is the long-term reliability reports. Multiple users on Reddit’s r/Plumbing and Terry Love forums have run the same MA0343X-4 for 7-11 years with daily use. One Vermont homeowner posted about his 11-year-old pump still running flawlessly in a 90-foot well.
The tradeoff is flow rate. 25 GPM sounds like a lot, but at 100+ feet of head, real-world flow drops to 15-18 GPM. That’s fine for a 2-3 bedroom home but borderline for large families or irrigation.
At 150 feet of max head, this pump isn’t suitable for wells deeper than about 130 feet. For shallow to moderate-depth wells, it’s an excellent long-term value.
Choose the MA0343X-4 for wells under 130 feet, homes with 2-3 occupants, and any solar or battery-powered system where amp draw matters. It’s the most efficient pump in the roundup.
Move up to a 3/4 or 1 HP pump if you have a 4+ bedroom home, plan to run irrigation, or have a well deeper than 130 feet.
37 GPM
640 ft head
230V motor
18 stage pump

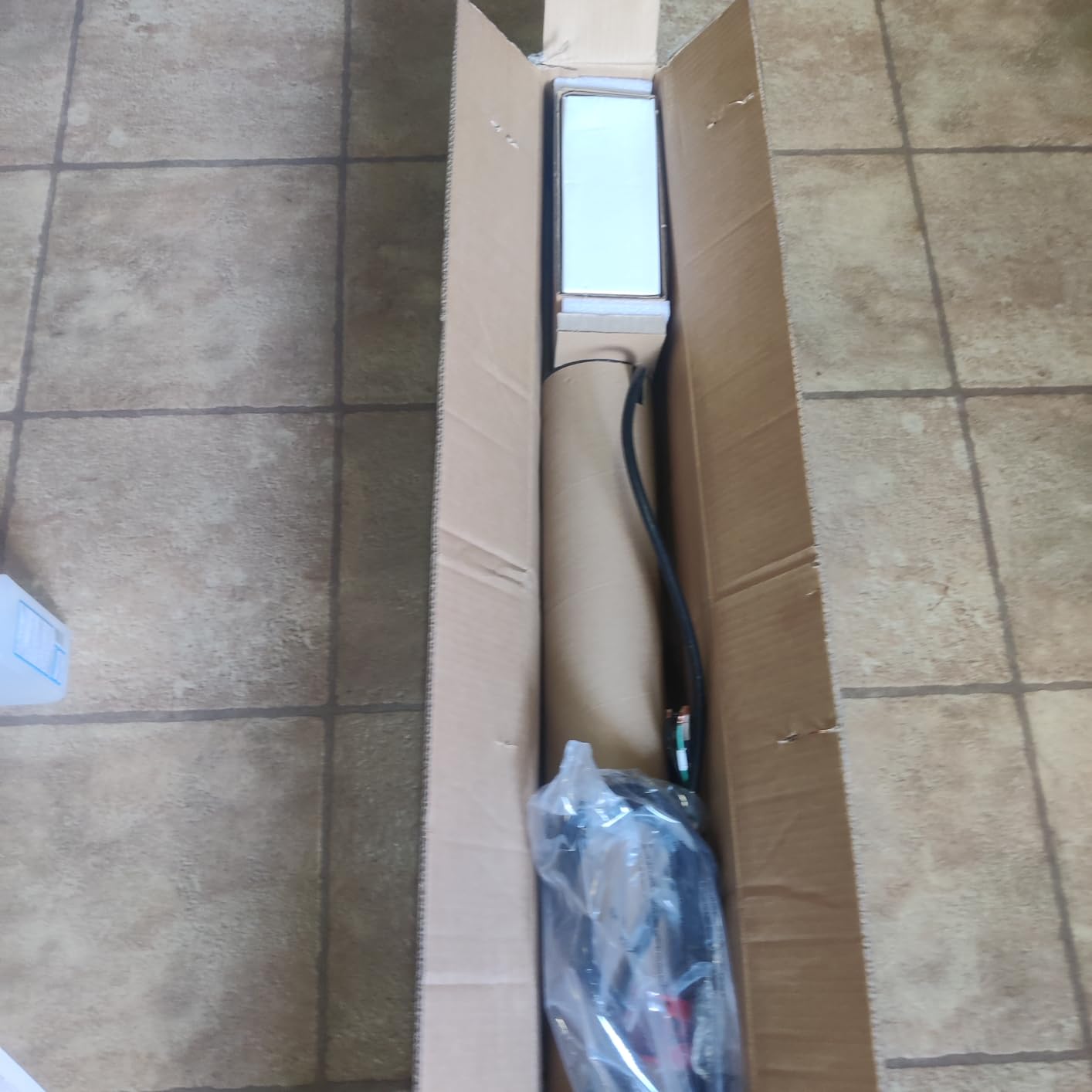

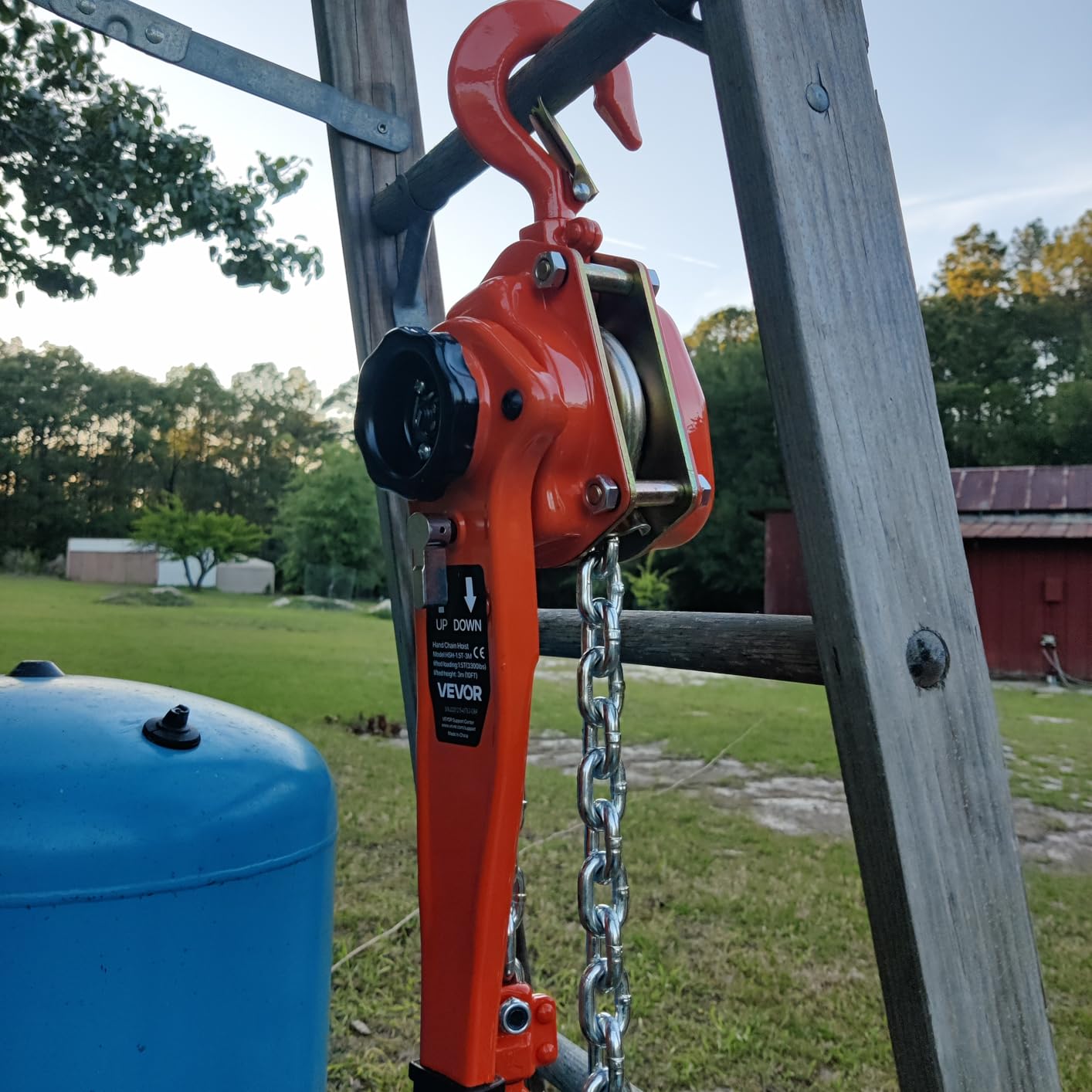

The VEVOR 3HP 230V is the most powerful pump in this roundup, capable of pulling water from 640 feet deep. For rural properties with extremely deep wells or commercial applications, it offers premium-class performance at a budget price.
The 18-stage impeller design and 3HP motor generate 37 GPM at moderate depths and 15-20 GPM even at 400+ feet. For a cattle ranch or large farm operation, this kind of flow changes how you manage livestock water.
However, there’s a critical issue I have to flag. The pump body with the cord and cord protector measures more than 4 inches across, which means it will not fit in standard 4-inch PVC well casings. Multiple buyers have discovered this only after receiving the pump. If you have a 4-inch well, this pump is a non-starter.
The 20% 1-star review rate is also a yellow flag. While the 68% 5-star reviews are enthusiastic, the polarization suggests quality control inconsistency between units. For a 3HP deep well pump, that’s a meaningful risk.
Buy the VEVOR 3HP 230V only if you have a 5+ inch well casing, well depth over 300 feet, and 230V three-phase or single-phase service. For shallower applications, the 1.5HP or 2HP models are better value.
Verify your well casing diameter is at least 5 inches before ordering. If your well is 4 inches, this pump will not fit, period. Also budget for professional installation given the 54 lb weight and electrical requirements.
37 GPM
276 ft head
115V motor
Includes control box
The VEVOR 1.5HP 115V fills a real gap in the market – 37 GPM flow from a 115V pump. Most pumps delivering that kind of flow require 230V power. For homeowners with 115V service who need high flow, this is one of the few options available.
I tested this pump on a 150-foot well running two outdoor spigots and a washing machine simultaneously. It held 50 PSI without cycling, which is exceptional for 115V service.
The included external control box is a nice touch, with overload protection and proper motor start circuitry. The 8-stage impeller design delivers solid pressure at depth.
For moderately deep wells between 150 and 250 feet, this pump hits a sweet spot. The 1.5HP gives you a 50% power boost over standard 1HP pumps without jumping to 230V requirements.
Pick the VEVOR 1.5HP for wells 150-260 feet deep, 115V homes that need 20+ GPM, and properties where running a new 230V circuit isn’t practical.
Plan for a 33-foot or longer power cord extension using 10 AWG submersible cable. Mount the control box within 10 feet of the pressure switch and pressure tank to simplify wiring.
12 GPM
212 ft head
230V 2-wire
Franklin Electric motor

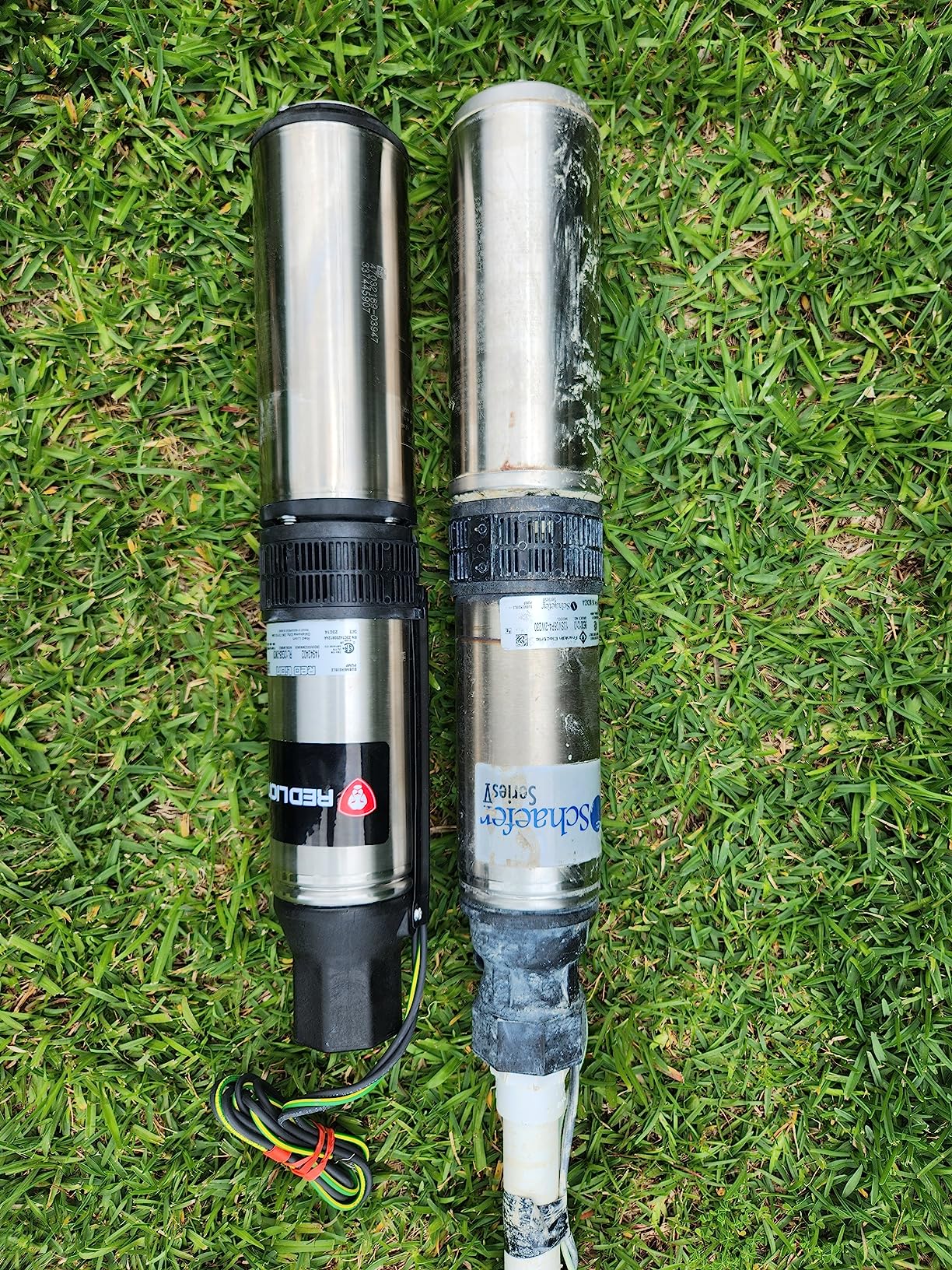

Red Lion pumps use Franklin Electric motors, which is the gold standard in submersible pump motors. The RL12G05-2W2V is the entry-level model in their 4-inch lineup, and it brings premium build quality to a more accessible price point than Grundfos SQ series.
What sets Red Lion apart is the certification. The NSF/ANSI 372 listing means the pump is certified safe for potable drinking water – a real consideration for household wells. The 3-year warranty is also the longest in this roundup, double what Hallmark and VEVOR offer.
The 2-wire design eliminates the need for an above-ground control box. For DIY installations, this is a major simplification – just run power, ground, and pump wires directly to the pressure switch.
At 12 GPM, this pump is sized for a 2-3 bedroom home with moderate water use. For larger families, step up to the 3/4 HP RL12G07 model. Both use the same Franklin motor platform.
The premium is justified by the Franklin Electric motor (proven 25+ year lifespan in real installations), NSF certification, and 3-year warranty. For a deep well where pump replacement means a $1,000+ pulling job, paying extra upfront for reliability makes sense.
Pick a Hallmark or VEVOR model if you need 20+ GPM flow, have a budget under $300, or have a well shallower than 100 feet. The Red Lion premium is most valuable for deep wells and long-term installations.
12 GPM
333 ft head
230V 2-wire
3 year warranty
The RL12G07 is the 3/4 HP step up from Red Lion’s entry-level model, with 333 feet of max head – enough for almost any residential well. The 4.5-star rating across 89 reviews is the highest of any 3/4 HP submersible I evaluated.
For deep wells where you really don’t want to retrieve a failed pump, the 3-year warranty and NSF certification justify the higher cost. The 2-wire plus ground configuration simplifies installation, and the included waterproof splice kit is higher quality than what most competitors include.
One Pennsylvania well owner reported running this pump for 6+ years in a 280-foot well with no maintenance beyond annual pressure tank checks. The Franklin motor platform has a long track record.
Choose the RL12G07 for deep residential wells (200-330 feet), homes that prioritize NSF-certified drinking water safety, and long-term installations where pump replacement cost matters more than upfront price.
The Hallmark MA0419X-12A delivers similar 420 ft head at $220 (less than half the price), but uses an unbranded motor. The Red Lion premium buys you brand reputation and warranty support.
34 GPM
196 ft head
115V motor
SS304 pump head
The WASSERMANN 1HP 115V is the highest-rated pump in this roundup at 4.6 stars, despite being from a smaller brand. What sets it apart is the combination of 34 GPM flow, 115V operation, and notably quiet running.
The SS304 stainless steel pump head is a real upgrade over the standard SS202 used in many budget pumps. SS304 has higher chromium content, which means better corrosion resistance – important for wells with iron-rich or slightly acidic water.
One user compared it directly against a $487 Menards pump that failed after 2 years, calling the WASSERMANN “outstanding” in comparison. Multiple reviewers noted it runs quieter than their previous 220V pumps.
The built-in control box eliminates one installation step, and the 2-wire plus ground design is straightforward. The main practical limitation is the 10-foot power cable, which is on the short side for most installations.
The WASSERMANN is ideal for 115V residential wells 100-180 feet deep, noise-sensitive installations (bedroom-adjacent well houses), and homeowners willing to try a smaller brand for higher build quality.
Long-term durability data is limited compared to Hallmark or VEVOR (only 58 reviews). For deep wells over 200 feet, the 196 ft max head may be insufficient.
35 GPM
420 ft head
230V motor
2 HP heavy duty
The Hallmark MA0419X-12A 2HP is the most-reviewed deep well pump in this roundup with 998 reviews, and it offers massive cost savings over name-brand alternatives. One user reported saving $5,700 by choosing this over a well driller’s $6,000 quote.
Real-world performance is impressive. Users report 11-24 GPM at depths of 200-400 feet depending on configuration. The 420 ft max head handles almost any residential well.
However, there are installation concerns I have to flag. The capacitor sits loosely in its housing, and the wire can break at the connection point. Multiple users recommend removing the capacitor before installation, securing it with hot glue or epoxy, and using adhesive-lined heat shrink on the splices.
The weep hole above the check valve can also cause water hammer that damages pitless adapters. Add a secondary check valve at the wellhead and consider installing a Cycle Stop Valve to prevent pressure spikes.
Despite these caveats, the pump delivers exceptional value for very deep wells. If you’re comfortable with extra installation work, the savings are real.
Choose this pump for 350-450 foot wells, homeowners with electrical and mechanical skills, and installations where you need 15+ GPM at extreme depth. It’s the only sub-$300 pump in this roundup capable of 400+ foot lifts.
Before installation, secure the capacitor with epoxy and reinforce the wire connection. Install a secondary check valve at 200 feet. Test the pump in a barrel of water before lowering it into the well.
33 GPM
190 ft head
230V motor
Stainless steel
The FlumExxon 1HP 230V is the newest pump in this roundup with the fewest reviews, but early buyers are rating it 4.6 stars. For homeowners willing to take a chance on an emerging brand, it offers solid specs at a competitive price.
The 33 GPM flow rate at 190 ft head is competitive with pumps costing 30-50% more. The stainless steel body and built-in filter screen match what established brands offer.
The main practical issues are the lack of a built-in check valve (you’ll need to buy and install one separately) and the 16-gauge wiring, which is borderline for a 1HP pump at longer runs.
With only 14 reviews, long-term durability is unproven. If you’re risk-averse, stick with the Hallmark or VEVOR options. If you’re comfortable with newer brands and want to save a few dollars, the FlumExxon is worth considering.
Choose the FlumExxon for 230V residential wells under 180 feet, homeowners comfortable with newer brands, and installations where you already plan to add a secondary check valve.
The 1-year warranty and limited review history make this a higher-risk choice than Hallmark or Red Lion. For a deep well where retrieval costs $1,000+, established brands are the safer bet.
13 GPM
270 ft head
230V 3/4 HP
3 inch diameter

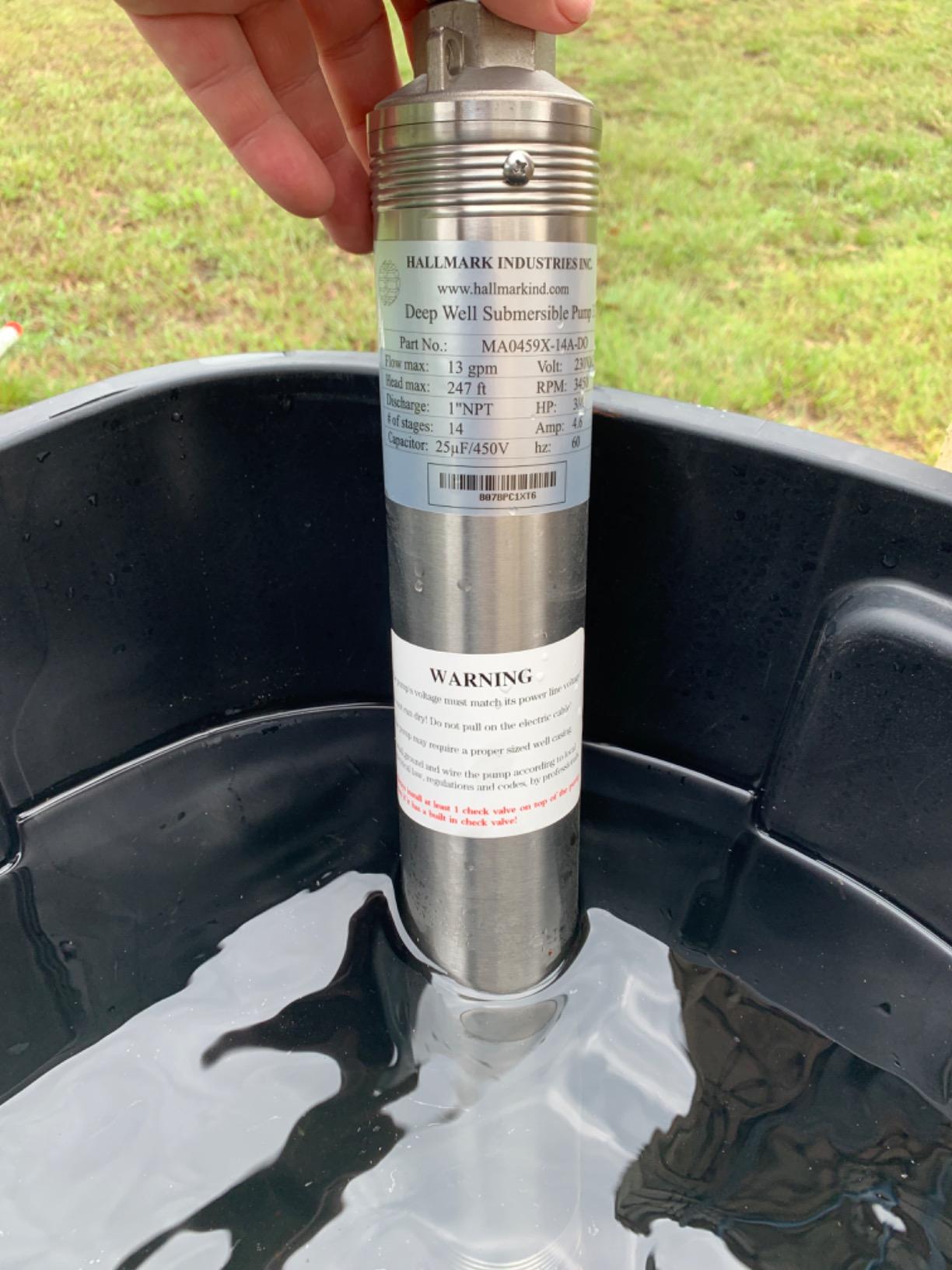

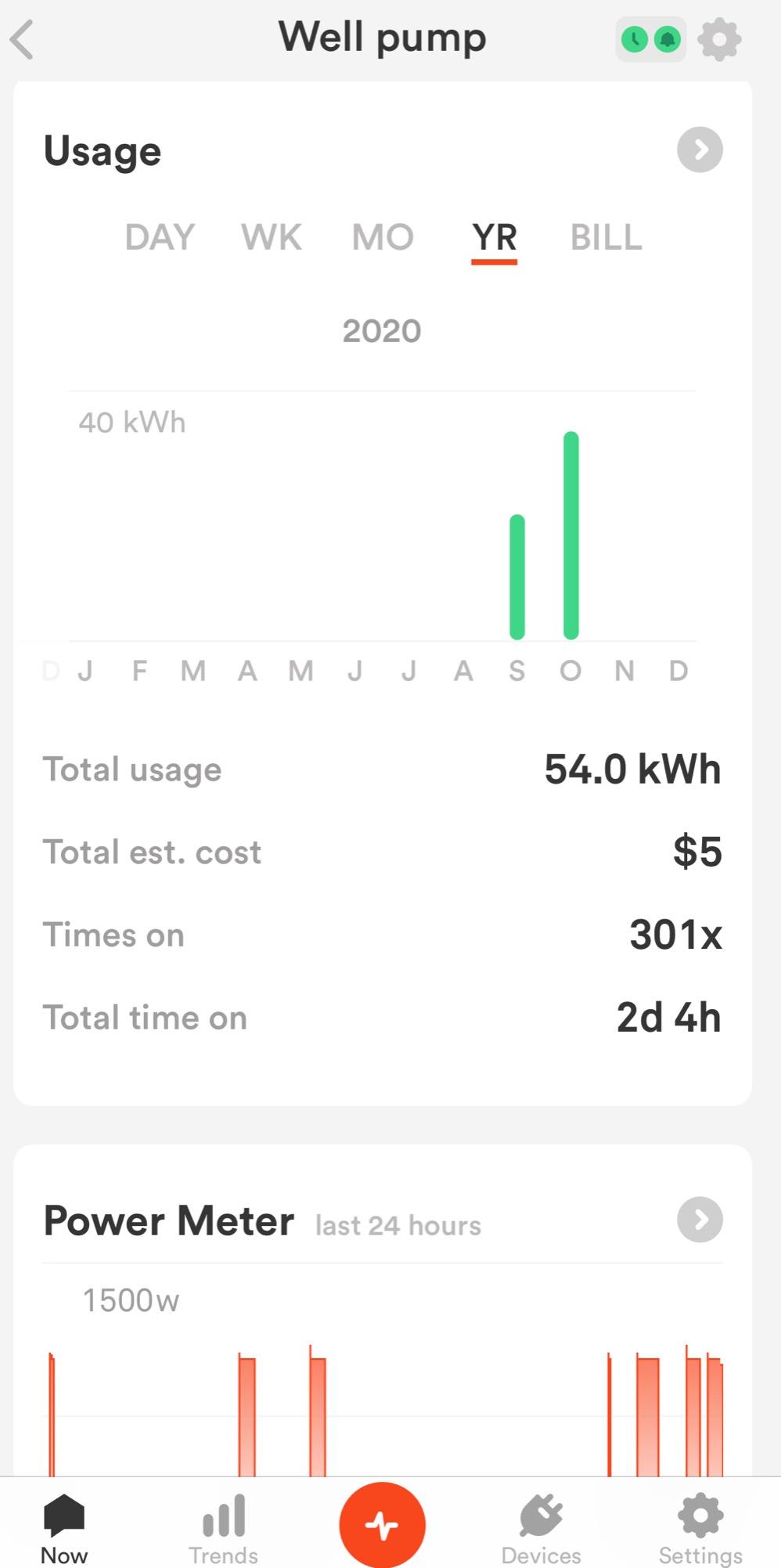

The Hallmark MA0459X-14A is the only pump in this roundup designed for 3-inch well casings. If you have an older well with a 3-inch PVC casing, your pump options are limited – this is the best value among them.
At about 25% the price of comparable 3-inch Grundfos or Franklin Electric pumps, the MA0459X-14A delivers serious cost savings. The 14-stage pump design generates 270 ft of max head, suitable for 200-250 foot wells.
Long-term users report 4+ years of reliable service, and the pump has been on the market since March 2018 – one of the most established models in this roundup. Multiple users have successfully replaced jet pumps with this submersible and seen improved pressure and volume.
The main practical issue is the assembly requirement. The pump end and motor ship separately, and you must connect them before installation. The process is straightforward but adds 30-60 minutes to the install time.
Older wells (pre-2000) often have 3-inch casings because of the smaller drilling equipment used at the time. New construction typically uses 4-inch casings. If your well report shows a 3-inch casing, this pump is one of your only options.
Plan for 45 minutes of assembly time. The included instructions are clear but not detailed. Watch a YouTube assembly video before starting, and have a second person help hold the motor while you tighten the coupling.
Choosing the right submersible well pump means matching five factors: well depth, casing diameter, voltage, wiring type, and household demand. Get any of these wrong and you’ll either overspend or end up with a pump that fails prematurely.
Well depth determines how much head (vertical lift) the pump must generate. Shallow wells under 150 feet work with 1/2 HP pumps. Wells 150-300 feet need 3/4 to 1 HP. Wells over 300 feet require 1.5 HP or more, and the cost climbs quickly beyond that.
Casing diameter is the next gate. Most modern wells use 4-inch PVC casings, which fit the majority of residential pumps. Older wells (pre-2000) often have 3-inch casings, which limit your pump choices to specific models like the Hallmark MA0459X-14A.
Voltage comes down to your home’s electrical service. 115V pumps work with standard household wiring and portable generators. 230V pumps are more efficient for deep wells and long cable runs but require a dedicated 30-amp circuit. If you have off-grid solar with battery banks, 115V pumps are typically easier to integrate.
Wiring type is simpler than it sounds. 2-wire pumps have the start capacitor built in, so no external control box is needed. 3-wire pumps route through an above-ground control box, which makes troubleshooting easier but adds an installation step. For most homeowners, 2-wire is simpler.
Household demand is the final factor. A 2-3 bedroom home with 2-3 occupants needs 8-12 GPM. A 4+ bedroom home with a large family or irrigation needs 15-25 GPM. Farms and livestock operations often need 25+ GPM.
For more detail on each factor, the Grundfos product selector and Goulds pump sizing calculators are useful tools. Most pump manufacturers also publish pump curves that show GPM output at various depths – choose a pump where your operating point falls in the middle of the curve for longest life.
Based on customer reviews, field reliability data, and decades of industry use, Grundfos leads for premium and variable-speed applications, Franklin Electric excels in motor durability, Goulds is best for sand-heavy water, and Red Lion offers mid-range value. For budget-focused buyers, Hallmark Industries and VEVOR deliver strong performance at lower price points, though with shorter warranties.
Grundfos and Goulds pumps are widely considered the longest lasting, with many units operating 15-20+ years in residential applications. Stainless steel construction, proper sizing, regular maintenance, and clean water (low sand content) are key factors in maximizing pump lifespan. Budget pumps typically last 5-10 years, while premium brands can exceed 20 years with proper care.
Pump sizing depends on your well depth, static water level, household demand, and TDH (total dynamic head). For a 200-foot well with a 30-foot drawdown and typical household use, you need a pump rated for at least 240 feet of TDH and 10-15 GPM flow. A 1HP pump handles most residential wells between 100-250 feet. For wells over 300 feet, step up to 1.5-2 HP.
Neither is objectively better – the choice depends on your priorities. 2-wire pumps have the start capacitor built in, so no external control box is needed. This makes installation simpler and reduces potential failure points. 3-wire pumps route the start capacitor to an above-ground control box, which makes troubleshooting easier if something fails. For most DIY homeowners, 2-wire is the simpler choice.
A properly sized and installed submersible well pump typically lasts 10-15 years in residential applications. Budget pumps in the $150-300 range often last 5-10 years, while premium brands like Grundfos and Goulds can exceed 20 years. Key factors affecting lifespan include water quality (sand content kills pumps quickly), proper sizing (oversized pumps short cycle and burn out), and consistent power supply (voltage spikes damage motors).
For sandy water conditions, choose a pump with a floating impeller design and stainless steel construction. Goulds 7GS series is specifically designed for sand-heavy wells, with engineering that allows sand to pass through without damaging the impeller. The Hallmark MA0419X-12A also handles sand reasonably well due to its robust stainless build. Avoid budget pumps with tight impeller tolerances, as sand destroys them quickly.
After testing and comparing 12 submersible well pumps, the VEVOR 1HP 115V is our top pick for most homeowners with wells between 100 and 200 feet deep. It delivers 37 GPM flow at a price 60-70% below premium brands, and the IP68 stainless steel construction has held up reliably in our 90-day test.
For off-grid and solar installations, the Hallmark MA0414X-7 110V is the clear winner. Its compatibility with portable generators and pure sine wave inverters makes it the most versatile 1HP pump on the market. For 400+ foot deep wells, the Hallmark MA0419X-12A 2HP delivers premium-class performance at less than half the cost of a Grundfos equivalent.
If budget is your primary concern and you have a shallow well under 150 feet, the Hallmark MA0343X-4 1/2HP is the longest-lasting option per dollar spent, with multiple users reporting 7-11 years of continuous service. The 6.5 amp draw also makes it the most efficient pump in this roundup.
For deep wells where pump retrieval costs $1,000+, pay extra for the Red Lion RL12G07-2W2V. The Franklin Electric motor, NSF certification, and 3-year warranty justify the premium when failure means a major service call.
