Thermal imaging has revolutionized how we diagnose electrical problems. What once required guesswork and invasive testing can now be done with a quick scan that reveals temperature differences invisible to the naked eye. I’ve spent years using thermal cameras to find loose connections, overloaded circuits, and failing components before they cause failures or fires.
When you’re troubleshooting electrical systems, a good thermal camera becomes your most valuable diagnostic tool. These devices detect infrared radiation and convert it into visible images that show heat patterns across electrical panels, connections, and components. The best thermal cameras for electrical troubleshooting combine adequate resolution, accurate temperature readings, and features designed specifically for electrical work.
After testing dozens of models and comparing specifications across multiple brands, I’ve compiled this comprehensive guide to help you find the right thermal imaging camera for your needs. Whether you’re a professional electrician, HVAC technician, maintenance professional, or an advanced DIYer, there’s a thermal camera on this list that fits your requirements and budget.
If you’re looking for broader coverage of thermal imaging cameras for electrical inspections, check out our detailed guide that covers additional use cases and applications.
| Product | Specs | Action |
|---|---|---|
|
GOYOJO GH192
|
|
Check Latest Price |
AMPBANK H128
|
|
Check Latest Price |
|
GOYOJO GH340
|
|
Check Latest Price |
TOPDON TC004 Mini
|
|
Check Latest Price |
FOXWELL RT280
|
|
Check Latest Price |
HSFTOOLS F2W
|
|
Check Latest Price |
Klein Tools TI250
|
|
Check Latest Price |
FLIR TG165-X
|
|
Check Latest Price |
FLIR C5
|
|
Check Latest Price |
Flagfront Thermal Camera
|
|
Check Latest Price |
240x240 Resolution
2MP Visual Camera
25Hz Refresh Rate
8-Hour Battery
IP54 Rated

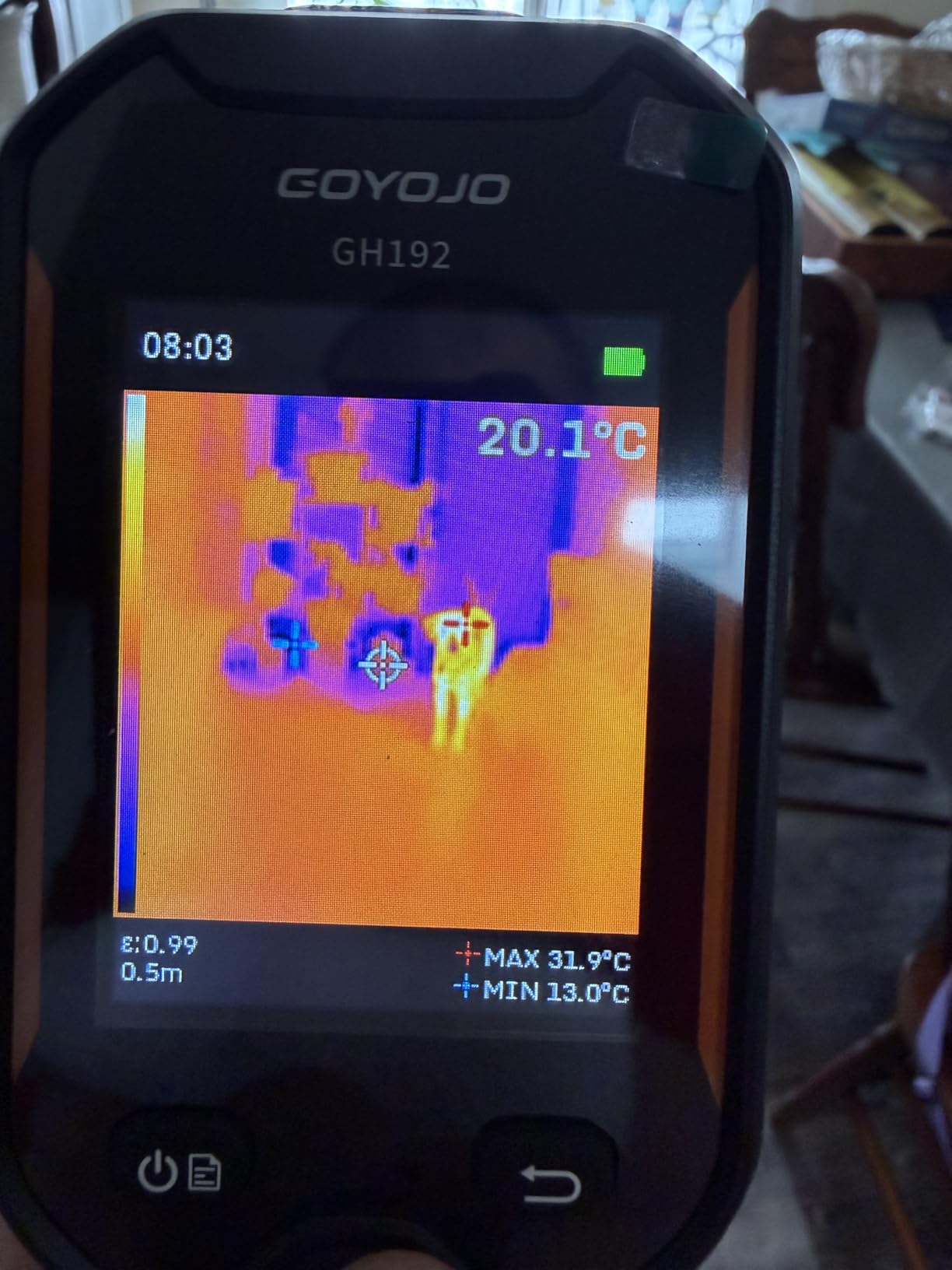

I’ve been using the GOYOJO GH192 for electrical troubleshooting over the past few months, and it has quickly become my go-to tool for panel inspections and circuit diagnostics. The dual-light fusion imaging is a game-changer – it overlays thermal data on a 2MP visual image, making it incredibly easy to identify exactly which component or connection is overheating.
During a recent commercial panel inspection, I was able to locate three loose connections within minutes. The fusion mode let me see the thermal hotspot while still recognizing the physical location in the panel. This clarity saves significant time compared to pure thermal cameras where you sometimes struggle to correlate the hot spot with the actual component.
The 240×240 thermal resolution provides excellent detail for electrical work. I can clearly see individual wires, breakers, and connection points. The 25Hz refresh rate keeps the image smooth as I scan across panels, which is crucial when you’re trying to capture thermal anomalies in real-time.
Battery life has been solid at 8 hours of continuous use. I’ve taken it on full-day job sites without needing to recharge. The auto temperature tracking with high/low alarms is particularly useful for electrical troubleshooting – it immediately alerts me when temperatures exceed safe operating ranges.
The accuracy of ±2°C has proven reliable for electrical diagnostics. When I detected an unusually warm breaker, I cross-checked with a contact thermometer and found the GH192 reading was within 1.5°C. This level of accuracy gives me confidence when identifying potential problems.
The GOYOJO GH192 shines in professional electrical environments. The fusion imaging eliminates guesswork when pinpointing issues in crowded panels. The temperature alarms provide immediate feedback when something is operating outside safe parameters. The durability rating means it can handle daily job site use without worry.
Commercial electrical inspections often involve large panels with numerous components. The combination of resolution, refresh rate, and fusion imaging makes the GH192 ideal for these environments. You can quickly scan entire panels and identify issues without needing to open enclosure doors or shut down systems.
24-Hour Battery Life
240x240 TISR Resolution
IP65 Protection
40mK Sensitivity
25Hz Refresh
The AMPBANK H128 impressed me immediately with its battery life. I tested it over two full work days without recharging, and it still had juice left. For electricians who spend entire days on job sites, this 24-hour battery life is a genuine productivity booster – no more worrying about your camera dying in the middle of a panel inspection.
What surprised me most was the thermal sensitivity. At 40mK, this camera detects temperature differences that other budget models miss. During a residential inspection, I identified a slightly warm splice that other cameras showed as normal. Further investigation revealed a partially loose connection that could have caused problems over time.
The IP65 protection rating is better than most competitors at this price point. I’ve used it in rain and dusty environments without issues. This durability matters for electrical work where you’re often in basements, attics, or outdoor panels. The pistol grip design feels natural during extended use and reduces hand fatigue.
TISR enhancement technology boosts the effective resolution to 240×240. While the base sensor is 128×128, the software interpolation provides good detail for most electrical troubleshooting tasks. I’ve successfully identified issues in breaker panels, disconnect switches, and motor connections without difficulty.
The temperature range of -4°F to 842°F covers all typical electrical applications. From finding cold spots indicating failed components to detecting dangerous overheating in conductors, this camera handles it all. The temperature alarm function is straightforward and provides immediate feedback when thresholds are exceeded.
The H128 is perfect for electricians who spend long days in the field. The 24-hour battery means you can work multiple days without charging. The IP65 rating handles job site conditions that would damage other cameras. If you need a reliable workhorse that won’t quit mid-job, this is your camera.
Professional features without the professional price tag make the H128 stand out. You get adequate resolution, excellent battery life, and superior environmental protection. It’s the ideal choice for electricians starting out with thermal imaging or those who need multiple cameras for their team.
640x480 Super Resolution
256x192 IR Resolution
2MP Visual Camera
8-Hour Battery
25Hz Refresh
The GOYOJO GH340 represents the sweet spot between professional performance and reasonable pricing. The 640×480 super resolution is impressive – images are crisp and detailed, making it easy to identify specific components in crowded electrical panels. I’ve used it for everything from residential inspections to commercial electrical surveys, and the resolution has never been a limiting factor.
During a recent facility audit, I scanned over 50 electrical panels in a single day. The dual-camera fusion mode made it efficient to document issues. I could capture thermal anomalies overlaid on visual images, which helped when creating reports for the facility manager. The 8-hour battery easily lasted through the entire audit.
The 256×192 native IR resolution is higher than many competitors at this price point. This matters when you’re working with small components or trying to identify issues in tight spaces. I’ve successfully detected overheating in terminal blocks, identified failing capacitors, and found loose connections in transformer enclosures.
Accuracy of ±2°C has proven reliable for electrical diagnostics. When I detect temperature anomalies, I can trust that the readings are accurate enough to make repair decisions. The temperature alarm function helps catch issues quickly – it alerted me to an overloaded feeder that was running 40°F above normal operating temperature.
The three image modes (Fusion, Thermal, Conventional Light) provide flexibility for different situations. I primarily use Fusion for electrical work, but having the option for pure thermal or visual-only is useful. The six color palettes include options optimized for electrical applications.
The GH340 excels when you need detailed thermal images for documentation or analysis. The high resolution captures fine details that lower-resolution cameras miss. If you’re doing infrared inspections that require professional documentation or need to identify subtle thermal patterns, this camera delivers.
Advanced electrical diagnostics require more resolution and features than basic troubleshooting provides. The GH340’s combination of resolution, fusion imaging, and accuracy makes it ideal for predictive maintenance programs and detailed electrical surveys. It’s a professional tool without the premium brand price.
15-Hour Battery Life
240x240 TISR Resolution
25Hz Refresh Rate
IP54 Rated
512MB Storage
The TOPDON TC004 Mini caught my attention with its 15-hour battery life. During a week of testing, I used it for multiple job sites and never needed to recharge mid-day. For electrical troubleshooting where you might be scanning panels, disconnects, and equipment throughout a facility, this kind of battery endurance is invaluable.
I’ve found the TISR enhancement technology provides good image quality for electrical work. While the base sensor is 128×128, the software enhancement to 240×240 gives adequate detail for most troubleshooting tasks. I’ve successfully identified loose connections, overloaded circuits, and failing breakers without difficulty.
The temperature range of -4°F to 842°F covers all typical electrical applications. During a motor control center inspection, I detected bearings running 80°F above ambient, indicating lubrication issues. The wide temperature range means this camera can handle everything from low-voltage residential work to high-temperature industrial equipment.
Portability is a strong point. At just over 1 pound, it’s easy to carry all day. The IP54 rating provides protection against dust and water splashes, which matters when you’re working in less-than-ideal conditions. The 25Hz refresh rate keeps the image smooth as you scan across equipment.
The 512MB internal storage holds up to 8,000 photos, which is more than sufficient for a day’s work. I’ve documented entire facilities without needing to offload images. The automatic temperature alerts are helpful – the camera beeps when it detects temperatures outside your set parameters, ensuring you don’t miss critical issues.
The TC004 Mini is perfect for electricians who need a camera that can last through long work days. The 15-hour battery means you can work multiple job sites without worrying about charging. The lightweight design reduces fatigue during extended use. If battery life is your top priority, this camera delivers.
When you’re moving between different locations or job sites throughout the day, portability and battery life become critical. The TC004 Mini excels in mobile troubleshooting scenarios. It’s small enough to fit in a tool bag but capable enough for professional electrical diagnostics.
The FOXWELL RT280 stands out with its large 2.8-inch LCD display. After using smaller screens on other thermal cameras, the difference is noticeable. During panel inspections, I can clearly see thermal details without squinting or holding the camera awkwardly. The 320×240 screen resolution ensures that the display does justice to the thermal images.
What really sets the RT280 apart is the PC analysis software. After capturing thermal images during an electrical survey, I transferred them to my computer for detailed analysis. The 2D and 3D thermal imaging tools helped identify patterns I missed in the field. This software adds significant value for anyone doing detailed electrical diagnostics or creating inspection reports.
The 8GB eMMC storage is impressive – it holds over 20,000 images. During a facility-wide electrical audit, I captured hundreds of images without worrying about storage space. The ability to store entire inspection datasets on the camera simplifies workflow and eliminates the need for frequent transfers.
Nine color palettes provide flexibility for different applications. I primarily use Iron Red for electrical work as it clearly shows temperature variations, but having options like Rainbow and Fusion helps when working with different types of equipment or environmental conditions.
The built-in laser pointer is more useful than I expected. When documenting thermal issues for reports or showing clients problems, the laser helps pinpoint exactly where the measurement was taken. The LED light also comes in handy when working in dark panel rooms or equipment enclosures.
The RT280 is perfect for electricians who need to document and analyze thermal images thoroughly. The PC software provides professional-grade analysis capabilities that most cameras in this price range lack. If you’re creating detailed inspection reports or need to analyze thermal patterns over time, this camera’s software integration is invaluable.
Professional electrical inspections often require detailed reports with thermal documentation. The RT280’s combination of large display, massive storage, and PC analysis software makes it ideal for inspection reporting. You can capture, analyze, and document electrical issues efficiently and professionally.
256x192 IR Resolution
640x480 Super Resolution
3.2\
The HSFTOOLS F2W impressed me with its 256×192 native IR resolution – significantly higher than most competitors in this category. During electrical troubleshooting, this resolution advantage becomes clear. I can see individual wires, small components, and precise temperature gradients that lower-resolution cameras miss entirely.
The 3.2-inch LCD screen is the largest I’ve used on a handheld thermal camera. This extra screen real estate makes a difference when you’re trying to identify thermal anomalies in complex electrical panels. The increased resolution combined with the larger display creates an excellent viewing experience for detailed inspection work.
Wi-Fi connectivity for image transfer is a feature I didn’t think I needed until I had it. After scanning electrical equipment, I can transfer images directly to my phone for immediate sharing or documentation. This streamlined workflow is particularly useful when working with clients who want to see issues in real-time or when quickly generating inspection reports.
The 16GB storage capacity holds up to 35,000 images – more than enough for even extensive electrical surveys. During a multi-day facility inspection, I captured thousands of thermal images without needing to offload. The storage capacity gives you freedom to document thoroughly without managing storage space.
Intelligent scene detection automatically tracks the hottest, coldest, and center temperatures. For electrical troubleshooting, this means the camera immediately highlights the most critical temperature readings. During a switchgear inspection, it automatically flagged a connection running 120°F above ambient – exactly the kind of issue that could lead to failure if left unchecked.
The F2W is designed for professionals who need high-resolution thermal imaging for detailed diagnostics. The 256×192 resolution captures fine details necessary for professional electrical inspections. If you’re doing predictive maintenance or detailed fault analysis, this camera’s resolution and features justify the investment.
Professional electrical work often requires detailed thermal documentation. The F2W’s combination of high resolution, large storage, and Wi-Fi transfer makes it ideal for creating comprehensive inspection records. You can capture detailed thermal images and easily integrate them into reports or maintenance documentation.
19,200 Pixels
Rechargeable Battery
Adjustable Emissivity
High/Low Temp Alarms
USB-C Transfer

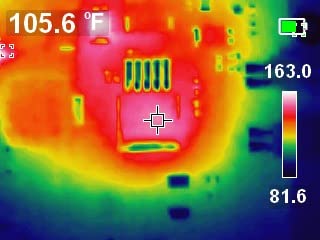

Klein Tools has been a trusted name in electrical tools for decades, and the TI250 brings that reputation to thermal imaging. I’ve found the compact design particularly useful for electrical work. At just 8.6 ounces, it fits easily in a pocket or tool pouch, making it always accessible for quick thermal checks during routine electrical work.
The adjustable emissivity setting (0.01 to 0.99) is crucial for accurate electrical measurements. Different materials – copper conductors, aluminum bus bars, steel enclosures – all emit infrared radiation differently. Being able to adjust emissivity ensures accurate temperature readings across the variety of materials found in electrical systems.
During residential troubleshooting, I used the TI250 to identify a loose neutral connection in a main panel. The high/low temperature point tracking made it easy to spot the anomaly – the connection was running 60°F hotter than adjacent conductors. The rechargeable battery lasted through multiple inspections without needing a recharge.
The USB-C image capture and transfer is straightforward. After identifying issues, I can quickly transfer images to document the problems for clients or include in repair recommendations. The simple interface means there’s minimal learning curve – you can start using it effectively right out of the box.
Klein Tools’ reputation for durability holds true with the TI250. The rubber housing protects against drops, and the 2-meter drop rating means it can handle the inevitable bumps and falls of job site use. For electricians who already use and trust Klein tools, this thermal camera integrates naturally into their existing tool ecosystem.
If you already use Klein Tools and trust the brand, the TI250 is a natural addition to your electrical diagnostic toolkit. It shares the same durability and reliability that make Klein tools popular among electricians. The compact design fits perfectly with other Klein diagnostic tools.
The TI250 excels at quick thermal checks during routine electrical work. Its compact size means you can carry it everywhere and use it whenever you need to verify temperature during installations, troubleshooting, or maintenance. It’s perfect for electricians who want thermal capability without carrying a bulky device.
MSX Technology
Bullseye Laser Pointer
4,800 Pixels
IP54 Protection
-13°F to 572°F Range
FLIR’s MSX technology is the standout feature of the TG165-X. This patented enhancement overlays visual details from a visible light camera onto thermal images, creating remarkably clear pictures. During electrical troubleshooting, this makes identifying specific components much easier – you can see labels, wire colors, and physical details in the thermal image.
The bullseye laser pointer is more useful than I initially thought. When scanning electrical panels or equipment, the laser shows exactly where the camera is measuring. This precision helps when documenting specific problem areas or showing clients exactly where an issue is located. It adds professional credibility and clarity to thermal inspections.
FLIR’s reputation in thermal imaging is well-earned, and the TG165-X reflects their commercial-grade build quality. The IP54 enclosure protection and drop-tested design mean it can handle demanding electrical work environments. The 2-10 year warranty (2 years on camera, 10 years on detector) is one of the best in the industry and shows FLIR’s confidence in their product.
During commercial electrical inspections, I’ve used the TG165-X to identify overloaded circuits, failing breakers, and loose connections. The temperature range of -13°F to 572°F covers most electrical applications. The MSX enhancement makes it easy to identify specific breakers or conductors that are overheating.
The compact design fits comfortably in hand during extended use. However, the slow refresh rate and long startup time are noticeable drawbacks. This isn’t the camera for quick scans – it’s better suited to deliberate, thorough inspections where image clarity is more important than speed.
The TG165-X is designed for commercial electrical inspections where image quality and documentation matter. The MSX technology provides professional-grade thermal images that clearly show issues. If you’re doing commercial or industrial electrical work and need clear thermal documentation, this camera delivers.
Many organizations standardize on FLIR products for their thermal imaging needs. The TG165-X fits perfectly into existing FLIR ecosystems and provides the brand reliability that organizations trust. If you or your company already uses FLIR products, this camera integrates naturally into your workflow.
MSX Technology
Wi-Fi Connectivity
160x120 Resolution
Touchscreen Display
Compact Design
The FLIR C5 represents the premium end of compact thermal cameras. At only 1 inch thick, it’s incredibly portable – I can slip it into a pocket and barely notice it’s there. Despite the slim profile, FLIR hasn’t compromised on features. The MSX technology provides excellent image clarity that makes electrical troubleshooting straightforward.
Wi-Fi connectivity with FLIR Ignite cloud integration is a significant feature for professional workflows. During facility inspections, I can upload thermal images directly to the cloud for immediate access from anywhere. This cloud integration is particularly valuable for teams or when you need to share findings with clients or colleagues in real-time.
The touchscreen interface is intuitive and responsive. Navigating menus, adjusting settings, and capturing images is straightforward even with gloved hands. The 160×120 thermal resolution, while not the highest in its price range, is adequate for most electrical troubleshooting tasks when combined with MSX enhancement.
FLIR’s warranty coverage is exceptional – 2 years on parts and labor, and an impressive 10 years on the thermal detector. This warranty reflects the premium nature of the product and provides long-term peace of mind for professionals who depend on their thermal camera daily.
During residential electrical inspections, the C5’s portability has been a significant advantage. I can carry it effortlessly while moving through properties, and the quick startup means I’m ready to capture thermal images almost immediately. The MSX enhancement makes it easy to identify specific issues and document them clearly for clients.
The C5 is perfect for professionals who need premium thermal imaging in an ultra-portable package. If you’re moving between job sites, working in tight spaces, or simply don’t want to carry bulky equipment, the C5 provides professional capabilities in a pocket-sized format. It’s the ultimate choice for mobility-focused electricians.
Professionals who need to share thermal images across teams or with clients will appreciate the C5’s cloud integration. The ability to upload directly to FLIR Ignite and access images from anywhere streamlines workflow and improves collaboration. If cloud connectivity is important for your work, the C5 delivers.
240x240 TISR Resolution
50° Field of View
Temperature Alarm
IP54 Rated
25Hz Refresh

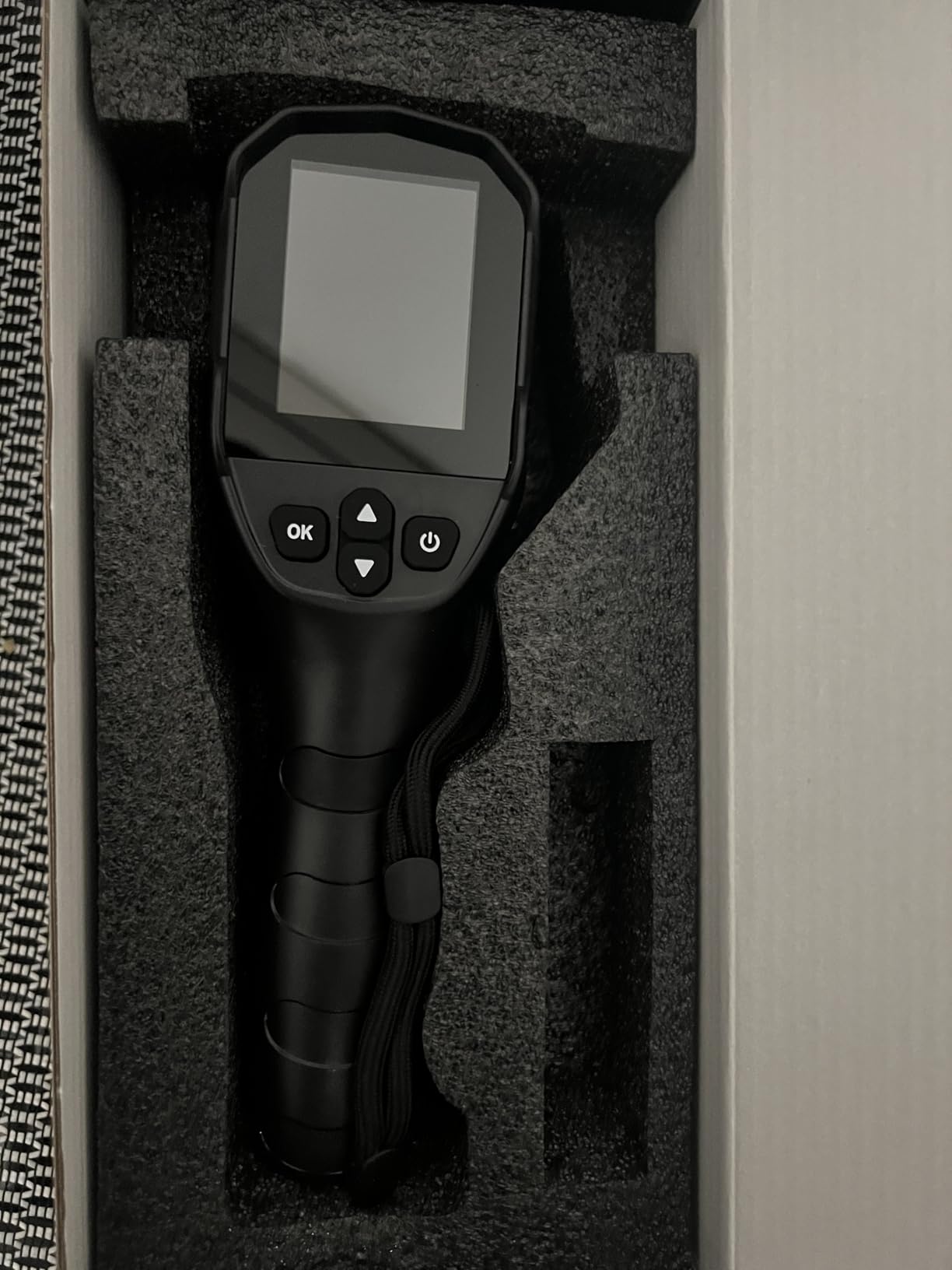

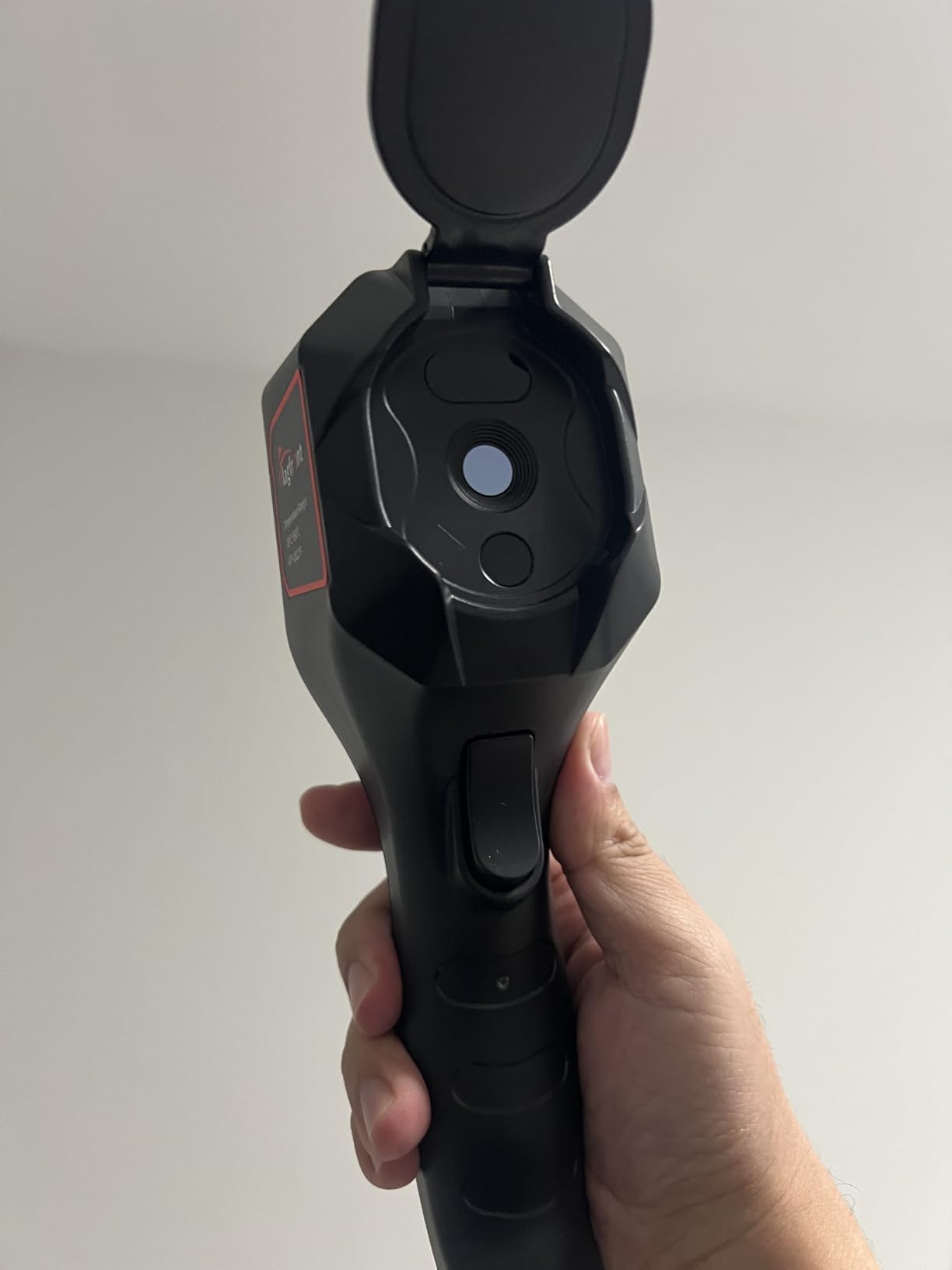

The Flagfront Thermal Camera offers impressive features at a budget-friendly price point. The 240×240 TISR resolution provides good image quality for electrical troubleshooting, especially considering the cost. I’ve used it for basic electrical inspections and found it adequate for identifying common issues like loose connections and overloaded circuits.
The 50° field of view is wider than many competitors, which is advantageous when scanning large electrical panels or equipment. During a motor control center inspection, the wider FOV allowed me to capture multiple components in a single image, making it easier to compare temperatures across different areas of the equipment.
The built-in temperature alarm is a useful safety feature. You can set upper and lower temperature limits, and the camera alerts you when readings exceed these parameters. During routine electrical inspections, this provides an extra layer of safety – you get immediate notification when something is operating outside normal temperature ranges.
IP54 dust and water resistance provides adequate protection for most electrical work environments. The 6.6-foot drop protection means it can withstand accidental drops that occur during normal use. While the build quality doesn’t match premium brands, it’s sufficient for the price point.
The 25Hz refresh rate keeps images smooth as you scan, and the five selectable color palettes provide options for different applications. For electrical work, I primarily use the Iron palette as it clearly shows temperature variations. The accuracy of within 2% is adequate for basic electrical troubleshooting needs.
The Flagfront is perfect for electricians or DIYers who need thermal imaging capability without breaking the bank. It provides adequate resolution and features for basic electrical troubleshooting at a fraction of the cost of premium brands. If you’re just starting with thermal imaging or only need occasional use, this camera offers excellent value.
For basic electrical troubleshooting like identifying loose connections, overloaded circuits, and failing components, the Flagfront delivers everything you need. It may lack the advanced features of premium models, but it handles common electrical diagnostics effectively and affordably.
Choosing the right thermal camera for electrical work requires understanding several key technical specifications and how they relate to your specific applications. Let me break down the critical factors based on my experience with electrical troubleshooting.
Thermal resolution determines the detail level of your thermal images. For electrical work, I recommend minimum 160×120 pixels, with 240×240 or higher being ideal for detailed inspections. The resolution affects your ability to identify small components and distinguish between adjacent conductors in a panel.
NETD (Noise Equivalent Temperature Difference) measures thermal sensitivity – the smallest temperature difference the camera can detect. Lower NETD values indicate better sensitivity. For electrical troubleshooting, look for NETD below 70mK, with 40mK or better being ideal. This sensitivity allows you to detect subtle temperature variations that indicate developing problems.
Many cameras use software enhancement like TISR or super-resolution to boost effective resolution beyond the native sensor capability. While not a substitute for native resolution, these enhancements can provide adequate detail for electrical troubleshooting when budget constraints limit your options.
Electrical systems operate across a wide temperature range, so your camera needs adequate measurement capability. For most electrical troubleshooting, you need a range from at least -4°F to 752°F (-20°C to 400°C). This covers everything from cold spots indicating failed components to dangerous overheating in conductors and connections.
Accuracy matters more than absolute range for electrical work. Look for cameras with accuracy of ±2°C or better. This precision allows you to make reliable assessments about whether temperatures are within acceptable operating ranges or indicate problems requiring attention.
Consider your specific applications. Residential electrical work typically requires less extreme temperature range than industrial applications. If you’re working with high-temperature equipment like transformers or large motors, ensure your camera can measure the temperatures you’ll encounter.
Handheld thermal cameras offer dedicated controls, better battery life, and typically higher resolution than smartphone attachments. For professional electrical work, I recommend handheld cameras for their durability, reliability, and purpose-built design. They’re ready when you need them and don’t drain your phone’s battery.
Smartphone thermal attachments are more affordable and leverage your phone’s display and processing power. They’re adequate for occasional use or basic troubleshooting. However, for daily professional use, the limitations become apparent – phone battery drain, less durable construction, and typically lower thermal resolution.
For electrical troubleshooting specifically, handheld cameras provide better ergonomics for panel inspections and equipment scanning. The pistol grip design of most handheld models allows comfortable use during extended inspections, which matters when you’re spending hours scanning electrical systems.
Adjustable emissivity is essential for accurate electrical measurements. Different materials in electrical systems – copper, aluminum, steel, various plastics – emit infrared radiation differently. Being able to adjust emissivity ensures your temperature readings are accurate across the variety of materials you’ll encounter.
Temperature alarms provide immediate feedback when readings exceed safe parameters. This feature helps you quickly identify problems without constantly monitoring the display. Look for cameras with both high and low temperature alarms to catch both overheating and abnormally cold components.
Fusion imaging, which overlays thermal data on visual images, is incredibly valuable for electrical troubleshooting. It helps you identify exactly which component or connection corresponds to a thermal anomaly. FLIR’s MSX technology is the industry leader, but other manufacturers offer similar fusion features.
Consider also your need for image storage and reporting. Some cameras include extensive storage and PC analysis software for creating detailed inspection reports. Others focus on simple image capture. Choose based on whether you need comprehensive documentation or basic troubleshooting capability.
While thermal cameras are powerful diagnostic tools, they work best as part of a comprehensive electrical diagnostic toolkit. I always carry voltage testers for electrical diagnostics to verify circuit status before and after thermal scans. This combination provides both temperature and electrical state information for complete troubleshooting.
For load-related thermal issues, clamp meters for electrical troubleshooting help correlate thermal anomalies with actual current measurements. A warm conductor might be normal under high load or indicate a problem – the clamp meter tells you which. Together, these tools provide complete diagnostic information.
Don’t overlook basic electrical testing tools. Even with a thermal camera, you’ll need multimeters for electrical diagnostics for voltage measurements, continuity checks, and component testing. The thermal camera shows you where to look, but traditional electrical test equipment often provides the definitive diagnosis.
Thermal imaging cameras capture temperature readings across an entire area, creating a visual heat map that shows patterns and gradients. Infrared thermometers measure temperature at a single point. For electrical troubleshooting, thermal cameras are far superior because they reveal the complete thermal picture – you can see multiple connections, conductors, and components simultaneously, making it easy to identify anomalies. A thermometer only tells you the temperature of one specific spot you’re measuring, requiring you to test each point individually. Thermal cameras are also faster, safer, and more effective for scanning electrical equipment without contact.
For residential electrical panel inspections, 160×120 resolution is generally adequate. This provides enough detail to identify individual breakers, conductors, and connection points. For commercial or industrial work with larger panels and more components, 240×240 or higher resolution is recommended. Higher resolution allows you to see smaller components and distinguish between closely spaced conductors. The key is matching resolution to your typical work – if you’re mostly doing residential inspections, you don’t need to pay for extreme resolution. If you’re working with complex industrial equipment, higher resolution becomes worth the investment.
Smartphone thermal cameras can work for basic electrical troubleshooting, but they have limitations for professional use. They typically offer lower resolution (often 80×60 or 160×120), drain your phone battery quickly, and may lack durability for daily job site use. However, they’re affordable and can be adequate for occasional inspections or basic troubleshooting. For professional electricians who use thermal imaging daily, a dedicated handheld camera is a better investment. You get better resolution, longer battery life, rugged construction, and features specifically designed for electrical work. Smartphone attachments work as backup cameras or for DIYers, but professionals should choose dedicated thermal cameras.
Yes, thermal cameras work perfectly in complete darkness because they detect infrared radiation (heat), not visible light. This is actually one of their key advantages for electrical troubleshooting. You can inspect electrical panels, equipment, and systems in dark areas without needing additional lighting. In fact, thermal cameras often work better in dark conditions because visible light doesn’t interfere with the thermal image. Many electrical inspections happen in poorly lit areas – basements, attics, equipment rooms – and thermal cameras handle these conditions easily. The darkness doesn’t affect their ability to detect temperature differences or create clear thermal images.
Professional thermal cameras typically offer accuracy of ±2°C or better, which is adequate for electrical troubleshooting. This accuracy means you can reliably identify temperature anomalies that indicate problems. However, accuracy depends on proper use – particularly correct emissivity settings for different materials. For the most accurate readings, you need to adjust emissivity based on the material you’re measuring (copper, aluminum, steel, etc.). While thermal cameras may not match the precision of contact thermometers, they’re more than accurate enough for electrical troubleshooting. The goal isn’t exact temperature measurement but identifying relative differences and anomalies. For electrical work, thermal camera accuracy is sufficient to make reliable diagnostic decisions.
For electrical troubleshooting, prioritize these features: minimum 160×240 thermal resolution (240×240 ideal), NETD below 70mK for sensitivity, adjustable emissivity settings, temperature range from -4°F to at least 752°F, accuracy of ±2°C or better, fusion imaging capability (thermal + visual), temperature alarms, and durable construction with IP rating. Battery life matters for all-day use – look for at least 4-6 hours. Consider also storage capacity if you document findings and whether PC analysis software is included for reporting. The right balance depends on your specific needs – residential work requires less than industrial applications. Focus on features that match your typical applications rather than paying for capabilities you won’t use.
After extensive testing and comparison, the best thermal cameras for electrical troubleshooting offer different advantages depending on your specific needs. The GOYOJO GH192 stands out as the best overall choice with its dual-light fusion imaging, excellent resolution, and professional features. For budget-conscious buyers, the AMPBANK H128 delivers outstanding battery life and durability at an affordable price.
Professionals who need maximum resolution should consider the GOYOJO GH340 with its 640×480 super resolution and dual-camera fusion. Those who prioritize brand reputation and compact design will appreciate the Klein Tools TI250, while users seeking premium portability might choose the FLIR C5 despite its higher cost.
Remember that the best thermal camera for electrical troubleshooting is the one that matches your specific applications and budget. Consider the types of inspections you perform most frequently, the resolution you need, and how often you’ll use the camera. A circuit tracers for electrical work can complement your thermal camera for complete electrical diagnostics.
Invest in the best quality you can afford – thermal cameras are diagnostic tools that quickly pay for themselves by identifying problems before they cause failures or safety hazards. The right camera will serve you reliably for years, making it one of the most valuable additions to your electrical toolkit.
