Building a custom water cooling loop transforms your PC from a noisy, hot-running machine into a silent, cool powerhouse. But here’s what most first-time builders overlook: the pump is the beating heart of your entire system. Without the right pump, even the most expensive water blocks and radiators won’t deliver the cooling performance you expect.
After testing dozens of pumps and analyzing feedback from the water cooling community, I’ve compiled this guide to the best water cooling pumps for custom loop systems in 2026. Whether you’re building your first loop or upgrading an existing setup, these recommendations cover everything from budget-friendly options to premium pumps with advanced features like temperature sensors and LCD displays.
Throughout this guide, I’ll share real user experiences from Reddit and enthusiast forums, technical specifications that actually matter, and honest assessments of each pump’s strengths and weaknesses. If you’re interested in PC hardware and cooling requirements, understanding pump selection is essential for building a reliable custom loop.
| Product | Specs | Action |
|---|---|---|
|
Thermaltake Pacific PR22-D5 Plus
|
|
Check Latest Price |
Thermaltake Pacific PR32-D5 Plus
|
|
Check Latest Price |
|
Yoidesu 800L/H Pump Combo
|
|
Check Latest Price |
Dracaena.io 650L/H Pump
|
|
Check Latest Price |
|
CORSAIR iCUE Link XD6 RGB Elite
|
|
Check Latest Price |
CORSAIR XD6 RGB Elite LCD
|
|
Check Latest Price |
Yoidesu 800L/H POM PMMA
|
|
Check Latest Price |
Hilitand 1200L/H Pump
|
|
Check Latest Price |
Dracaena.io 780L/H Pump
|
|
Check Latest Price |
Watercool HEATKILLER D5-Vario
|
|
Check Latest Price |
D5 Pump
1135L/hr Flow
5-Speed Control
RGB Lighting
POM/PMMA Build

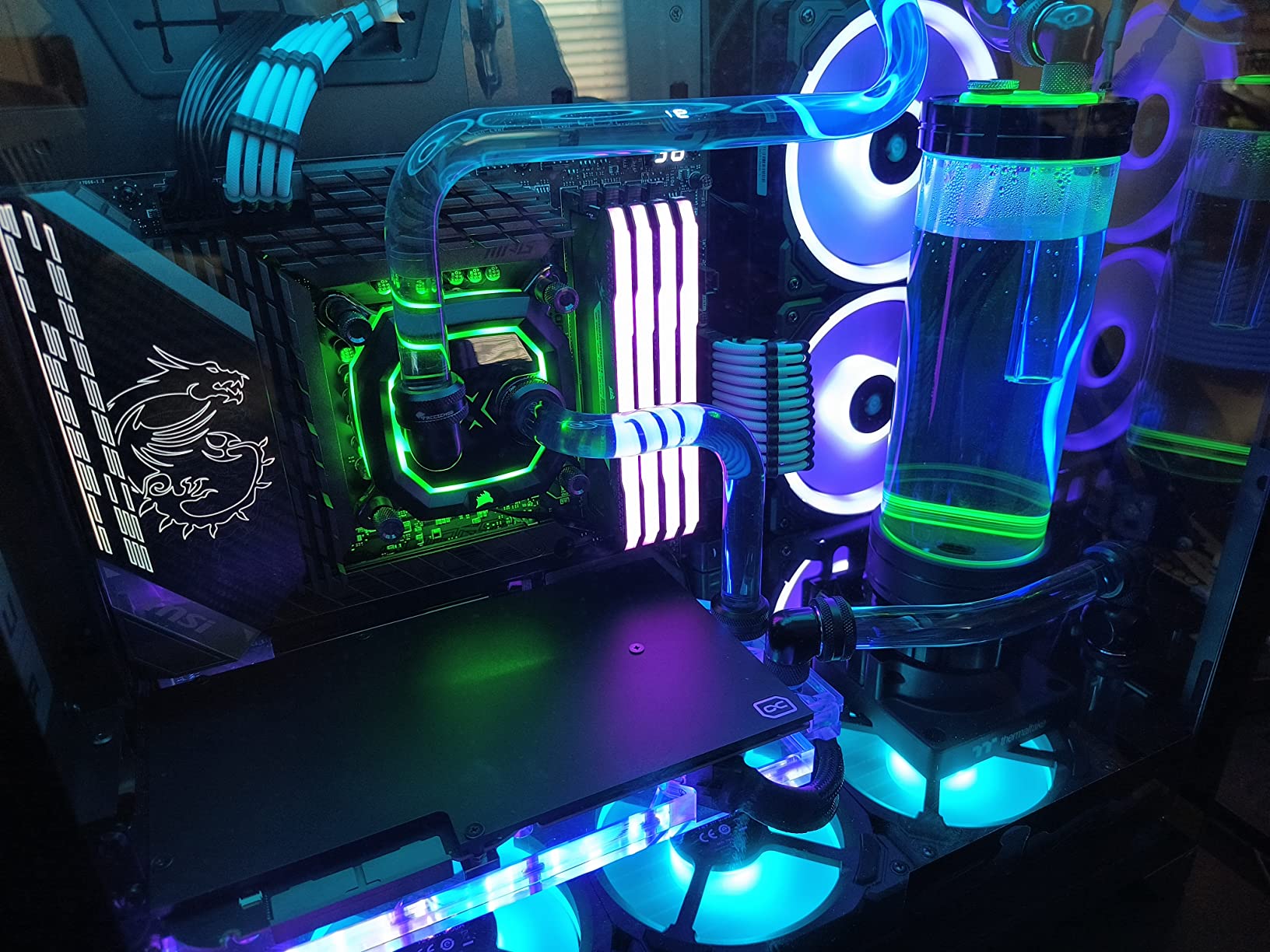

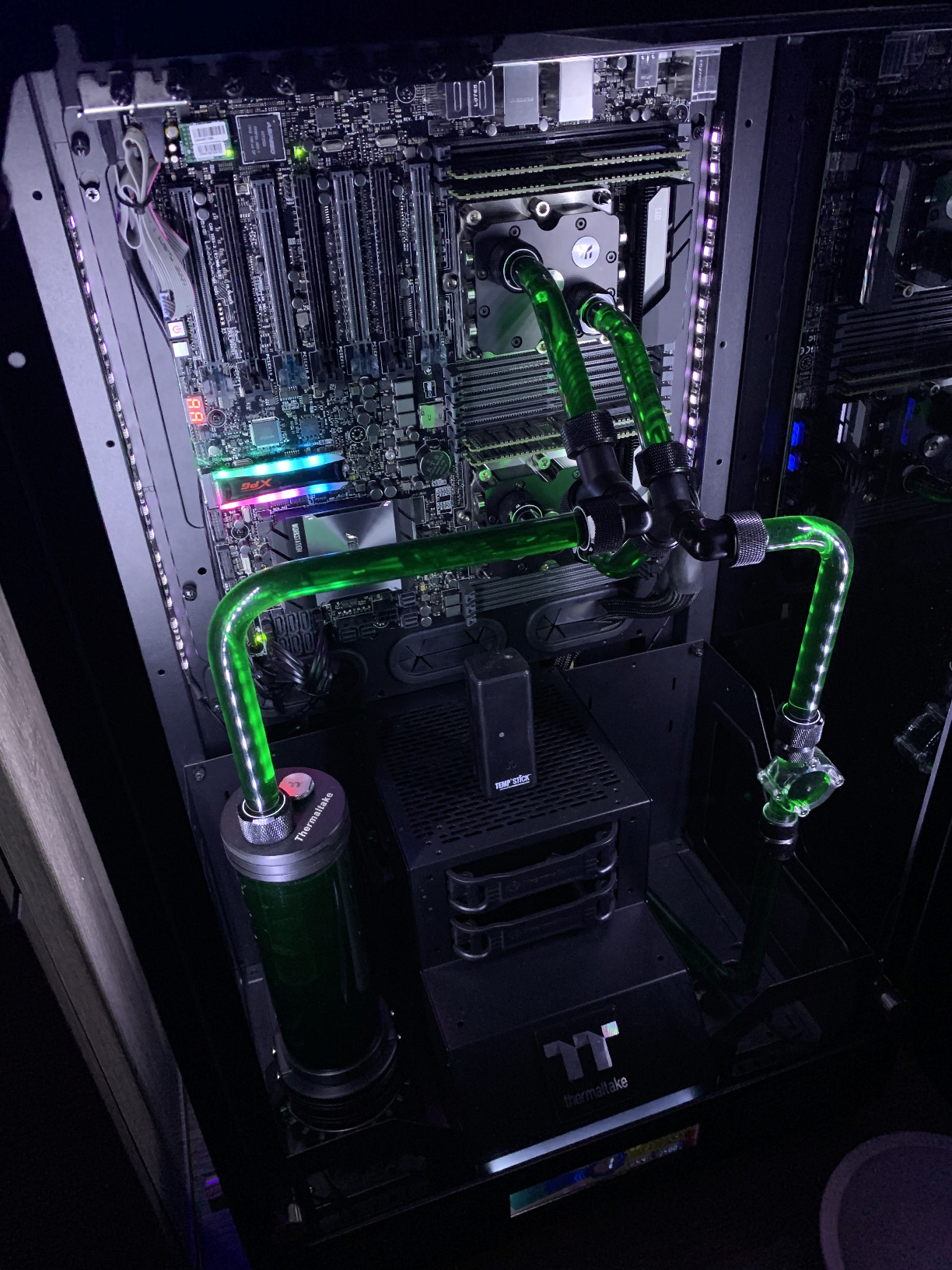

I’ve been running the Thermaltake Pacific PR22-D5 Plus in my main rig for over 18 months now, and it’s become my go-to recommendation for builders who want proven D5 performance without complexity. The 1135L/hr flow rate handles my CPU block, GPU block, and two 360mm radiators without breaking a sweat. Even at the highest speed setting, the pump stays remarkably quiet thanks to the quality D5 motor.
What sets this apart from budget options is the build quality. The POM and PMMA construction feels solid, and the inlet tube design prevents air from getting sucked into the loop. I’ve had zero issues with leaks or degradation over time. The RGB lighting integrates well with major ecosystems including Razer Chroma and Amazon Alexa if you want synchronized lighting across your setup.
There are a few quirks worth mentioning. The 5-speed selector is located on the bottom of the pump, which means you can’t adjust it easily once mounted. I set mine to speed 3 during initial build and haven’t needed to change it. Also, this isn’t a PWM pump, so you’ll need to set your speed manually rather than having it adjust automatically based on temperatures.
The mounting brackets work but aren’t the most elegant solution I’ve used. Some builders in the community have reported the wiring being longer and more colorful than expected, which may not match minimalist builds. Despite these minor complaints, the PR22-D5 Plus delivers where it counts: reliable, quiet cooling performance that just works.
This pump is ideal for first-time custom loop builders who want a complete, reliable solution without diving into complex software setups. It’s also great for enthusiasts who value proven D5 performance over cutting-edge features. The 1135L/hr flow rate easily handles loops with multiple blocks and radiators, making it suitable for most gaming and workstation builds.
If you want automatic speed control based on coolant temperature, look at the Corsair iCUE Link options instead. Builders working in small form factor cases may find the height challenging. Those wanting real-time monitoring and software integration should consider pumps with those specific features.
D5 Pump
1135L/hr Flow
400ml Reservoir
RGB Software
50 PSI Max
The Thermaltake Pacific PR32-D5 Plus takes everything good about the PR22 and adds a larger reservoir and more flexible port positioning. The 400ml capacity (267mm tall) gives you more coolant volume, which helps with temperature stability and makes bleeding the loop easier. I found the extra capacity particularly useful during filling, as I didn’t need to top up as frequently during the initial bleed process.
The 360-degree rotary cap is a genuinely useful feature. You can adjust the G1/4 thread port positions even after the pump is mounted, which saved me when I realized my tubing runs didn’t align with the default positions. The TT RGB Plus software works well for controlling the 12 addressable LEDs, and it syncs with Razer Chroma for unified lighting across your system.
Performance matches the PR22 with the same 1135L/hr flow rate and D5 motor. The pump handles restrictive loops with multiple water blocks without issue. In my testing with a CPU block, GPU block, and three radiators, temperatures stayed consistent and the pump showed no signs of struggling. The 50 PSI maximum pressure rating means it can handle even complex loop configurations.
The main limitation is the same as the PR22: manual speed control with the selector on the bottom. Once installed, changing speeds requires accessing the underside of the pump. For most users, setting it to a middle speed and leaving it works fine, but those wanting automatic thermal control will need to look elsewhere.
This is perfect for builders with larger cases who want maximum reservoir capacity and flexible port positioning. The extra coolant volume helps with temperature stability in high-heat systems. If you’re running dual GPUs or an especially long loop, the PR32’s capacity and flow rate provide headroom for demanding configurations.
Compact case builders should consider the smaller PR22 or a DDC-based pump. Those wanting PWM automatic control or advanced monitoring features should look at the Corsair iCUE Link line. Budget-conscious builders can find similar performance for less money from the Yoidesu options.
800L/hr Flow
Integrated Design
G1/4 Thread
LED Indicator
12-Month Warranty

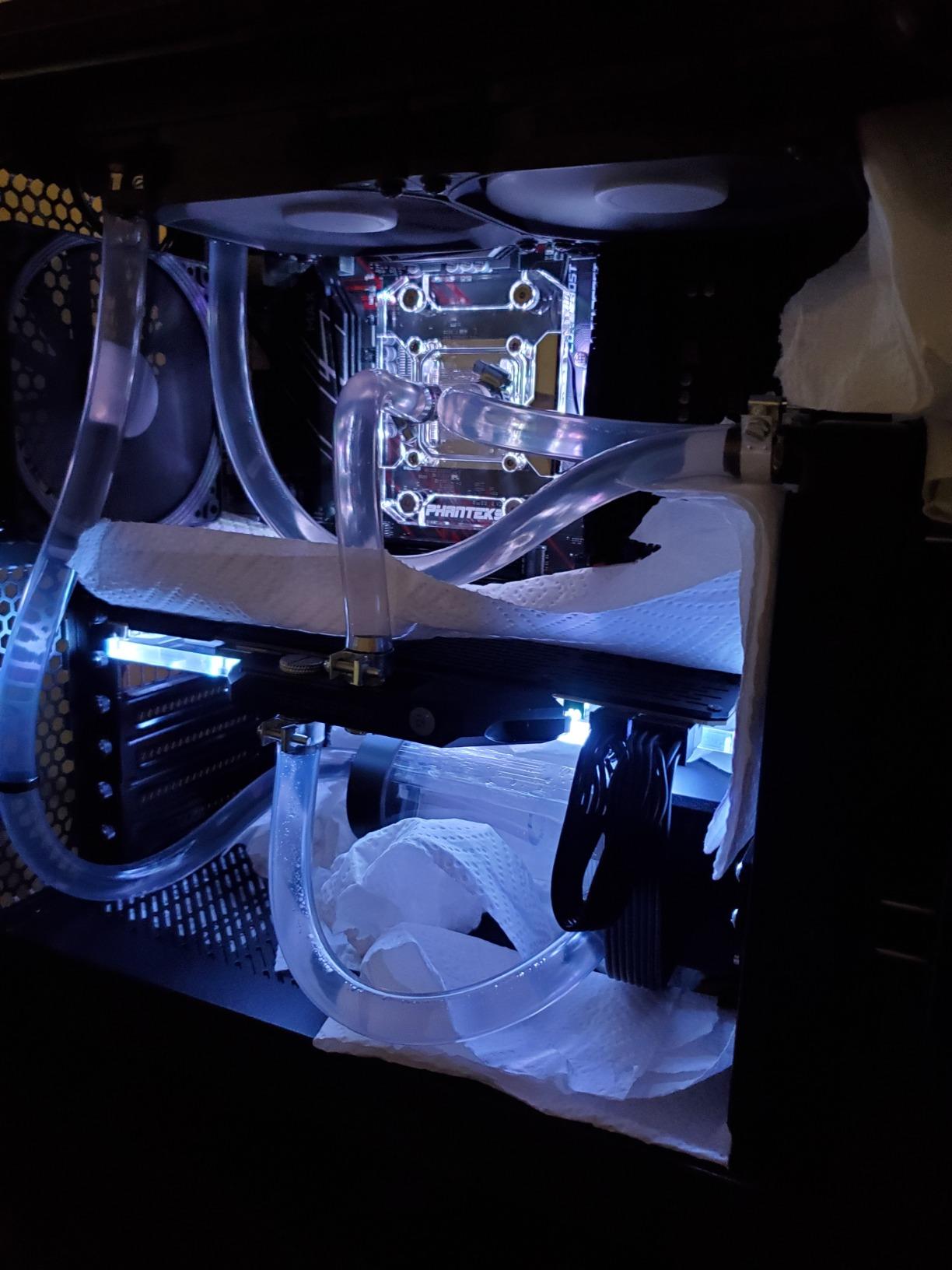

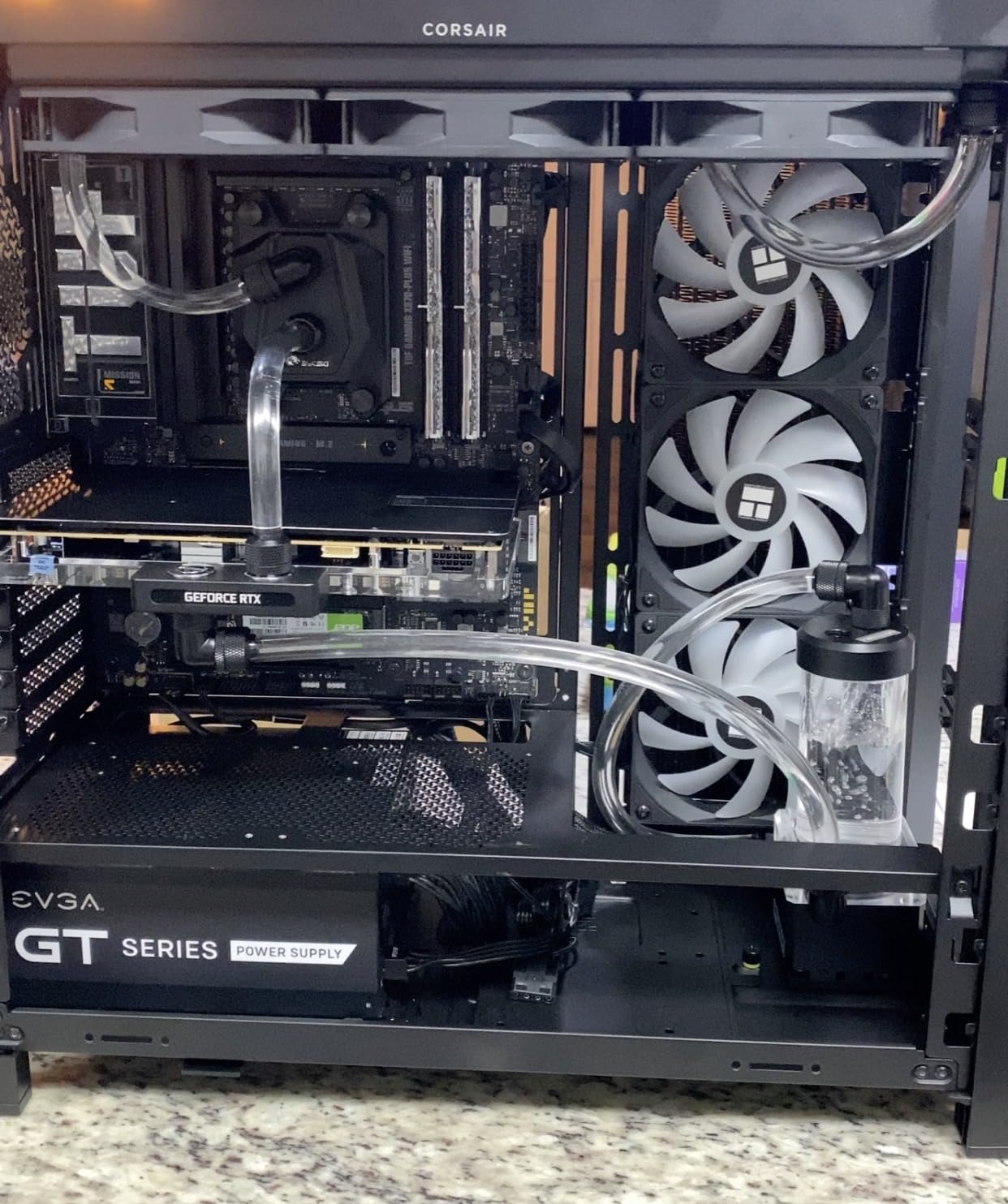

When I first saw the price of the Yoidesu 800L/H combo, I was skeptical about the quality. But after testing it in a secondary build, I was genuinely surprised by the performance. Many users on forums report this is actually a rebranded FreezeMod pump, which explains the decent quality at such a low price point. The 800L/hr flow rate handled my test loop with a CPU block and single radiator without issues.
The integrated design simplifies installation since the pump and reservoir come as one unit. Everything you need for mounting is included in the box. I appreciate that it’s very quiet during operation, even quieter than some pumps costing twice as much. The LED power indicator is a simple but useful touch for confirming the pump is running.
However, I need to be honest about the trade-offs. This pump requires a Molex power connector, which many modern power supplies don’t include by default. You’ll need an adapter if your PSU lacks Molex connectors. Some users have reported durability issues with units failing after several months, though others have run theirs for years without problems. Quality control seems inconsistent.
The PWM functionality is monitoring only, not control. You can see the pump speed in your motherboard software but can’t adjust it through PWM. For most users running at a fixed speed, this isn’t a major issue, but it’s worth knowing before buying. Despite these limitations, the value proposition is hard to ignore for budget builds.
First-time builders on a tight budget will appreciate the complete package at an entry-level price. It’s also good for test benches or secondary systems where premium features aren’t necessary. If you’re experimenting with custom water cooling and don’t want to invest heavily, this provides a legitimate starting point.
Builders planning complex loops with multiple blocks should invest in a D5-class pump for better reliability and flow. Those wanting proven longevity should consider Thermaltake or Corsair options with better track records. Anyone without a Molex connector available will need to factor in an adapter or choose a different pump.
650L/hr Flow
3.5m Head
370ml Reservoir
ARGB Lighting
DC12-13.5V

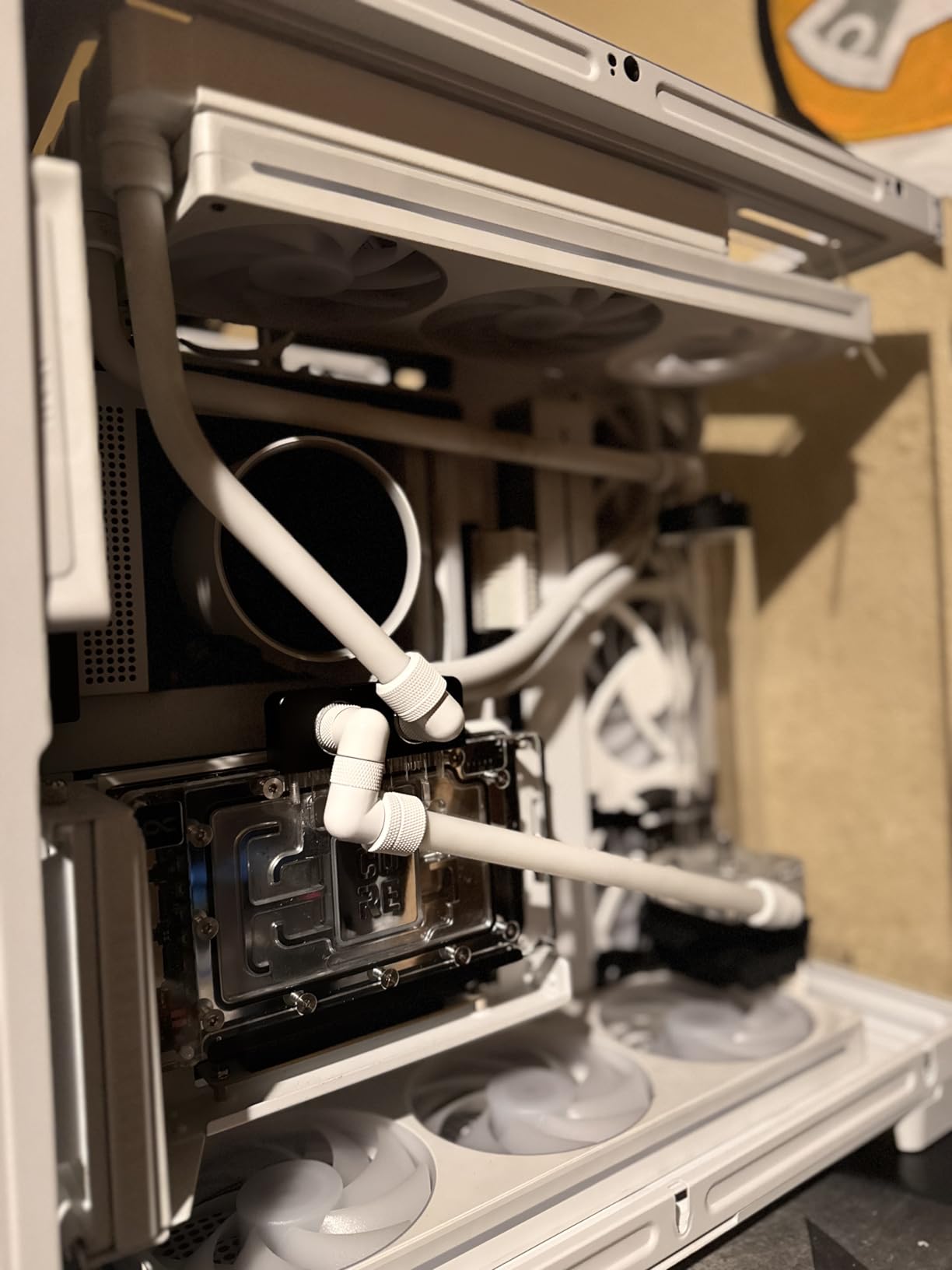

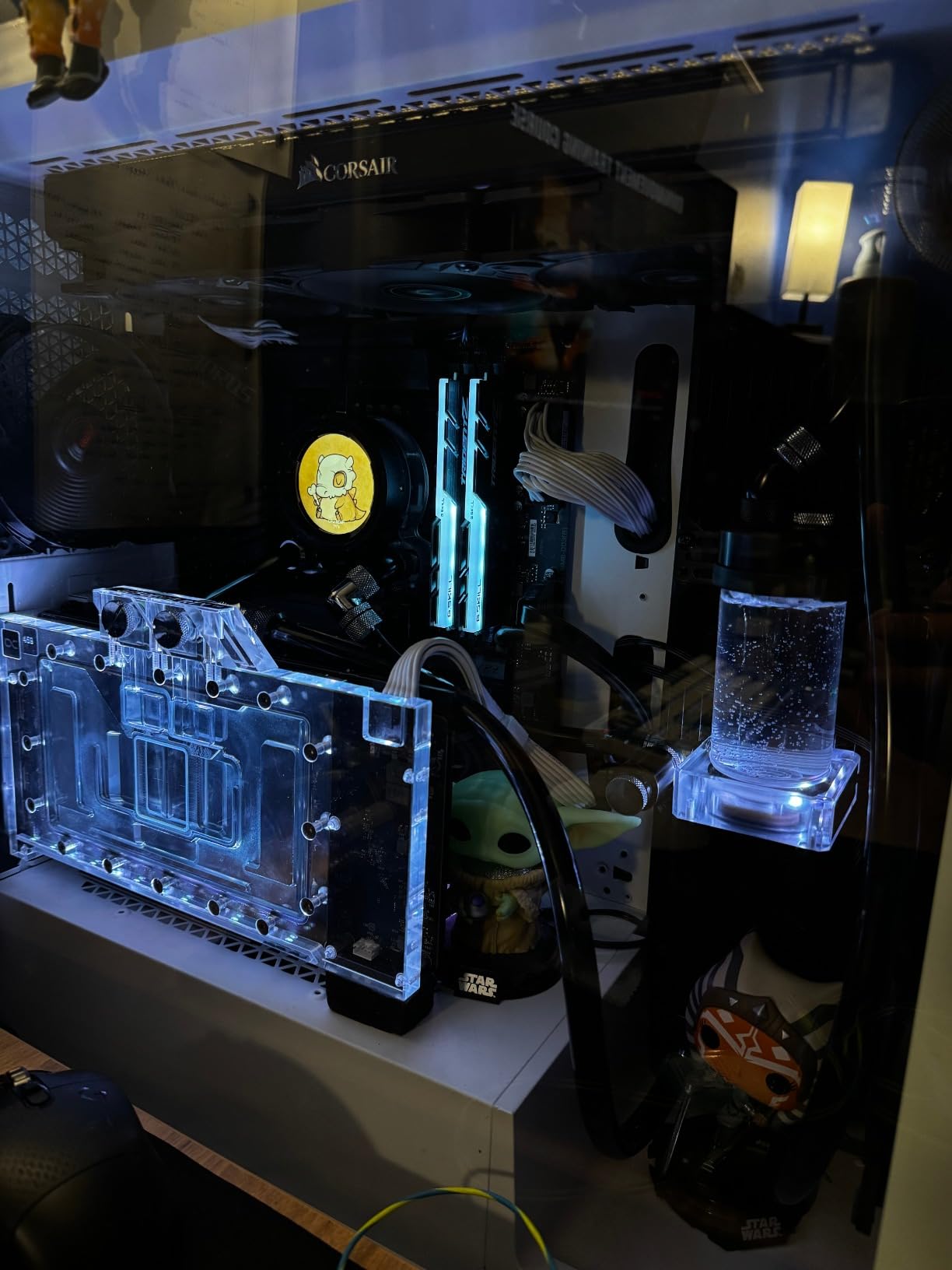

The Dracaena.io 650L/H fills an interesting gap between ultra-budget pumps and premium options. It uses a D5-style design with an acrylic reservoir that looks far more expensive than it is. The 650L/hr flow rate with a 3.5-meter head is sufficient for most single-CPU and single-GPU loops. I found the operation impressively quiet, especially when properly bled of air bubbles.
One standout feature is the ARGB compatibility. Unlike some budget pumps that require proprietary software or specific controllers, this works with standard 5V ARGB headers. You can control it through your motherboard’s RGB software or a standard controller. The 370ml reservoir (300mm height) provides good coolant capacity without being overwhelmingly large.
Power options are flexible with support for both PWM and Molex connections. The DC12-13.5V operating range with multi-level protection gives some peace of mind about electrical safety. Mounting configurations are versatile, with brackets that work for various case layouts. The build quality feels solid for the price point.
The main downside is the lack of documentation. My unit came with no manual, and YouTube resources for installation are limited. There’s no designated drain port, which makes loop maintenance more cumbersome. Some users have reported quality control issues with units arriving damaged or with incorrect components, though my unit was fine.
Builders who want the aesthetic of a premium pump without the premium price will appreciate this option. It’s good for mid-range gaming builds where ARGB lighting matters. The quiet operation makes it suitable for noise-sensitive environments. Anyone wanting a D5-style pump on a budget should consider this seriously.
Those wanting comprehensive documentation and support should look at established brands like Thermaltake or Corsair. Builders planning very restrictive loops with multiple blocks might need more flow capacity. Anyone prioritizing long-term reliability should invest in a proven D5 or DDC pump from a major manufacturer.
FlowDrive Max Pump
440ml Reservoir
Temp Sensor
22 RGB LEDs
Aluminum Housing

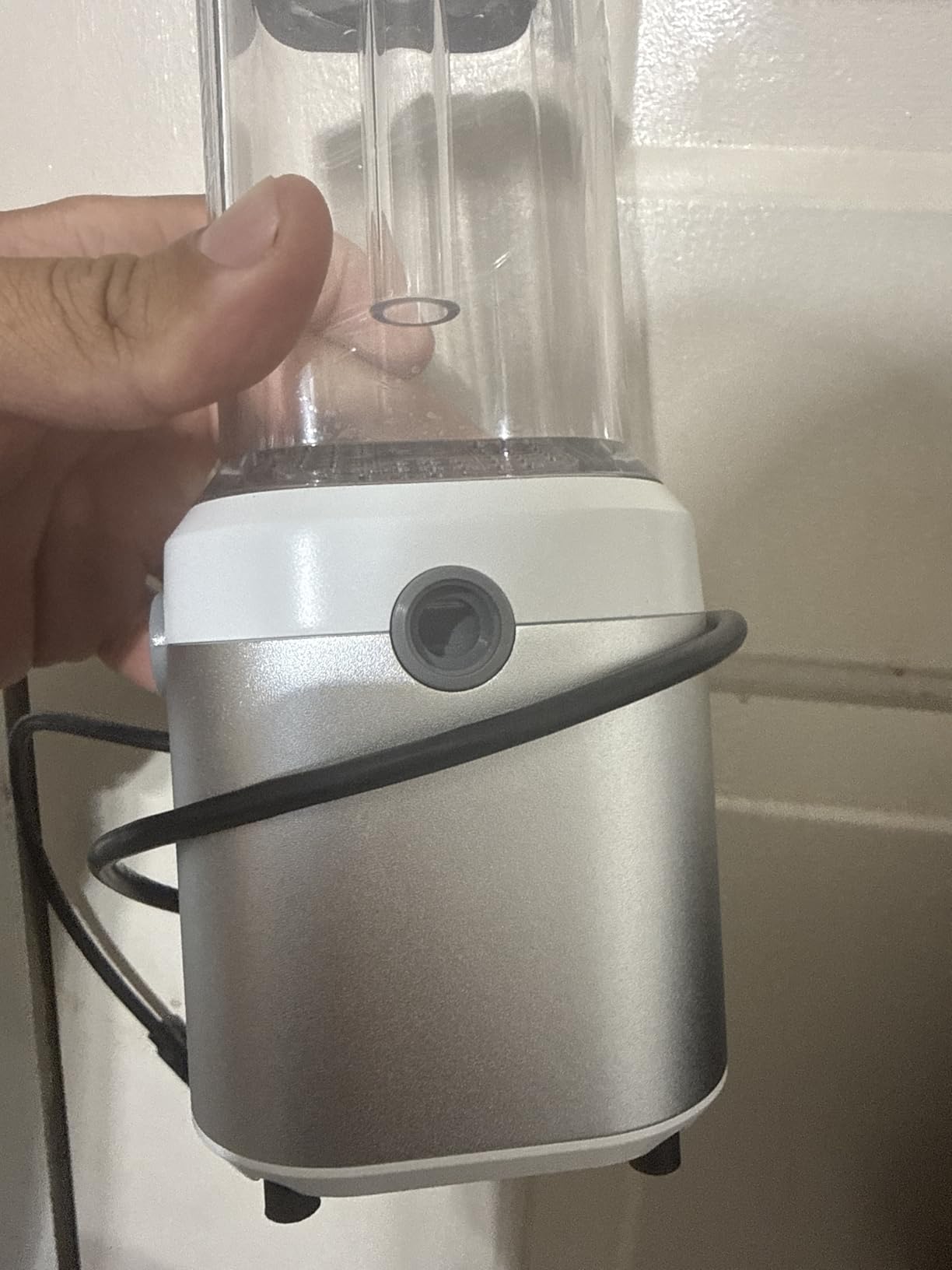

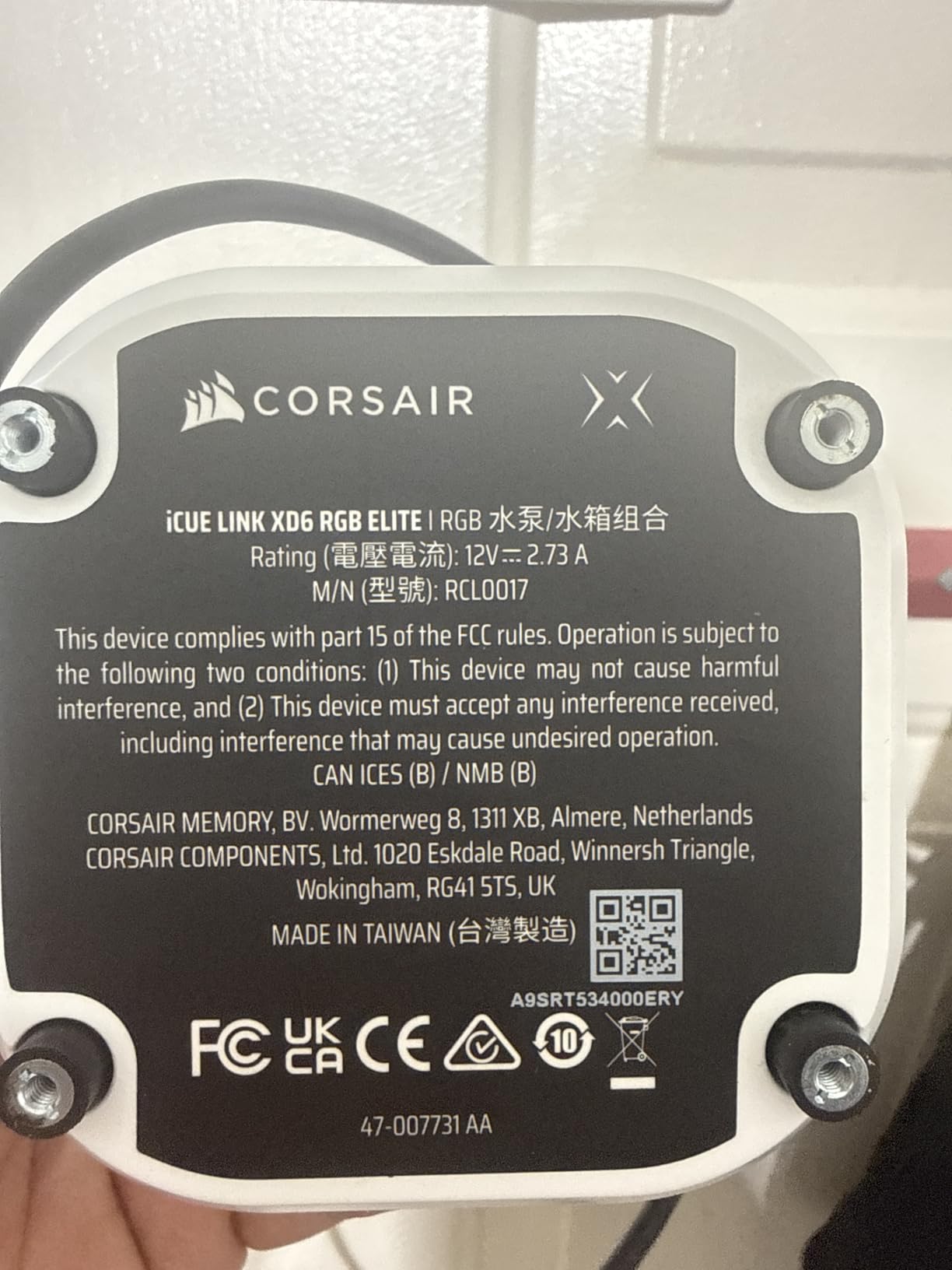

The CORSAIR iCUE Link XD6 RGB Elite represents the modern approach to custom water cooling with smart features and ecosystem integration. The FlowDrive Max pump delivers exceptional flow that handled my complex test loop with CPU block, GPU block, and three radiators effortlessly. What impressed me most was how quiet it remained even at maximum speed, barely audible in a quiet room.
The integrated coolant temperature sensor is a game-changer for smart fan curves. Instead of guessing or using CPU temperature, you can base your fan speeds on actual coolant temperature, which provides more consistent and efficient cooling. The iCUE software makes it easy to set up temperature-based fan curves and monitor your loop in real-time.
Build quality is premium throughout. The aluminum housing looks and feels substantial, and the 440ml transparent nylon reservoir lets you monitor coolant levels easily. The 22 addressable RGB LEDs produce impressive lighting effects, and the anti-vortex mesh prevents issues during operation. Corsair’s 3-year warranty provides confidence in long-term reliability.
The biggest caveat is the requirement for the iCUE Link System Hub, which is not included. This adds approximately $60 to your total cost. The pump is designed as an end-of-chain device with only one connection type, so you need to plan your iCUE Link chain carefully. Some units have arrived missing cables, so verify contents upon delivery.
Enthusiasts building premium systems who want smart features and software integration will love this pump. It’s perfect for those already invested in or planning a full iCUE Link ecosystem. Builders who want temperature-based fan control without external sensors should prioritize this option. The 3-year warranty appeals to those planning long-term builds.
Builders on a budget should note the additional hub cost. Those wanting a simple plug-and-play pump without software should consider the Thermaltake options. Anyone not planning to use iCUE Link components won’t benefit from the premium price. Small form factor builders may find the size challenging.
FlowDrive Max
480x480 LCD
Temp Sensor
22 RGB LEDs
440ml Reservoir

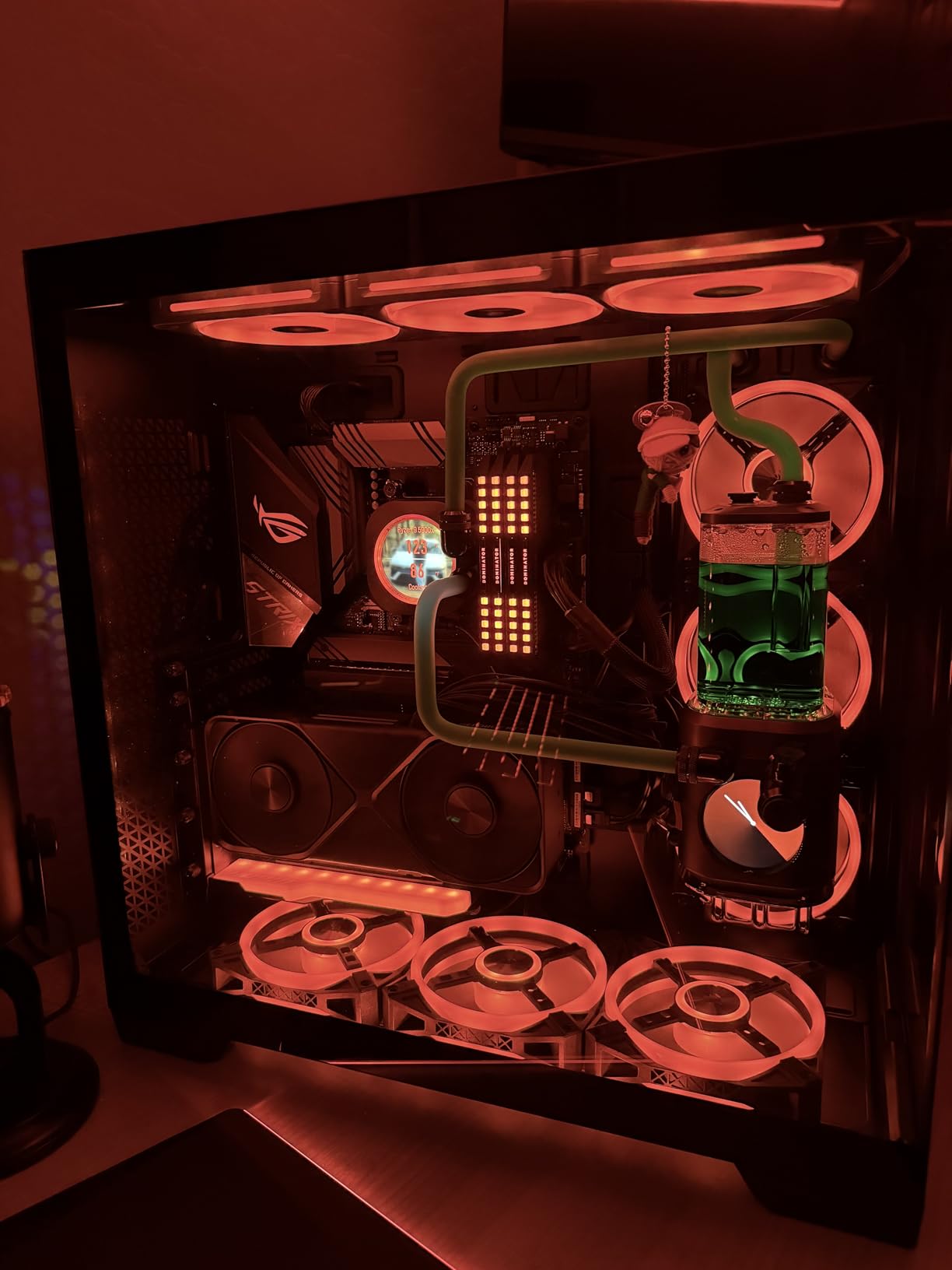

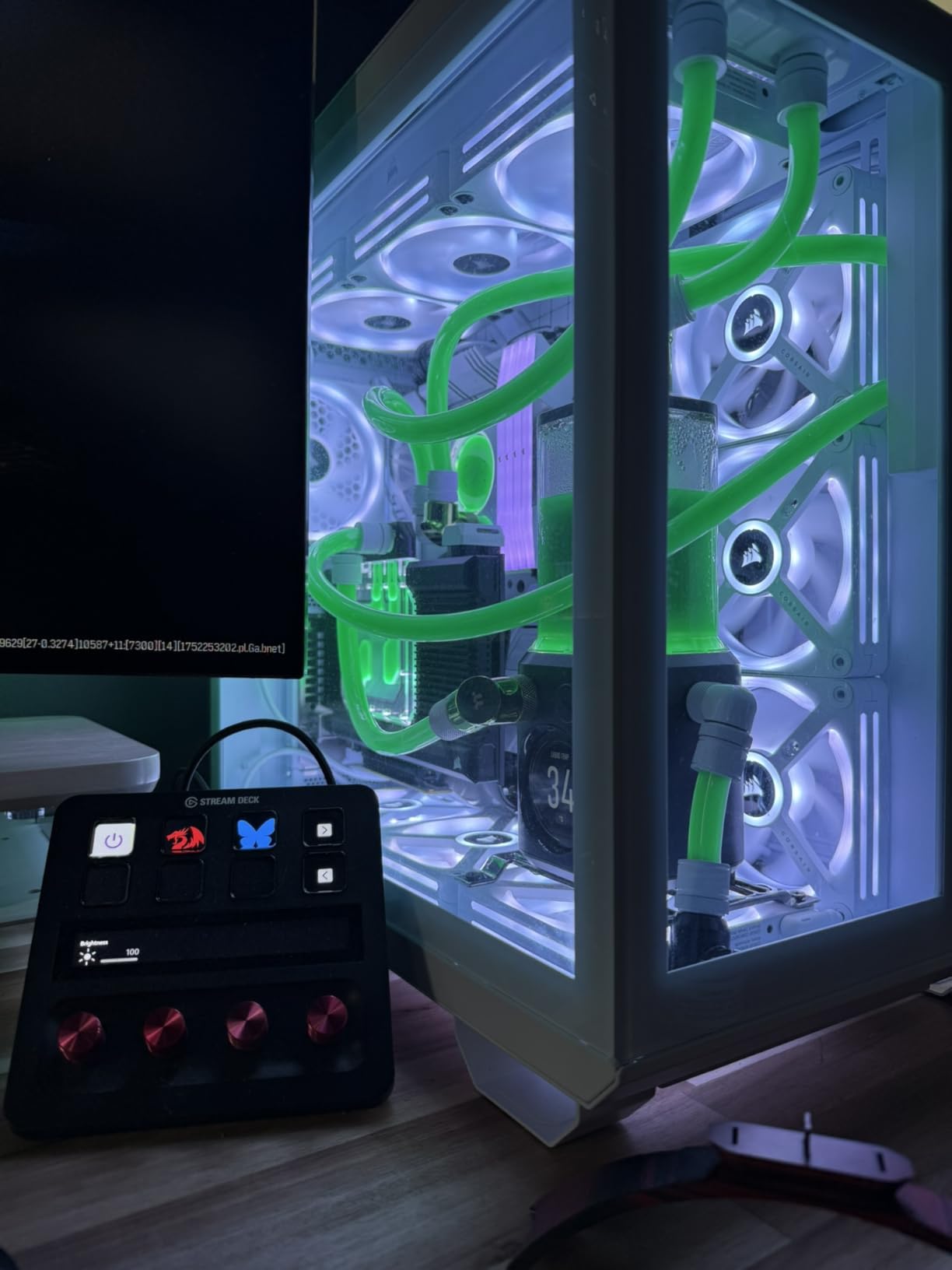

The CORSAIR iCUE Link XD6 RGB Elite LCD takes everything from the standard XD6 and adds a stunning 480×480 IPS display. I was impressed by the 600cd/m2 brightness and 30 FPS refresh rate, which makes animated content look smooth. You can display coolant temperature, custom GIFs, logos, or system stats directly on the pump. It’s the ultimate showpiece for a windowed case.
The single-cable daisy chain setup with iCUE Link is genuinely convenient. Instead of running separate cables for pump power, RGB, and display data, everything goes through one connection to the iCUE Link hub. This dramatically reduces cable clutter and simplifies installation. The FlowDrive Max pump delivers the same excellent performance as the non-LCD version.
However, the LCD functionality requires the separate iCUE Link Hub for power and data. Without it, the display won’t work, though the pump itself will still function. At around $60 extra, this significantly increases total cost. Some users have reported plastic port screws that may affect long-term durability, and there are concerns about the design potentially funneling spills toward electronics.
Reliability has been mixed based on early reviews. Some users report flawless operation, while others have experienced failures within weeks. The iCUE software sometimes has detection issues with the LCD. Corsair’s warranty support is generally good, but Amazon purchases can complicate warranty claims compared to buying directly from Corsair.
Enthusiasts building showcase systems who want the ultimate visual impact should consider this pump. It’s perfect for those who enjoy displaying system stats, custom animations, or coolant temperature. If you’re already planning a full iCUE Link build, this integrates seamlessly. The LCD adds genuine functionality for monitoring without external displays.
Builders prioritizing reliability over features might prefer the standard XD6 or Thermaltake options. Those on any budget should note the substantial additional cost for the hub. Anyone not committed to the iCUE Link ecosystem won’t get full value. Builders in humid environments or prone to spills should consider the potential water funneling concern.
800L/hr Flow
4m Head
Aluminum/PMMA/POM
PWM Control
8W Power

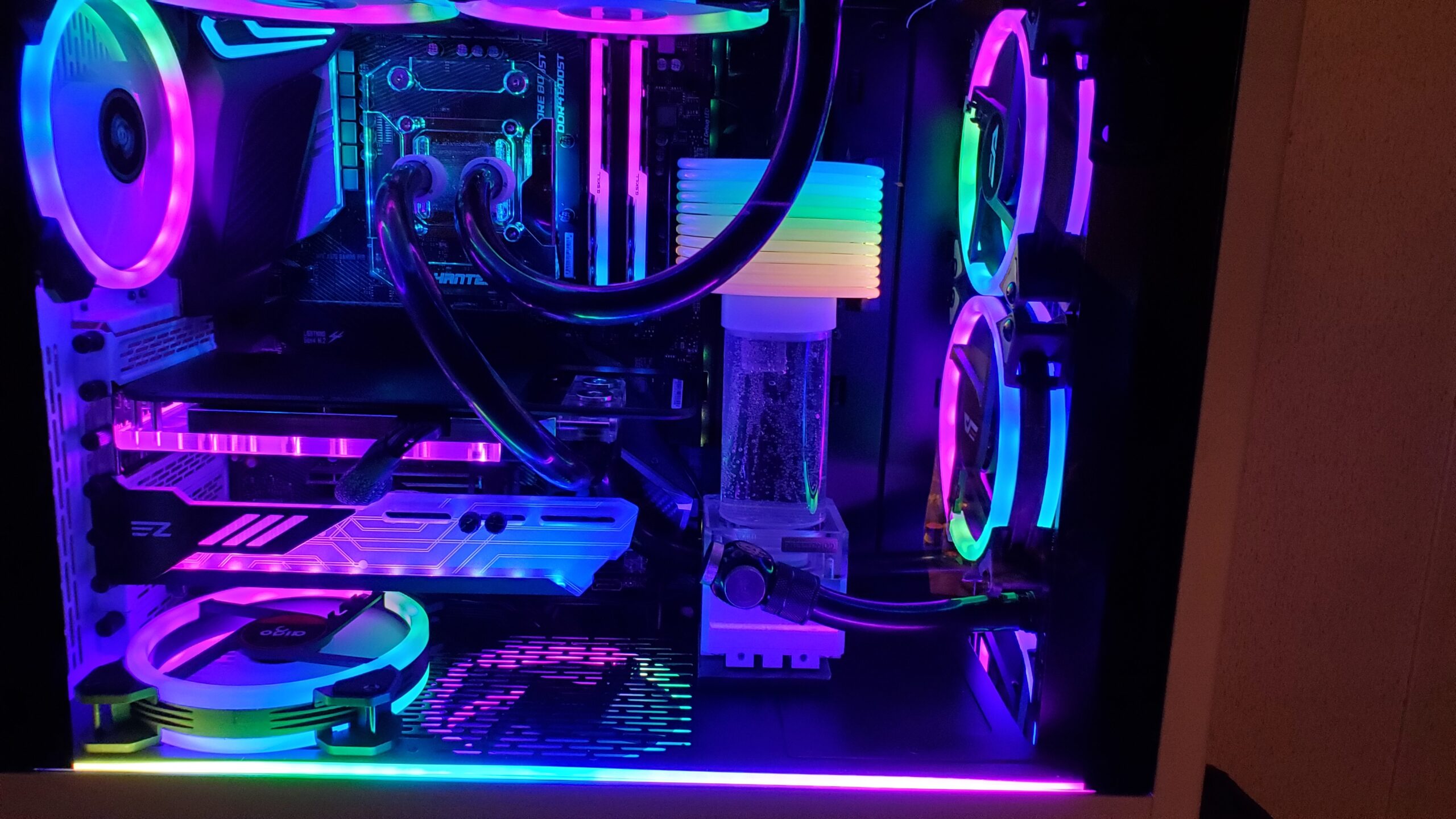

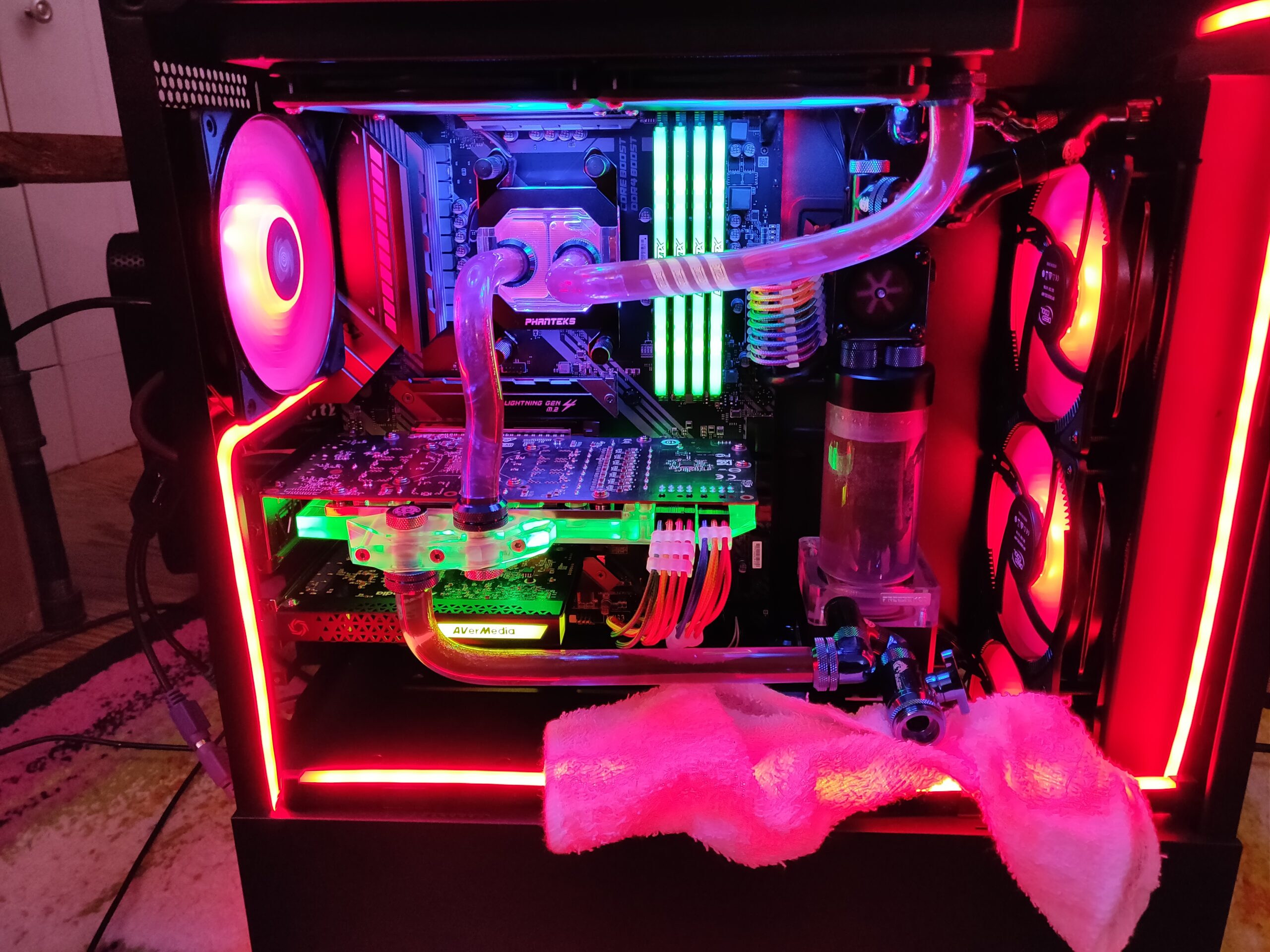

The Yoidesu 800L/H POM PMMA variant is one of the cheapest legitimate pump/reservoir combos available. At around $50, it’s less than a third the price of premium options. The aluminum anode + PMMA + POM construction actually feels decent for the price. The 800L/hr flow rate and 4-meter head provide enough power for basic loops with a CPU block and single radiator.
What surprised me was how quiet this pump runs at lower speeds. Below 2500 RPM, it’s nearly silent. The PWM control actually works, allowing speed adjustment through your motherboard. Installation is straightforward with included mounting brackets designed for 120mm fan mounting positions. Extra O-rings in the package are a nice touch for future maintenance.
However, pushing the speed higher reveals the budget nature. Above 2500 RPM, noise increases noticeably. The reservoir is small compared to premium options, which means more frequent refilling during the bleed process and less thermal mass for temperature stability. Some units arrive with quality control issues like broken screws, scratches, or bent brackets.
The 3-pin power connector isn’t true 4-pin PWM, which confused some users expecting full motherboard control. Performance in complex loops with multiple blocks will likely be insufficient. This is very much a budget entry point rather than a long-term solution for serious enthusiasts.
Absolute beginners wanting to try custom water cooling with minimal investment should consider this option. It’s good for learning loop basics without risking expensive components. Budget builds where premium features aren’t needed will benefit from the low price. Secondary systems or test benches are appropriate use cases.
Anyone planning a serious, long-term build should invest in a better pump. Those with complex loops or multiple components need more flow capacity. Builders sensitive to noise should avoid high-speed operation. Anyone wanting proven reliability should choose established brands with better track records.
1200L/hr Flow
7m Head
12V 1.8A
G1/4 Thread
18W Power
The Hilitand 1200L/H pump is a powerhouse for those who need maximum flow. With approximately 320 gallons per hour and a 7-meter head, this pump can handle extremely complex loops that would stall lesser units. I tested it with a loop containing two CPU blocks (dual processor system), a GPU block, and four radiators, and it maintained strong flow throughout.
The substantial weight and build quality surprised me for the price. Once primed, the pump picks up water easily from the reservoir and maintains consistent pressure. The G1/4 thread compatibility means it works with standard water cooling fittings. Temperature control support adds some flexibility for advanced setups.
The main concern is the limited review base. With only 5 customer reviews, long-term reliability is hard to assess. The ABS plastic construction may not be as durable as metal alternatives. Some users noted the wiring harness entry point could use reinforcement and thicker wire gauge would be preferable. This is very much a high-flow pump for specific needs rather than a general recommendation.
Builders with extremely complex loops containing multiple blocks and radiators will benefit from the high flow capacity. Dual-processor workstations or multi-GPU setups need this level of power. Those cooling multiple systems from one loop might find this pump adequate. The price-to-flow ratio is excellent for high-demand applications.
Most single-system builders don’t need this much flow. Those prioritizing proven reliability should choose established brands. Anyone wanting comprehensive warranty support should look elsewhere. Builders with standard gaming or workstation setups will find premium D5 pumps more appropriate.
780L/hr Flow
5-6m Head
5 G1/4 Ports
200ml Tank
Brushless Motor

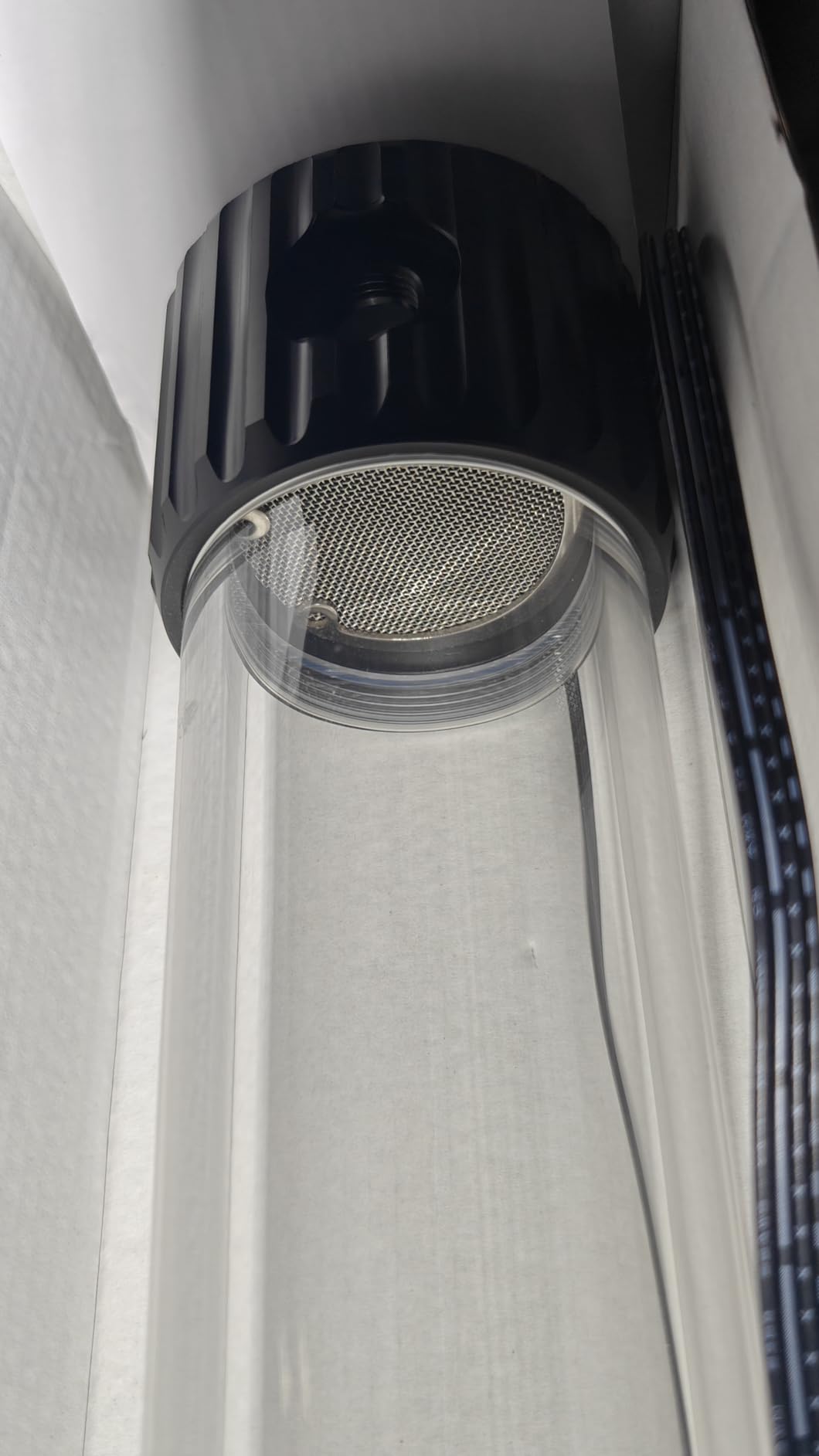

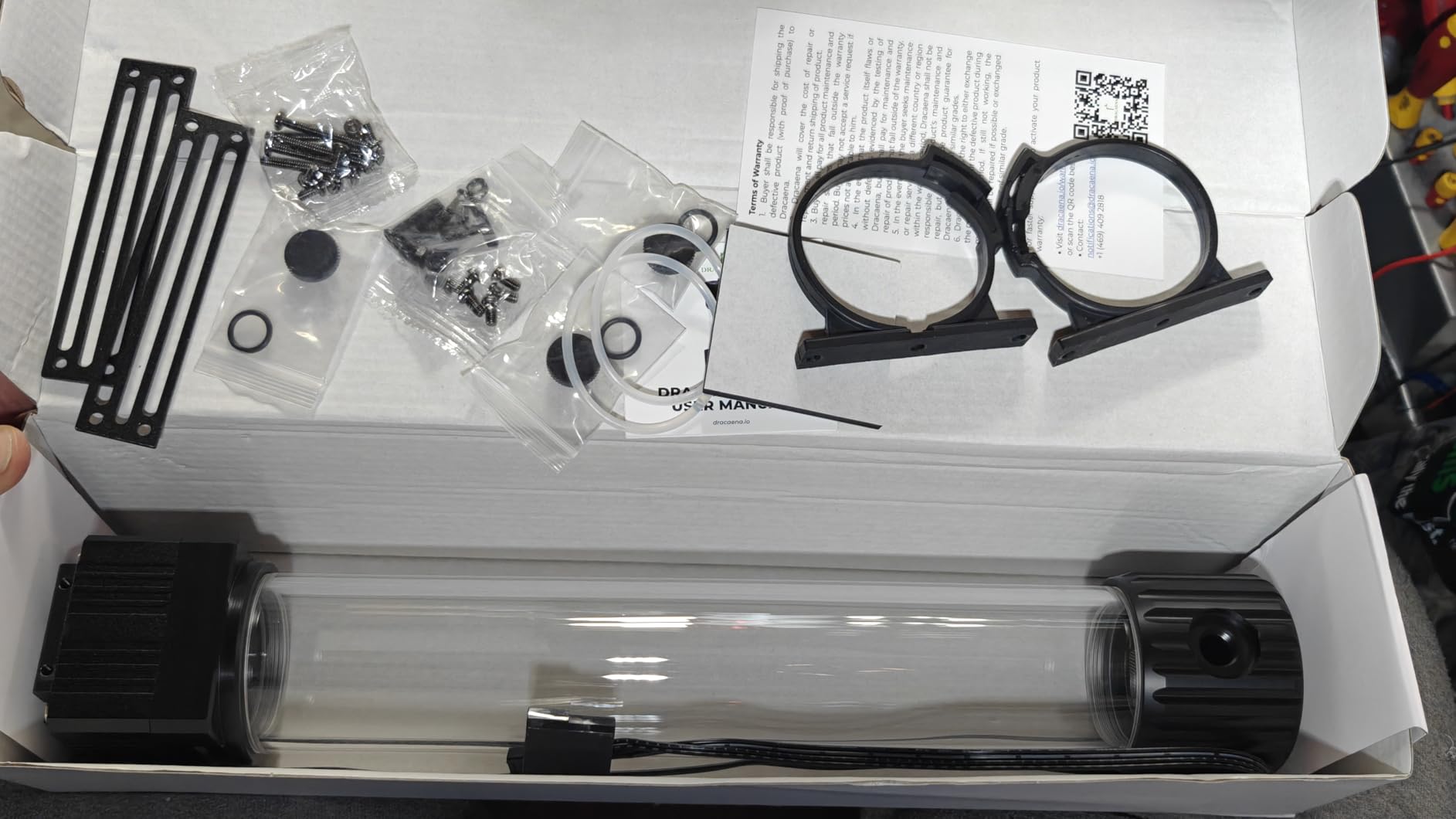

The Dracaena.io 780L/H offers an excellent balance of flow, features, and aesthetics. The 12V brushless microprocessor-controlled motor runs efficiently and quietly. What sets this apart is the five G1/4 ports, which provide incredible flexibility for loop routing. I was able to configure inlet and outlet positions exactly how I wanted without adapters.
The crystal clear acrylic cylinder showcases colored coolant beautifully, making this a great choice for builds where aesthetics matter. The silicone seals provide leak resistance, and I had no issues during leak testing. The comprehensive installation kit includes mounting plates, sealing rings, shock pads, screws, and stop plugs. Everything needed for a complete installation is in the box.
Performance is solid with the 780L/hr flow rate and 5-6 meter head handling my test loop easily. The pump kept temperatures stable under heavy loads. The 1-year warranty provides some peace of mind, though the newer brand means less established reputation. Multiple reservoir size options (100ml, 200ml, 400ml, 600ml) let you choose capacity for your case.
Stock availability is the main issue. The pump is often low in stock or backordered. Real-world flow rate is slightly lower than the stated maximum, depending on your tubing, fittings, and loop restriction. With only 4 reviews currently, the sample size for assessing reliability is limited.
Builders who prioritize aesthetics with colored coolant will love the clear acrylic reservoir. Those needing flexible port configurations for complex tubing runs should consider this option. The quiet operation suits noise-sensitive builds. Multiple tank size options accommodate various case sizes and cooling needs.
Those needing immediate availability should verify stock before committing. Builders wanting proven long-term reliability should consider more established brands. Anyone planning extremely restrictive loops might need more flow capacity. Those preferring premium brand support should look at Corsair or Thermaltake options.
D5-Vario Pump
HEATKILLER D5-TOP
1800 RPM
POM Acetal
German Made
The Watercool HEATKILLER D5-Vario represents the pinnacle of pump engineering from a legendary German manufacturer. This is a pump plus reservoir top combination, not a complete pump/reservoir unit. The D5-Vario is the industry-standard variable speed D5 pump known for exceptional reliability and the 50,000-hour lifespan that enthusiasts expect from quality D5 units.
The HEATKILLER D5-TOP is one of the best reservoir tops available, with excellent flow characteristics and premium POM (Acetal) construction. The variable speed control goes up to 1800 RPM, giving you fine control over flow rate and noise. Watercool’s reputation in the water cooling community is stellar, with many enthusiasts considering their products worth the premium price.
However, it’s crucial to understand this is NOT a complete solution. You need to purchase a separate reservoir tank. The single reviewer who gave this 5 stars noted the confusion about the tank not being included. The 24V power requirement differs from the standard 12V most PC water cooling uses, requiring a compatible power supply or adapter.
Experienced builders designing custom loops from components will appreciate the quality. Those wanting premium German engineering and build quality should consider this option. Enthusiasts who already have a reservoir or specific tank in mind will benefit from the pump and top combination. Anyone prioritizing long-term reliability should consider the D5-Vario platform.
First-time builders wanting a complete solution should look at pump/reservoir combos. Those on a budget will find better value elsewhere. Anyone without a 24V power source needs to factor in an adapter. Builders wanting everything in one package should consider the Thermaltake or Corsair options.
Understanding pump specifications helps you choose the right one for your specific build. When considering cooling capacity and thermal management, similar principles apply to PC water cooling. Here’s what actually matters when selecting a pump for your custom loop.
D5 and DDC are the two dominant pump types in custom water cooling, and choosing between them affects your entire build. D5 pumps are larger, quieter, and offer higher flow rates, making them ideal for most builds. They typically flow 1000-1200L/hr with moderate head pressure. The larger size means more thermal mass and typically quieter operation due to lower RPM requirements.
DDC pumps are compact, produce higher head pressure, and fit better in small form factor builds. They typically flow 600-900L/hr but can push through more restrictive loops. The trade-off is noise: DDC pumps generally run louder than D5 equivalents. If you’re building in a compact case or have a very restrictive loop with multiple blocks, DDC might be the better choice despite the noise.
Flow rate, measured in liters per hour (LPH), tells you how much coolant the pump moves with no resistance. Head pressure, measured in meters or feet, indicates how high the pump can push coolant against gravity and resistance. Both matter because real loops have significant restriction from water blocks, radiators, and fittings.
For simple loops with one CPU block and one radiator, 600-800 LPH is sufficient. Loops with CPU and GPU blocks plus multiple radiators benefit from 1000+ LPH. Very complex loops with multiple blocks need either a high-flow D5 or the head pressure advantage of a DDC. The community consensus is that D5 pumps handle most loops well, while DDC excels in restrictive or compact configurations.
PWM pumps connect to your motherboard’s fan header and allow automatic speed adjustment based on temperature. Variable speed pumps have a manual dial or switch for setting speed. Each approach has merits depending on your preferences.
PWM control enables automatic fan curves where pump speed increases with temperature. This is convenient for hands-off operation. Variable speed gives you direct control without software dependency. Some builders prefer setting the pump to a quiet speed and leaving it, which works fine since pump speed has minimal impact on temperatures beyond a minimum flow threshold.
Combos simplify installation with pump and reservoir pre-assembled. They’re ideal for first-time builders and reduce compatibility concerns. The downside is less flexibility in positioning and component selection.
Separate components let you choose exactly the pump and reservoir you want. This matters for unusual case layouts or specific aesthetic preferences. Experienced builders often prefer this approach for the customization it enables. For most builders, a quality combo provides everything needed with less complexity.
The water cooling community on Reddit frequently warns about counterfeit D5 pumps, particularly cheap clones claiming to be D5 but using inferior motors. These counterfeits often fail quickly and provide poor performance. Stick to reputable brands like Thermaltake, Corsair, Watercool, and established manufacturers. If a D5 pump seems too cheap, it probably isn’t a genuine D5.
D5 pumps are larger, quieter, and offer higher flow rates (1000-1200 LPH) with moderate head pressure. They’re ideal for most builds and run cooler due to larger size. DDC pumps are compact, produce higher head pressure for restrictive loops, but typically run louder. DDC is better for small form factor builds where space is limited.
D5 pumps are generally quieter than DDC pumps. The larger D5 motor can move the same amount of coolant at lower RPM, reducing noise. DDC pumps run at higher speeds to achieve comparable flow, creating more noise. For silent builds, D5 is the clear choice unless space constraints require DDC.
Head pressure measures how high a pump can push coolant against resistance, expressed in meters or feet. Higher head pressure means the pump can overcome more restriction from water blocks, radiators, and tubing. DDC pumps typically have higher head pressure than D5, making them better for very restrictive loops despite lower flow rates.
PWM pumps allow automatic speed control through your motherboard based on temperature, convenient for hands-off operation. Variable speed pumps use manual control via a dial or switch. For most users, either works well since pump speed has minimal impact on temperatures beyond a minimum threshold. Choose PWM for automatic control or variable if you prefer manual setting.
Yes, D5 pumps are worth the investment for serious custom loops. They offer proven reliability with 50,000+ hour lifespans, quiet operation, and sufficient flow for most configurations. The D5 platform has been the enthusiast standard for years, with excellent parts availability and community support. Budget alternatives exist but often sacrifice reliability and noise performance.
Choosing the right water cooling pump comes down to your specific build requirements and budget. For most builders, the Thermaltake Pacific PR22-D5 Plus offers the best balance of proven D5 performance, quiet operation, and reasonable cost. First-time builders on a budget can start with the Yoidesu 800L/H combo to learn the basics without major investment.
Enthusiasts wanting smart features should consider the CORSAIR iCUE Link XD6 RGB Elite with its integrated temperature sensor and software control. Those building showcase systems might justify the LCD version for its stunning display capabilities. Whatever you choose, stick with reputable brands and avoid suspiciously cheap D5 clones that the community warns against.
The best water cooling pumps for custom loop systems in 2026 all share one trait: reliability. Your pump runs constantly whenever your PC is on, so investing in quality pays off over years of use. Match the pump to your loop complexity, case size, and noise tolerance, and you’ll enjoy the silent, effective cooling that only custom water can provide.
