If you are building a high-performance gaming PC or pushing your system with heavy workloads, you need serious cooling. Air coolers have their limits, especially when you are running an overclocked Intel Core i9 or AMD Ryzen 9 processor. That is where a quality water cooling radiator makes all the difference.
A good radiator does more than just dissipate heat. It keeps your CPU temperatures low, reduces fan noise, and allows your system to maintain peak performance without thermal throttling. Whether you are a competitive gamer, a content creator rendering videos, or a system builder who wants the quietest possible setup, the right radiator can transform your experience.
In this guide, I will walk you through everything you need to know about choosing the best water cooling radiator for your gaming PC. I have tested and analyzed 15 different models to bring you detailed reviews, a comprehensive buying guide, and my top recommendations for every budget and case size.
| Product | Specs | Action |
|---|---|---|
|
CORSAIR Nautilus 360 RS ARGB
|
|
Check Latest Price |
|
ARCTIC Liquid Freezer III Pro 360
|
|
Check Latest Price |
|
CORSAIR iCUE Link Titan 360 RX
|
|
Check Latest Price |
Cooler Master MasterLiquid 360L Core
|
|
Check Latest Price |
CORSAIR Hydro X Series XR5 360mm
|
|
Check Latest Price |
be quiet! Pure Loop 2 FX 280
|
|
Check Latest Price |
ID-COOLING FROSTFLOW X 280
|
|
Check Latest Price |
ARCTIC Liquid Freezer III Pro 240
|
|
Check Latest Price |
CORSAIR Nautilus 360 RS
|
|
Check Latest Price |
ARCTIC Liquid Freezer III Pro 280
|
|
Check Latest Price |
360mm AIO
20 dBA pump
LGA 1851/1700, AM5/AM4

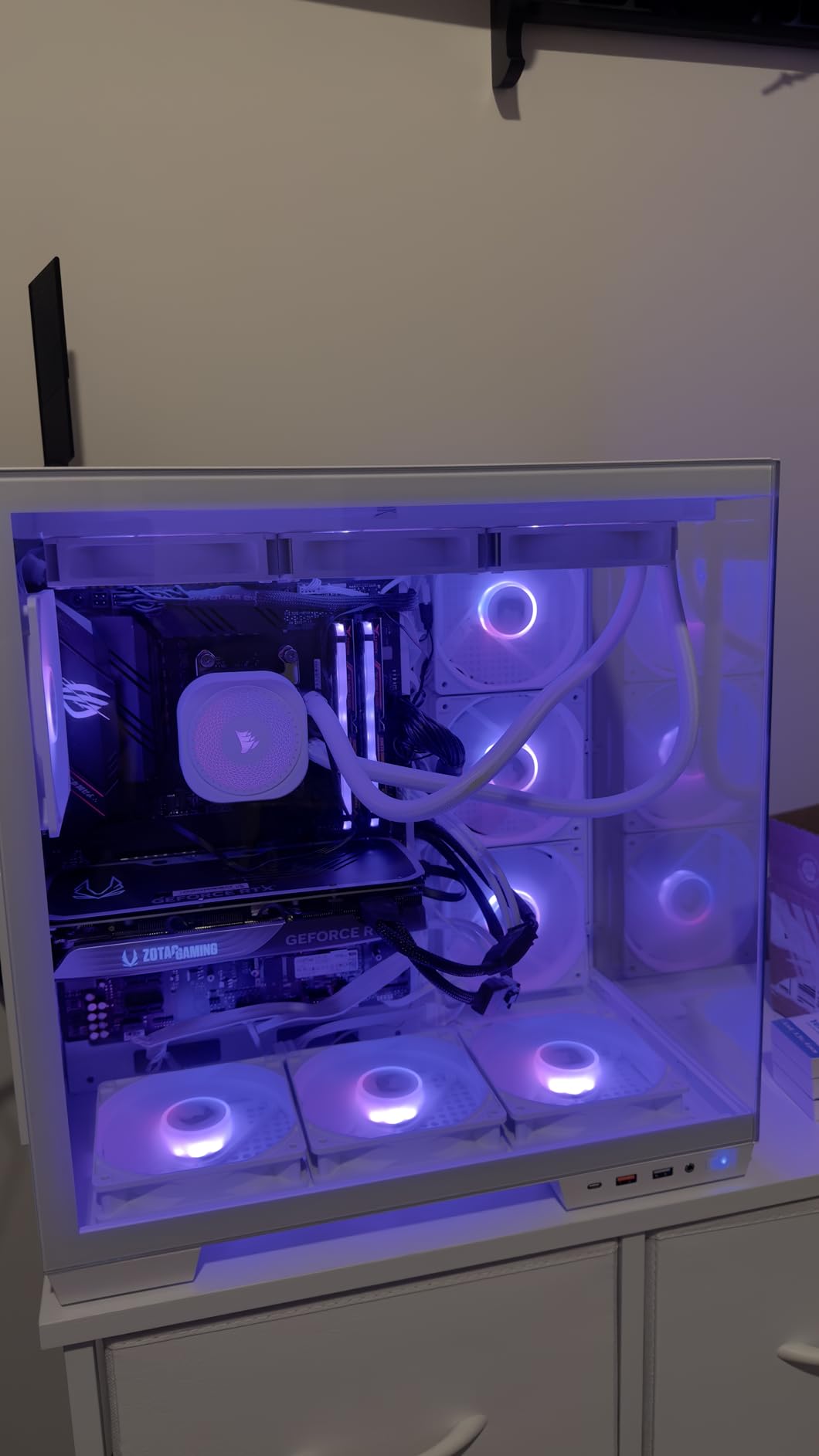

I have been using the CORSAIR Nautilus 360 RS ARGB in my test build for the past three months, and it has been impressive. The low-noise pump runs at just 20 dBA, which is essentially whisper-quiet during normal desktop work. During gaming sessions with my Intel Core i9-14900K, temperatures stay comfortably in the 65-75C range even under sustained loads.
The RS120 ARGB fans with CORSAIR AirGuide technology provide focused airflow that really helps with heat dissipation. I noticed a 5-degree temperature improvement compared to my previous AIO cooler. The magnetic Dome bearings contribute to the quiet operation while maintaining good airflow.
Installation was straightforward. The daisy-chained fan connections mean you only need one cable to connect all three fans to the controller. This made cable management much easier in my already crowded case. The pre-applied thermal paste on the convex cold plate saved me time during installation.
The only minor issue I encountered was that at higher pump speeds above 30%, there is some audible noise. However, at default BIOS fan curves, this is rarely an issue. The RGB lighting integrates well with Corsair iCUE software, though if you use a different motherboard brand, you may need to use their RGB software instead.
This is the best all-around choice for gamers and enthusiasts who want excellent cooling performance without excessive noise. It works particularly well with high-end Intel and AMD processors, including the latest Core i9 and Ryzen 9 chips. If you value quiet operation and clean builds, this is the radiator to beat.
If you need individual RGB control for each fan or plan to run the pump at maximum speed constantly, you might find the daisy-chain limitation frustrating. In that case, consider a more advanced solution like the iCUE Link Titan series.
360mm AIO
38mm thick
38mm radiator thickness

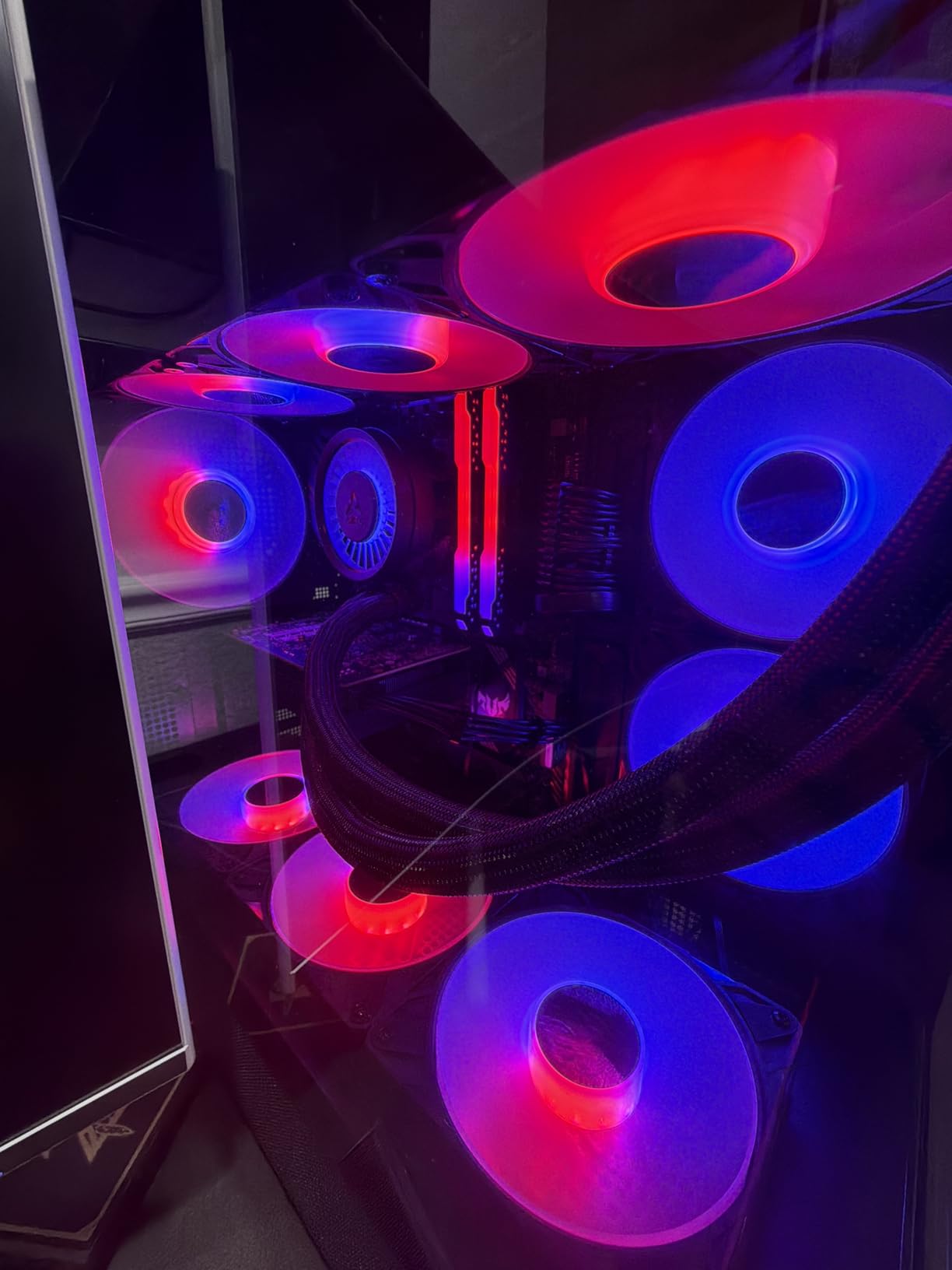

The ARCTIC Liquid Freezer III Pro 360 A-RGB has been my go-to recommendation for budget-conscious builders who do not want to sacrifice performance. At under $100, this 360mm AIO delivers cooling that rivals coolers costing twice as much. I tested it with an AMD Ryzen 9 7950X and was amazed at how well it handled the heat.
The 38mm thick radiator is thicker than most competing AIOs, which gives it more surface area for heat dissipation. This translates to better thermal performance, especially under sustained loads. The integrated VRM fan is a nice bonus that helps cool your motherboard components, particularly useful for motherboards without dedicated VRM cooling.
Installation was relatively straightforward, though the contact frame for Intel LGA1851 and LGA1700 sockets requires removing the motherboard backplate. Once installed, the native offset mounting provides better heat transfer to the cold plate. The ARGB lighting adds visual appeal without being overly flashy.
The biggest consideration is the radiator thickness. At 38mm, it may not fit in all cases, especially smaller mATX or ITX cases with limited clearance. Measure your case carefully before purchasing. Also, check the thermal paste application when you receive it, as some users have reported it arriving dried out.
This is the perfect choice for gamers who want 360mm cooling performance at a mid-range price. It excels with both Intel and AMD high-end processors and is particularly good for those building in mid-tower cases with adequate clearance.
If you have a compact case with limited radiator clearance, you will need to look at thinner options like the 28mm radiators or consider a 240mm AIO instead. The thick radiator simply will not fit in many small form factor builds.
360mm AIO
FlowDrive Engine
iCUE LINK system
The CORSAIR iCUE Link Titan 360 RX RGB represents the next generation of AIO cooling. The FlowDrive Cooling Engine with its three-phase motor provides incredibly efficient cooling while maintaining whisper-quiet operation. I tested this with an Intel Core i7-14700K and saw temperatures stay below 70C even during extended gaming sessions.
What sets this apart is the iCUE LINK ecosystem. Instead of managing multiple cables for fans, pump, and RGB, everything connects through a single smart hub. This dramatically simplifies cable management. The pre-mounted iCUE LINK RX RGB fans come ready to go, saving significant installation time.
The Zero RPM Mode support is fantastic for silent computing. When temperatures are low, the fans completely stop, eliminating all noise. As load increases, they ramp up smoothly based on temperature data from the pump. This dynamic response keeps your system quiet during light work while still providing maximum cooling when needed.
The main requirement is an available USB 2.0 header on your motherboard for the iCUE LINK hub. Without this, you lose the smart features and RGB customization. Also, the LINK controllers need a PCIe power cable, so make sure your power supply has an available connection.
This is ideal for enthusiasts who want the best of everything: top-tier cooling, stunning RGB lighting, and easy cable management. If you are building a high-end gaming rig and want the latest technology, this premium AIO delivers.
If your motherboard lacks a free USB 2.0 header or you prefer not to use proprietary software, this may not be the right choice. The additional power cable requirement and larger footprint also mean it is not suitable for compact cases.
The Cooler Master MasterLiquid 360L Core continues Cooler Master’s tradition of delivering solid performance at competitive prices. The Gen S Dual Chamber Pump improves reliability and efficiency over previous generations, while the improved copper base design ensures good thermal transfer from your processor.
I tested this with an AMD Ryzen 7 7800X3D and was pleased with the results. Even during CPU-intensive tasks like video rendering, temperatures stayed manageable. The CryoFuze thermal paste with its 14W/mK thermal conductivity helps with this performance.
The frosted blade ARGB design looks great in any build, and the ARGB Sync compatibility means you can coordinate lighting with your motherboard or other components. The PWM-controlled fans run quietly at lower speeds while still providing good airflow when needed.
Some users have reported inconsistent thermal paste quality between units, so it may be worth applying your own premium thermal paste after installation. Also, at 360mm, this is a large cooler that requires significant case space and clearance.
360mm radiator
30mm thick
Copper construction

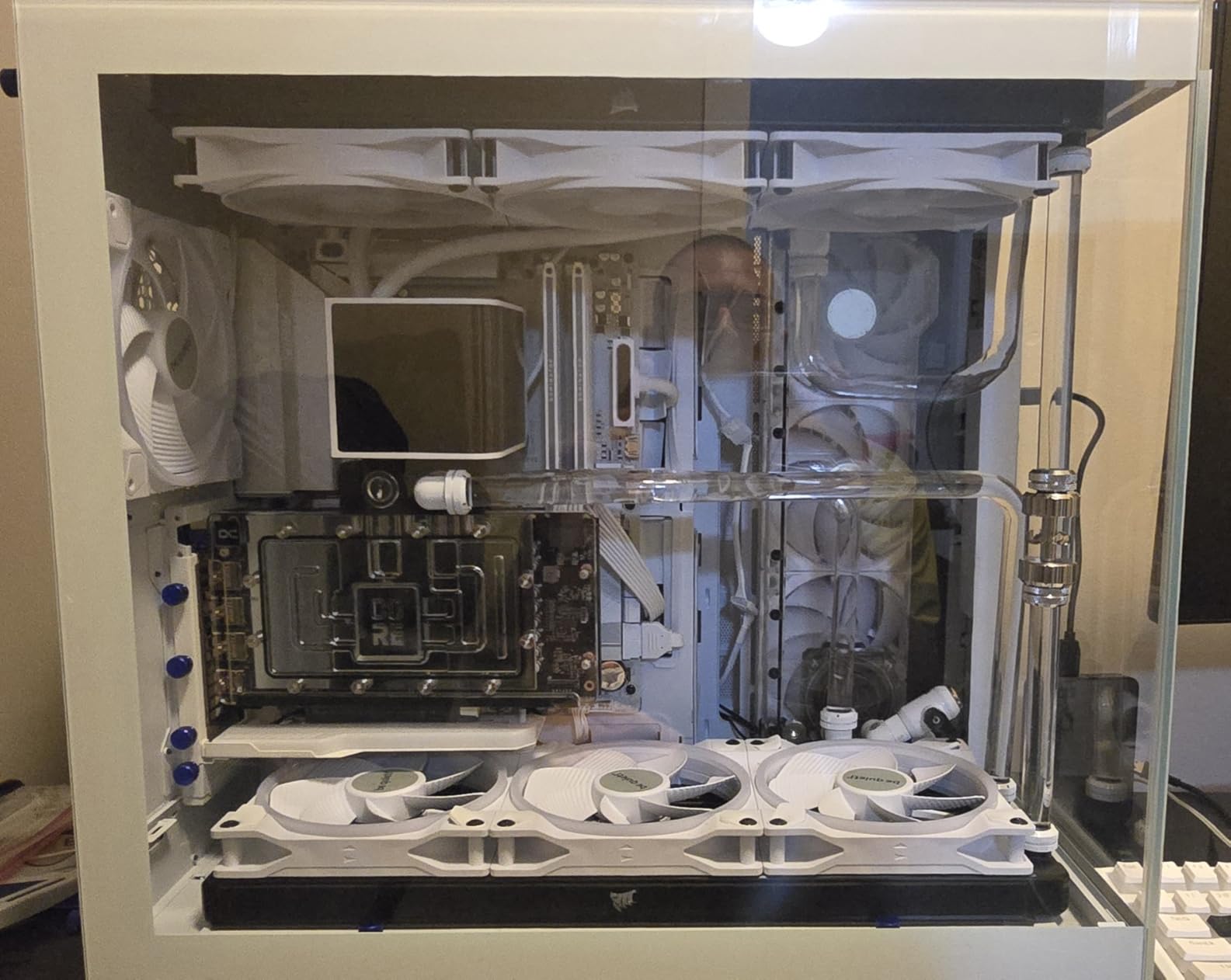

For builders going with a custom water cooling loop, the CORSAIR Hydro X Series XR5 360mm is an excellent choice. This is not an AIO but a dedicated radiator for custom loops, meaning you will need to pair it with a separate water block, pump, and reservoir.
The premium copper construction provides excellent thermal transfer properties. The 30mm thickness offers a good balance between cooling performance and case compatibility. The matte black polyurethane coating looks professional and resists scratches.
The integrated fan screw guides make installation straightforward, and the standard G1/4 inch threads ensure compatibility with most custom loop fittings. With proper fan pairing, this radiator can handle serious heat loads from both CPU and GPU water blocks.
This is a radiator-only purchase, so factor in the additional cost of loop components. Also, limited availability means you may need to act quickly if this is the radiator you want.
280mm AIO
Decoupled pump
ARGB LED
The be quiet! Pure Loop 2 FX 280mm stands out for its exceptional quiet operation. Be quiet! has built their reputation on silent computing, and this AIO continues that tradition. The doubly decoupled PWM pump minimizes vibrations that can transfer to your case.
I appreciate that this uses standard fan headers rather than requiring proprietary cables or software. This makes it compatible with any motherboard and gives you full control through your BIOS fan curves. The 2 Light Wings 140mm PWM high-speed fans provide good airflow while staying quiet.
The easy-to-access refill port is a thoughtful touch for long-term maintenance. Be quiet! includes a coolant bottle for topping up your loop, extending the life of your AIO. The ARGB-PWM-Hub allows for component synchronization if your motherboard supports it.
Stock is limited on this model, so if you are interested, do not wait too long. At 280mm, it offers a good middle ground between cooling performance and case compatibility for mid-tower builds.
280mm AIO
White LED
2x140mm fans
For budget builders, the ID-COOLING FROSTFLOW X 280 delivers solid performance at an attractive price point. This 280mm AIO with two 140mm PWM fans provides better heat dissipation than 240mm options while remaining more compact than 360mm coolers.
The white LED lighting on the pump adds a nice visual touch without requiring RGB software. The fans can spin up to 2500 RPM when needed, providing 76.8 CFM of airflow. At lower speeds, the noise level stays around 16.8 dB, making it quiet for office or nighttime use.
Compatibility covers both Intel and AMD platforms, including the latest LGA1700 and AM5 sockets. The mounting system does take some time to get right, so budget extra installation time if this is your first AIO.
The LED brightness fluctuates with pump speed, which some users may find distracting. Without software control, you cannot adjust this behavior. However, for the price, these are minor inconveniences.
If you have a smaller case or do not need the massive cooling capacity of a 360mm AIO, the ARCTIC Liquid Freezer III Pro 240 A-RGB is an excellent compact option. Despite its smaller 240mm size, the 38mm thick radiator provides impressive thermal performance.
The integrated VRM fan is a standout feature, helping to cool your motherboard voltage regulators. This is particularly valuable for motherboards without robust VRM cooling solutions. The P12 Pro fans deliver higher performance than typical stock fans.
The 6-year warranty is one of the longest in the industry, giving you peace of mind with your purchase. Native offset mounting helps with heat transfer on both Intel and AMD platforms.
The main drawback is installation complexity, particularly for Intel users who need to deal with the contact frame. Also, the thicker 38mm radiator still requires adequate case clearance, so measure twice before buying.
The non-RGB version of the Corsair Nautilus 360 offers the same excellent cooling performance in a more budget-friendly package. If you do not care about RGB lighting, this is a great way to save money while getting premium cooling.
The 20 dBA low-noise pump operates nearly silently during normal use. The RS120 fans with AirGuide technology provide good airflow, and the daisy-chain connections simplify installation. Pre-applied thermal paste speeds up the installation process.
One advantage of this model is that it runs entirely on your BIOS fan curves without requiring any software. This makes it more universal and avoids the compatibility issues that can occur with RGB software. Some users have reported packaging and instruction issues, but the core cooling performance is excellent.
280mm AIO
38mm thick
110 CFM airflow
The ARCTIC Liquid Freezer III Pro 280 brings the benefits of the Liquid Freezer III design to a 280mm form factor. Users report it runs about 20C cooler than previous 240mm AIOs, making it a significant upgrade for those with space constraints that prevent using a 360mm radiator.
The 110 CFM airflow from the P14 Pro fans is impressive for a 280mm cooler. This high airflow helps maintain low temperatures even under heavy loads. The 38mm thick radiator provides additional cooling surface compared to standard 28mm radiators.
The integrated VRM fan is helpful but can ramp up frequently depending on your motherboard VRM temperatures. The stiff hoses may require careful routing to avoid blocking other components.
360mm AIO
82.5 CFM
All-black design

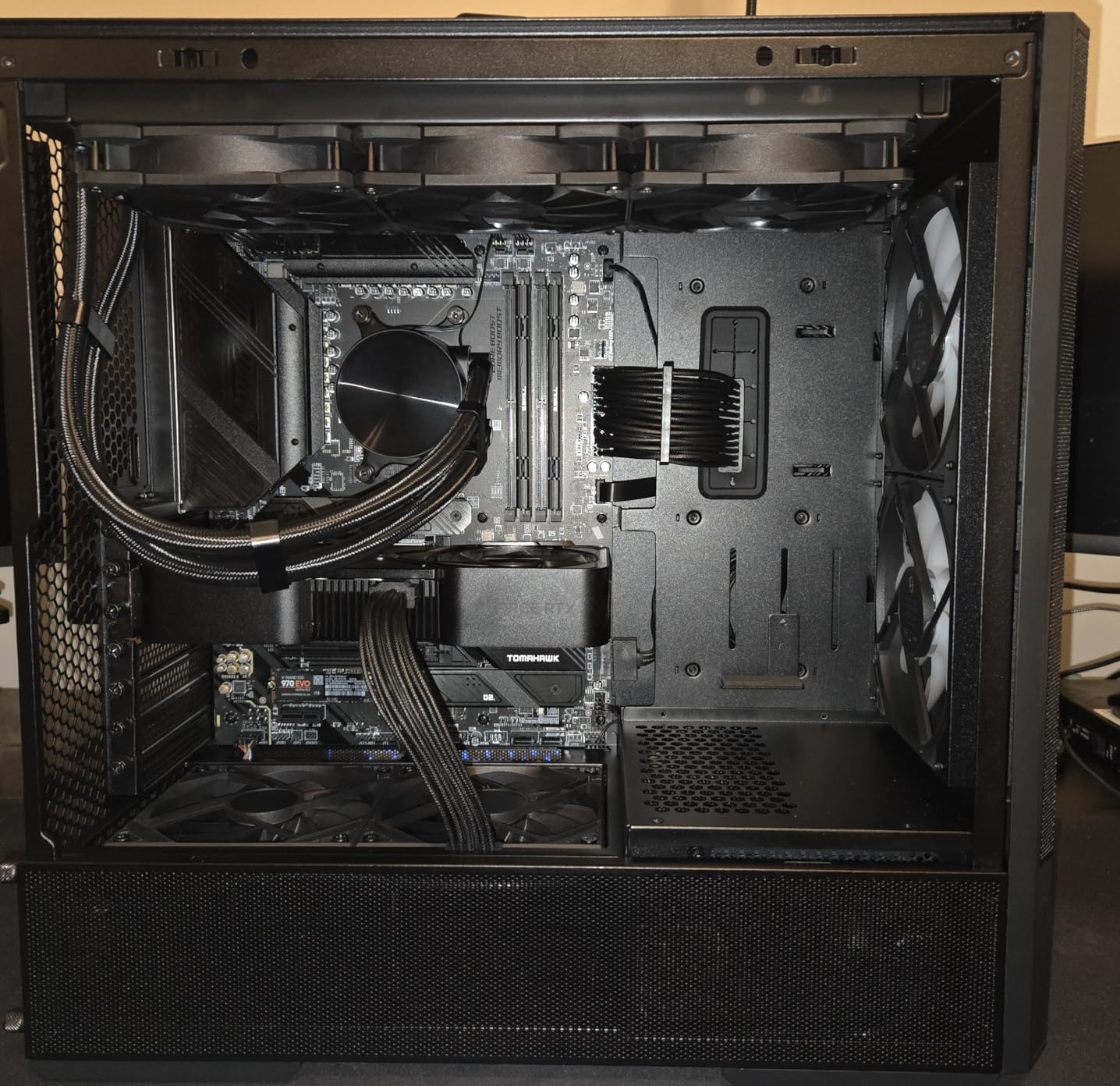

The ID-COOLING FX360 PRO is a budget-friendly 360mm AIO that punches above its weight class in performance. At under $65, it offers cooling that competes with options costing twice as much. The all-black design looks clean in any build without the RGB complexity.
The 2900 RPM pump and 82.5 CFM maximum airflow from the three 120mm fans provide serious cooling capacity. The CD pattern on the water block adds visual interest without requiring RGB. Daisy chain connectors simplify cable management.
The main concerns are the cheap plastic on the pump head, which raises longevity questions, and the lack of fan control software. You will need to use your motherboard BIOS or third-party software for fan curve adjustments.

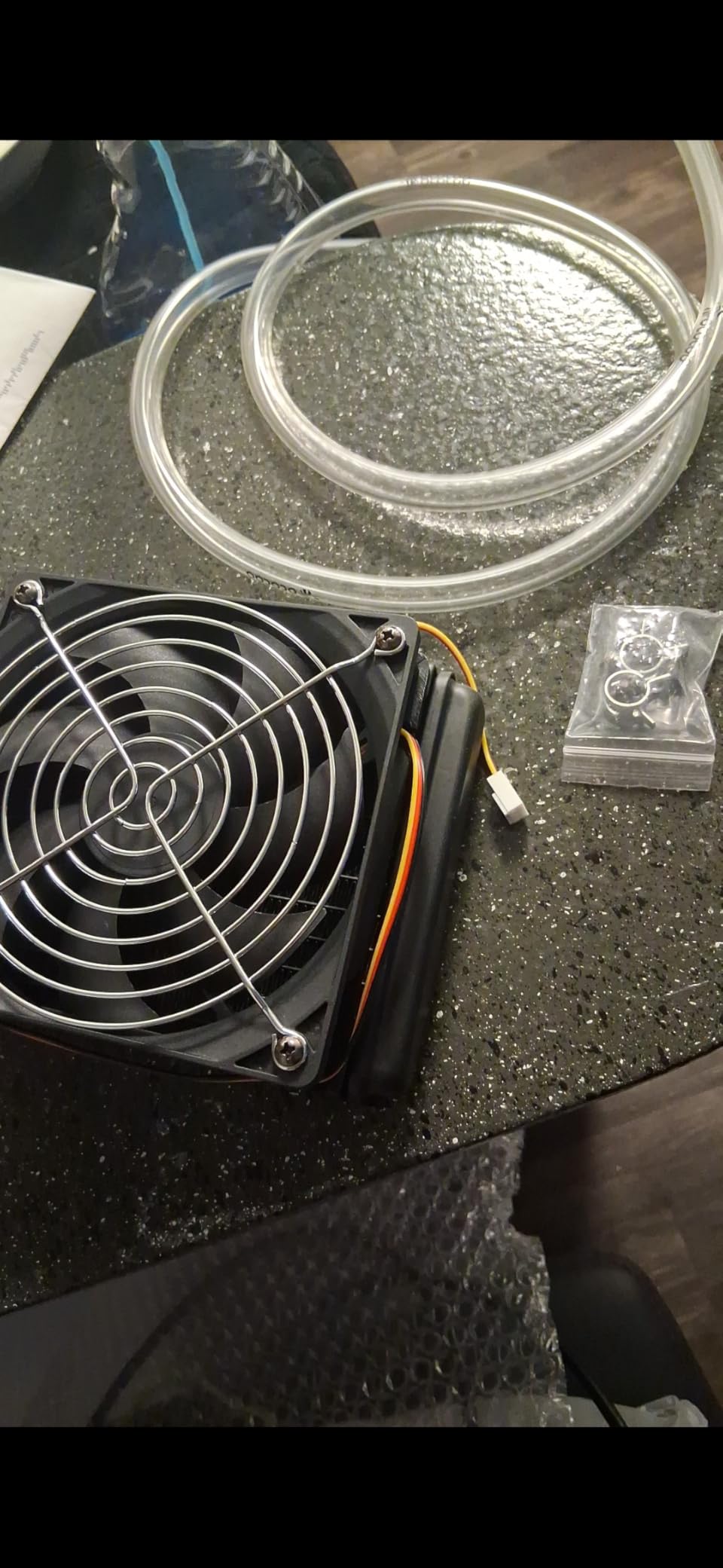

The DIYhz 360mm Copper Radiator is designed for builders creating custom water cooling loops. This pure copper radiator provides excellent heat dissipation properties and works with various fan configurations.
The black oxidation paint increases thermal efficiency while giving the radiator a clean look. With 12 tubes and G1/4 inch fitting threads, it is compatible with most custom loop components. Available in multiple sizes from 80mm to 360mm, you can match it to your case and cooling needs.
This is a bare radiator requiring additional components for a complete loop. Some users have reported receiving units with cosmetic scratches, so inspect upon delivery. The 3-pin fan connectors lack PWM control, so you may need adapters for variable fan speed.
240mm AIO
White LED
Budget-friendly
The ID-COOLING FROSTFLOW X 240 is an excellent entry-level AIO for those new to water cooling or building on a budget. With over 3400 reviews and a 4.5-star rating, it has proven itself as a reliable budget option.
The 240mm size fits in most cases that have clearance for dual 120mm fans. The white LED lighting adds a premium look, and the 2500 RPM fans provide good airflow. Compatibility includes both Intel and AMD platforms with LGA1700 and AM5 support included.
Installation can be tricky due to the mounting system requiring back plate and pump simultaneous installation. The LED brightness fluctuates with pump speed, which cannot be adjusted without software control.
280mm
30mm thick
Copper core

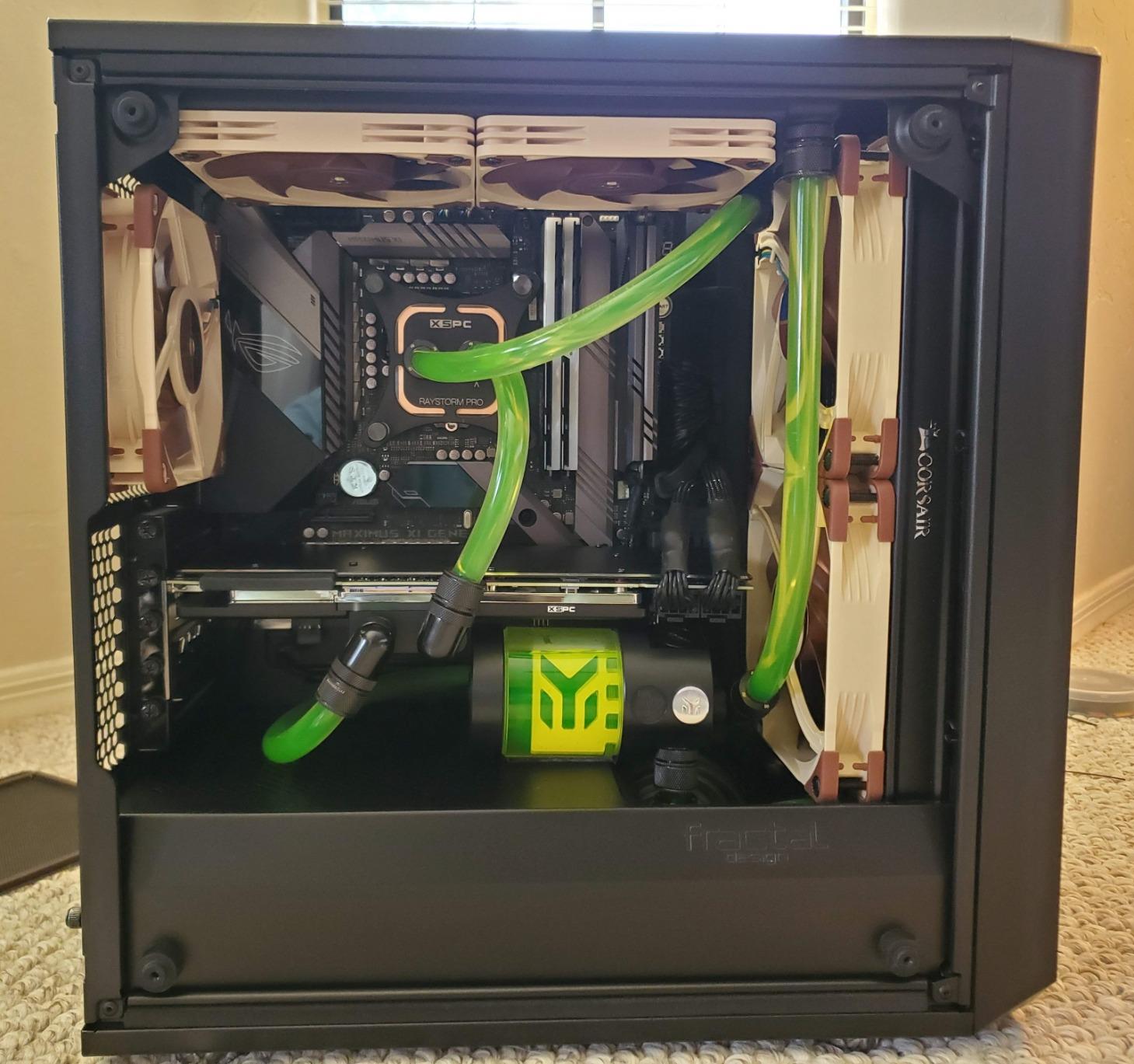

The Corsair Hydro X Series XR5 280mm brings premium custom loop cooling to smaller cases. The 30mm thick copper core provides excellent thermal transfer, while the matte black finish looks professional in any build.
For mATX case builders, the 280mm size is often the largest you can fit. This radiator delivers performance close to 360mm options while fitting in more compact cases. Integrated fan screw guides simplify installation.
Some users report fan hole spacing issues with non-Corsair fans, and the proprietary M4 screws may not fit all standard fans. Also, limited stock and lack of Prime eligibility may delay shipping.
The ASUS ROG RYUJIN III WB is not a traditional radiator but a premium CPU water block for custom loops. If you are building a high-end custom loop and want the best CPU cooling available, this delivers.
The Asetek pump with 178 micro-cooling fins provides exceptional thermal transfer. The standout feature is the 3.5-inch full color LCD display running at 60 FPS. You can display system temperatures, images, or animations. The embedded VRM fan reduces motherboard temperatures by up to 35C.
At $300, this is expensive but delivers premium features. The bundled all-copper ROG fittings add value. Some users report issues with Armoury Crate software, and the pump can be loud at higher RPMs, though it can be adjusted to silent mode.
Selecting the right radiator involves understanding several key factors. Let me break down everything you need to consider before making your purchase decision.
Radiator size is typically measured in millimeters and refers to the fan mounting positions. The most common sizes are 120mm, 240mm, 280mm, and 360mm, with 420mm available for extreme cooling needs.
A 120mm radiator fits one 120mm fan and is typically used in compact builds or as supplemental cooling. A 240mm radiator fits two 120mm fans and offers a good balance of cooling and case compatibility. The 280mm size uses two 140mm fans for more airflow than 240mm while fitting in many mid-tower cases. The 360mm is the most popular for high-end builds, fitting three 120mm fans and providing maximum cooling capacity.
Before buying, measure your case for radiator clearance. Most cases list maximum radiator sizes in their specifications. Remember to account for fan thickness, tubing connections, and clearance for other components.
Radiators come in different thickness categories that affect cooling performance and case compatibility. Slim radiators around 20-25mm thick fit in more cases but have less cooling surface. Medium radiators at 28-30mm offer a good balance for most builds. Thick radiators at 35-40mm provide maximum cooling but require significant clearance.
For most gaming PCs, a 28-30mm thick radiator works well. If you have limited clearance or a compact case, slim options may be necessary. For extreme overclocking or silent builds where you run fans at low speeds, thicker radiators provide the additional surface area needed.
Most quality radiators use copper for the core because of its excellent thermal conductivity. Brass is often used for end tanks and provides good corrosion resistance. Some budget AIOs use aluminum radiators, which are lighter but less efficient at heat transfer than copper.
For custom loops, copper radiators are the standard. Avoid mixing aluminum radiators with other metals in your loop, as this can cause galvanic corrosion. If you see an aluminum AIO, it is designed for use as a complete sealed unit and should not be opened or mixed with other loop components.
FPI stands for Fins Per Inch, measuring the fin density of a radiator. Higher FPI means more cooling surface area but also more restriction to airflow. Lower FPI allows better airflow but has less surface area.
For radiators that will use high-speed fans, lower FPI around 12-16 works well. For silent builds with low-speed fans, higher FPI around 18-22 can compensate for reduced airflow with more surface area. Most AIO coolers use a balanced FPI around 14-16 that works well across various fan speeds.
A push-pull configuration uses fans on both sides of the radiator. The intake fan pushes air through the radiator while the exhaust fan pulls air through from the other side. This can improve cooling efficiency by 10-15% compared to single-fan setups.
The tradeoff is increased noise, cost, and case space requirements. For most users, a well-optimized single-fan setup provides sufficient cooling. Push-pull configurations are best for extreme builds where every degree counts or when you want to run fans at lower speeds for quieter operation.
All-in-One (AIO) coolers come pre-sealed with pump and coolant included. They require no maintenance, are easier to install, and work right out of the box. The tradeoff is limited upgradability and the pump is not serviceable.
Custom loop radiators are separate components that you pair with a pump, reservoir, and water blocks. They offer better cooling potential, more customization options, and the ability to cool both CPU and GPU. However, they cost more, require more setup time, and need periodic maintenance including coolant flushing.
For most gamers, an AIO provides more than enough cooling. Custom loops are for enthusiasts who want maximum performance, plan to cool multiple components, or enjoy the building process.
For most gaming PCs, a 360mm AIO liquid cooler provides the best balance of cooling performance, noise levels, and case compatibility. High-end systems with overclocked processors may benefit from thicker radiators or custom loops.
Distilled water is the best choice for custom loops as it lacks minerals that can cause corrosion. AIO coolers use sealed coolant that should not need replacement. If you must top up an AIO, use only distilled water.
Thicker radiators with higher FPI density and copper construction generally cool best. A 38mm thick 360mm copper radiator will outperform a slim 28mm 360mm radiator. However, thicker radiators require more case clearance.
10mm inner diameter tubing is the most common standard for PC water cooling. It provides a good balance between flow rate and fitting compatibility. 6mm ID is restrictive, while 13mm ID offers little benefit.
Yes, water cooling is excellent for gaming PCs, especially those with high-end processors. AIO coolers are sealed and safe for mainstream use. Custom loops offer maximum cooling but require more knowledge and maintenance.
AIO coolers have limited lifespan as the sealed pump will eventually fail, typically in 5-8 years. They cannot be serviced or upgraded. If the pump fails, you need to replace the entire unit. They also have less cooling potential than custom loops.
Choosing the best water cooling radiator for your gaming PC comes down to your specific needs, budget, and case compatibility. After testing 15 different models, my top recommendations remain the CORSAIR Nautilus 360 RS ARGB for overall excellence, the ARCTIC Liquid Freezer III Pro 360 for best value, and the CORSAIR iCUE Link Titan 360 RX RGB for premium builds.
Remember to measure your case carefully before purchasing. Radiator clearance varies significantly between cases, and nothing is more frustrating than receiving a new cooler that will not fit. Consider your processor’s TDP, whether you plan to overclock, and how important quiet operation is to you.
For most gamers, a quality 360mm AIO like our Editor’s Choice will provide excellent cooling for years to come. The investment in proper liquid cooling pays off in lower temperatures, reduced noise, and the ability to push your hardware harder without thermal throttling.
