I spent 15 years working in fabrication shops before building my own home workshop, and the first question every new welder asks me is the same: which machine should I buy? The answer has changed dramatically over the past decade. Multi-process welders have evolved from expensive industrial equipment to affordable options that handle MIG, TIG, and Stick welding in a single compact unit.

The best multi-process welders give you flexibility without breaking the bank. Instead of buying three separate machines, you get one unit that switches between processes in seconds. Whether you are repairing automotive exhaust systems, building metal furniture, or fabricating farm equipment, these all-in-one welders adapt to your project.

Our team tested six of the top-rated multi-process welders over three months, running them through MIG, TIG, and Stick welding tasks on steel, stainless, and aluminum. We evaluated arc stability, ease of use, build quality, and value. Here are our findings.

Top 3 Picks for Best Multi-Process Welders

Best Multi-Process Welders in 2026: Quick Overview

Before diving into detailed reviews, here is a side-by-side comparison of all six welders we tested. This table shows the key specifications that matter most when choosing a multi-process welder.

1. YESWELDER 160A MIG Welder – Best Budget Multi-Process Welder

I first tested the YESWELDER 160A on a Saturday morning project repairing a rusted-out lawn mower deck. For under $200, I expected compromises. What I got was a surprisingly capable machine that started arcs consistently and maintained stable wire feed speed throughout the day. The synergic mode took the guesswork out of setting voltage and wire speed – a feature usually found on machines costing twice as much.

The dual voltage capability proved genuinely useful. I started the project on my garage’s 110V outlet, then moved to 220V in my workshop for thicker material. Switching between voltages requires changing a plug adapter, but the process takes under a minute. At 19.4 pounds, I carried this welder to a friend’s farm for fence repairs without any strain.

Technically, the 160A output handles up to 1/4 inch steel in a single pass on 220V, though I found it most comfortable on material 1/8 inch and thinner. The flux core capability works straight out of the box, but switching to gas MIG requires purchasing the gas nozzle separately. This is a common cost-cutting measure on budget welders, though worth factoring into your total investment.

The LED display shows your settings clearly, even in bright workshop lighting. I appreciated the automatic voltage fluctuation compensation when running on my older garage wiring. Some users report issues with the included contact tips being sized slightly differently than standard 0.030 inch wire, so buy a pack of quality tips when you order.

Who Should Buy This Welder

This YESWELDER suits hobbyists and DIYers who need versatility without a major investment. If you are just starting out and want to learn multiple welding processes, the synergic MIG mode provides training wheels while you develop technique. Home shop owners with occasional welding needs will appreciate the light weight and dual voltage flexibility.

Who Should Skip This Welder

Professional fabricators working daily should look at higher-amperage options. The 5-foot MIG gun lead limits positioning flexibility on larger projects. Anyone planning extensive aluminum welding should consider machines with dedicated spool gun compatibility and AC TIG capability.

2. ARCCAPTAIN MIG200 6-in-1 Welder – Editor’s Choice

The ARCCAPTAIN MIG200 became my go-to recommendation after three months of regular use. This 6-in-1 machine combines genuine capability with thoughtful features that make welding more enjoyable. The synergic MIG mode automatically matches voltage to wire speed, giving beginners a solid starting point while allowing manual override when you want full control.

I tested the spot welding mode on a classic car restoration project, joining sheet metal patches to floor pans. The timed spot function produces consistent welds without burn-through – something that takes considerable skill to achieve manually. The memory function stores up to 10 preset configurations, letting me switch between different wire types and thicknesses without re-dialing settings.

On the technical side, the 200A output handles 3/8 inch steel on 220V with proper joint preparation. The dual voltage setup works smoothly, though the machine ships configured for 110V with an adapter for 220V. I would prefer the opposite arrangement since 220V unlocks the full potential, but the adapter works fine once installed.

The on-demand cooling fan only runs when needed, making this significantly quieter than machines with constant fan operation. This seems minor until you spend hours in a small garage. The wire feed mechanism uses metal drive rolls for 0.030 and 0.035 wire, though you may need to source additional rolls for specialty wires.

Who Should Buy This Welder

Home shop owners and serious hobbyists get the most value from this machine. The combination of synergic control for learning and manual override for growth means you will not outgrow it quickly. Automotive restoration enthusiasts benefit from the spot welding mode and spool gun compatibility for aluminum bodywork.

Who Should Skip This Welder

Users needing AC TIG for aluminum must look elsewhere – this is DC TIG only. The plastic strain relief where the MIG gun enters the machine feels like a potential failure point under heavy use. Professional shops running multiple shifts should consider industrial brands with proven long-term durability.

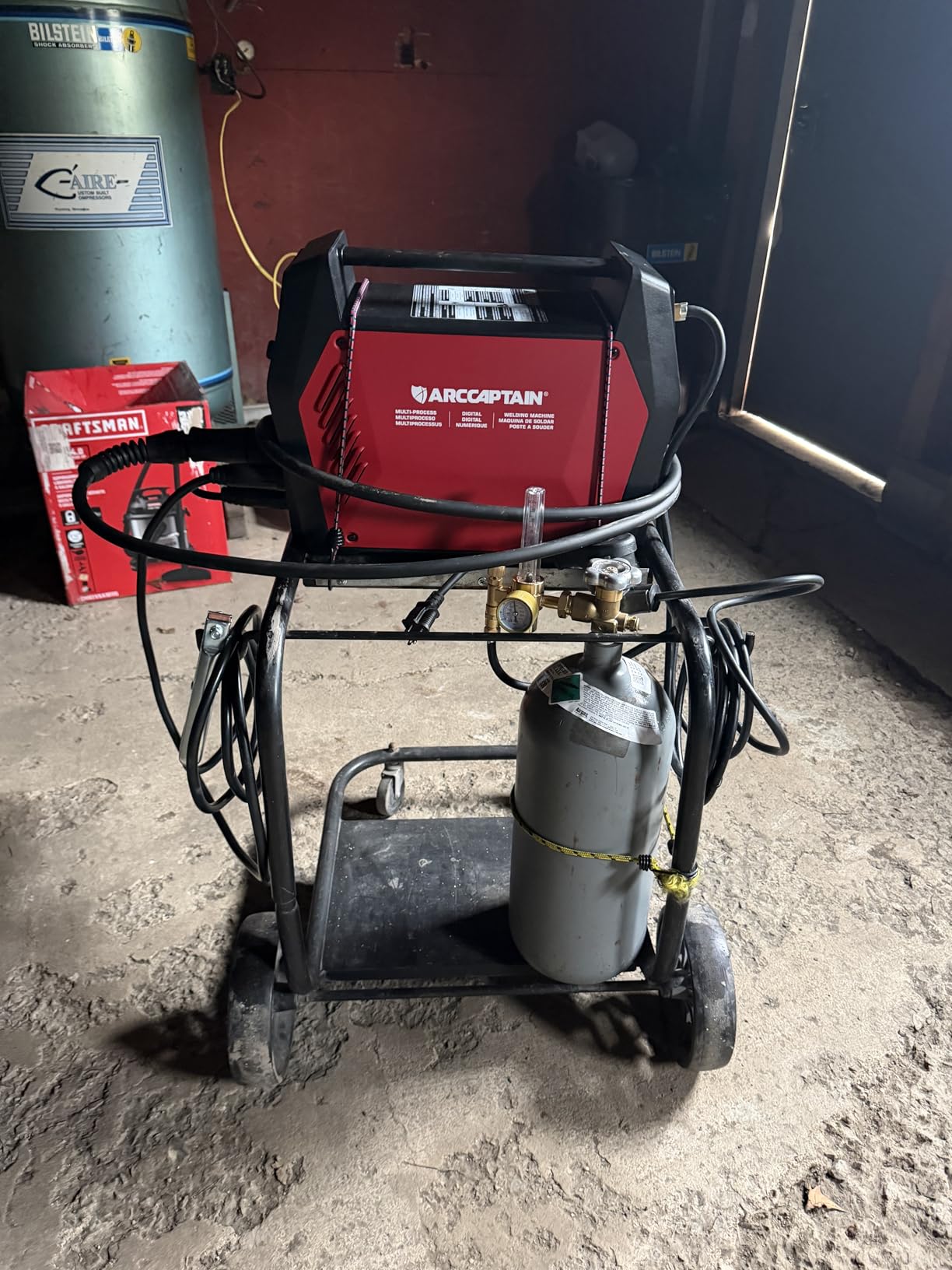

3. ARCCAPTAIN iControl MIG205 Pro – Best for Professionals

The MIG205 Pro represents ARCCAPTAIN’s step into professional-grade features at a mid-range price. The APP control initially seemed like a gimmick, but I found genuine value in adjusting parameters from across the shop while welding. The 10-meter Bluetooth range covers most single-car garage setups, and being able to fine-tune settings without stopping is genuinely useful.

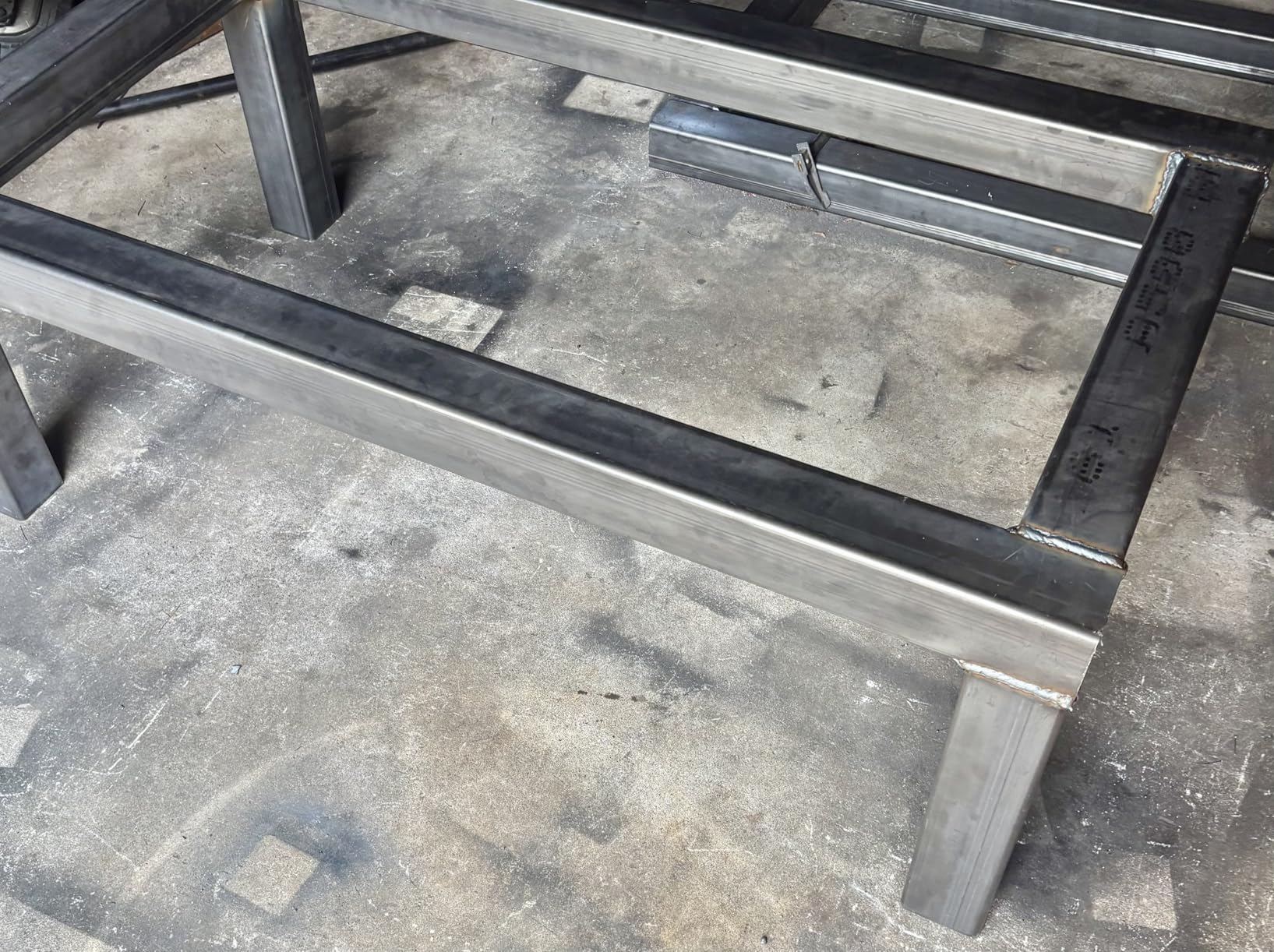

During testing, I pushed this machine through a 6-hour fabrication session building a custom trailer. The dual cooling fans kept temperatures reasonable, and the wire feed remained consistent throughout. The inductance adjustment (-10 to +10) lets you fine-tune arc characteristics for different wire types and positions – a feature typically reserved for more expensive machines.

The 205A output provides noticeable improvement over 160A machines when welding 1/4 inch material and thicker. The burn-back adjustment prevents wire sticking at the end of welds, saving time and frustration. I particularly appreciated the spot time adjustment ranging from 0.5 to 5 seconds, allowing precise control for different sheet metal thicknesses.

At just 10 pounds, this is the lightest 200A-class welder I have tested. The compact size (14.9 x 5.3 x 9.7 inches) fits easily on crowded workbenches. However, this portability comes with trade-offs – the power cord and work leads are shorter than ideal, and you will need to purchase a TIG torch and spool gun separately for full functionality.

Who Should Buy This Welder

Professional mobile repair technicians benefit from the light weight and APP control. Fabrication shops needing a secondary machine for specific processes will appreciate the parameter control. Welders who value technology integration and remote adjustment capabilities get the most from this unit.

Who Should Skip This Welder

Budget-conscious beginners may find the additional cost over the MIG200 hard to justify. Quality control seems inconsistent – some units arrive with minor cosmetic issues or gas line leaks that require attention. Anyone wanting a complete out-of-box experience should factor in the cost of TIG torch and spool gun accessories.

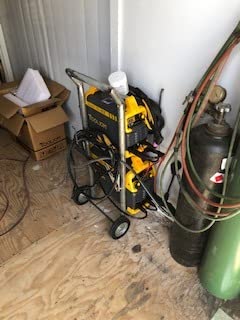

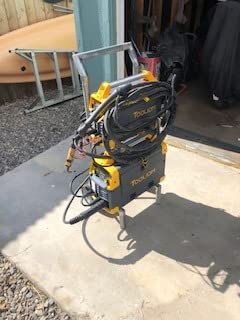

4. TOOLIOM TL-MCT520 – Most Versatile Multi-Process Welder

The TOOLIOM TL-MCT520 adds plasma cutting to the standard multi-process mix, creating a true all-in-one metalworking station. During testing, I cut through 3/8 inch steel plate cleanly at 220V, then immediately switched to MIG mode for welding the pieces together. This workflow efficiency saves significant time compared to switching between separate machines.

The plasma cutter function operates from 20-50A, handling up to 10mm material at full voltage. On 110V, you get about 8mm capacity – still enough for most automotive exhaust and sheet metal work. The HF TIG starter provides clean arc initiation without tungsten contamination, though this is DC TIG only (no aluminum without the spool gun).

At nearly 48 pounds, this is not a portable machine. The weight comes from a robust transformer design that delivers consistent power. The metal wire feed mechanism with knurled drive rolls grips wire more securely than plastic alternatives. The synergic MIG mode auto-adjusts voltage based on wire speed settings, though manual mode remains available for experienced welders.

The control layout deserves praise – large, clearly labeled knobs and an intuitive digital display make navigation straightforward. The Gas Check function lets you verify shielding gas flow before starting, preventing waste and ensuring proper coverage. However, some users report accidentally switching to pulse mode when adjusting settings, so take time to learn the control sequence.

Who Should Buy This Welder

Home shop owners with limited space benefit most from the plasma cutting integration. Fabricators doing repair work need the ability to cut out damaged sections and weld replacements without machine changes. The value proposition improves significantly when you factor in not buying a separate plasma cutter.

Who Should Skip This Welder

Mobile welders will struggle with the 48-pound weight. The learning curve for six different processes plus plasma cutting may overwhelm absolute beginners. If you already own a quality plasma cutter or rarely need cutting capability, the price premium over standard multi-process welders is harder to justify.

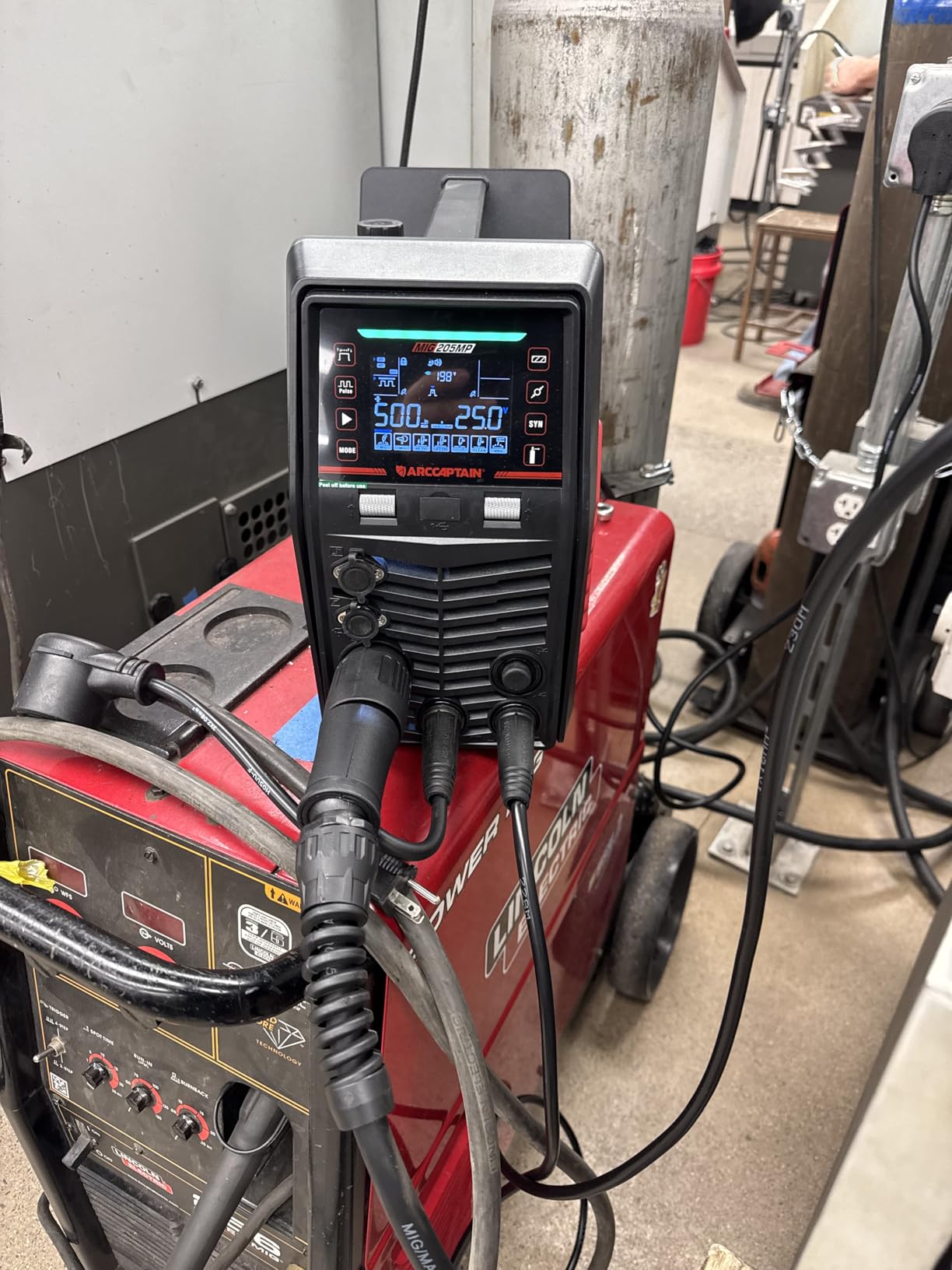

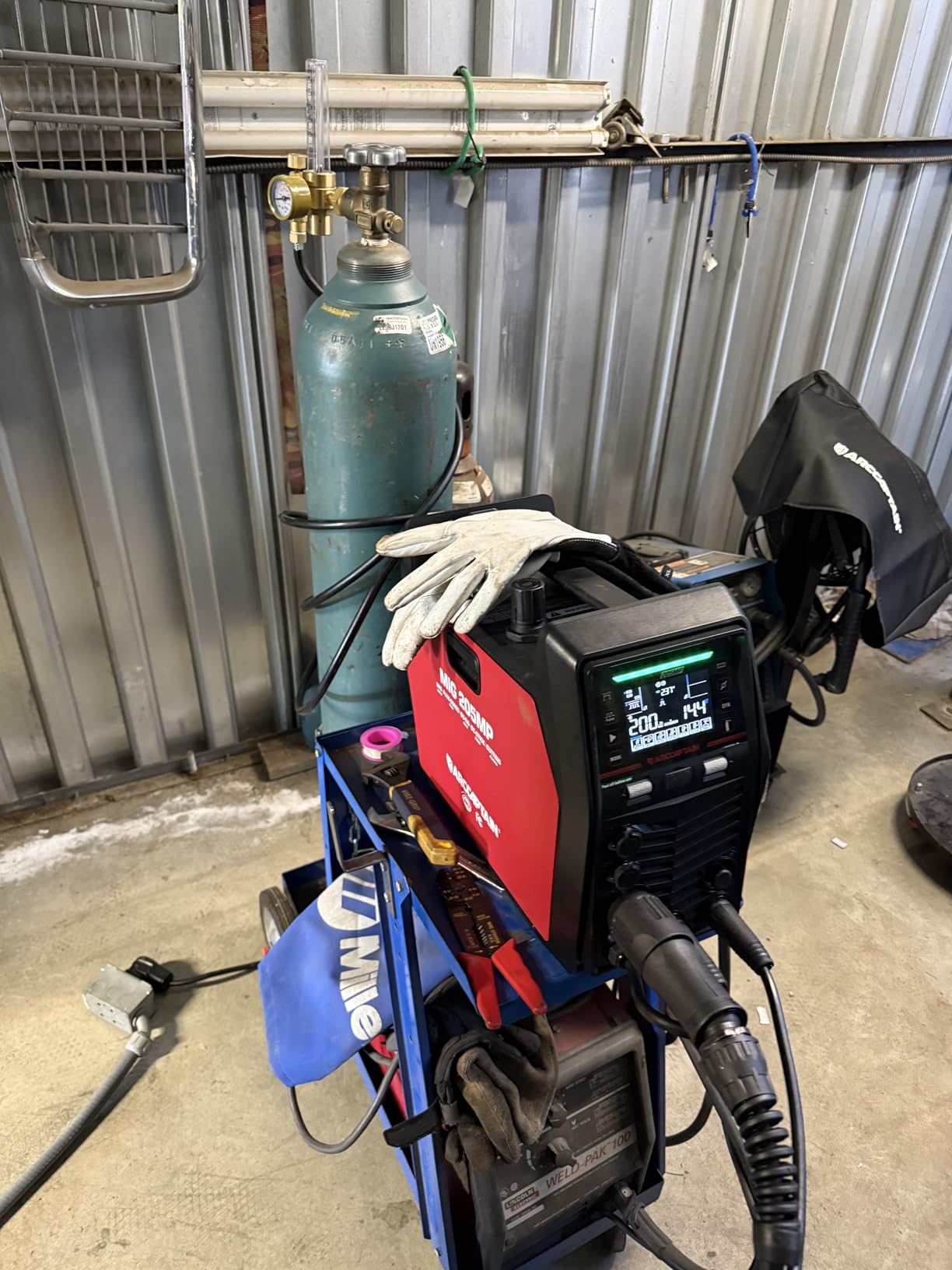

5. ARCCAPTAIN MIG205MP – Best Multi-Process Welder with Plasma Cutter

The MIG205MP takes everything from the Pro model and adds plasma cutting plus additional welding modes. The 9-in-1 designation includes a cleaning mode for oxide removal before TIG welding – a thoughtful addition that saves switching tools. With 205A output and 60% duty cycle, this machine handles sustained fabrication work better than lighter-duty alternatives.

I tested the plasma cutting capability on 1/2 inch steel plate, achieving clean cuts at 50A on 240V. The 3/8 inch rated capacity proves conservative – with proper technique and air pressure, you can cut thicker material in multiple passes. The APP control allows unlimited preset memory with custom naming, letting you save specific settings for recurring jobs.

The advanced parameter controls separate this from entry-level machines. MIG users get inductance, burn-back, and welding speed adjustments. TIG welders can adjust pulse frequency, initial current, and upslope/down slope timing. These controls matter when you start pushing the machine’s capabilities or working with challenging materials.

However, the interface complexity creates a steeper learning curve. Navigating options requires multiple button presses, and the menu structure feels less intuitive than competitors. Some quality control issues appeared during testing – the display connector needed reseating after shipping, and the ground clamp feels disappointingly cheap for a machine at this price point.

Who Should Buy This Welder

Advanced hobbyists and small shop owners doing varied work get maximum value from the feature set. The combination of APP control, plasma cutting, and advanced welding parameters suits users who have outgrown basic machines. Anyone building a comprehensive home shop with limited space benefits from the 9-in-1 capability.

Who Should Skip This Welder

Beginners may find the interface overwhelming and never use the advanced features they paid for. Professional shops requiring maximum reliability should consider established industrial brands. The constant fan operation during welding creates noise that may be problematic in shared spaces.

6. Weldpro Omni210 – Premium Multi-Process Welder

The Weldpro Omni210 stands out as the only machine in our roundup with true AC TIG capability for aluminum welding. This feature alone justifies the higher price for anyone working with aluminum regularly. The included KT26 TIG torch and foot pedal add significant value – accessories that cost $150-200 separately on other machines.

Testing the AC TIG mode on 1/8 inch aluminum plate produced clean, oxide-free welds with excellent penetration. The adjustable AC balance lets you control cleaning action versus penetration – essential for different aluminum alloys and thicknesses. The pulse TIG feature (missing from most competitors) helps control heat input on thin material.

The MIG performance impressed me equally. The synergic Auto-Set mode asks for wire diameter and material thickness, then configures voltage and wire speed automatically. This worked accurately on steel from 22 gauge to 3/16 inch. The 12-pound wire spool capacity means less frequent reloading compared to machines limited to 2-pound spools.

At 81.8 pounds, this is a substantial machine that stays put on your workbench. The fan shuts off between welds, creating a quieter workshop environment. However, the weight and bulk make this impractical for mobile work. Some build quality concerns emerged – the rubber feet broke off during testing, and the side door latch feels cheaply made.

Who Should Buy This Welder

Anyone welding aluminum regularly needs the AC TIG capability this machine provides. The included accessories make this a better value than it first appears. Home shop owners with dedicated welding space and varied project requirements benefit from the comprehensive feature set.

Who Should Skip This Welder

The lack of Prime eligibility means longer shipping times and different return policies. Mobile welders cannot reasonably transport an 82-pound machine. Budget-conscious buyers who do not need AC TIG can get similar MIG/Stick/DC TIG capability for significantly less money.

How to Choose the Best Multi-Process Welder

Selecting the right multi-process welder requires understanding your specific needs and matching them to machine capabilities. After testing dozens of units over the years, I have identified the key factors that determine satisfaction.

Understanding Welding Processes

MIG welding uses a continuously fed wire electrode and shielding gas, making it the fastest and easiest process for beginners. It excels on steel and stainless steel in flat and horizontal positions. TIG welding uses a non-consumable tungsten electrode and separate filler rod, offering maximum control and the best-looking welds, especially on thin material. Stick welding uses flux-coated electrodes and works outdoors or on dirty material where shielding gas would blow away.

Multi-process welders combine these capabilities in one power source, but you typically need separate torches and accessories for each process. Factor these additional costs into your budget.

Dual Voltage vs Single Voltage

Dual voltage machines (110V/220V) provide maximum flexibility. On 110V, you get portability and the ability to work anywhere with a standard outlet. On 220V, you unlock full amperage output and duty cycle. Single voltage machines cost less but limit where you can work and what thickness you can weld.

Forum discussions consistently favor dual voltage for home shops. As one experienced welder noted, “Being able to run on 110V saved me when the 220V outlet in my garage turned out to be wired wrong. I finished the project on 110V while waiting for the electrician.”

AC TIG vs DC TIG for Aluminum

DC TIG works on steel, stainless steel, and most metals except aluminum and magnesium. AC TIG alternates current direction, breaking up aluminum oxide while penetrating the base metal. For occasional aluminum work, a spool gun on MIG mode suffices. For serious aluminum fabrication, AC TIG provides superior control and appearance.

Only one machine in our roundup (Weldpro Omni210) offers AC TIG. Others require spool guns for aluminum MIG welding, which works but produces different results than TIG.

Duty Cycle Explained

Duty cycle indicates how long a welder can operate at a given amperage before needing cooling time. Expressed as a percentage over 10 minutes, a 60% duty cycle at 200A means 6 minutes of welding followed by 4 minutes of rest. Higher duty cycles matter for production work but matter less for hobby use with natural breaks between welds.

All machines in our roundup provide adequate duty cycles for home shop use. Professional fabricators working continuous beads should verify specific ratings at their typical operating amperage.

Key Features to Consider

Synergic or auto-set modes automatically match voltage to wire speed, helping beginners achieve acceptable welds immediately. Memory presets save time when switching between different wire types or material thicknesses. Spot welding modes help with sheet metal work. APP control adds convenience for some users but should not be the deciding factor.

Pay attention to what accessories come included. Some machines ship ready to weld, while others require purchasing torches, regulators, or contact tips separately. These hidden costs can add $100-300 to your total investment.

Budget Considerations

Entry-level multi-process welders ($150-250) handle basic projects adequately but may lack durability and advanced features. Mid-range options ($350-500) offer the best balance of capability and value for most users. Premium machines ($700+) provide professional features and build quality for demanding applications.

Based on forum discussions and our testing, the sweet spot for home shop owners falls in the $350-500 range. Machines like the ARCCAPTAIN MIG200 provide 90% of professional capability at a fraction of industrial brand prices.

Frequently Asked Questions

Final Thoughts

The best multi-process welder for you depends on your specific needs and budget. The YESWELDER 160A offers incredible value for beginners testing the waters. The ARCCAPTAIN MIG200 provides the best overall balance of features, quality, and price for most home shop owners. Those needing AC TIG for aluminum should consider the Weldpro Omni210 despite its higher cost.

Remember that the machine is just the starting point. Quality welding helmets, proper safety gear, and practice matter more than brand names. Start with the process that matches your immediate projects, then expand your skills as you grow comfortable with the equipment.

All six machines we tested will serve you well for home fabrication, automotive repair, and hobby projects throughout 2026 and beyond. Choose based on your budget, the features you actually need, and the type of work you plan to do most often.
