A spiral cutterhead does not eliminate tear-out on figured wood, but it reduces it more than anything else you can put in a planer. The inserts shear narrow slices instead of lifting a full-width shaving, so curly, bird’s-eye and quilted maple come off the machine close to sanded-ready. You will still hit a few bad spots now and then. What follows is what we found after working through eight machines on figured lumber in 2026.
That honesty matters more here than in most tool categories. Shop forums are full of people who expected a spiral head to perform magic and then felt burned. One Canadian woodworking poster put it better than we can: the heads are not perfect and will give you some tear-out sometimes, but it is drastically reduced. Set your expectation there and the machines deliver.
This roundup covers power thickness planers whose cutterheads use staggered or spiral-arranged indexable inserts. It is not a guide to hand planers, and if your planing list is straight-grained poplar and dimensional pine you will not get enough out of any of these machines to justify the spend. If you build solid wood furniture, cabinetry or musical instrument parts from figured hardwood, keep reading. For general machine coverage start with our thickness planer guide and our benchtop planer picks.
Table of Contents
Top 3 Best Spiral Cutterhead Planers for Figured Wood In 2026
WEN PL1326 13 in Spiral Planer
- 26 rotatable HSS blades
- 15A motor
- 81 lb cast iron base
- 13 in width
JET JWP-13BT 13 in Helical Planer
- Two feed speeds at 18 and 26 FPM
- 6 rows of 26 HSS inserts
- Cast iron bed
- 4-post head support
VEVOR 13 in Spiral Planer
- 24 spiral alloy blades
- 2000W at 23500 RPM
- 28.2 in worktable
- Dual-roller feed
All 8 Spiral Cutterhead Planers at a Glance (October 2026)
| Product | Specifications | Action |
|---|---|---|
| WEN PL1326 13 in Spiral Benchtop Planer |
|
Check Latest Price |
| JET JWP-13BT 13 in Helical Benchtop Planer |
|
Check Latest Price |
| VEVOR 13 in Spiral Thickness Planer |
|
Check Latest Price |
 RIKON 25-135H 13 in Helical Portable Planer |
|
Check Latest Price |
 JET JWP-208HH 20 in Helical Planer |
|
Check Latest Price |
 King Canada KC-13HPC 13 in Spiral Planer |
|
Check Latest Price |
 JET JPW-15BHH 15 in Helical Planer |
|
Check Latest Price |
 Wahuda 13 in Spiral Cutterhead Planer |
|
Check Latest Price |
How We Evaluated These Planers
We scored every machine on the things that actually change your result on figured lumber. First is cutterhead design and insert material, because a four-sided carbide insert that rotates four times outlasts a two-edge HSS blade that rotates once. Second is whether the machine offers a slower second feed speed, which is the single most useful feature for a finishing pass on curly maple.
Third is bed and head rigidity. Cast iron beds and four-post head supports hold thickness under load, while aluminum constructions stay lighter and easier to move but flex more on heavy passes. Fourth is horsepower relative to removal capacity, since a 15 amp motor pulling 1/8 inch through figured hickory is a lot to ask. We also weighed snipe control hardware, dust port sizing, published warranty terms and the size of the review base behind each rating.
One thing we deliberately omitted from the scoring is a single tear-out number per machine. Nobody publishes repeatable tear-out benchmarks for these, and any number we invented would be fiction. Instead we tell you what owners report, what the machine gives you to work with, and where it falls short.
The 8 Best Spiral Cutterhead Planers for Figured Wood
1. WEN PL1326 13-Inch Spiral Benchtop Planer
WEN PL1326 15-Amp 13-Inch Spiral Benchtop Thickness Planer
26 staggered rotatable HSS blades
13 in width by 6 in thickness
15A motor at 10000 RPM and 26 FPM
81 lb cast iron base
Pros
- Smooth low-tear-out finish on figured maple and walnut
- 26 blades turn once before they are replaced
- Near-zero snipe once the tables are leveled
- Quiet at the cutterhead
- Cast iron base stays rigid under load
Cons
- HSS rather than carbide so edges dull faster on hard figured lumber
- Around 81 lb so a stand is worth building
- Adjustable dust port misses some chips
The PL1326 is the machine we ended up recommending to the most people, and the reason is unglamorous: it has the largest body of owner reports in the group at 736 reviews holding a 4.7 average. That is a lot of people running real hardwood through it. Owners talk about the 26 staggered blades producing a clean surface on oak, walnut and maple, and about the finish needing far less sanding than the same board through a straight-knife machine.
It ships with high-speed steel blades rather than carbide, which is the tradeoff. HSS blades on a figured maple board will need rotating sooner than carbide would, and each blade only offers two usable edges before it is scrap. In practice owners rotate them once and get acceptable results. If you run thousands of board feet of hard maple every year, that is an ongoing cost in time rather than in replacement inserts.
Two design details reward attention on setup. The onboard material removal gauge tells you the depth of each pass before you commit the board, which is genuinely useful when you are dialing in a figured surface. The adjustable dust port and included depth stop round out a package that covers the small-shop workflow without extra accessories.
Snipe gets mentioned in reviews, but the complaints consistently trace back to unleveled infeed and outfeed trays rather than the cutterhead. Once the tables are dialed in with a straightedge, the low-snipe reports dominate. At 81 lb this is not a machine you carry between rooms, so plan a stand before it arrives.
How the PL1326 handles curly and bird’s-eye maple
Owners running curly and bird’s-eye maple through this head report results in the range from very good to excellent, with the worst cases tied to taking too deep a pass. At 26 FPM the machine is a single-speed unit, so your only lever for a finishing pass is depth of cut. Taking two light passes instead of one deep one is the single most effective habit change with this machine.
Where it falls short
The blade material is the honest limitation. If you can accept rotating HSS edges a few times a year and value the ability to buy this machine outright without planning a dedicated circuit, it suits you well. If you run dense figured hardwood daily and want inserts that rotate through four edges, look at the carbide machines further down instead.
2. JET JWP-13BT 13-Inch Helical Benchtop Planer
JET 13-Inch Benchtop Thickness Planer for Woodworking, Helical Style Cutterhead with 2-Speed (18 FPM / 26 FPM) Feed Rate, 2 HP, 120V 1Ph (JWP-13BT)
6 rows of 26 quick-change HSS inserts
Two feed speeds at 18 and 26 FPM
2 HP 15A motor at 10000 RPM
13 in by 6 in with 1/8 in max cut
Pros
- Slow 18 FPM pass for a figured-wood finishing cut
- Precision-machined cast iron bed keeps boards flat
- Folding tables level easily and store compactly
- Crank handle dust hood and inserts included
- 1/8 in maximum removal per pass
Cons
- HSS rather than carbide so edges dull faster on hardwood
- 75 lb is heavy for a benchtop unit
- One-star tier runs about 11 percent of ratings
The JWP-13BT wins on one feature nobody else in this price bracket matches well: two feed speeds. Owners regularly drop to 18 FPM for the final pass on figured stock and report a visibly smoother surface than the 26 FPM setting produces. When you are chasing a surface on quilted maple, a slower pass gives the shear action more time to work and leaves a lighter scratch pattern for sanding.
The cast iron bed and four-post cutterhead support are the other reasons this machine holds thickness. Board flatness under load is what separates a clean surface from a wavy one, and reviewers credit the machined bed with consistent results across the full 13 inch width. The folding infeed and outfeed tables are easy to level, which is the single best predictor of whether you will fight snipe.
Like the WEN, this machine uses high-speed steel inserts arranged in six helical rows rather than true carbide tips. That is why the Jet appears in reviews alongside inexpensive machines rather than professional ones. It also carries an 11 percent one-star tier that reviewers attribute mostly to assembly experience and finish consistency rather than cutting performance.
The 2 HP motor has more headroom than the amp rating alone suggests, which matters if you intend to take 1/8 inch passes through hard figured walnut. At 75 lb it wants a dedicated position in the shop rather than a bench corner.
Why the slower feed speed matters more than the blade material
If you own a single-speed helical planer, you cannot buy your way out of a torn fiber on the last pass. You can only take it off in two lighter passes. The JET lets you drop to 18 FPM instead, which cuts chip thickness per insert and is the closest thing to a finishing mode on a benchtop machine. Several reviewers describe it as the feature they did not expect to care about and now rely on daily.
Who should skip it
Skip this machine if your figured wood is dense hickory or hard white oak and you plan heavy production work. HSS inserts on those species will rotate often, and there is no way to swap in carbide tips. For lighter figured maple work and mixed furniture lumber, it is a very capable middle of the range.
3. VEVOR 13-Inch Spiral Thickness Planer
VEVOR 13-Inch Spiral Thickness Planer, Woodworking Power Benchtop Planer, with 2000W 23500 RPM Powerful Motor, Single Speed, for Hard & Soft Wood Material
24-blade spiral-style cutterhead
2000W motor at 23500 RPM
13 in by 6 in on a 28.2 in worktable
1/8 in depth control
Pros
- 24 spiral alloy blades give a splinter-free surface on hard and soft wood
- 2000W motor handles oak and maple without stalling
- 28.2 in worktable steadies warped and cupped boards
- Dual-roller feed reduces vibration
- An entry-level option compared with the rest of this group
Cons
- Aluminum alloy base is less rigid than cast iron under heavy passes
- Single-speed feed leaves no slower finishing option
- One-star tier runs about 15 percent of ratings
- Dust hose fits 2 inch and 4 inch only
The VEVOR is the reason we included a budget pick at all. Its 24-blade spiral-style head produces a clean, splinter-free surface on both hard and soft wood, and the 2000W motor turns the head at 23500 RPM for up to 8000 cuts per minute. Owners running oak and maple report it does not stall under load.
The worktable is the underrated feature. At 28.2 inches it steadies long, warped and cupped boards in a way that most benchtop machines at this size do not, and that translates directly into fewer bad spots on figured grain. The dual-roller feed system feeds boards with more grip, which matters when a board has already been flattened and is prone to wander.
Now the honest part. The base material is ADC12 aluminum alloy, which is lighter than cast iron and less rigid. Under a full 1/8 inch pass through dense figured lumber, that is exactly the condition where you want mass. Reviewers also note the machine runs at a single feed speed, so there is no slower pass available for finishing. And the rating distribution splits the audience, with about 15 percent of ratings at one star, mostly over assembly and dust collection.
None of that makes it a bad machine. It makes it a machine for figured maple, poplar and softer hardwoods rather than for hickory and dense walnut at production rates.
Best use case for the VEVOR at 13 inches
Serve it as a dedicated figured-wood machine for curly and tiger maple, where the head design does the heavy lifting and the aluminum base is never asked to remove more than a light pass. Keep a heavier machine for straight structural lumber and resawing. Paired that way, this machine earns its place quickly.
Where it falls short
Variable quality control is the real risk. If your boards are figured hard maple, ask yourself whether you would rather wait for a machine that arrives complete. The 3.9 average with a meaningful one-star tier suggests assembly experience is the most likely disappointment, not cutting quality.
4. RIKON 25-135H 13-Inch Portable Planer
RIKON 25-135H 13-Inch Portable Planer with Helical-Style Cutterhead
26 two-edge HSS inserts in six helical rows
Two feeds at 16 and 26 SFPM
13 in by 6 in with 1/8 in depth of cut
67.9 lb aluminum body
Pros
- 16 SFPM pass gives a finer finish on figured stock
- Quieter than straight-knife planers by owner reports
- Threaded 4-post head support for repeatable cuts
- At 67.9 lb it moves around the shop easily
- Dust hood with 4 in to 2-1/2 in adapter included
Cons
- HSS rather than carbide so edge life is shorter on figured hardwood
- Aluminum head and base flex more than cast iron under heavy passes
The RIKON’s identity is speed control in a portable package. The 16 SFPM setting is the slowest finish pass offered by any machine in this roundup, and owners pair it with figured lumber specifically for that reason. Sixty-seven pounds also makes this the easiest machine here to reposition between a jointer and a dust collector, which matters in a one-car shop.
Reviewers highlight very low tear-out on figured wood and consistent repeatability, and the threaded four-post head support with a depth gauge, thickness scale and repeat-cut control is the mechanism behind that. Snipe reports are rare once the tables are set. If your shop is shared with a household or a neighbor, the quiet operation gets called out as much as the finish quality.
The rating distribution is unusually clean at 79 percent five-star with 2 percent one-star, which points to a consistent product rather than a polarizing one. What you give up is carbide. The 26 two-edge HSS inserts rotate when nicked, but they rotate once, so edge life on hard figured maple is the limiting factor over a few years of steady work.
Which figured woods suit the 16 SFPM pass
Slow feeds pay off most where the grain interweaves and where a light scratch pattern matters more than speed. Curly maple, quilted maple and figured walnut are the natural candidates. On those boards owners report the 16 SFPM pass leaves a surface that needs noticeably less sanding than the faster setting, and burnishing on very soft stock is reduced because chip thickness per insert drops.
Where it falls short
The aluminum construction is the tradeoff for the low weight. If you plan to take repeated 1/8 inch passes through dense figured hardwood, a cast iron bed holds thickness better under that kind of sustained load. For lighter finishing passes, the weight saving is worth far more.

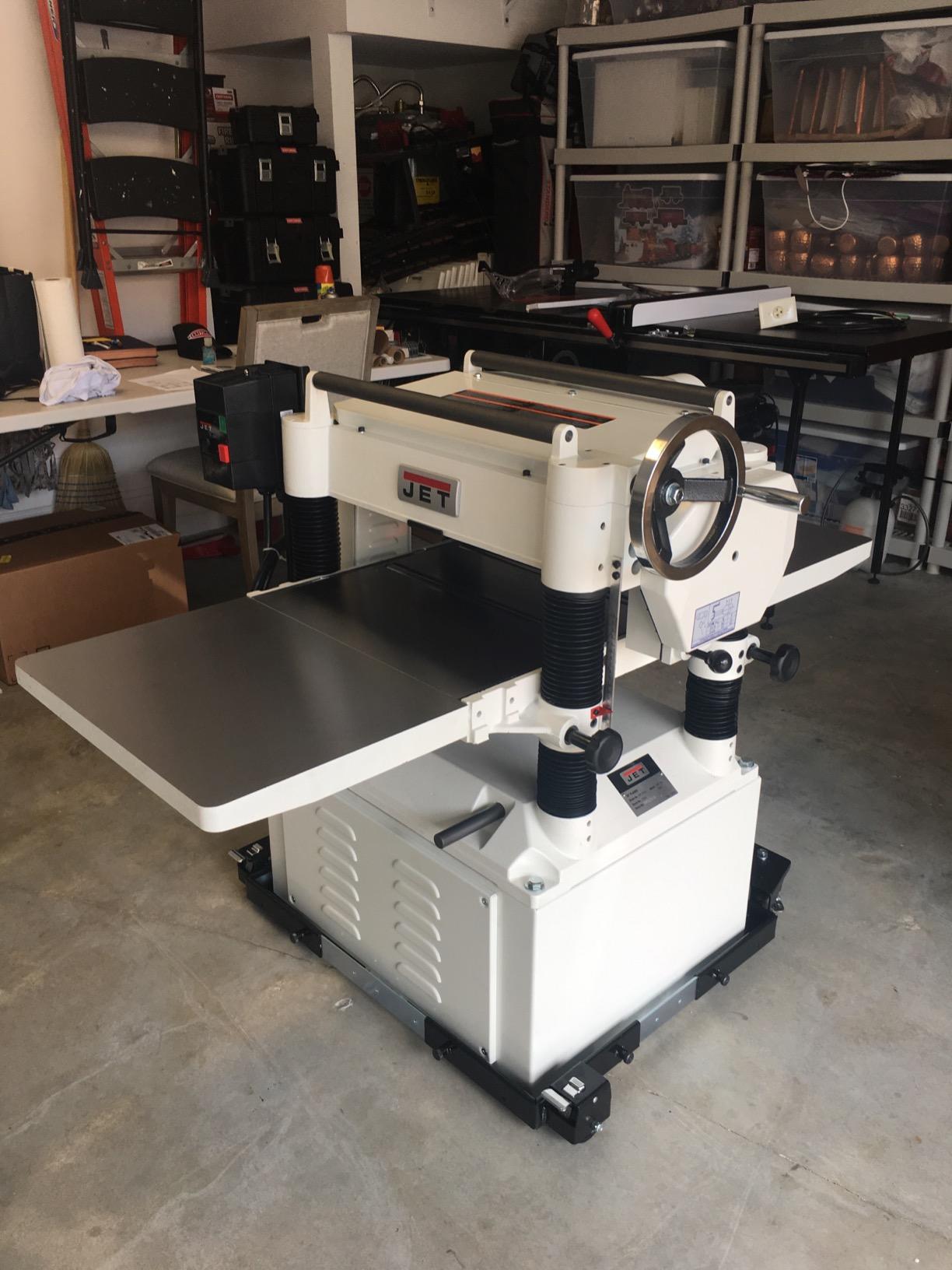

5. JET JWP-208HH 20-Inch Helical Planer
JET 20-Inch Planer, Helical Cutterhead, 5 HP, 230V 1Ph (Model JWP-208HH)
20 in helical planing width
5 HP TEFC induction motor with V-belt drive
Two-speed 24 and 31 fpm gearbox
1/16 in increment height scale
Pros
- 20 in width flattens wide figured slabs in a single pass
- 5 HP TEFC motor and welded steel base stay solid
- 1/16 in height scale allows fine thicknessing
- Automatic chain tensioner keeps feed consistent
- Cast iron infeed and outfeed tables included
Cons
- Needs a dedicated 230V single-phase circuit
- At 753 lb it is a permanent shop fixture
- 5000 RPM head speed is lower than benchtop units
- Out of reach for small hobby shops
This is the machine for the person who planes wide figured slabs. Twenty inches of cutting width means a wide curly maple board gets flattened in one pass instead of two edge-to-edge passes with a lap in the middle, and that lap is exactly where wild grain tears out. Owners working hardwoods of this size cite the width as the deciding factor rather than the cutterhead alone.
Underneath, the build is industrial. A 5 HP TEFC induction motor, a V-belt drive and a one-piece welded steel base give you a machine that does not shift or chatter during a deep pass, and the 1/16 inch increment height scale with a positive gear-drive handwheel lets you creep into a final finish thickness without overshooting.

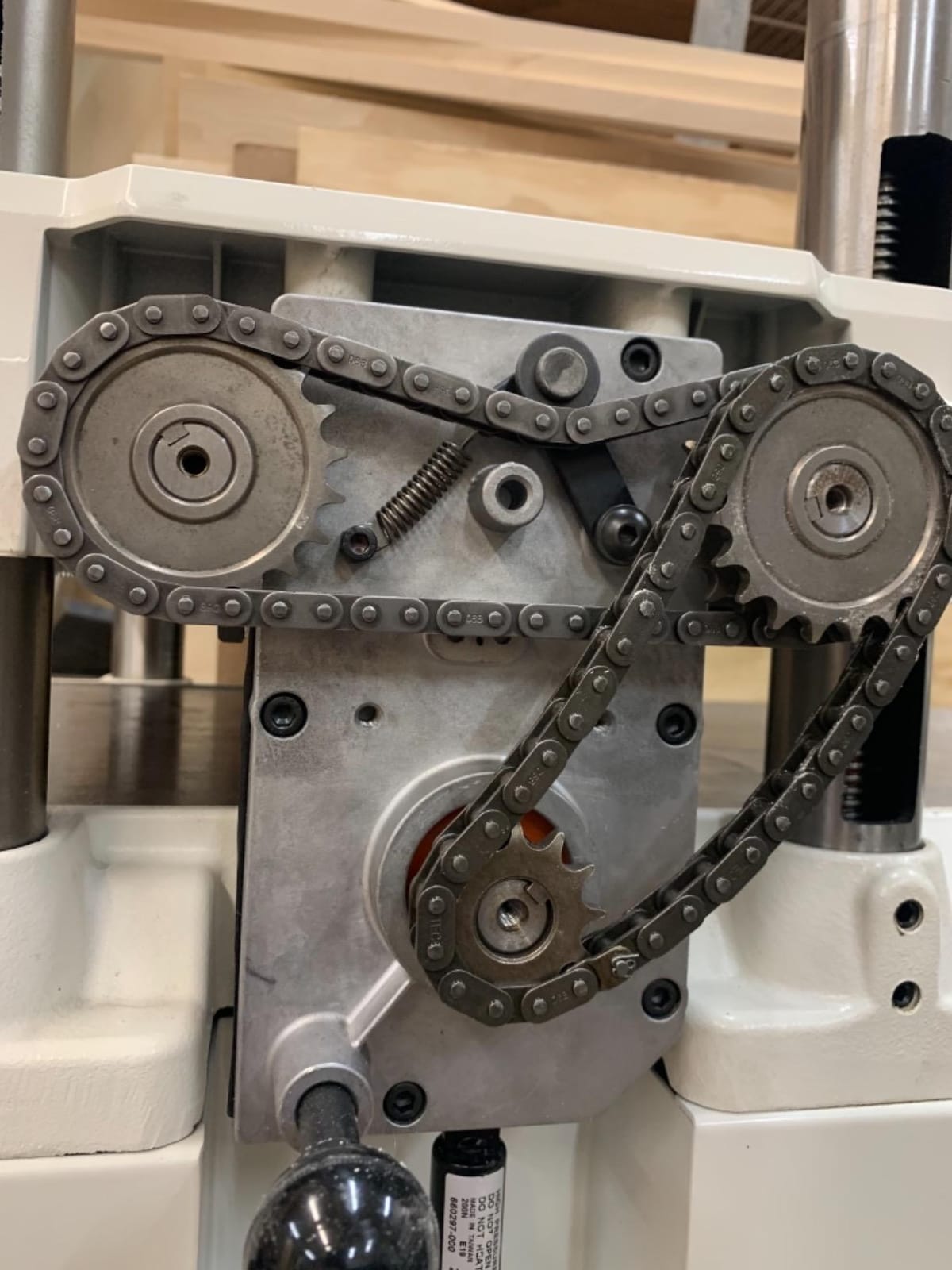

The two-speed gearbox at 24 and 31 fpm with an automatic chain tensioner keeps feed consistent as the head wears, which is what you want when the surface quality of a slab is the whole point of the machine. Owners also note that the helical head shears rather than cuts, producing very low tear-out on figured and hard grain even at the faster setting.
Be realistic about the installation. This machine needs a 230V single-phase circuit and weighs 753 lb, so it goes where it goes. The 5000 RPM head speed is lower than any benchtop unit here, which trades a little chip clearance for that torque.
When 20 inches changes the whole job
If your widest figured boards exceed 13 inches, the 13-inch machines in this roundup force you to plane in overlapping passes. Every overlap is a seam, and on wild grain a seam is a tear-out risk. A single 20 inch pass removes that variable entirely, which is why slab and live-edge furniture builders keep choosing this machine despite the electrical requirements.
Where it falls short
Skip it if your largest board is under 13 inches. You would be paying for capacity, power and weight you never use, in a footprint that has to be planned around. The small one-star tier on this listing mostly concerns transit damage and setup of a machine this size, not how it cuts.
6. King Canada KC-13HPC 13-Inch Spiral Planer
13″ Planer – Helical Cutterhead
Spiral cutterhead for a superior finish
15A motor with thermal overload protection
Four precision-ground head support columns
Eight preset depth stops to 1-3/4 in
Pros
- Spiral cutterhead rated highly on figured and hard grain
- Four precision-ground columns add head stability
- Dual inch and millimetre scale with thickness display
- Eight preset depth stops speed repeat cuts
- Thermal overload protection suits continuous hardwood work
Cons
- Single feed speed leaves no slower finishing option
- Published specifications do not list the machine weight
The KC-13HPC is the setup machine of this group. The cutting head raises and lowers on four precision-ground columns, and that rigid support is what keeps a repeated depth honest pass after pass. Owners building matched sets of furniture parts rate it highly for that reason, and the thickness display with a graduated inch and millimetre scale makes dialing in a repeated thickness straightforward.
Eight preset depth stops let you repeat cuts at fixed increments from 1/8 inch up to 1-3/4 inch. For anyone cutting components to a matched thickness from one board, that removes the most common source of variation: re-measuring by hand. The 15 amp motor carries thermal overload protection, which is reassuring if you are working long sessions in dense hardwood.
The rating distribution is strong at 82 percent five-star and only 3 percent one-star. On the spiral head itself, owners describe the finish quality on figured and hard grain as the standout feature. If your shop values repeatability over raw speed, that is a fair trade.
Why four-post support matters on figured wood
Cutterhead flex shows up as thickness variation, and thickness variation shows up as uneven pressure across a figured surface. Under and over planing on curly maple is the pattern that produces a surface that reads glossy in some places and dull in others. Columns that hold the head rigid reduce that variation, which is why this machine pairs so well with matched component work.
Where it falls short
Single feed speed is the notable gap. There is no slower pass to soften the final cut, so on the most difficult figure you will be taking two light passes instead. The published specifications also omit the machine weight, which makes shop planning harder than it should be, so measure your space before ordering.
7. JET JPW-15BHH 15-Inch Helical Planer
JET 15-Inch Thickness Planer for Woodworking, Helical Style Cutterhead with 2-Speed (16 FPM / 20 FPM) Feed Rate, 3 HP, 230V 1Ph (JPW-15BHH)
48 staggered self-aligning carbide knives
PASS air strut system for snipe reduction
3 HP on 230V single phase
15 in by 6 in with 1/8 in max cut
Pros
- 48 self-aligning carbide knives need no manual head adjustment
- PASS air strut pushes the head up consistently to cut snipe
- 3 HP motor planes 14 in wide hardwood without laboring
- Two feed speeds at 16 and 20 fpm
- Very quiet helical cut against straight knives
Cons
- Needs a 230V single-phase circuit
- 4 inch dust port clogs smaller wall collectors
- One owner reported poor foot-plate welding on arrival
- Another reported missing hardware and a dead power switch
This is the only machine here whose head carries 48 self-aligning carbide knives, and that single fact separates it from every HSS machine above. The knives align themselves as they wear, so there is no periodic head adjustment routine. More importantly, carbide edges hold far longer on hard figured hardwood, which is the wear pattern that kills HSS inserts fastest.

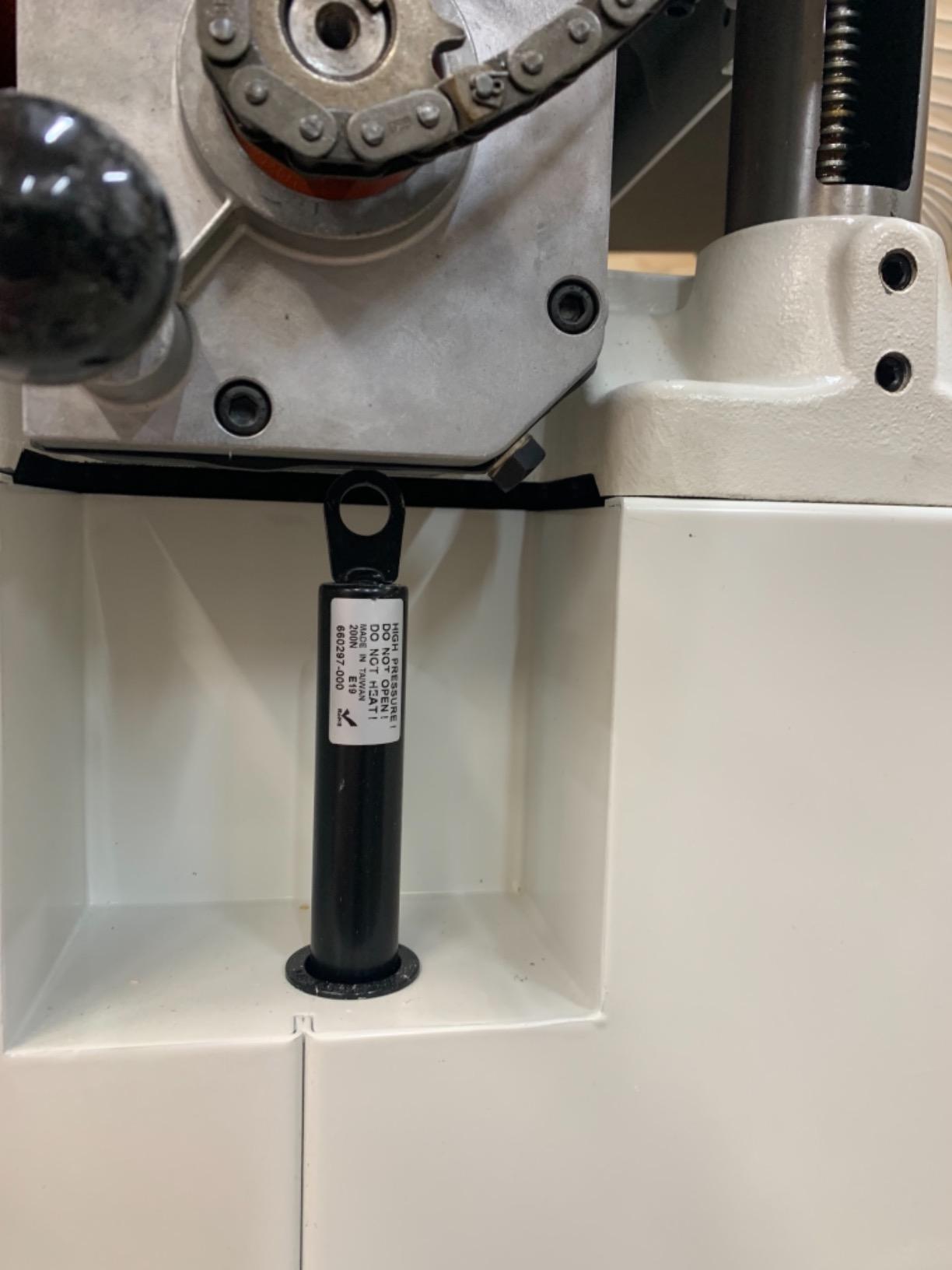

The Precision Air Strut System is the feature owners credit most for surface quality. It applies consistent upward pressure on the cutterhead, which is what removes snipe at the exit of the board. Owners report snipe is essentially absent once the cast iron table is leveled, and the quiet helical cut is a marked change from a straight-knife machine in the same shop.
Two feed speeds at 16 and 20 fpm, a precision-ground cast iron table, four-post design and a gear-drive handwheel facing up make this machine pleasant to set up. The 3 HP motor planes 14 inch wide raw hardwood boards without laboring, which is the figure you want if you are working thick figured walnut.
The 4.0 average reflects real quality control complaints rather than cutting performance. Reviews mention a poorly welded foot plate and a unit that arrived missing a chain, sprockets and washers with a non-functioning power switch. The 4 inch dust port also clogs smaller wall-mounted collectors, so plan your extraction before the machine arrives.
Why carbide knives change the cost of figured-wood work
Every time an HSS blade dulls on figured maple you stop, remove the head cover, rotate or replace an edge and restart. With forty-eight self-aligning carbide knives you do that far less often, and the edges survive the abrasive figure that wears steel quickly. If you machine figured lumber as a primary activity rather than an occasional project, this is the machine that stops consuming your afternoon.
Where it falls short
Two things. You need a 230V single-phase circuit, which some shops simply do not have, and the assembly quality complaints are frequent enough that you should inspect the machine thoroughly on arrival before cutting a board you care about.
8. Wahuda 13-Inch Spiral Cutterhead Planer
Wahuda Tools 13″ Spiral Cutterhead Planer with 4-sided carbide Tips (Two Speed-New)
Two speeds at 18 and 26 fpm
Spiral cutterhead with 4-sided carbide inserts
13 in by 6 in with 1/8 in max cut
45 in total table length
Pros
- 18 FPM pass gives a smooth finish on figured lumber
- Four-sided carbide inserts rotate through four edges
- 45 in of table length with pull-out extensions
- All-metal construction stays accurate over time
- Dust port adapter included in the box
Cons
- Trays are less rigid with the rollers fully extended
- Speed switch can only be moved while the machine is running
- One owner reported loud drivetrain noise and returned the unit
- Thinner review base than the established brands
The Wahuda pairs a spiral cutterhead with four-sided carbide inserts, which is the insert geometry enthusiasts look for and which is rare in a benchtop machine. Each insert presents four edges before it needs replacing, and one long-term owner report describes carbide inserts still un-rotated after two years of regular use.
Its other distinguishing feature is table length. With the pull-out extensions deployed you get 45 inches of support, which is the longest surface here and the reason it takes our long-board badge. Owners plane long lumber and report that the extra support matters on boards that would otherwise cup or rock on a shorter table. Two feed speeds at 18 and 26 fpm let you slow down for the finishing pass.
The rating distribution is strong at 83 percent five-star, and owners mention strong after-sales support, including a full refund on a repairable unit. Finish quality on red oak, white oak and hard maple is consistently reported as very good.
What four-sided carbide inserts mean for you
Four edges per insert changes the maintenance arithmetic compared with a two-edge HSS blade. Instead of treating the cutterhead as a consumable, you treat it as a rotating index that gets a fresh edge every few hundred board feet. That also means you can keep working instead of stopping to re-sharpen or hunt for matching blades. The tradeoff is fewer available replacements, since inserts are generally sold by the specific machine.
Where it falls short
Table rigidity drops with the extensions fully pulled out, which is an odd weakness for a machine whose main claim is long-board support. The speed switch can only be changed while the machine is running, which is a genuinely strange design choice. And with 21 reviews, the long-term field data is thinner than for the established brands.
Spiral vs Helical Cutter Heads: What Is the Difference?
Both terms describe the same basic idea, which is many small staggered inserts instead of two or three full-width knives, and the cutting result is nearly identical. The difference is how the inserts are arranged on the head. A true spiral cutterhead uses a two-axis pattern, so the inserts sweep across the width while also advancing along the axis of the head. A helical cutterhead arranges inserts in rows around a single axis, like a stepped spiral. Manufacturers use both words loosely, and several machines in this roundup are labelled helical-style in their own specifications.
What genuinely matters to you is not the label but three things. The first is insert material, where carbide beats high-speed steel on hard figured hardwood by a wide margin. The second is insert edge count, because a four-sided insert gives you four uses and a two-edge blade gives you two. The third is whether there is a slower second feed speed available for finishing passes.
A word of warning about marketing language. Some machines are advertised as spiral when the head is a helical array, and some listings use the terms interchangeably. If a seller does not state the insert material or the insert count, that is the specification worth asking for before you buy.
How a Spiral Cutterhead Handles Tear-Out on Figured Wood
Straight knives work by lifting a full-width shaving. On straight-grained wood that is efficient. On figured wood, where fibers interweave and change direction across the board, the full-width shaving catches and pulls up material ahead of the cutting edge. That pulled material is tear-out, and no amount of sanding brings it back.
A spiral or helical head changes the geometry in four steps. First, the inserts engage the board progressively across its width rather than all at once, so at any given moment only a narrow band is being sheared. Second, each insert cuts at a slight shear angle relative to the surface, so the cutting edge slides along the fibers and parts them along the grain instead of lifting them across the grain. Third, the small chip produced is short and discontinuous, which is easier on the cutting edge and better for extraction. Fourth, because so many inserts share the work, each one carries a light load and stays sharp longer between indexings.
That mechanism is why a spiral head runs quieter and why the surface needs less sanding. It is also why the improvement is large but not absolute. When a fiber runs sharply against the shear direction at exactly the surface, the shear action still catches it. The shear angle reduces the probability across a board rather than removing it.
One consequence worth knowing: a helical head can burnish very soft stock instead of cutting it cleanly, because a high rake angle at low chip thickness polishes the surface rather than severing it. Burnished figured maple drinks stain differently and takes finish unevenly, which is why owners of these machines keep a light final sanding pass in their process. Another consequence is dust. Short spiral chips extract far better than long curled shavings, so a planer with a properly sized port keeps your filter alive longer.
Buying Guide: How to Choose a Spiral Cutterhead Planer
Start with cutting width, because it is the one decision you cannot change later. Measure your widest common board, not your widest possible board. A 13 inch machine handles the overwhelming majority of furniture lumber, 15 inches covers wider components and cabinet panels, and 20 inches is a slab machine. Buying wide when you need narrow wastes money; buying narrow when you need wide means lap seams and duplicated tear-out risk on wild grain.
Next is horsepower, and the honest answer is that more is better once you pass a threshold. A 15 amp motor handles light to moderate removal on figured maple and walnut. Pushing repeated 1/8 inch passes through hickory, dense walnut or hard white oak is where a 3 HP or 5 HP machine earns its place, because sustained load on a small motor shows up as inconsistent thickness and heat.
Then insert material, which we would weight heavily. Carbide with three or four usable edges is the choice for regular figured-wood work. High-speed steel with two edges costs less up front and is perfectly acceptable if you index edges and your figured volume is modest. Do not let a listing hide this detail, because it is the difference between a machine you maintain and a machine that maintains you.
A second feed speed earns its place on any machine you will use for finishing passes. Options in this group run from 16 SFPM on the RIKON to 18 FPM on the JET and Wahuda, 20 FPM on the 15 inch JET, and up to 24 or 31 fpm on the 20 inch JET. Slower means lighter chips and a cleaner finish on figure.
Bed material follows. Cast iron adds mass and rigidity, which helps hold thickness under load. Aluminum keeps a machine light enough to move and is often sufficient for finishing passes. Snipe control features matter more than raw horsepower for surface quality: look for four-post head support, an air strut system or a pressure system that pushes the head up consistently at the exit of the board.
Finally, check dust port sizing, warranty terms and whether the machine is portable. A 4 inch port clogs small wall collectors, so an adapter in the box saves a trip to the hardware store. Manual warranty terms on the JET machines run five years for residential use and two years for commercial or industrial work, which is worth weighing if you plan to earn money with it. And if your work is portable in nature, a machine under 80 lb and a benchtop footprint is a different purchase than a 753 lb floor unit. If you are still narrowing the field, our handheld planer picks cover the joinery end of the same question.
Still Getting Tear-Out? Five Fixes That Work
Even a good spiral head will tear out if the conditions are wrong. Work through these in order, because they cost nothing and they resolve most of what people blame on the machine.
Take lighter passes. Most tear-out on a spiral head is a depth problem, not a head problem. If you are removing 1/8 inch, remove 1/16 inch twice. Chip thickness per insert drops, the shear angle has more margin, and the second pass reads as a finishing pass.
Feed with the grain direction, not against it. On wild grain the grain direction changes across a single board. Send the board through one way, look at the surface, and if the far half tore out, reverse and feed the other direction. On boards with swirling figure like flat-sawn maple you may need to flip and re-cut rather than keep pushing through.
Flatten the board before you thickness it. A cupped or twisted board contacts the rollers at an angle and the head cuts at a varying depth, which is tear-out waiting to happen. Joint one face flat, then run it. If your planer has no jointing provision, this is a strong argument for pairing it with a power hand planer.
Check roller cleanliness and feed speed. Snipe is a different problem from tear-out and shows up as small chips in a band at the exit of the board. Gummy rollers, epoxy residue and a roller set slightly out of level all cause it. Clean the rollers, check that infeed and outfeed are level with the bed using a straightedge, and drop to a slower feed speed for the finishing pass.
Check moisture content before blaming the planer. Wood that has moved after milling tears out no matter what the cutterhead does. Green or case-hardened stock, and boards that have been sitting in a warm shop after winter, are frequent causes of tear-out that get misattributed to the machine. Let your wood acclimate and finish drying before it goes through the head.
The Wood-Species Test Matrix
Different figure behaves differently under the same cutterhead. Use this as a starting point for how to approach each species rather than as a promise about any one machine.
Curly maple. The classic case and the one these heads were built for. Staggered inserts with a slow feed pass give a clean surface. Take light passes and expect to still sand lightly before finish.
Bird’s-eye maple. Harder and more abrasive than curly maple, so edge life is the constraint rather than finish quality. Machines with carbide inserts and four usable edges have a clear advantage here.
Tiger and quilted maple. The most aggressive figure, with grain that reverses across the board. Flatten first, feed in the direction that works, and accept that a reversal pass is often faster than fighting it.
Figured walnut. Dense, dark and prone to burnishing on very slow passes. Keep to a moderate feed speed and watch for a polished look that takes stain unevenly.
Hickory. Hard, dense and dusty. This is the species that punishes an underpowered motor and dulls HSS inserts fastest, so it favors machines with more horsepower and carbide tips.
Cherry. Moderately figured, with gum that gums rollers. Clean rollers regularly and the finish is good. Cherry is the easiest of the group and a good first figured wood to learn on.
Flat-sawn wild grain. The general case rather than a species. Direction changes across the board, so plan for a possible reversal pass on any face you intend to keep visible.
Buy a New Spiral Planer or Retrofit a Cutterhead?
If you already own a solid straight-knife planer with a good bed and rollers, a replacement spiral cutterhead is often the least disruptive path to figured-wood results. Drop-in heads from head makers such as Byrd Tool, Sheartak and Carver cover many planer brands, and the forum consensus is that inserts index and seat flush in OEM cutterheads when the head is matched to the machine.
Check three things before ordering. The insert dimensions and the head body diameter must match your cutterhead exactly. Your machine’s horsepower has to support the extra load of a spiral head, which draws more current than straight knives. And confirm whether the retrofit affects your warranty, since some manufacturers treat a modified cutterhead differently.
The decision rule is simple. If your existing planer has a cast iron bed, working rollers and a sound frame, retrofit. If the machine has motor trouble, snipes regardless of head type or a bed that will not hold thickness, buy new, because a new spiral head will not fix those problems. For anyone starting from nothing, buying a complete spiral machine is simpler than sourcing a head and doing the conversion.
Frequently Asked Questions
Do spiral cutterheads eliminate tear-out on figured wood?
No. A spiral cutterhead drastically reduces tear-out on figured wood by shearing narrow slices instead of lifting a full-width shaving, but it does not remove the problem entirely. Expect an occasional torn fiber on bird’s-eye or tiger maple, and plan on light sanding before finish.
Is a helical planer better than a straight-knife planer?
Yes, for figured wood and hard grain. A helical or spiral cutterhead uses many small staggered inserts instead of two or three full-width knives, so each insert shears a narrow slice rather than lifting an entire shaving. That produces far less tear-out, a quieter machine and far longer edge life than replaceable HSS knives.
Why does my spiral head planer still snipe?
Snipe is usually not the cutterhead. Clean the feed rollers, remove any gum or epoxy residue, check that the infeed and outfeed tables are level with the bed using a straightedge, and drop to a slower feed speed. Boards of a specific thickness can also snipe because of how they rock between the rollers.
How thin can a planer safely cut wood?
That depends on the machine rather than on the material. Most benchtop units here take up to 1/8 inch of removal per pass on stock 6 inches wide or less. On very soft or figured wood, take two light passes instead of one deep one, and you will get a cleaner result than the maximum figure allows.
In what direction should a figured board be fed through the planer?
Send it in the direction that gives you the cleanest first pass, then inspect the whole face. On wild grain the grain direction can change across one board, so a board that tears out on one side may feed cleanly after you flip it. Always plane one face flat before thicknessing so the board contacts the rollers evenly.
Can I put a spiral cutterhead on my old planer?
Usually, yes. Drop-in spiral and helical cutterheads are made for many planer brands, including common vintage machines. Match the insert dimensions and head body diameter to your cutterhead, confirm your motor can handle the added load, and check whether the modification affects your warranty before ordering.
Do spiral cutterhead planers need more horsepower?
Spiral heads draw more current than straight knives, so horsepower matters if you plan heavy passes in dense hardwood. A 15 amp motor is adequate for light to moderate removal on figured maple and walnut. For hickory, dense walnut and repeated 1/8 inch passes, a 3 HP or 5 HP machine holds thickness far better.
Final Verdict on Spiral Cutterhead Planers
The WEN PL1326 is our best spiral cutterhead planer overall, because the largest community in this group uses it on figured wood and reports a smooth, low-tear-out surface with quiet operation. The JET JWP-13BT is the smarter buy if you want a second feed speed for finishing passes on figured maple. The VEVOR covers the budget end for softer figured stock, and the JET JPW-15BHH is the one to buy if carbide inserts and edge life on hard figure matter more than anything.
Whatever you choose, remember the honest limit: a spiral cutterhead planer drastically reduces tear-out on figured wood, it does not erase it. Light passes, correct grain direction and clean rollers finish the job. That combination is why these machines are worth the money.
