There is no single best whole house water filter for well water, and anyone who tells you otherwise is selling something. A private well carries whatever the geology delivers, so the correct filter is the one matched to the numbers on your lab report. Iron at 3 ppm needs a completely different treatment than iron at 30 ppm, and a carbon stage does nothing at all for either of them.
We spent six weeks reading the specs, the certification language and thousands of owner reviews on 12 systems that cover the realistic range of well problems, from cheap spin-down prefilters to a UV-equipped tank that runs for half a decade between media changes. What follows is organized by the contaminant each product treats rather than by brand alphabet, because that is the decision that actually matters on a well.
If you have not tested yet, stop here and order a panel from a state-certified laboratory first. You are looking for total coliform and E. coli, iron, manganese, sulfur or hydrogen sulfide, pH, TDS and hardness. Those seven numbers decide the answer, and they take far less time to get than the two years of cartridge changes you may end up buying if you guess wrong. Our whole house water filter guide covers the general cartridge-versus-tank question if you want the background first.
Table of Contents
Top 3 Best Whole House Water Filters for Well Water (October 2026)
These three cover the widest range of real well conditions in this roundup. The first is the strongest all-rounder for moderate iron, the second handles a heavier iron load with a three-stage layout, and the third is the pick if you want the most hardware per dollar.
iSpring WGB21BM 2-Stage Whole House Filter
- Reduces iron to 3.0 ppm and manganese to 1.0 ppm
- Removes 90% chlorine and VOCs
- Up to 15 GPM on 1-inch NPT ports
- 50000 gallon capacity
iSpring WGB32BM 3-Stage Iron and…
- 5-micron sediment stage in front of carbon and iron media
- Iron up to 3.0 ppm and manganese up to 1.0 ppm
- 100000 gallon capacity
- Up to 15 GPM at 25-80 psi
Express Water 3-Stage Iron and Manganese…
- Stainless steel bracket and free-standing frame
- Pressure gauges on every housing
- 100000 gallon capacity
- Up to 17 GPM at 20-80 psi
12 Best Whole House Water Filters for Well Water (October 2026)
Every system below is listed with the contaminant it genuinely targets and the flow rate it delivers, so you can match rows to your lab report rather than scrolling marketing copy.
| Product | Specifications | Action |
|---|---|---|
| iSpring WGB21BM 2-Stage Whole House Filter |
|
Check Latest Price |
| iSpring WGB32BM 3-Stage Iron System |
|
Check Latest Price |
| Express Water 3-Stage Iron and Manganese |
|
Check Latest Price |
 Aquasana WH-Well-CT-UVS 500K Gallon UV System |
|
Check Latest Price |
 AFWFilters Iron Pro 2 Combined Softener and Iron Filter |
|
Check Latest Price |
 Home Master HMF3SdgFeC 3-Stage Filter |
|
Check Latest Price |
 PUREPLUS 1-Stage Whole House Well Water Filter |
|
Check Latest Price |
 PRO+AQUA PRO-WELL-1E Tank System |
|
Check Latest Price |
 iSpring WSP-50 Spin Down Sediment Filter |
|
Check Latest Price |

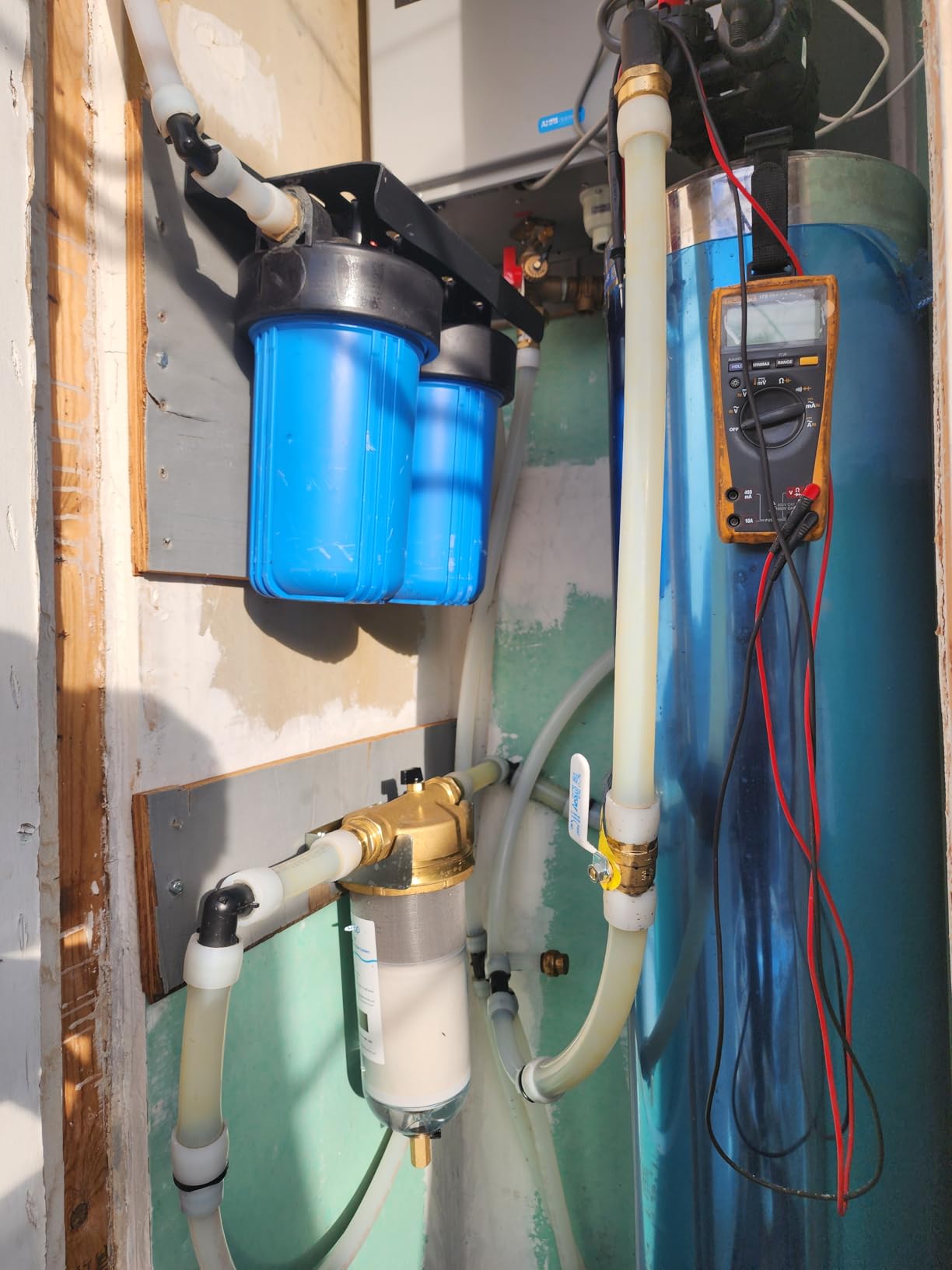

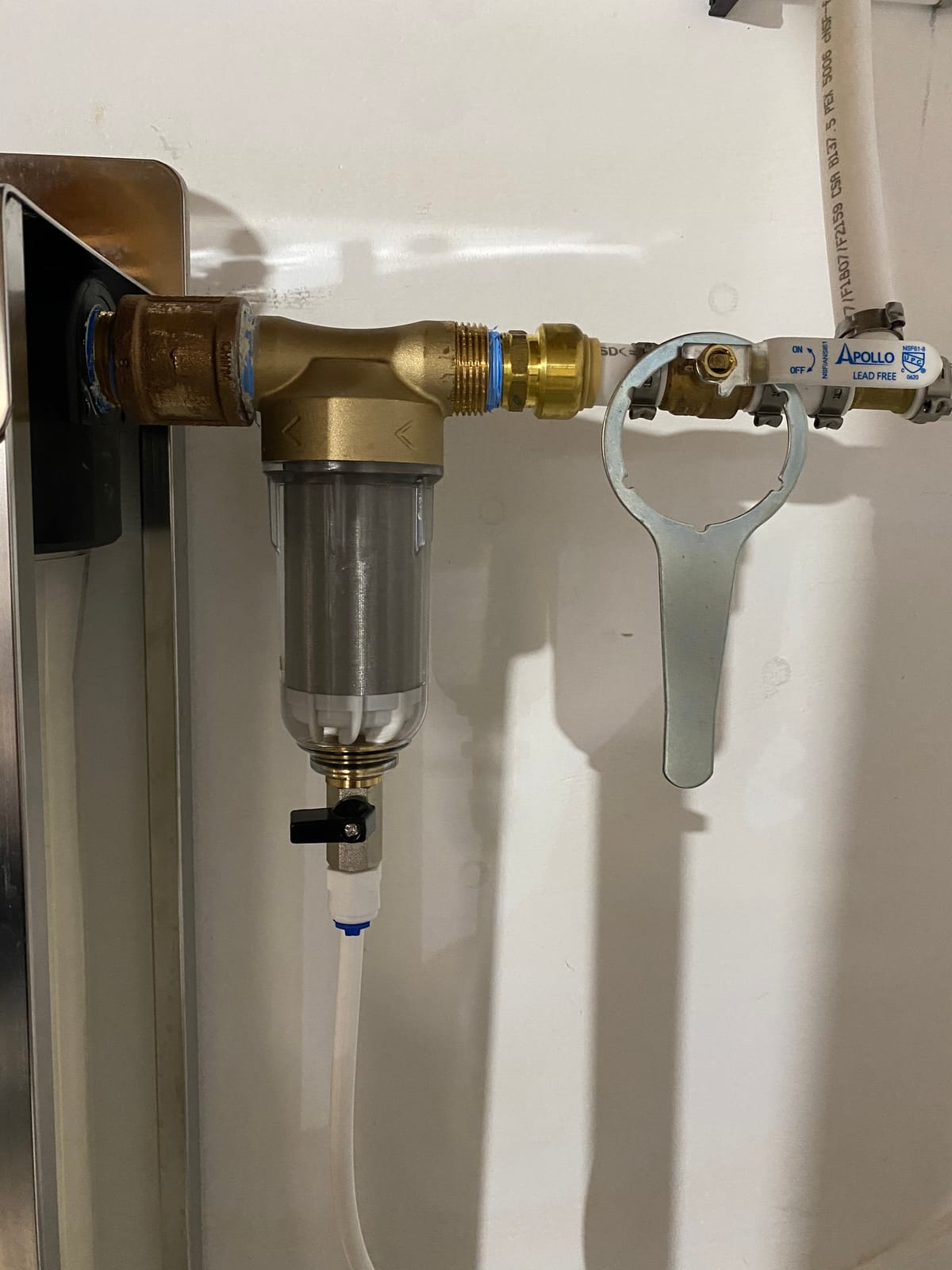

 Waterdrop BG103 Mega Spin Down Filter |
|
Check Latest Price |
 A. O. Smith 600K Gallon Whole House Filter |
|
Check Latest Price |
 3M Aqua-Pure AP904 Whole House Filtration |
|
Check Latest Price |

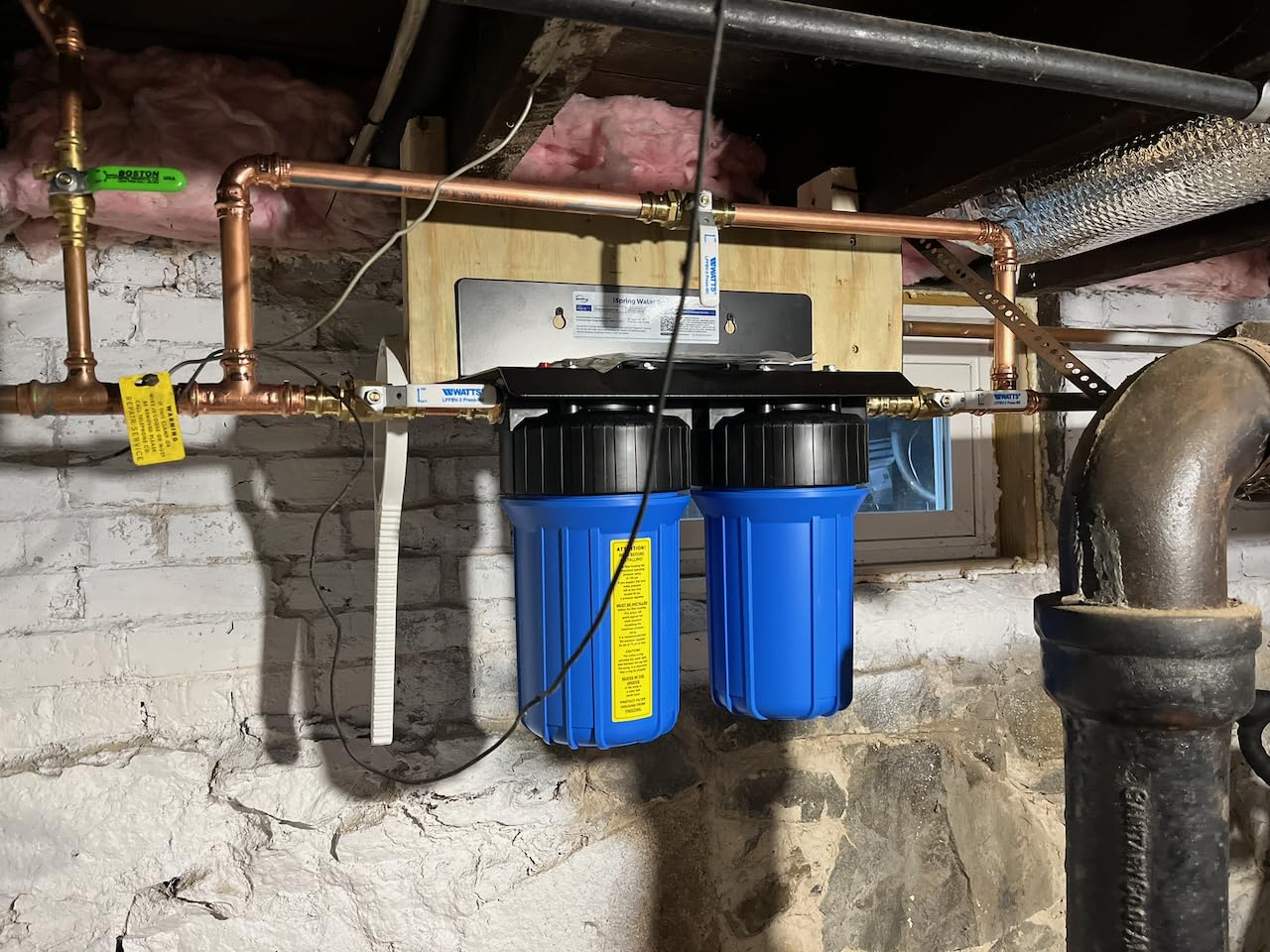

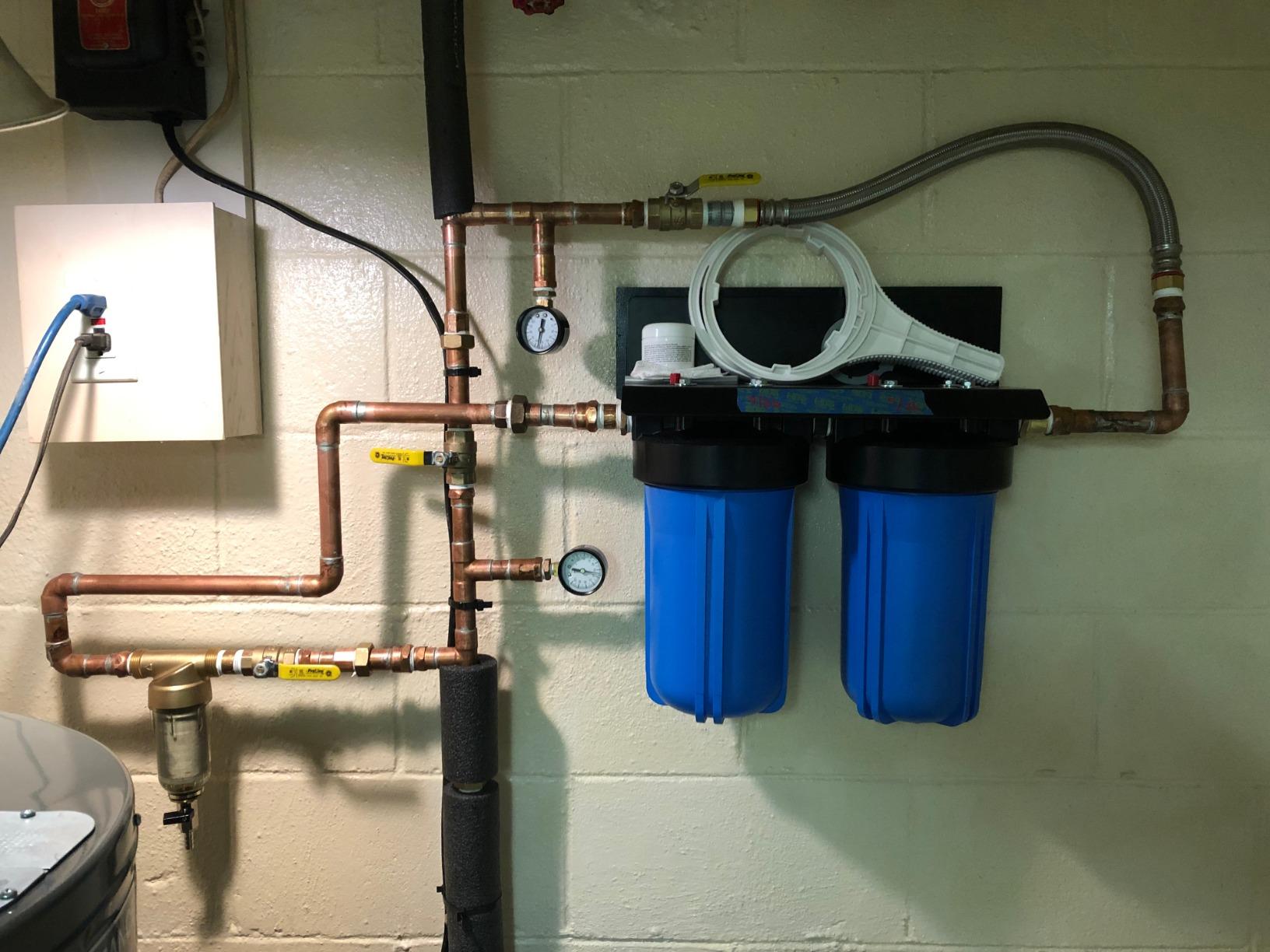

1. iSpring WGB21BM 2-Stage Whole House Filter – Best Overall for Moderate Iron
iSpring WGB21BM 2-Stage Whole House Water Filtration System, 10” x 4.5” Carbon Block and Iron & Manganese Reducing Filters, 1″ Ports
Iron to 3.0 ppm
Manganese to 1.0 ppm
15 GPM
50000 gallons
10 inch by 4.5 inch
Pros
- Pre-assembled on the bracket with wrench included
- Thick-walled housings hold up under real loading
- Catalytic iron media rated 3x longer than greensand
- Fast visible drop in chlorine smell and rust staining
Cons
- NPT fittings need careful tape and torque to seal
- Cartridges need changing every 6 to 12 months
- Stage order matters for best results
This is the unit I keep coming back to for wells that test somewhere in the low single digits of iron and have a chlorine-and-odor complaint on top of it. The second stage uses a catalytic media that the manufacturer rates at three times the service life of greensand, and the ratings across more than 4,000 reviews back up the general claim that the staining problem goes away within days of install.
Flow is the quiet strength here. At up to 15 GPM through 1-inch NPT ports, it clears a three-bathroom house without the pressure sag you get from a pair of stacked 10-inch housings. The 50000-gallon capacity means cartridge swaps roughly once a year for an average family, not four times a year.
What it will not do is handle heavy iron. The stated ceiling is 3.0 ppm of iron and 1.0 ppm of manganese, and if your lab report is higher, a cartridge media of this class fouls quickly. I have seen owners report plugging on wells that were over the limit and then blaming the housing, when the media was simply out of its range.
Installation is genuinely the weak point, and I want to be straight about it. The 1-inch plastic NPT threads need generous Teflon tape and restrained tightening, because overtightening cracks the plastic threads on the housing. Several reviewers fixed leaks with extra tape, a dab of O-ring grease or a plastic coupler, and the manufacturer support line handled the rest without fuss.
What iron level this handles well
Think of the 3.0 ppm figure as a firm ceiling rather than an average. Below that, with manganese under 1.0 ppm, the media has enough working room to keep the pores open and the pressure steady. The carbon block stage in front of it handles chlorine, cloudiness, taste and odor, and it is NSF/ANSI tested, though the listing does not name a specific standard number for the iron claim.
Where it falls short
It is a cartridge system, so you will be buying filters forever, and on a high-consumption household the interval shrinks toward six months. The two housings also must be plumbed in the correct sequence for the results to match the spec sheet, and there is no bypass valve in the box, so add one if you want to change media without shutting the house off.
2. iSpring WGB32BM 3-Stage Iron and Manganese System – Best for Sediment Plus Iron
iSpring WGB32BM Iron, Manganese Whole House Water Filter System
5 micron sediment
Carbon block
Iron to 3.0 ppm
15 GPM
100000 gallons
Pros
- Sediment stage in front protects the carbon and iron media
- Well owners report clear water and no more orange stains
- 100000 gallon capacity stretches to about a year
- Knowledgeable support recommends media for your water test
Cons
- 20 inch housings are heavy and awkward to fill
- Plastic NPT threads can cross-thread on first assembly
- Instructions are vague about cap torque
The important difference from the two-stage unit is the dedicated sediment stage sitting in front of everything. On well water, that ordering is the whole ball game, because carbon and iron media both foul faster when sand and rust flakes are grinding through the bed ahead of them. A 5-micron polypropylene first stage catches that load before it reaches the expensive stages.
Capacity is 100000 gallons, which the manufacturer frames as roughly a year of supply for a family of four. Operating range is 25 to 80 psi and flow still rates at up to 15 GPM, so the extra stage has not cost you throughput. Reviews from well owners consistently describe clear, odor-free water and the disappearance of orange stains in sinks and toilets.
Handling is the real drawback. These are 20-inch Big Blue housings on a bracket, and they weigh 55 pounds as a set. Because the housings cannot be fully drained, changing a wet cartridge is a two-person job with a floor drain nearby, and that is the maintenance reality you are signing up for when you pick a 100000-gallon multi-stage system over a tank.
Watch the flow direction, too. In its factory arrangement the stages run in one direction across the bracket, which on some plumbing layouts forces you to flip the whole assembly. And if your well throws heavy sediment, add a spin-down prefilter upstream, because several buyers reported pressure drop on dirty water without one.
Why the front sediment stage changes the outcome
Sediment is the contaminant that quietly kills the other two stages. A carbon block that is fighting rust flakes pores over in a fraction of its rated life, and iron media that is chewing on sand loses capacity the same way. Putting a 5-micron stage in position one converts a six-month cartridge into a year-long one and keeps your pressure drop flat.
What to plan for in the install closet
Measure for vertical clearance before you buy, because a loaded 20-inch housing needs considerably more room than the printed 28-inch height suggests once you are pulling it off the bracket. Budget for a drip pan, a bucket and a wrench that fits the cap. If you are not comfortable re-tapping plastic threads, this is the one on this list where a plumber’s hour is worth more than a weekend.

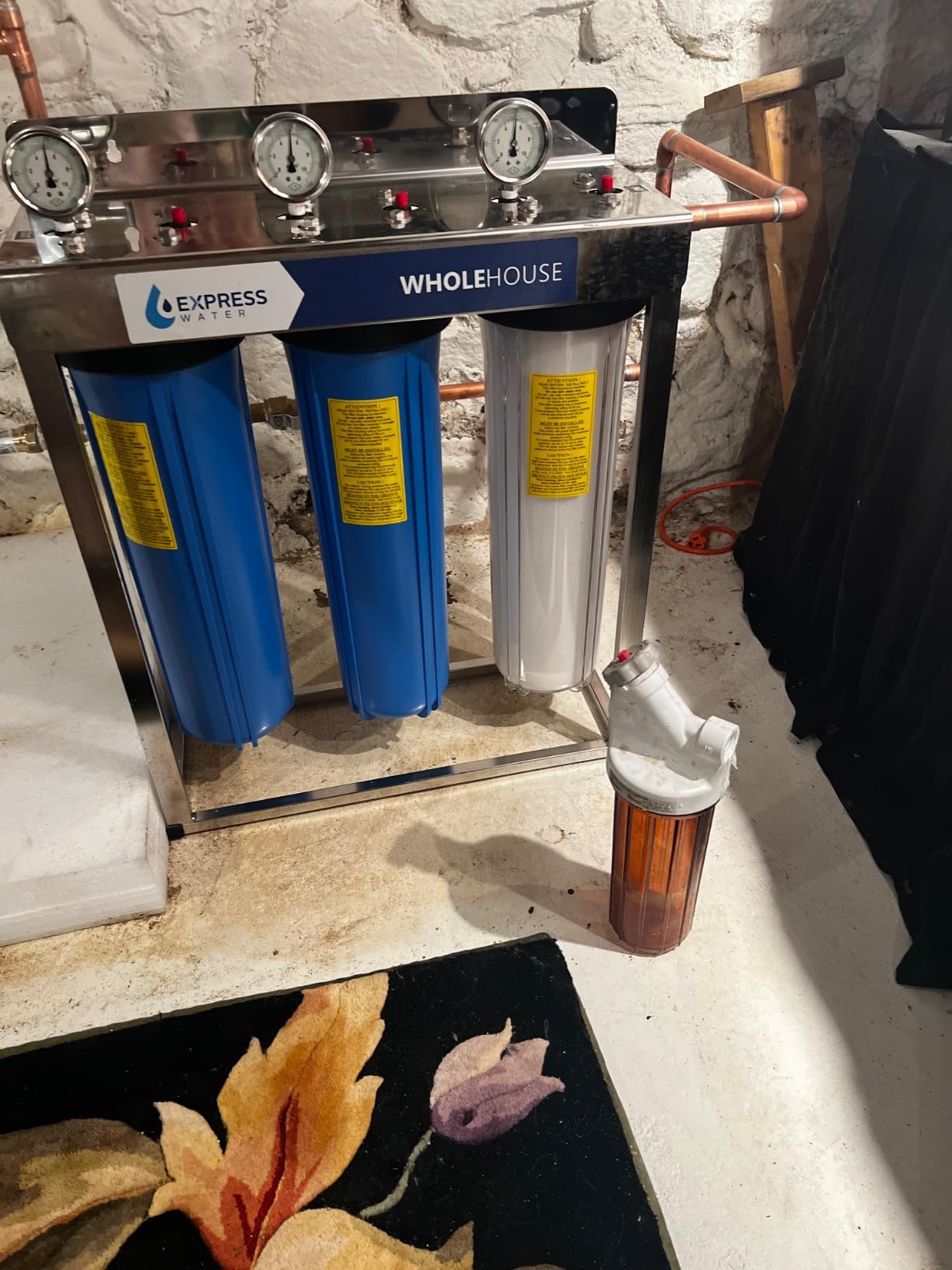

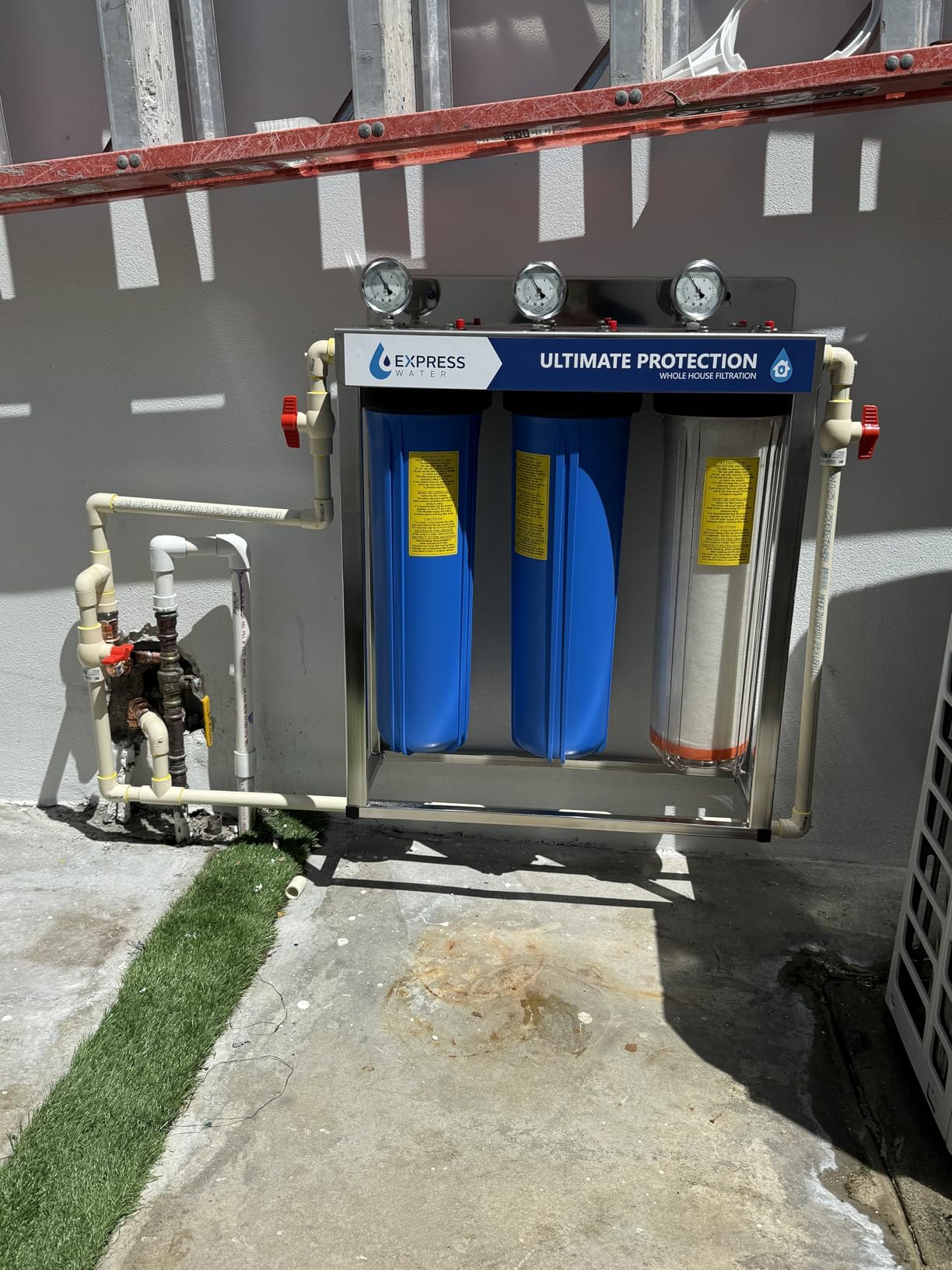

3. Express Water 3-Stage Iron and Manganese System – Best Value Hardware
Express Water Whole House Water Filter System, Iron & Manganese, 3-Stage
Iron and manganese 3-stage
17 GPM
100000 gallons
Stainless steel frame
Pros
- Stainless steel bracket and free-standing frame outlast plastic housings
- Pressure release buttons and gauges on every stage
- 17 GPM suits large homes with three or more baths
- NSF certified media
Cons
- Replacement cartridges sold separately under FLTWH2045ICS1
- Does not reduce TDS
- 6 to 12 month cartridge change schedule
What separates this from the two iSpring systems is the hardware. You get a heavy-duty stainless steel bracket, an optional free-standing frame, and a pressure release button plus a gauge on each of the three housings. That last detail matters more than it sounds, because it lets you see pressure dropping before the water starts tasting wrong rather than guessing.
Flow is strong here, with a rating of up to 17 GPM running from 20 to 80 psi, which suits a four-person household running fixtures together. With more than 2,700 reviews averaging 4.5 stars, the pattern in owner feedback is straightforward: the system clears well water of iron staining and improves taste and odor, and the metal frame is the feature people mention first.
The catch is consumables. Replacement cartridges are not included as a subscription and are ordered separately under part number FLTWH2045ICS1, so a first-year owner needs to remember that when the change interval arrives at six to twelve months. Like every system in this class, it does not reduce TDS, and anyone expecting a desalination result will be disappointed.
It also shares the weight problem of the other 20-inch assemblies, at 57 pounds, and the product is specified for water up to 800 ppm TDS. If your well is softer and cleaner than that and only needs sediment plus taste work, you are paying for steel you will not fully use.
Why gauges matter on a well
Well pressure is never constant. The pump cycles, the pressure tank fills and draws down, and a partially loaded cartridge looks different at 45 psi than at 70. A gauge on each stage turns a vague feeling that something is wrong into a number that tells you which housing is loading up, and that is the difference between a five-minute fix and a shotgun cartridge order.
Who should skip it
Skip this one if you are on a soft, low-sediment well and want something that needs almost no attention. It is a cartridge system, so your maintenance calendar never really empties out, and the stainless frame is a durability upgrade rather than a treatment upgrade. For a low-maintenance path, look at the tank-based options further down.

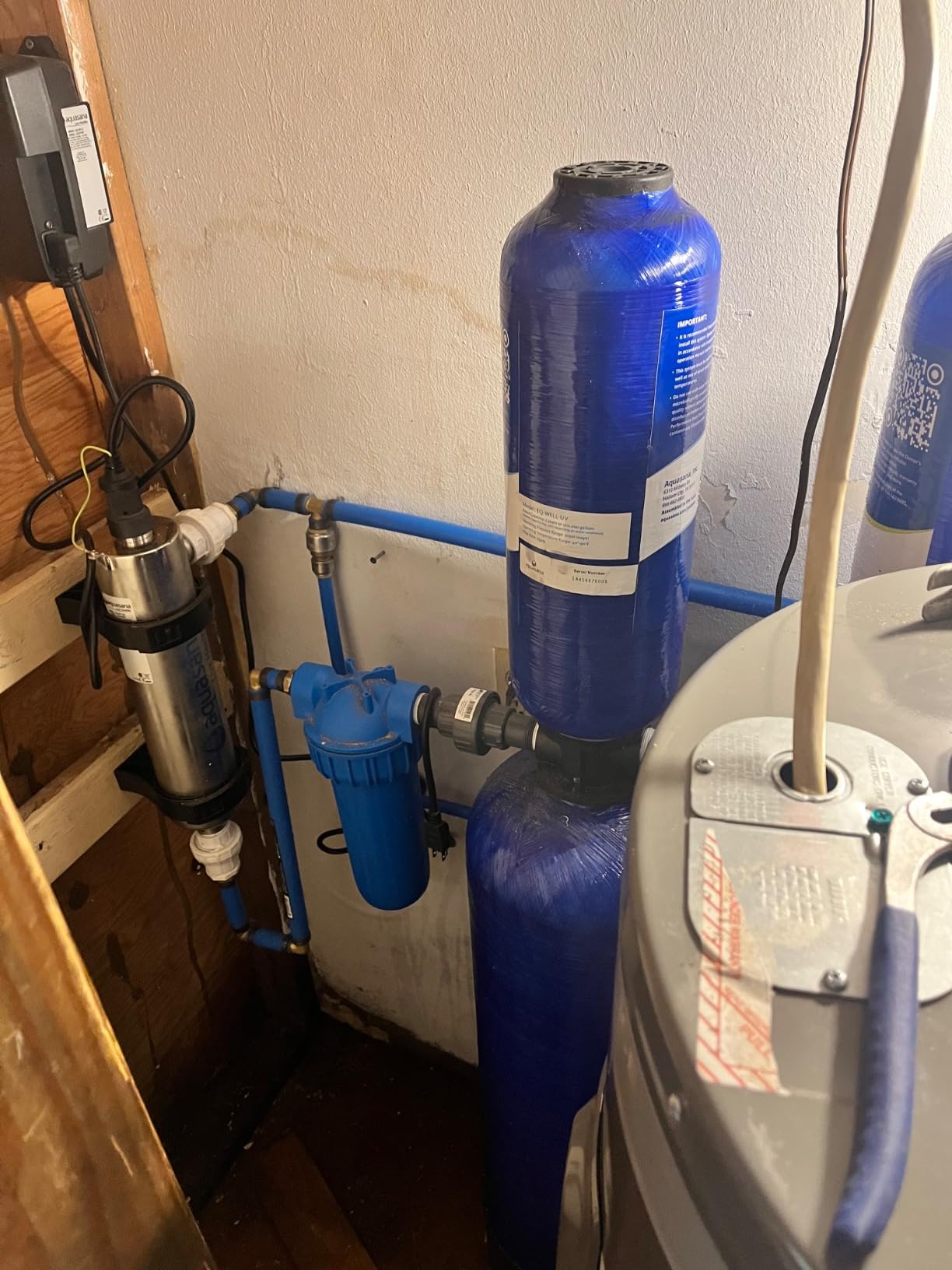

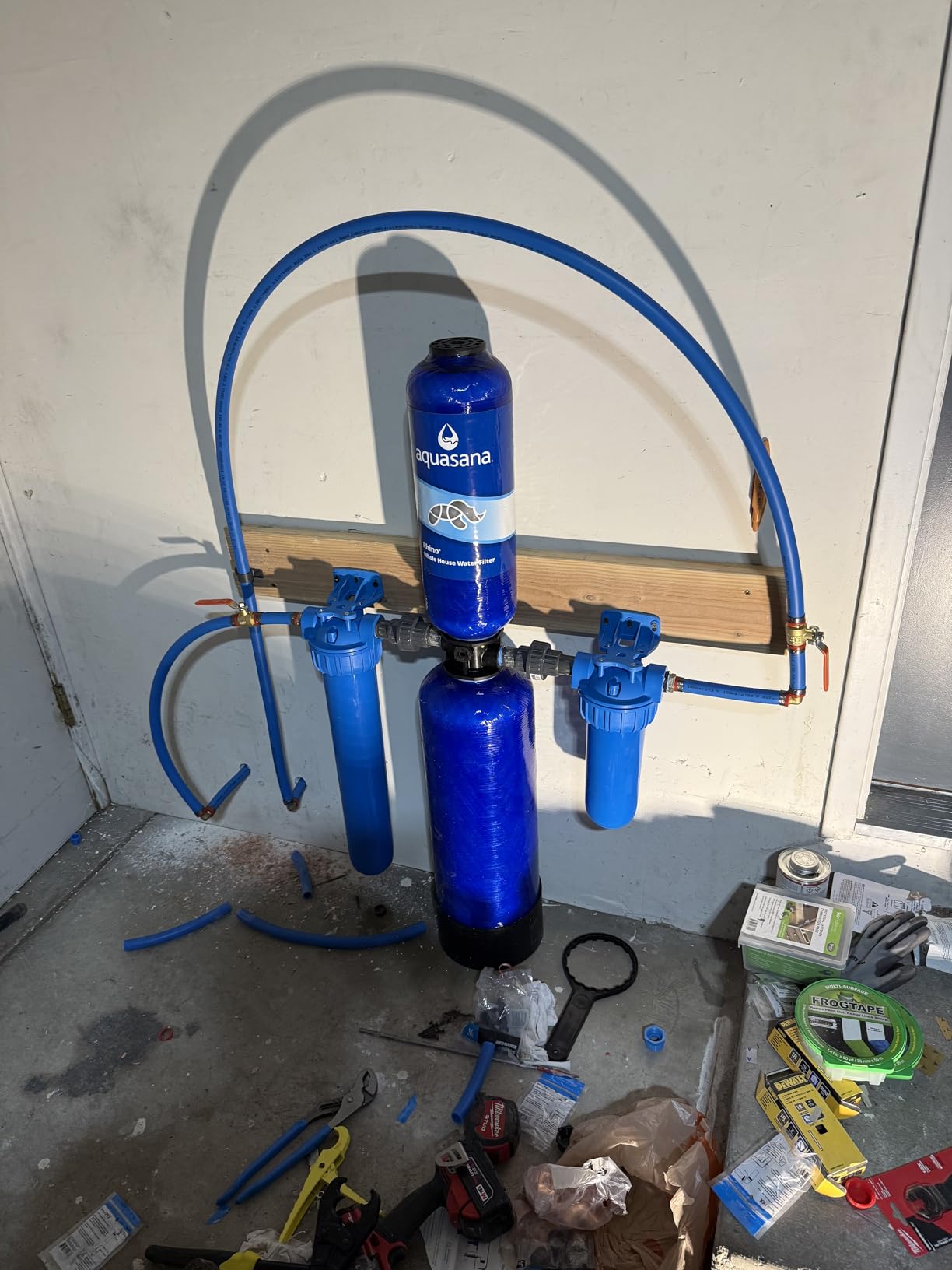

4. Aquasana WH-Well-CT-UVS 500K Gallon UV System – Best for Bacteria and Viruses
Aquasana Whole House Well Water Filter | 500K-Gallon | UV | WH-Well-CT-UVS
500000 gallons
5-year media life
UV to NSF/ANSI 55
14.7 GPM
Salt-free
Pros
- UV reactor certified to NSF/ANSI 55 Class B for bacteria and viruses
- 500000 gallon and 5-year media life
- No backwashing or drain line required
- Salt-free scale control avoids salt bags
Cons
- Only rated for iron under 0.3 ppm and pH below 8.3
- Plumbing connections are plastic and several owners swapped to brass
- Self-install voids the warranty
If your lab report shows coliform or E. coli, disinfection is a separate problem from filtration, and this is the only unit in the roundup that addresses it head-on. The UV chamber is certified to NSF/ANSI Standard 55 Class B, which is the standard for microbiological water purifiers, and it sits in a stack with a 20-inch prefilter, a carbon and KDF tank, a salt-free conditioner and a 10-inch post-filter.
The longevity numbers are the appeal. 500000 gallons or five years of service, with a five-year limited warranty and spare part availability for five years. The scale control media is salt-free and does not backwash or discharge water, so there is no drain line and no water bill impact. Flow is rated at 14.7 GPM across a 20 to 100 psi operating range.
Now the constraint that matters most. The manufacturer optimizes this system for moderate hardness, specifying water under 15 gpg hardness, 250 mg/L alkalinity, pH below 8.3 and iron under 0.3 ppm. That is a well with genuinely good water. If your iron is above 0.3 ppm, you need an iron filter ahead of this, and the total project stops being a single purchase.
Owners on suitable water report strong chlorine reduction, clearer water and better hair and skin feel, plus real savings from a five-year media life. The critical reviews concentrate on the plumbing. Multiple buyers replaced the plastic threads and plastic-to-plastic connections with brass, the carbon flushing can put fine black specks into the house water for weeks after install, and the warranty is voided by self-installation, so budget for professional work on this one.
What UV does and does not fix
A UV reactor inactivates bacteria and viruses as water passes through the chamber, and it does that without adding anything to your water. What it does not do is remove sediment, iron, sulfur or dissolved solids, which is why this system pairs the chamber with filtration stages in front and behind it. Cloudy water shielding the lamp reduces the treatment, so the prefilter is not optional decoration.
Before you order, check these three numbers
Confirm iron under 0.3 ppm, pH below 8.3 and hardness under 15 gpg before you commit. Also confirm you have wall space, because a 57 by 57 inch footprint does not fit in a typical crawlspace utility bay, and decide early whether you are hiring an installer given the warranty terms. This is a well-water system for good water, not a fix for a bad well.
5. AFWFilters Iron Pro 2 Combination Softener and Iron Filter – Best for Hardness and Iron Together
AFWFilters Iron Pro 2 Combination Water Softener Iron Filter Fleck 5600SXT Digital Metered Valve 64,000 Grain – High Flow for Whole House Use – Removes Hardness, Iron, Manganese, Sediment, Rust
Fleck 5600SXT valve
64000 grain capacity
Iron to 6 ppm
5-year warranty
Pros
- Handles hardness and iron in a single footprint
- Removes iron and manganese up to 6 ppm
- Digital metered valve tracks usage and can detect leaks
- Costs well under local contractor quotes
Cons
- Arrives in multiple boxes and the resin tank needs two people
- Drain line and plumbing familiarity required
- Valve programming documentation is thin
Most well houses end up with a softener anyway, and this folds the iron filter into that footprint. The Iron Pro 2 pairs a Fleck 5600SXT digital metered control valve with a 64000 grain softener and an iron and manganese stage rated to 6 ppm of each. That is a materially higher iron ceiling than any of the cartridge systems here, and it is the reason this unit is the pick for a hard, iron-bearing well.
Owners report the strongest before-and-after results in this roundup, including clear water, no sulfur odor and stains that did not come back. Reviewers also highlight value against local water treatment contractor quotes, and the digital valve’s ability to track usage and flag a leak is a genuine upgrade over a mechanical head.
It is a softener, so salt and brine are part of the deal. If your hardness is modest, say around 3.5 grains, you may not need one at all, and an owner on a well that question was asked of was told a softener was unnecessary. Nobody should buy a 64000-grain softener for water that does not warrant it.
Logistically, expect a delivery in multiple boxes with the resin-filled tank weighing in at 119 pounds. The Fleck valve programming menu is more capable than the documentation describes, so plan to spend time learning it. You will also need to buy a drain line, and the inlet valve can weep on first startup until the water is cycled off and back on.
When one tank beats two boxes
Each stage you add is another pressure drop and another thing to plumb. On a well where hardness and iron are both real problems, a combined tank keeps the footprint to one footprint and the drain to one drain. The trade is sodium, and one long-term owner put it plainly, preferring moderate iron over the sodium a softener introduces.
What to verify before the truck arrives
Check your hardness number first, because this is the wrong tool for a low-hardness well. Then confirm you can handle a 119-pound tank and that you have a drain route for brine discharge, which is a non-negotiable design constraint in most codes. Budget extra time for the Fleck valve setup, and read up on the backwash cycle before the first regeneration rather than after.

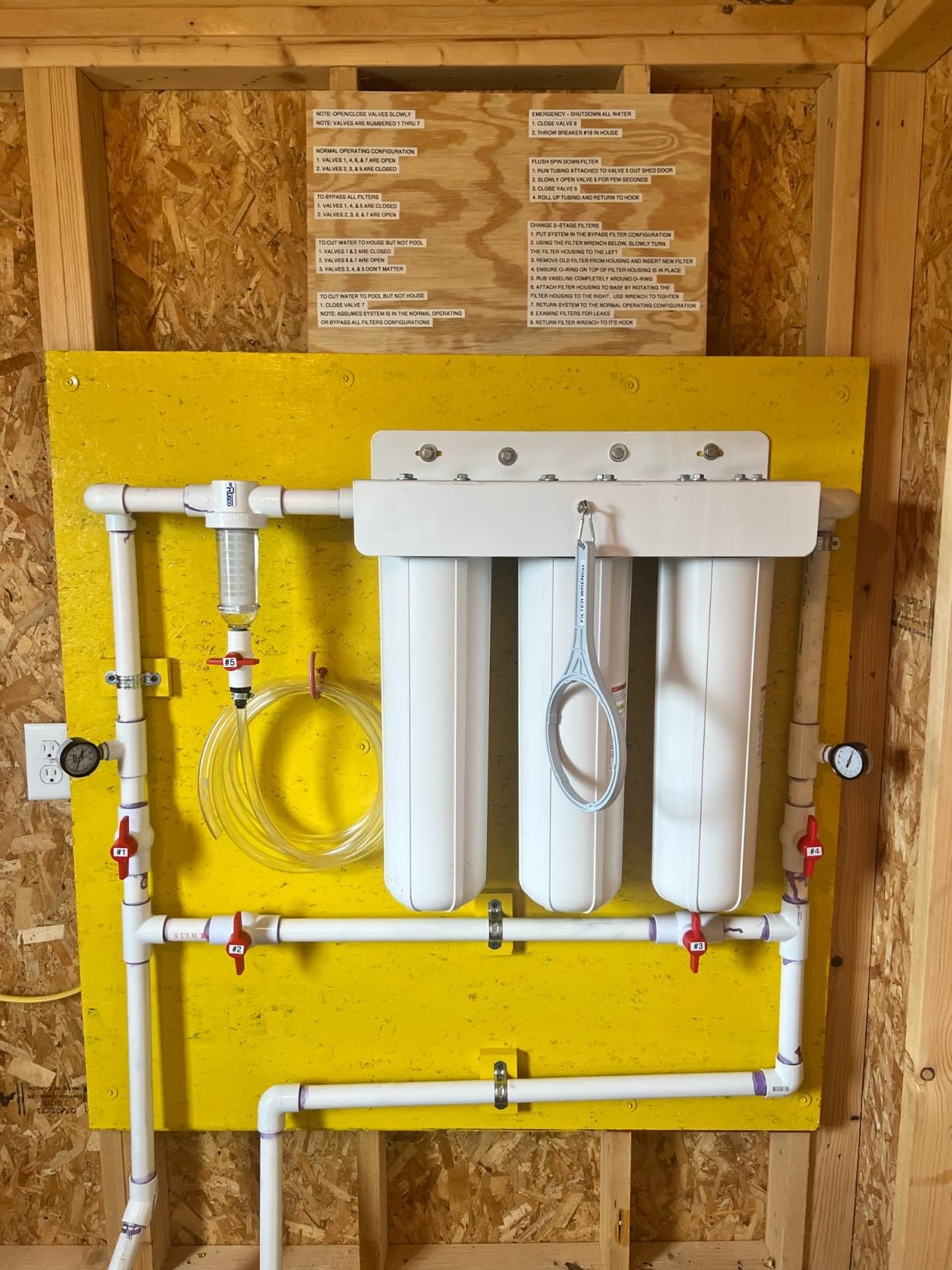

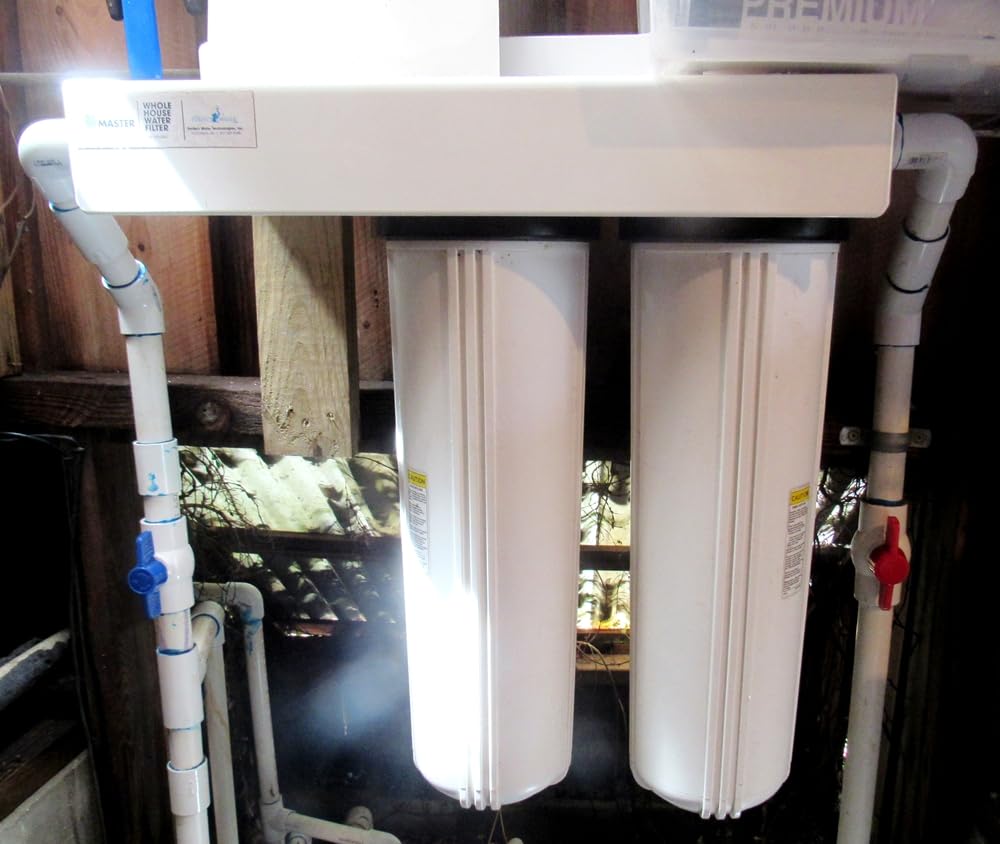

6. Home Master HMF3SdgFeC 3-Stage Filter – Best for Fine Sediment and Sulfur
Home Master Whole House Three Stage Water Filtration System with Fine Sediment, Iron and Carbon, Blue
25-10-5-1 micron layers
15 GPM
Combined iron and sulfur to 3 ppm
100000 gallons
Pros
- 4-layer 25-10-5-1 micron cartridge holds a lot of dirt
- Heavy steel bracket and oversize housings
- Consistently clears iron staining and sulfur smell
- Manufacturer follows up with customers annually
Cons
- O-rings can lose diameter and pop out of the groove
- Plastic-to-copper fittings can leak or melt during soldering
- Sediment stage can load in under three months on dirty wells
This is the pick for wells where the complaint is fine grit in the washer, staining at the faucet and a sulfur smell, and where you want the sediment stage to be aggressive. The four-layer 25-10-5-1 micron cartridge is unusually fine at the end of the gradient, and buyers on high-iron, sulfur-smelling wells report immediate removal of color, odor and staining.
Capacity is 100000 gallons at up to 15 GPM through 1-inch ports in a 20 to 95 psi range, with a two-year limited parts warranty. The heavy steel bracket and oversize housings are the mechanical upgrade here, and the company checking in with customers annually comes up often enough in reviews that it is worth mentioning as a service difference.
The consistent negative theme is the O-rings. Owners report them losing their diameter over time and escaping the housing groove, producing leaks that are hard to trace, and the suggested workaround is greasing the rings at install and keeping spares. If you install this yourself, that is the first thing to get right.
Two more practical warnings. Do not solder near the plastic-to-copper fittings without heat protection, because owners have melted them. And on a high-sediment well, reviewers stress that you test the water and put a dedicated pre-sediment stage in front, because this cartridge can load in under three months otherwise.
Choosing between 1 micron and 5 micron
Finer is not automatically better. A 1-micron nominal rating captures more, but it loads faster and drives pressure drop up as it fills, and on a well with heavy sediment the smart move is a coarse stage ahead of it. Owners in forums make the same point, describing roughly four-month life on a 10-micron string wound element and switching coarser when the well demanded it.
Know your sulfur situation
This system targets iron, manganese, sediment and taste-and-odor chemicals up to a combined 3 ppm load. If your hydrogen sulfide reading is high enough that the media cannot hold it, a catalytic carbon stage like this helps with the residual odor but does not treat the gas itself, and you will want a dedicated sulfur media tank discussed with a dealer.

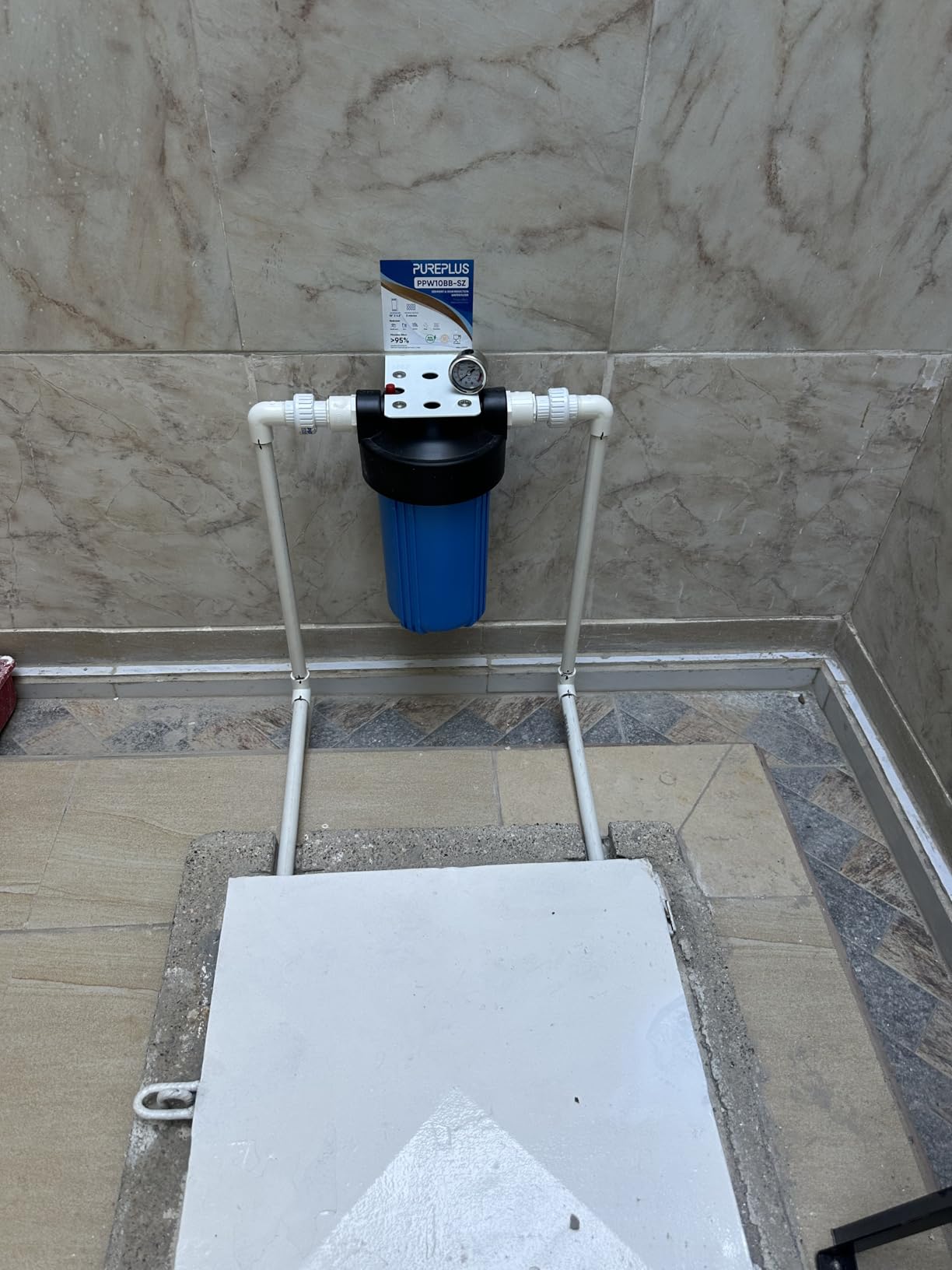

7. PUREPLUS 1-Stage Whole House Well Water Filter – Most Versatile for Light Problems
PUREPLUS 1-Stage Whole House Water Filter, for Well Water
Iron and manganese cartridge
Universal 10 inch housing
1-inch NPT
Composite media
Pros
- Lowest entry cost in this roundup for treating well sediment and iron
- Universal housing accepts cartridges from many brands
- Cartridge swaps take about ten minutes with one wrench
- Bracket and wrench plus screws and O-rings included
Cons
- Composite cartridge must be bought whole with no inner element reuse
- Replacement cartridges cost roughly double the outer sediment sleeve
- Supplied inlet and outlet adapters are the leakiest part of the install
For a well that tests clean on bacteria, has iron in the low range and mostly needs rust and sediment handled, this single housing does the job for a fraction of a multi-stage assembly. The composite cartridge combines sediment filtration with an iron and manganese reducing media, and owners with well water problems report it performing as advertised.
The housing is the genuinely clever part. It is a universal 10 inch by 4.5 inch unit that accepts PP10BB, PP10BB-CC, PPL10BB or CTO10BB cartridges, so you are not locked into one brand of media when conditions change. Swaps need only a wrench, and one owner reported four months leak-free after install.
The limitation people complain about most is the replacement math. The composite iron cartridge has to be purchased whole, and the inner element cannot be swapped on its own despite impressions to the contrary, so each change costs roughly double what a plain sediment sleeve would. That is fine at low consumption and irritating at high consumption.
The supplied inlet and outlet seal adapters are also the fussiest part of installation and the most common leak source in reviews. And a single 10-inch housing simply does not have much dirt capacity, so on a silty well you will be on the wrench more often than the annual interval people hope for.
When a single stage is genuinely enough
Fewer stages means less pressure loss, and that principle comes up constantly in owner discussions, where the advice is to use no more filters than needed because each one costs you flow. If your lab report shows modest iron and no bacteria, a single well-chosen composite cartridge is a legitimate answer rather than a compromise.
What it cannot absorb
This is a sediment and iron unit. It has no UV, no carbon bed for chlorine or VOC reduction, no sulfur media, and it does not reduce TDS. If your water is soft, clear and low in iron, it is more filter than you need, and if your water is hard, high-iron or bacterial, it is not enough on its own.
8. PRO+AQUA PRO-WELL-1E Tank System – Best for Programmed Automatic Control
PRO+AQUA Heavy Duty Whole House Well Water Filter System
1 cubic foot tank
10 GPM
Programmable digital control
Auto-flush intervals
Pros
- Programmable backlit display with adjustable auto-flush intervals
- Tank-based capacity rated for households of four or more
- Fiberglass-lined polyethylene tank with prefilled resin
- Three connection options for flexible installation
- Warranty extends to 3 years with registration
Cons
- Lowest rated in this roundup at 4.1 stars
- Does not reduce TDS
- 91 pound tank needs planning for mounting space
The reason to look at this tank is control. The backlit digital head lets you set automatic flush intervals to match your actual water quality and usage, rather than running a fixed schedule that either wastes water or lets media foul. The 1 cubic foot media tank moves up to 10 GPM and is rated for households of four or more.
It arrives with a fiberglass-lined polyethylene tank, a durable bypass valve and prefilled resin, assembled in the USA with commercial grade parts. Three connection options make retrofitting onto awkward plumbing layouts easier, and the warranty goes from one year to three when you register within 60 days.
Be honest about the evidence. At 4.1 stars this is the lowest-rated product in the group, and the review distribution is notably more spread out than the others, with a meaningful share of one-star ratings. Buyers who like the controller rate it well; buyers expecting the broad 99% removal claim for chemicals, heavy metals, radionuclides, iron, hydrogen sulfide and manganese report being let down.
That claim is the manufacturer’s own description, and the specification listing does not show an independent certification for it. Our whole house filtration system comparison covers what certification language generally means, and that distinction matters more than any brand name on the tank.
Why a programmable head is worth paying for
Flush scheduling is the single thing that determines whether a media tank serves you well for a decade or two years. Set too often, you waste water and media. Set too rarely, the bed fouls and pressure climbs. A head you can adjust after watching your own water gives you the control a fixed head denies you, and that is the argument for this unit.
Where I would look elsewhere
If your priority is a verified contaminant claim, this is the wrong pick, because the removal language is broad but not independently certified. If your priority is the lowest possible maintenance burden, a non-backwashing carbon tank is a shorter conversation. And the 91-pound tank with a valve head is a two-person lift, so plan the install path before it arrives.

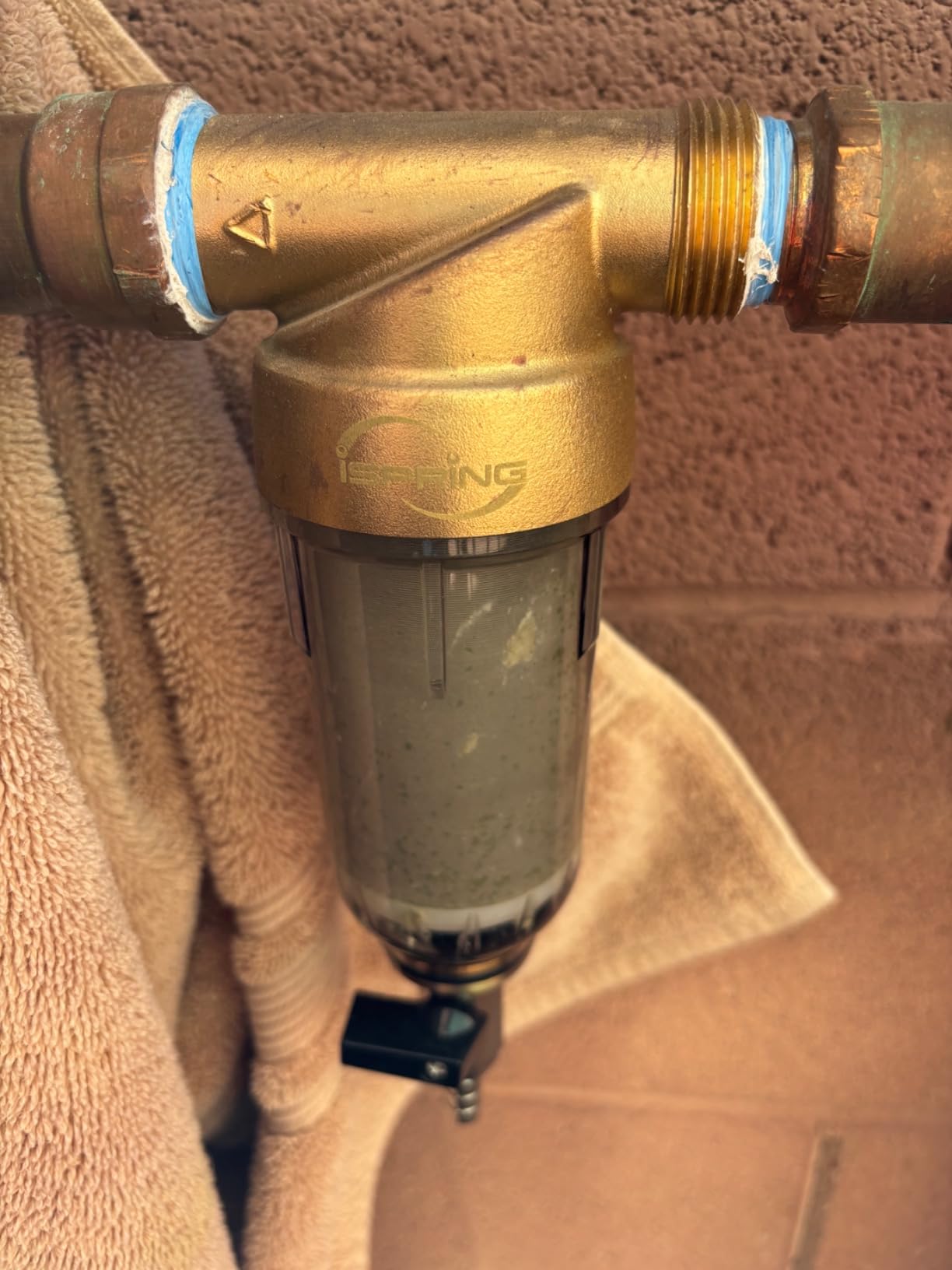

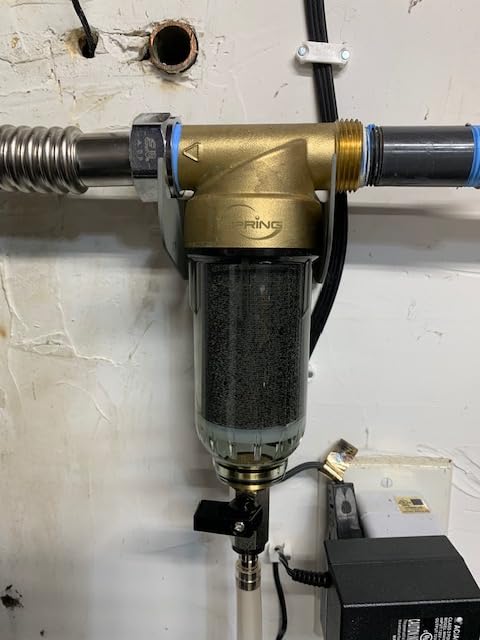

9. iSpring WSP-50 Spin Down Sediment Filter – Best Prefilter to Pair With Anything
iSpring WSP-50 Spin Down Sediment Filter, Whole House Prefilter, 50 Micron
50 micron stainless mesh
Reusable and flushable
1-inch MNPT and 3/4-inch FNPT
Indoor use
Pros
- Flushable and reusable
- extending the life of costly downstream cartridges
- See-through housing shows what it captures
- Lead-free brass head with stainless mesh that lasts 1 to 2 years
- Bottom valve doubles as a bleed-down point
Cons
- 50 micron is too fine for silty wells and chokes quickly
- Needs regular manual flushing on demanding wells
- Not rated for outdoor or freezing installs
This is not a treatment system and it is not trying to be one. It is the sacrificial first stage that protects whatever comes after it, and with more than 3,600 reviews it is one of the most thoroughly proven parts in this roundup. Reviewers overwhelmingly install it ahead of a whole house system to catch sand and rust flakes before they reach expensive media.
The build is simple and deliberate. A lead-free brass head, a reusable stainless steel mesh screen rated for one to two years, dual O-rings, and connections at 1-inch MNPT and 3/4-inch FNPT on both ends with a garden hose barb on the flush valve. The see-through housing lets you confirm in seconds whether it is doing its job.
The lesson that repeats across nearly every review is micron selection. A 50 micron screen works on a clean well and clogs on a silty or clay-heavy one, dropping flow fast, and multiple owners switched to 100 or 200 micron after contacting the manufacturer, which supplied the replacement screens at no charge. If you buy this, plan to resize the screen once you see your real water.
It also needs flushing, sometimes weekly on a demanding well, and the housing is short enough that it fills quickly. One nice bonus: the bottom clean-out valve doubles as a bleed-down point for other plumbing work, which saves a bucket more than once.
Should this be your only filter
Only if your well is genuinely low in iron, sulfur and bacteria. A 50 micron mesh does nothing about dissolved iron, which passes straight through as clear water that later stains, and nothing at all about coliform. In most homes we would treat it as a low-cost prefilter in front of a real system rather than a replacement for one.
Why prefiltering pays for itself
Cartridge cost is the argument. A spun or pleated element that is catching sand instead of doing its actual job reaches end of life in weeks, and a spin-down screen flushes that load away in under a minute with no parts. Put one of these ahead of any multi-stage cartridge assembly and your cartridge interval stretches back toward the rated figure.
10. Waterdrop BG103 Mega Spin Down Sediment Filter – Best for Muddy Well Water
Waterdrop BG103 Mega Spin Down Sediment Filter, 500 + 200 Micron
500 and 200 micron mesh
25 GPM
360 degree backwash
2-way bypass
Pros
- Coarse 500 and 200 micron screens tolerate muddy well water
- 25 GPM with almost no measurable pressure drop
- Forged brass head at 3.2 pounds with a nano-coating
- Reusable backwash design purges debris fast
- Magnetic technology attracts ferrous particles
Cons
- Supplied wall bracket rests the unit without holding it firmly
- Union reducer connectors are awkward to seal
- Off position does not stop gravity backflow
If your well runs brown after heavy rain, this is the prefilter built for it. A 20-times larger chamber holds paired 500 and 200 micron mesh screens, so the unit catches pebbles, coarse sand, leaf debris, fine sand, rust flakes, silt and algae fragments without the choking you get from a fine spin-down. Flow is rated at 25 GPM across a 14.5 to 72 psi operating range.
Owners with sandy, silty water credit the coarse pairing with holding pressure essentially constant, which is why it stands apart from the 50-micron alternative. The 360-degree power flush with a two-way bypass valve cleans in either direction, and the manual suggests cleaning every two weeks with a monthly deep clean.
The hardware criticisms are consistent enough to plan around. The supplied wall bracket acts as a rest rather than a holder, so brace it properly if the unit is in a place where it can be knocked. The union reducer connectors are hard to make leak-proof, and the included wrench can struggle with the filter ring badly enough that some people remove the whole unit from the wall.
One buyer also found that the Off position on the top control does not isolate the unit from downstream backflow, which matters if you install it above a floor drain. Waterdrop resolved that instance by replacing the unit, but the point stands: consider adding your own isolation valve so service is not a surprise.
Why coarse screens beat fine ones on muddy wells
A 50 micron screen on silty water stops capturing at the surface and becomes a pressure drop with a hole in the middle. A 500 micron outer screen paired with a 200 micron inner screen passes the flow while intercepting the grit that actually abrades downstream media, and the oversize chamber gives it dirt capacity before the flush interval matters.
What it will not treat
Like every spin-down unit here, it is mechanical filtration. It does not address dissolved iron, manganese, sulfur, bacteria, VOCs or TDS, and the magnetic component is a scale-disruption feature rather than a contaminant removal technology. Treat it as stage one in front of a real media or cartridge system.
11. A. O. Smith 600K Gallon Whole House Filter – Best for Lowest Maintenance
A. O. Smith Whole House Water Filter System | 600K Gal | AO-WH-Filter
600000 gallons
6-year media life
NSF/ANSI 42
7 GPM
No backwash
Pros
- 6-year or 600000 gallon media life is among the lowest ongoing cost
- No backflushing or drain line required
- DIY install with shut-off valve and hose adapter included
- 96.9% chlorine taste and odor reduction
Cons
- Does not reduce TDS
- sulfur or iron
- 7 GPM is low for large homes
- A separate prefilter is recommended and adds cost
If your maintenance tolerance is low, this is the system to look at. The central carbon filter runs 600000 gallons or six years, whichever comes first, and there is no drainage, no backflushing and no water waste. With roughly 1,970 reviews, owners consistently praise the endurance and the simplicity of the install.
It is NSF/ANSI Standard 42 certified for chlorine taste and odor, rated at 96.9% reduction, and the box includes a shut-off valve, hose adapter and nipple so a plumber is genuinely optional. A six-year limited warranty and six years of spare part availability add real longevity for a central cartridge.
Be clear-eyed about the limits, because this is where well owners get frustrated. It does not reduce TDS, sulfur or iron, and carbon-based media does not treat iron on unchlorinated well water. On a private well, its main job is taste and odor plus whatever sediment the carbon bed catches, and it works best as one stage among several.
Seven GPM maximum flow is also modest. In a large home with three or more bathrooms running fixtures simultaneously, that ceiling is felt, and the manufacturer recommends a prefilter, which adds a component and a change interval. Our budget whole house filter picks cover lower-cost ways to cover that gap.
What a no-drain design actually saves
A backwashing system sends gallons to a drain on a schedule, and that drain is a plumbing line you have to build, permit and winterize. This design eliminates all of that, which in a cold climate with an unheated well house is worth more than the cartridge interval difference. It also means no water bill impact from regeneration.
Where it belongs in a well setup
Treat it as a taste-and-odor and chlorine stage, typically downstream of any sediment prefilter and upstream of a softener. If your water is high in iron, put an iron stage ahead of it, because a carbon bed working on iron-laden water is a bed that will load early. Pair it with a 3M Aqua-Pure or a spin-down and you have a two-stage system with a six-year interval on the expensive part.
12. 3M Aqua-Pure AP904 Whole House Filtration – Best for Larger Homes
3M Aqua-Pure AP900 Series Whole House Water Filtration System AP904
100000 gallons
Up to 20 GPM
NSF 42 and 372
Quick change cartridge
Pros
- Sanitary Quick Change swaps cartridges without a wrench or touching media
- 304 stainless steel head outlasts plastic housings
- Handles sediment plus chlorine taste and odor plus scale
- Up to 20 GPM suits homes with 3 or more bathrooms
Cons
- One-year cartridge life is short next to tank-based systems
- Proprietary 3M cartridge
- Does not address iron
- sulfur or TDS
This is the flow answer. At up to 20 GPM through a 304 stainless steel head with 1-inch inlet and outlet, it is sized for larger homes with three or more bathrooms, and the manufacturer positions it for exactly that. The single cartridge covers sediment, chlorine taste and odor, and scale inhibition in one element with 100000 gallon capacity.
Two design details set it apart. The Sanitary Quick Change system means a swap needs no wrench and no contact with the media, which matters if you do not want to handle a wet 25-inch cartridge. And the head is stainless steel rather than the plastic most competitors use, which is why owners single it out for durability.
The trade-offs are interval and lock-in. Cartridge life is up to one year, far shorter than a tank-based carbon system, and the replacement is a proprietary 3M Aqua-Pure part, so you are buying from one supplier for the life of the system. Neither is a dealbreaker, but both belong in the cost-per-gallon math.
For a well, it is a sediment and taste-and-odor stage, not a treatment system. It does not touch iron, sulfur or TDS, and its scale inhibition reduces scale rather than removing the hardness causing it. If you run a softener, this protects the softener resin and downstream plumbing; if you do not, the inhibition is a partial measure at best.
When 20 GPM is the deciding number
Flow rating gets ignored until a family runs two showers and a laundry cycle at once, and then a 7 GPM unit feels like a mistake. Sizing guidance generally puts one to two bathrooms at 8 to 10 GPM, three to four at 12 to 15 GPM, and five or more at 15 to 20 GPM or better. Match the unit to the top of your household range, not the average.
Pairing it with an iron stage
On a well, sequence matters. Sediment protection first, then any iron reduction, then this cartridge for taste, odor and scale, then the softener if you have one. Putting the carbon ahead of iron removal just gives the carbon an early death, and putting it after a UV reactor adds pressure the house may not want.
How to Choose a Whole House Water Filter for Well Water?
The decision is not which brand is best, it is which filter type matches the row in your lab report. Work through these sections in order and the product choice usually makes itself.
Match the filter type to your lab report
Read your panel first, then pick the row that matches. Iron between 0.3 and 3 ppm with no bacteria points to a cartridge or combined system such as the iSpring WGB21BM or the AFWFilters Iron Pro 2. Iron above 3 ppm needs a backwashing air-injection tank, not a cartridge, and owners report that an ordinary cartridge filter can plug in under an hour above roughly 20 ppm.
Rotten egg smell means hydrogen sulfide, which a carbon block reduces but does not treat. Coliform or E. coli on the panel means you need disinfection such as the Aquasana UV system, after filtration, because UV needs clear water to work. Manganese staining with low iron points to a manganese-rated media. Sediment only, especially after heavy rain, is a prefilter problem, and it may be a pump problem too.
Size by flow rate, not tank diameter
Owners make this point repeatedly: the least expensive model in a range filters identically if its service flow matches what your pump delivers. Tank diameter is a physical dimension; flow capacity is the number that determines whether your shower pressure holds up. A 10 GPM system on a 17 GPM well will simply cycle more, but a 5 GPM system on a 17 GPM well will starve the house during a morning peak.
Match the top of your range rather than the average. One to two bathrooms is generally 8 to 10 GPM, three to four is 12 to 15 GPM, and five or more is 15 to 20 GPM or higher. For seasonal homes and cabins, size down and add freeze protection instead of buying a system sized for a full-time family.
How much pressure drop is normal
Two to three PSI is normal for a properly sized, maintained system, and a drop under 5 PSI across the whole assembly is unremarkable. Household pressure typically sits between 40 and 60 psi, so a 3 PSI loss is not what people notice. Anything above 10 PSI means something is clogged or the unit is undersized, not merely installed.
Install gauges before and after the system so you can see the number instead of guessing. The fastest way to keep pressure steady is to add fewer stages, because every housing in the line is another restriction. Backwashing media systems also hold flow better over a year than stacked cartridge stages, which is a fair argument for spending up front.
Where the filter goes in the plumbing
There are three common positions. At the wellhead protects the pressure tank and the pump and is the only spot that handles water before it reaches anything else. After the pressure tank and before the main shutoff is the most common whole house point, and it is where most of the systems on this list are meant to go. Inside the house on the main line is the easiest to reach but the last chance to protect anything upstream.
Whatever the position, add a bypass valve and an air gap so you can service the unit without draining the house. If you are in a freezing climate, an unheated well house needs the drain line run far enough that discharge does not become an ice hazard, and seasonal homes need a drain-down plan for the lines you will not heat.
Filter before or after a water softener
Put the filter first. A sediment and iron system ahead of the softener keeps rust and sand out of the resin, and resin fouled by iron is expensive to replace. The exception is a final taste-and-odor carbon stage, which is often better downstream of a softener, because softener resin can shed fines and because carbon after softening tastes better.
Do you need both? A whole house filter is not a softener and a softener is not a filter. If your hardness is under about 7 grains and you only care about taste, a filter alone may be enough, and one owner at 3.5 grains was told a softener was unnecessary. That said, no filter in this roundup reduces TDS, so if you want drinking-water purity you still need a faucet filter or reverse osmosis.
Maintenance schedule and long-run cost
Cartridge systems generally need a change every 3 to 6 months in demanding service and up to 12 months on cleaner water, while tank-based carbon systems run 5 to 6 years or 500000 to 600000 gallons. Media tanks in good service can last a decade or more, with one long-term owner describing a media replacement quote after twenty years of service and the tank still running.
That is the honest cost-of-ownership picture. A cartridge system that looks inexpensive at purchase can cost more over a decade than a tank, while a tank with an unreachable drain route is a system you will not service. If you are in a cold climate with no viable discharge point, the low-maintenance non-backwashing design is usually the more realistic choice.
Backwash water, discharge and freezing climates
Backwashing media systems send water to a drain on a schedule, and that volume of water is a first-order design constraint rather than an afterthought. You need a compliant drain, a slope that will not freeze, and somewhere the discharge does not create an ice hazard for months of the year. Owners in cold climates have reported running a discharge line 90 feet to a runoff area for exactly this reason, and sending backwash water to a septic field is not acceptable.
If you cannot describe where your backwash water goes, do not buy a backwashing system. That is the single most common installation failure we see, and it turns a good tank into a permanent pressure and freeze risk.
When the real problem is the well pump
Sediment that keeps coming back is often not a filter problem at all. A well pump that cycles rapidly surges the well, dries the well walls, sluffs sediment into the water, and then wave action washes it back down. A short-cycle well with pressure switches set too close together can keep your filters loaded no matter how large you make them, and a pressure reducing valve or cycle stop valve on the pump is a far cheaper fix than a bigger filter.
Tell the difference by watching when the sediment appears. Sediment that shows up every time the pump kicks in points at cycling and surging. Sediment that is constant and heavy after rain points at the aquifer. Our smart water monitor picks help you log pressure and flow trends before you spend money on hardware.
Frequently Asked Questions
What is the best well water filter system for home use?
The best whole house well water filter is the one that matches your lab report. For iron up to 3.0 ppm and chlorine taste or odor, a two-stage carbon and iron cartridge system such as the iSpring WGB21BM covers most wells. For iron above 3.0 ppm, choose a backwashing air-injection or oxidation tank. For coliform or E. coli, add a UV reactor downstream of filtration. For sediment alone, a spin-down prefilter handles it without cartridges.
How much does a whole house water filtration system cost for a well?
Cartridge-based whole house systems generally sit in the low hundreds for the hardware, with cartridges replaced every 3 to 12 months. Combined softener and iron systems sit in the middle of the range and add salt and drain requirements. Tank-based systems with UV, carbon, KDF and salt-free scale control run into the low thousands, with a 5-year or 500000 gallon media life that keeps the per-gallon cost very low. Installation adds a plumber’s labour on top of either.
What size whole house water filter do I need?
Size by service flow rate rather than tank diameter. One to two bathrooms generally need 8 to 10 GPM, three to four need 12 to 15 GPM, and five or more need 15 to 20 GPM or higher. Pick a unit rated at or slightly above the top of your household range so pressure holds up when fixtures run together, and size down for seasonal homes.
How much water pressure drop is normal for a whole house filter?
Two to three PSI is normal for a correctly sized and maintained system, and a total drop under 5 PSI across the whole assembly goes unnoticed at typical household pressures of 40 to 60 psi. A drop above 10 PSI points to a clogged or undersized filter rather than normal resistance. Install pressure gauges before and after the system to measure it rather than guess.
Should a whole house filter go before or after the water softener?
Put sediment and iron filtration before the softener so rust and sand do not foul the resin. A final carbon taste-and-odor stage often works better downstream of the softener, where it polishes water that has already been softened and catches any fines the resin sheds. In most well setups the order is spin-down prefilter, iron or sediment stage, carbon stage, then softener.
Can you install a whole house water filter yourself?
Most cartridge and spin-down systems on this list are designed for DIY install, and the iSpring units even arrive pre-assembled on the bracket with a wrench. You will need a bit of plumbing familiarity, Teflon tape, a bucket and a bypass valve. Backwashing tanks, softeners and anything with a UV reactor are better handled by a plumber, and one of the systems here voids its warranty on self-installation.
Which Whole House Water Filter Should You Buy?
Start with the lab report, not with this list. Order a panel from a state-certified lab covering coliform and E. coli, iron, manganese, sulfur, pH, TDS and hardness, then match the result to the filter type that treats it. Every one of the 12 systems here is a good choice for a specific row of that report and a poor choice for the row next to it.
For most wells with iron in the low single digits, our pick for the best whole house water filter for well water is the iSpring WGB21BM, which handles iron to 3.0 ppm, manganese to 1.0 ppm, chlorine and odor at up to 15 GPM with a 50000-gallon capacity. Add the iSpring WSP-50 spin-down filter in front of it if your well carries sand, and you have a complete, properly sequenced two-stage setup.
If your iron is heavier, move up to the iSpring WGB32BM three-stage for the extra sediment protection, or the AFWFilters Iron Pro 2 if hardness is a problem too. If bacteria showed up on the panel, the Aquasana UV system is the one that treats it, and only once your iron is under 0.3 ppm. And if backwash water has nowhere to go, pick a non-backwashing design and accept a narrower contaminant range in exchange for a system you can actually live with.
